Southbend (Middleby) 4361D-2GR Ultimate Gas Ranges
Description
Ultimate 36" Gas Restaurant Range – 2 Burners / 24" Griddle / Standard Oven
Southbend 436 Series | 159,000 BTU Total InputBuilt for kitchens that demand rock-solid reliability, the Southbend Ultimate Series combines powerful open-top cooking, a high-output griddle and a full-size oven in one 36" footprint—perfect for line service, short-order programs and everything in between.
Key Advantages

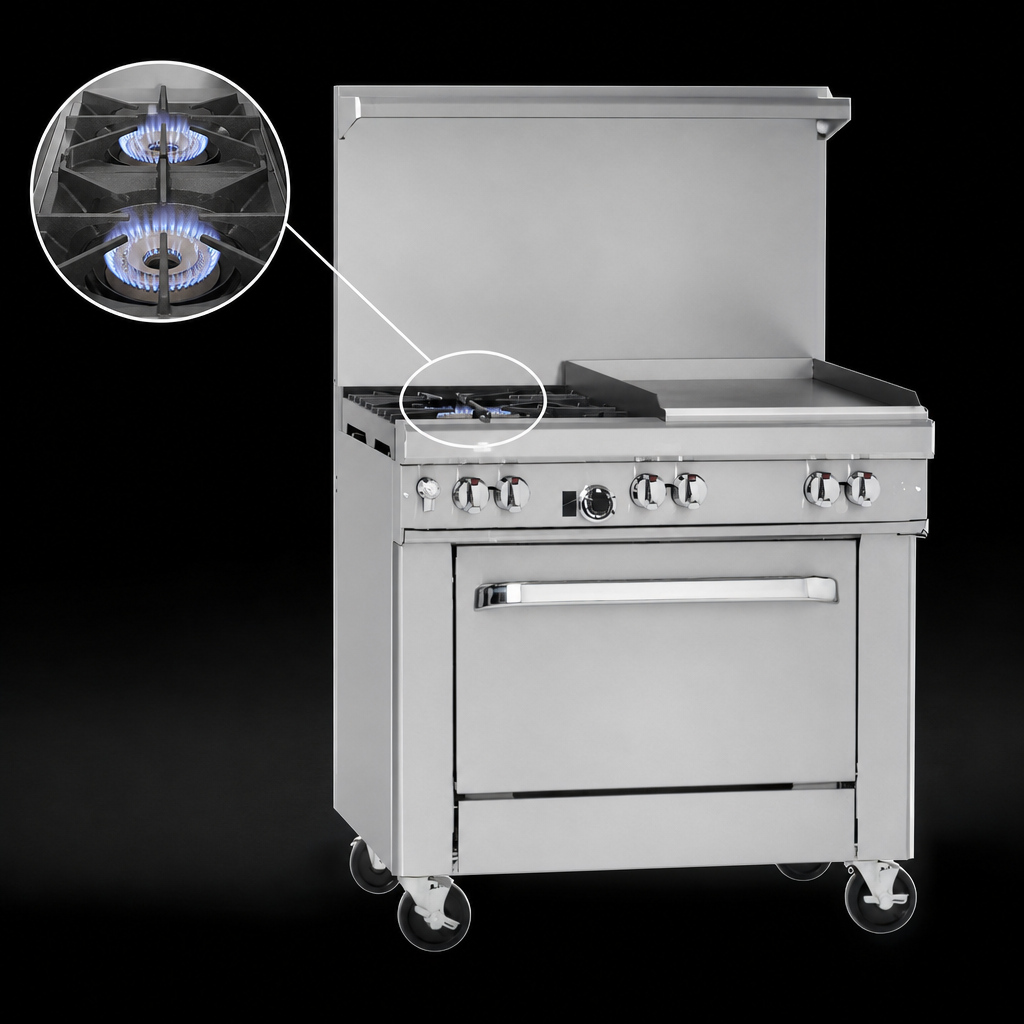

- Two lifetime non-clog cast-iron burners, 33,000 BTU each, with standing pilots for instant ignition
- Right-hand 24" griddle with a ½" cold-rolled steel plate (48,000 BTU) for breakfast favorites, searing and sauté work
- 45,000 BTU standard oven fits full-size sheet pans both ways; battery-spark ignition—no external power needed
- 22.5" flue riser with heavy-duty plate shelf keeps pans, seasonings and plating essentials close at hand
- Front-mounted ¾" manual gas shut-off and factory-installed pressure regulator simplify installation & service
- All-stainless exterior (front, sides, 4" rail & shelf) plus six 6" adjustable stainless-steel legs for a rock-steady setup
- Removable cast-iron top grates (rear grate holds up to a 14" stock pot) and a one-piece drip tray streamline cleanup
- Certified cCSAus, CSA Flame, CSA Star and NSF for code-compliant operation in the U.S. & Canada
Performance Specifications
| Total Input | 159,000 BTU/hr (natural gas) |
|---|---|
| Open Burners | 2 × 33,000 BTU non-clog cast-iron |
| Griddle Section | 24" W (right) • 48,000 BTU • ½" cold-rolled steel |
| Oven | Standard gas • 45,000 BTU • 175 – 550 °F thermostat • Battery-spark ignition • 1 rack, 2 positions |
| Cooking Surface Height | 37" |
| Overall Dimensions | 36.5" W × 34" D × 59.5" H (with riser) |
| Gas Connection | ¾" NPT (rear) |
| Electrical | None required (battery-spark only) |
| Shipping Weight | Approx. 660 lb |
Popular Options & Accessories
- Swivel casters with front brakes
- Extra oven racks
- 5" or 10" flue risers
- ¾" quick-disconnect gas hose & restraining device
- Salamander or cheesemelter mounting kits
Warranty & Certifications
Includes Southbend’s 1-year limited parts & labor warranty. Certified NSF, cCSAus, CSA Flame and CSA Star.
Intended for commercial use only. Unit must be installed under a properly sized ventilation hood and in accordance with all local codes.
