Southbend (Middleby) 4361D-1GR Ultimate Gas Ranges
Description

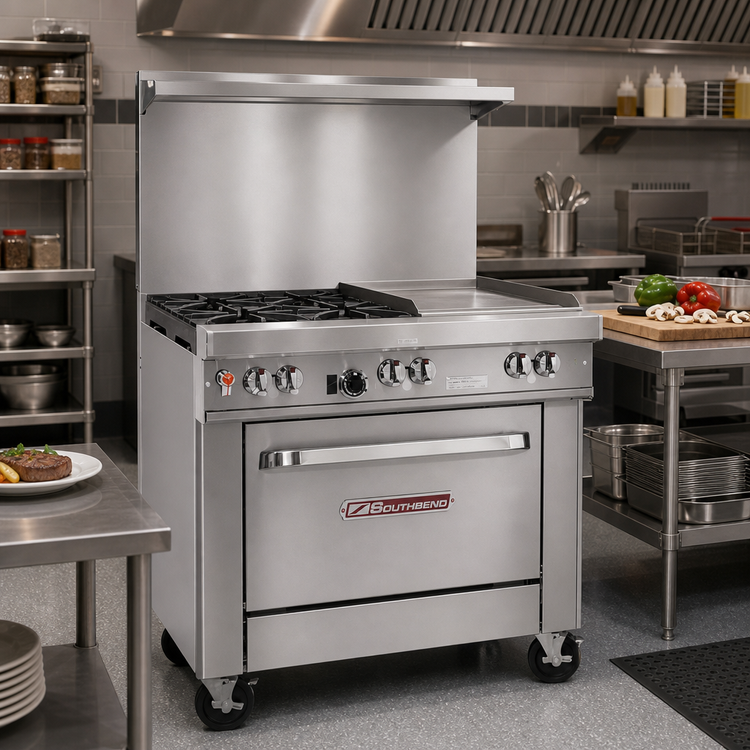

Southbend Ultimate 36" Gas Restaurant Range with 4 Burners & 12" Right-Side Griddle
Model 436D-4B12G | 195,000 BTUBuilt for kitchens that run full-tilt, the Southbend Ultimate Series packs heavy-duty power, precision and durability into a 36-inch footprint. Four patented non-clog burners, a versatile 12-inch griddle and a high-performance oven give you everything you need to sear, sauté, grill and bake—service after service.
Key Performance Features- (4) 33,000 BTU lifetime non-clog cast-iron burners with standing pilots for instant ignition.

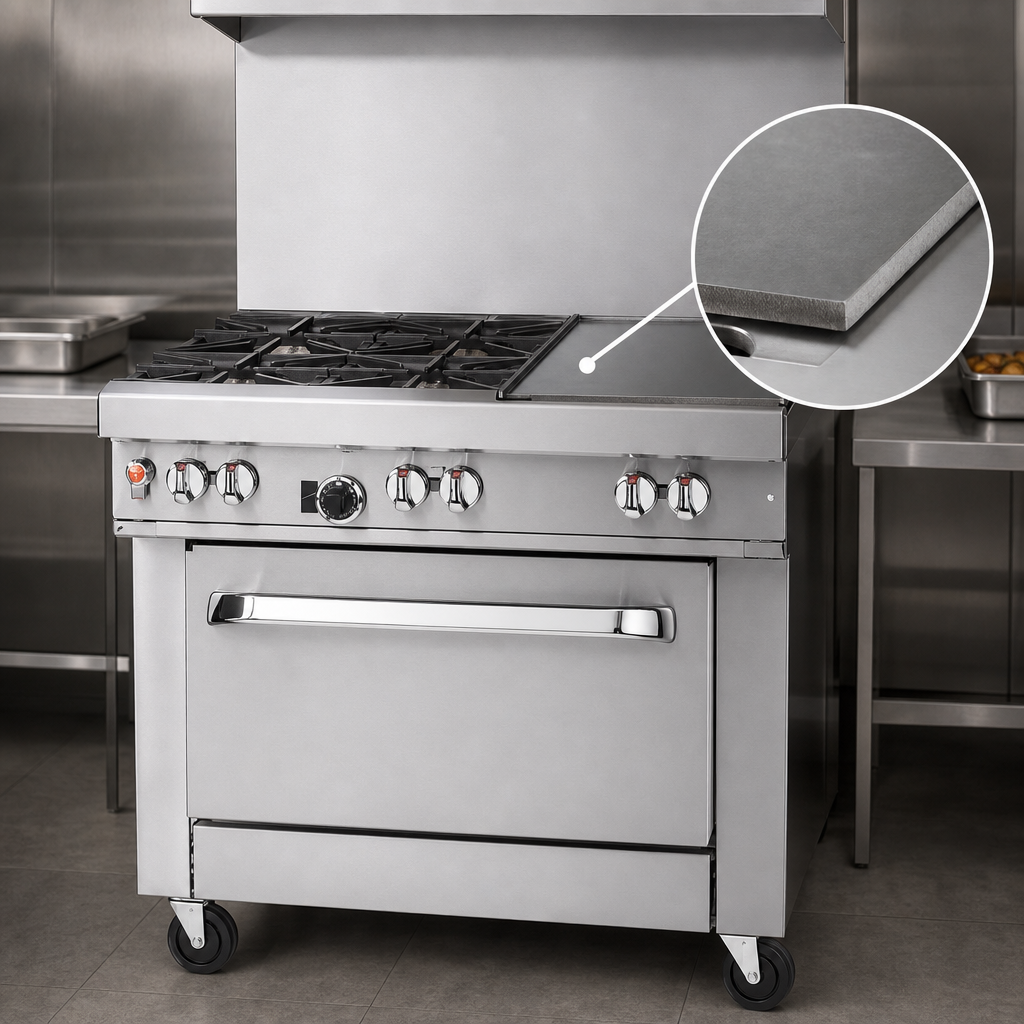

- 12" × 27" cold-rolled ½" steel griddle (manual control) on the right—ideal for burgers, eggs & finishing.
- 45,000 BTU standard oven with battery-spark ignition; no electrical hook-up required.
- Oven thermostat range 175 – 550 °F; porcelain-enameled cavity with coved corners for easy wash-down.
- 27" deep cook surface, 37" working height and a 4" stainless front rail keep the line ergonomic.
- 22 ½" flue riser with integrated stainless shelf—perfect for pans, spices & plating.
- Front-mounted gas shut-off valve and factory-installed regulator streamline installation & service.
- Rugged stainless steel front, sides, shelf & 6" adjustable legs stand up to daily abuse.
- Certified cCSAus, CSA Flame & Star, NSF for safety and sanitation.
| Overall Dimensions (W × D × H) | 36.5" × 34" × 59.5" (to top of flue shelf) |
|---|---|
| Cooking Height | 37" |
| Open Burners | (4) 33,000 BTU cast-iron non-clog |
| Griddle | 12" manual, 18,000 BTU, right-side |
| Oven | Standard, 45,000 BTU, 1 rack included, 26" W × 26.5" D × 14" H interior |
| Total Input | 195,000 BTU/hr (natural gas) |
| Gas Connection | ¾" NPT (rear, opposite the griddle); 7" W.C. min inlet pressure |
| Construction | Stainless front/sides/shelf & flue, cast-iron grates, 6" SS legs |
| Shipping Weight | ≈ 660 lb |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
- Hand-built in Fuquay-Varina, NC and factory-fire-tested for rock-solid reliability.
- Modular design accepts salamander & cheesemelter mounts or optional caster kits.
- Rear grates hold up to a 14" stock pot—great for large-batch prep without sacrificing front burners.
- Full-width removable drip tray keeps your cookline clean and efficient.
