Southbend (Middleby) 4361C Ultimate Gas Ranges
Description

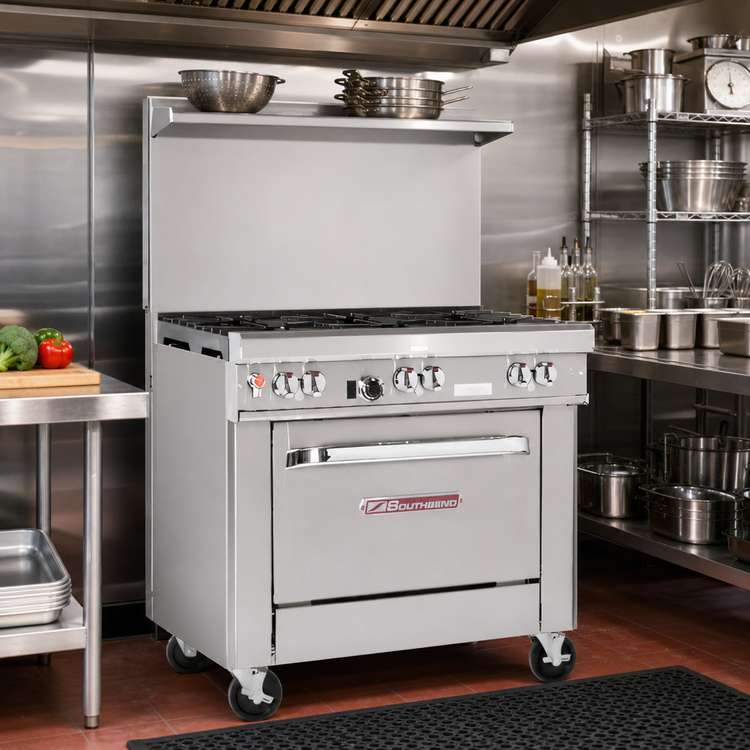

Southbend “Ultimate” 36" Restaurant Range

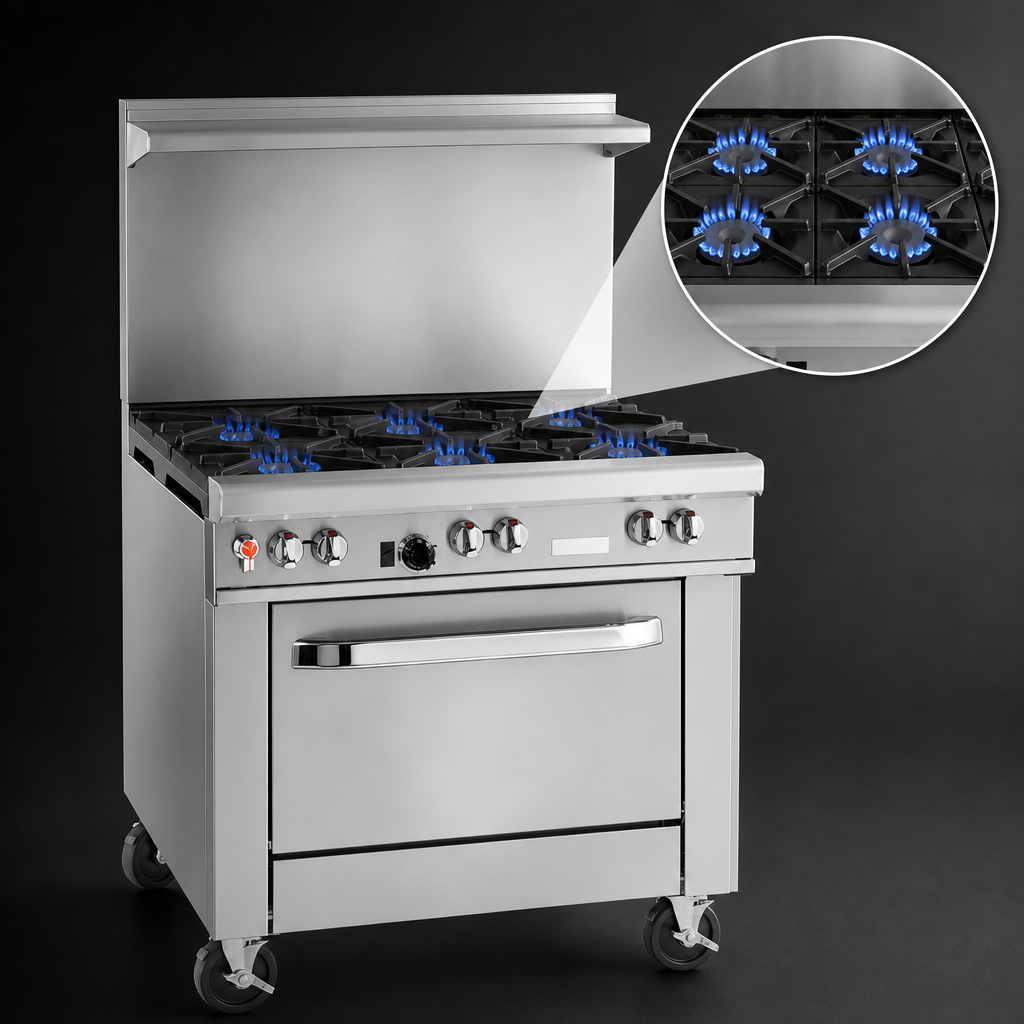

6 Open-Top Non-Clog Burners | Cabinet Base | 198,000 BTUBuilt for the demands of the busiest kitchens, the Southbend Ultimate Series delivers relentless performance, day after day. This 36-inch gas range pairs six patented 33,000 BTU non-clog burners with a spacious cabinet base, giving chefs powerful heat on top and convenient storage below—all in a single, stainless-steel workhorse.
Why You’ll Love It

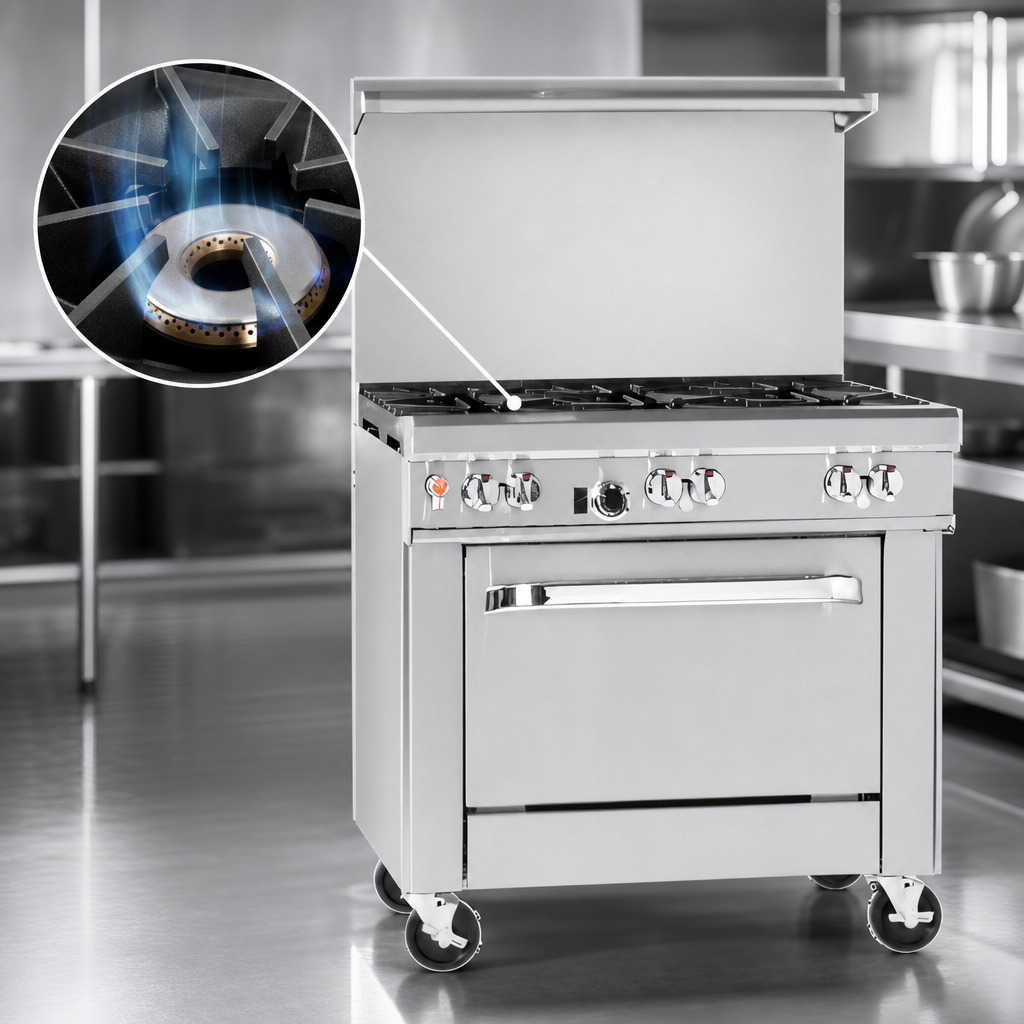

- Six 33,000 BTU non-clog burners – one-piece, lifetime clog-free cast iron for maximum uptime.
- Full 27" deep cook surface – rear grates hold stock pots up to 14".
- Stainless steel construction – front, sides, 4" landing rail, 22½" flue riser & heavy-duty shelf.
- Front-mounted gas shut-off – cut fuel to the entire range in one quick motion.
- Standing pilots for instant burner ignition; factory-installed pressure regulator included.
- 6" adjustable stainless legs level the unit on uneven floors (casters optional).
- Storage cabinet base – keep sheet pans, pots or utensils within arm’s reach.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
- CSA & NSF listed for gas safety and sanitation compliance.
Specifications
| Model / Series | Ultimate 436 C (36" Range w/ Cabinet Base) |
|---|---|
| Total BTU | 198,000 BTU/hr (6 × 33,000 BTU burners) |
| Gas Connection | 3/4" NPT female (right-rear standard) Min. inlet pressure: 7" WC Natural, 11" WC LP |
| Cook Surface (W × D) | 36.5" × 27" |
| Overall Dimensions (W × D × H) | 36.5" × 34" × 59.5" (to top of flue riser shelf) |
| Work-height | 37" |
| Shipping Weight | ≈ 660 lb |
| Electrical | None required for open-top burners (stand-alone gas model) |
| Certifications | CSA, NSF |
Popular Factory Options (add-on)
- Cabinet doors (no-charge swing doors)
- 5" or 10" flue riser (without shelf)
- All-swivel or locking casters
- Rear step-up or star/saute burner configurations
- 12", 24" or 36" griddle or charbroiler sections (left or right)
- Battery spark ignition for open tops
- Quick-disconnect hose kits (3 ft, 4 ft or 5 ft)
Contact us before ordering to configure the perfect range for your kitchen workflow.
Warranty
1-year limited parts & labor. Register at purchase and retain proof of sale for service calls.
