Southbend (Middleby)  |  Ultimate  |  SKU: 4361C-2TR

Southbend (Middleby) 4361C-2TR Ultimate Gas Ranges

$8,334.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 36" Restaurant Range – 2 Burners & 24" Right-Side Thermostatic Griddle

114,000 BTU/h • Natural or LP Gas • cCSAus / CSA Flame / CSA Star / NSF

Engineered for the busiest commercial kitchens, the Southbend Ultimate Series packs two patented non-clog burners and a full-size 24-inch griddle into a rugged 36-inch footprint. From sautéing signature dishes to cranking out breakfast favorites, this all-stainless workhorse delivers the power, control, and durability chefs demand.

Top Features

  • (2) cast-iron, lifetime non-clog open burners rated at 33,000 BTU each with standing pilots and lift-off heads for fast cleanup.

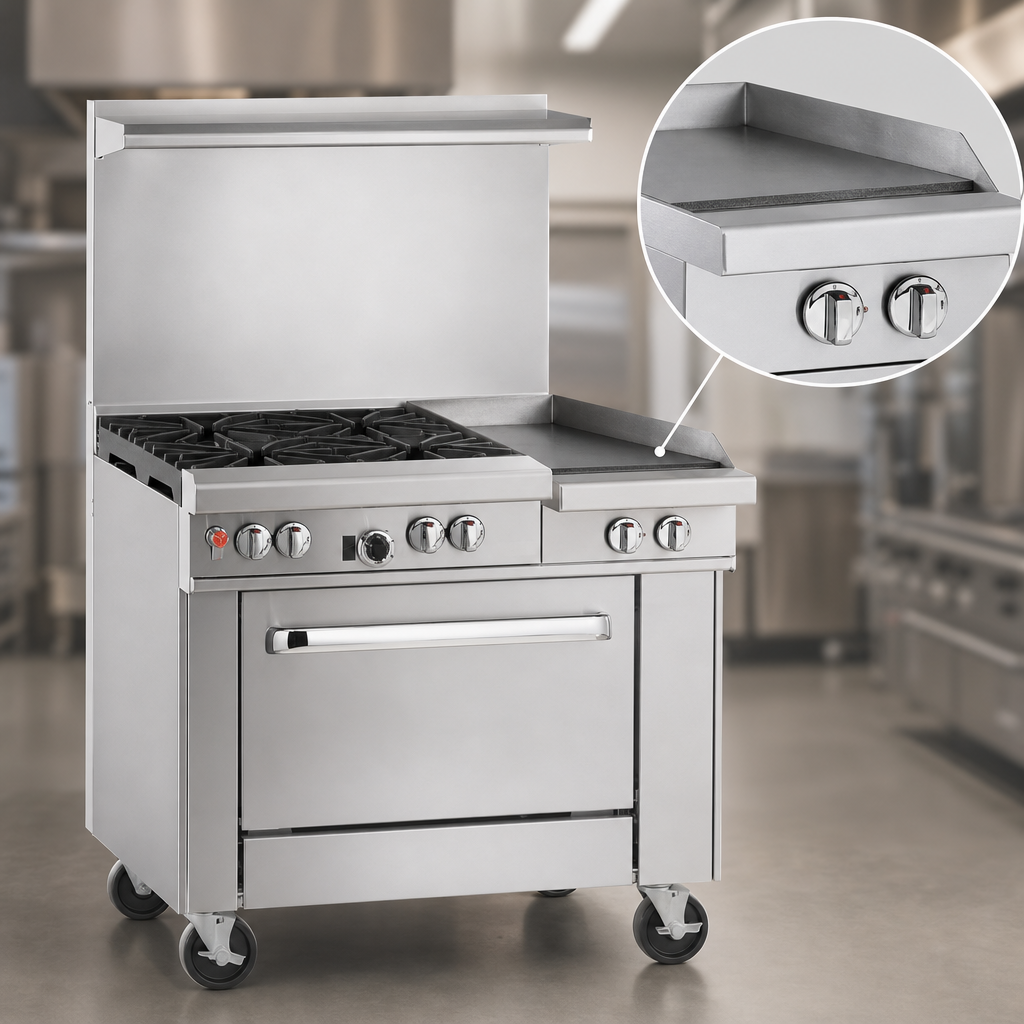

  • 24" right-hand griddle with a ½" cold-rolled steel plate and thermostatic control for precise 175 °F – 550 °F cooking.
  • Combined output of 114,000 BTU/h (Natural or LP) with a factory-installed ¾" gas regulator.
  • 22 ½" flue riser with heavy-duty shelf—perfect for warming plates and keeping spices handy.
  • Stainless steel cabinet base provides convenient dry storage; optional double doors available at no charge.
  • 4" stainless steel front rail shields controls and doubles as plating space.
  • 6" stainless steel adjustable legs ensure a level, code-compliant installation.
  • Front-mounted manual gas shut-off valve for quick, whole-unit control.
  • All stainless steel front, sides, shelf, and riser for maximum durability and easy wipe-down.
  • Backed by a 1-year limited parts & labor warranty from Southbend.

Technical Specifications

Model Ultimate 436 – 2 Burners / 24" Griddle / Cabinet Base
Overall width 36.5" / 927 mm
Overall depth 34" / 864 mm
Cook-top height 37" / 940 mm
Overall height (with riser) 59.5" / 1,511 mm
Open burners 2 × 33,000 BTU cast-iron, non-clog
Griddle 24" W × 27" D, 48,000 BTU, ½" steel plate, thermostatic
Total input 114,000 BTU/h
Gas connection ¾" NPT (opposite the griddle side)
Minimum gas pressure Natural 7" W.C. • LP 11" W.C.
Construction Stainless steel front, sides, rail, shelf & riser
Listings cCSAus • CSA Flame • CSA Star • NSF
Warranty 1-year parts & labor

Perfect For

  • Independent restaurants & cafés needing maximum flexibility in limited space
  • Institutional kitchens in schools, hospitals, and correctional facilities
  • Food trucks, ghost kitchens, and test kitchens
Oversized Cookware Advisory: Pots and pans 12" (305 mm) or larger should be used on the rear grate to prevent excess heat from damaging the front rail and control components.

Commercial installation under a properly sized vent hood is required. For combustible floor installations, 6" legs or casters must be used. This appliance is intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Base

(1) cabinet

Top

(2) open burners, (1) 24" griddle with thermostats

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 36", (2) non-clog burners, standard grates, (1) 24" griddle right, thermostatic controls, standing pilot, cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 114,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
