Southbend (Middleby)  |  Ultimate  |  SKU: 4361C-2GR

Southbend (Middleby) 4361C-2GR Ultimate Gas Ranges

$7,080.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 36" Gas Restaurant Range

2 Non-Clog Burners • 24" Right-Side Manual Griddle • Cabinet Base

Bring the power of Southbend’s flagship Ultimate Series to your cookline. This 36" model pairs two high-performance open burners with a full 24" steel griddle, creating a compact workstation that sautés, simmers, sears and grills -- all on one durable platform.

Key Features

  • 114,000 BTU total output for fast recovery and high-volume production
  • (2) patented cast-iron non-clog burners, 33,000 BTU each – lift-off heads for easy cleaning

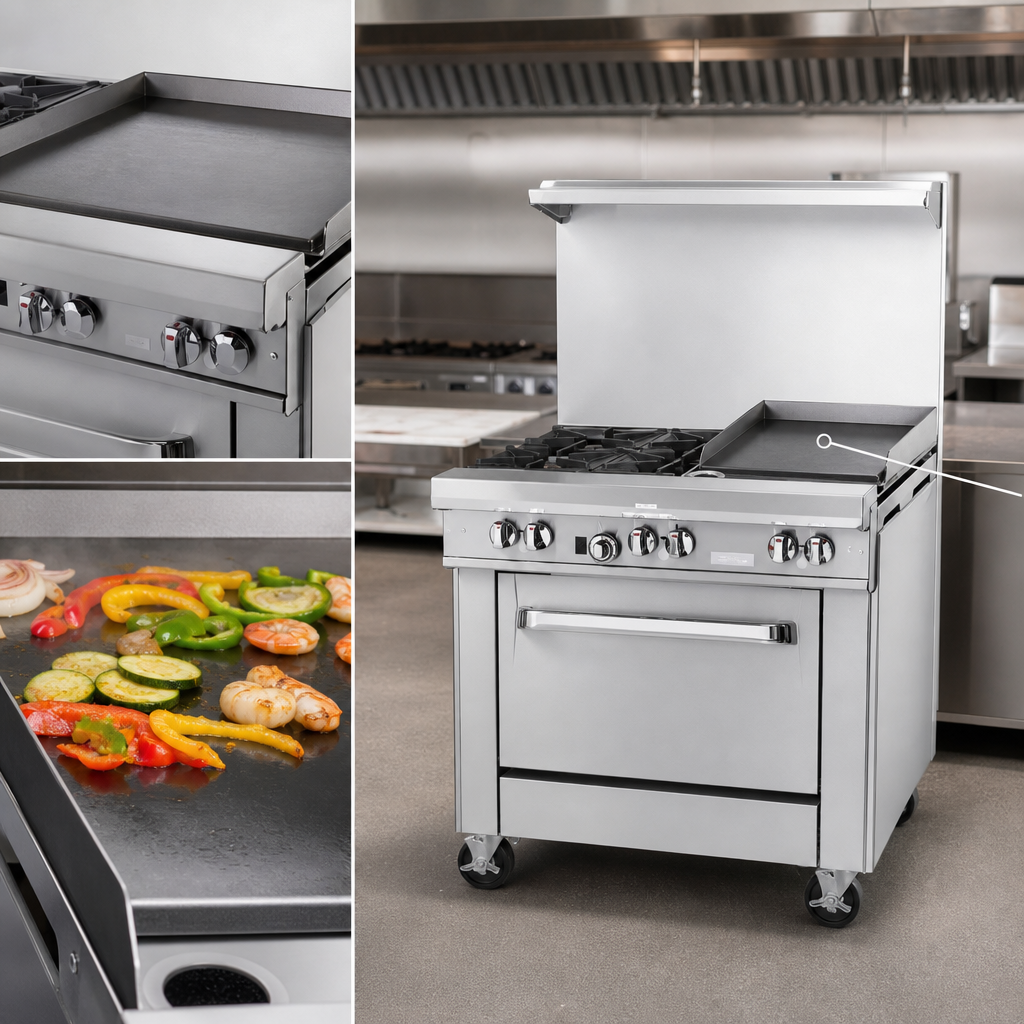

  • 24" right-hand griddle
    • ½" cold-rolled steel plate for even heat
    • Manual valves—independent zone control without electricity
  • Standard cast-iron grates support stock pots up to 14"
  • Stainless steel cabinet base keeps sheet pans & utensils within arm’s reach (doors available at no charge)
  • 22-½" flue riser with heavy-duty plate shelf—ideal for spices, garnishes or holding pans
  • Front-mounted gas shut-off & factory-installed regulator streamline daily operation
  • Standing pilot ignition—no electrical hookup required
  • All-stainless front, sides, shelf & 6" adjustable legs for superior durability and sanitation
  • Safety & sanitation: cCSAus, CSA Flame, CSA Star & NSF listed

Specifications

Model Ultimate 436C-2B-24G (Manual)
Range width 36.5" / 927 mm
Cooking surface depth 27" / 686 mm
Cooktop height 37" / 940 mm
Overall height (with flue) 59.5" / 1,511 mm
Total BTU (Natural gas) 114,000 BTU/hr
Open burners 2 × cast-iron non-clog, 33,000 BTU each
Griddle plate 24" W × ½" T, manual control, 48,000 BTU
Base Open stainless cabinet (door kit optional)
Gas connection ¾" NPT (left side when griddle is right)
Required inlet pressure 7" W.C. Natural / 11" W.C. LP
Legs 6" stainless, adjustable (casters optional)
Warranty 1-year limited parts & labor

Looking for doors, casters or salamander mounts? Contact us — Ultimate ranges are factory-configured to meet your exact line-up.

Commercial use only. Install under a properly sized vent hood and avoid cookware that overhangs the front rail to prevent heat damage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Top

(2) open burners, (1) 24" griddle

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(1) cabinet

Specifications

Ultimate Restaurant Range, gas, 36", (2) non-clog burners, standard grates, (1) 24" griddle right, manual controls, standing pilot, cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 114,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
