Southbend (Middleby) 4361A Ultimate Gas Ranges
Description

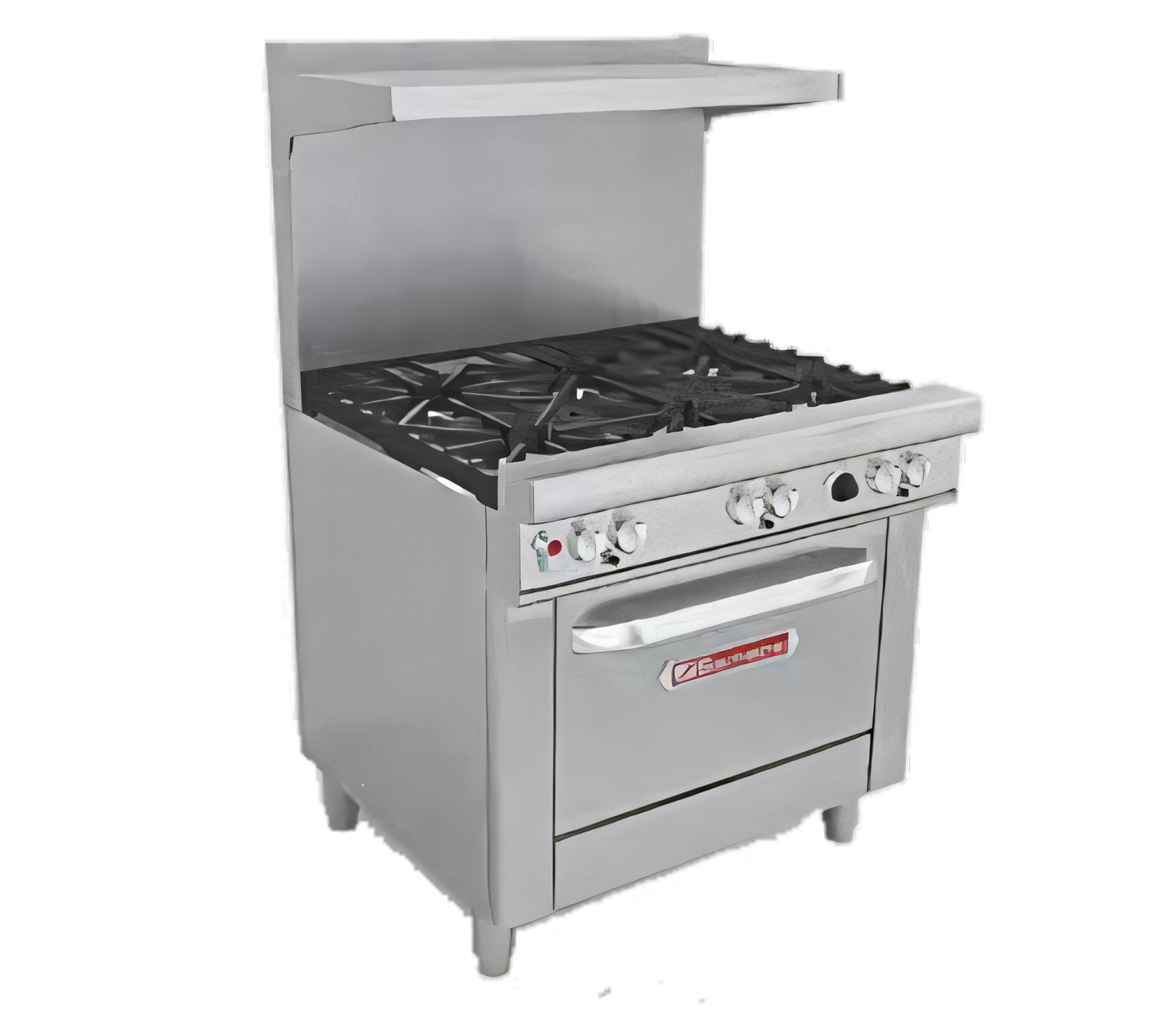

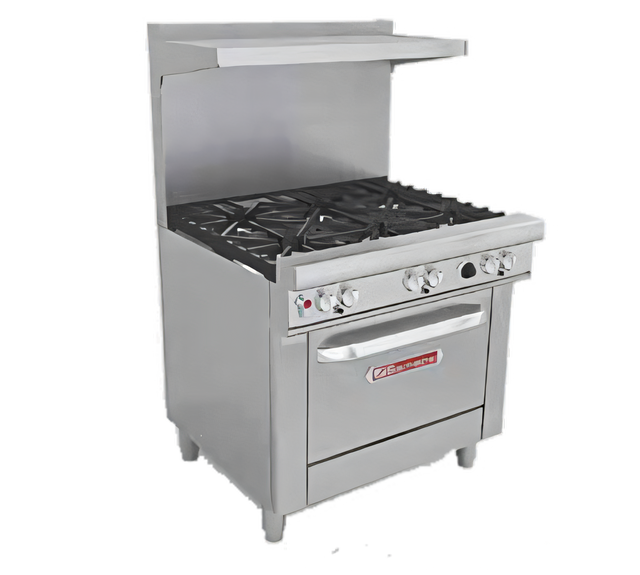

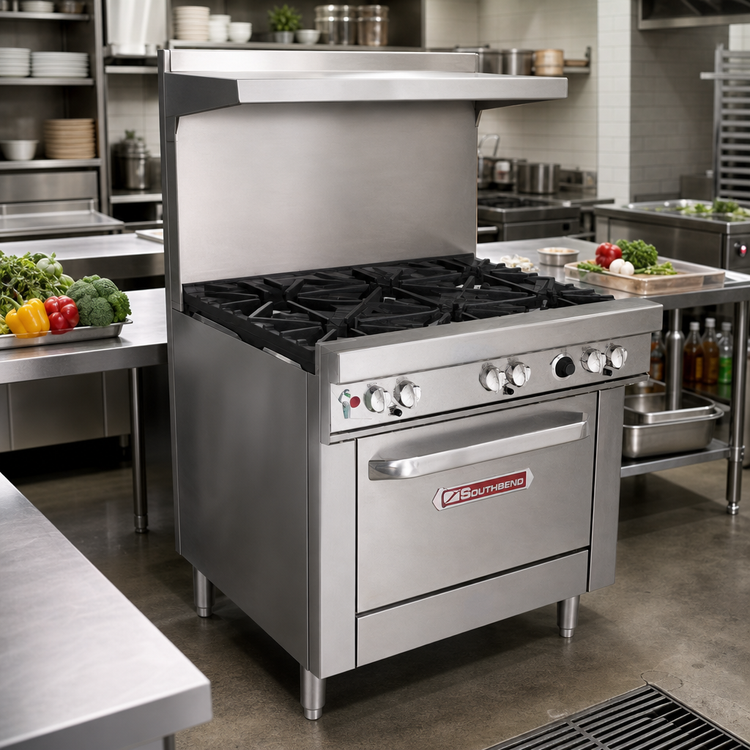

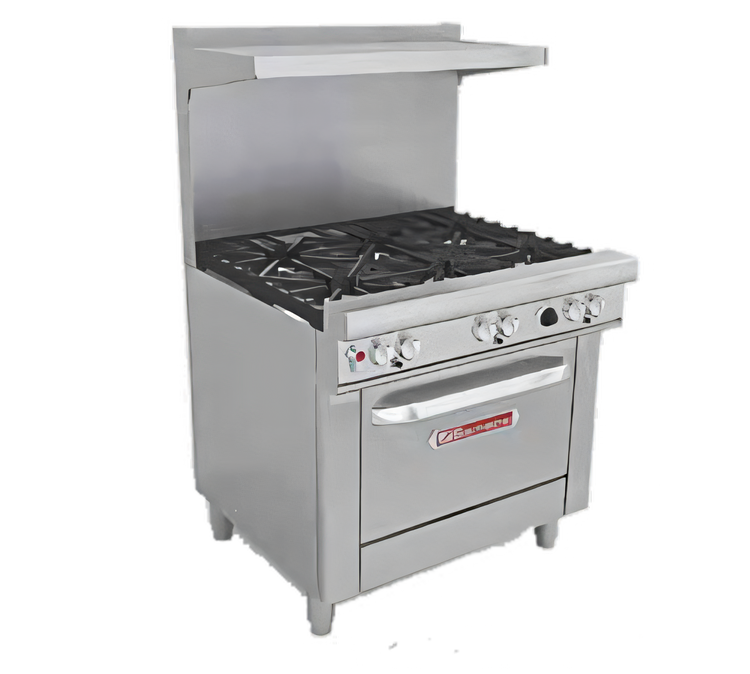

Southbend Ultimate 36" Gas Restaurant Range – 6 Burners & Convection Oven
(QUICK SHIP – usually leaves the factory in 2 business days, max 2 units per order)Built for the busiest commercial kitchens, the Southbend Ultimate Series packs high-performance burners, a full-size convection oven and rugged stainless construction into a compact 36-inch footprint. 230,000 BTU of total output gives you the power and responsiveness chefs demand, while a battery-spark convection oven turns out perfectly even bakes and roasts every time.
Key Features

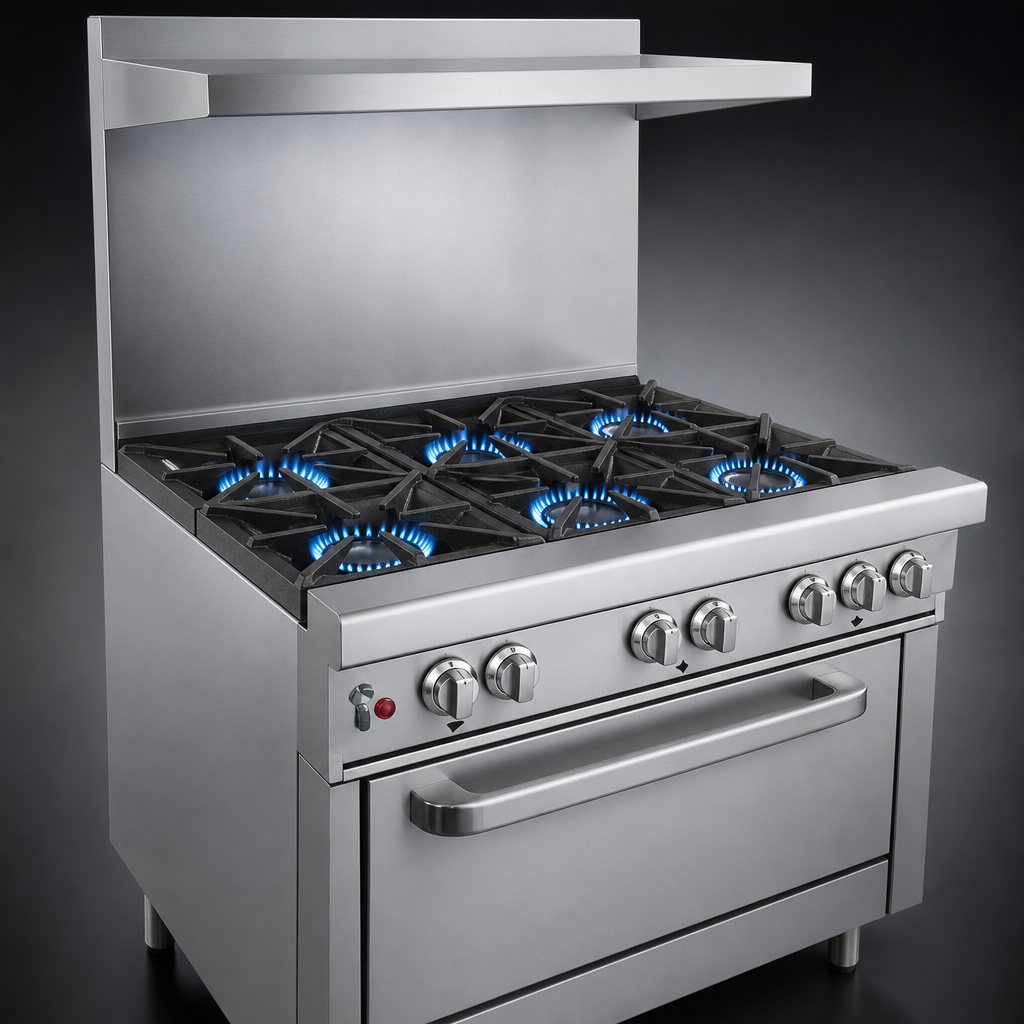

- Six (6) 33,000 BTU non-clog cast-iron burners (198,000 BTU total)
- Standard removable grates; rear grate supports stock pots up to 14"
- Full-width one-piece drip tray for easy clean-up

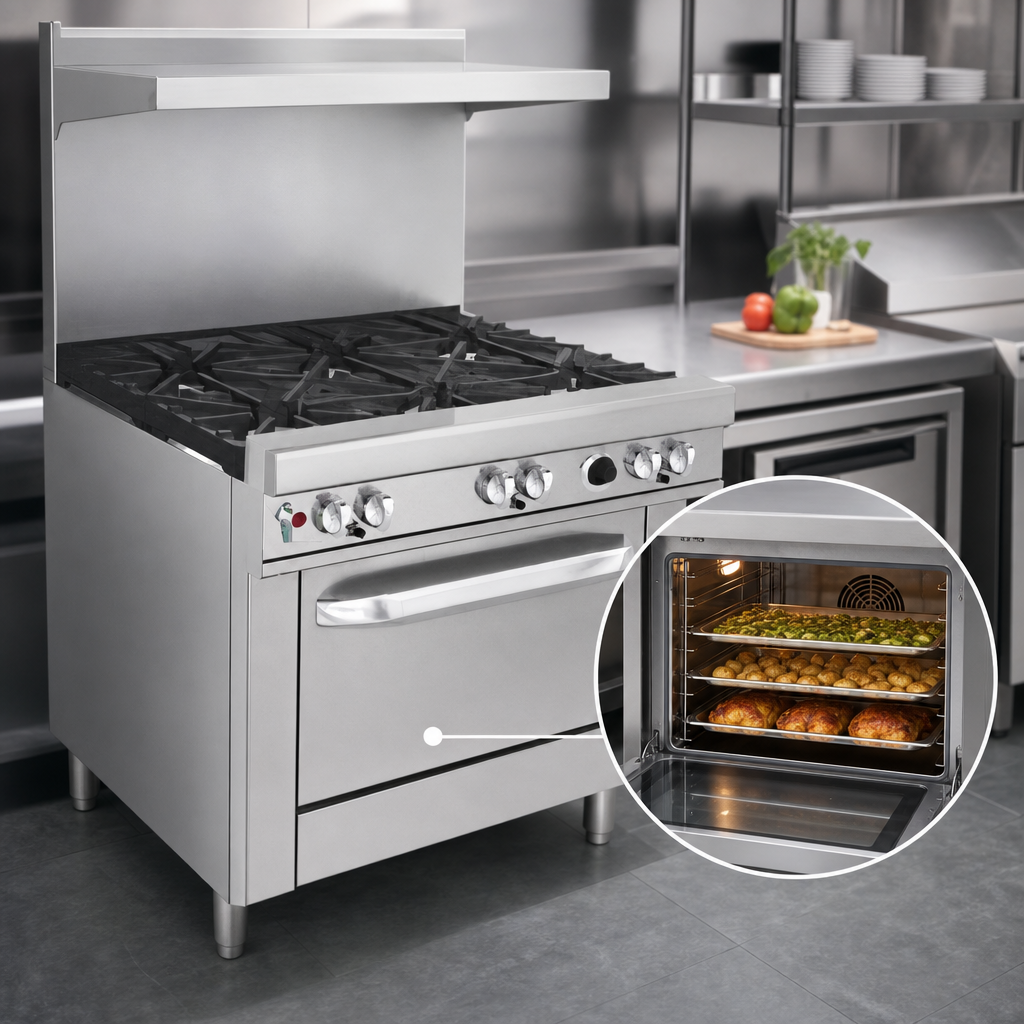

- 32,000 BTU convection oven with battery-spark ignition & 175 – 550 °F thermostat
- Includes three (3) oven racks with five rack positions
- 22.5" flue riser with heavy-duty plate shelf for plating & smallwares
- All-stainless front, sides, shelf & 4" front rail; 6" adjustable stainless legs
- Front-mounted manual gas shut-off & factory-installed pressure regulator
- CSA & NSF listed for commercial use
- Made in the USA; backed by a 1-year parts & labor warranty
Specifications
| Range width | 36.5" (927 mm) |
|---|---|
| Overall depth | 42.13" (1,070 mm) |
| Cook-top height | 37" (940 mm) |
| Overall height (with riser) | 59.5" (1,511 mm) |
| Total BTU | 230,000 BTU/hr (Natural or LP) |
| Gas connection | 3/4" NPT female (Min. inlet 7" W.C. NAT / 11" W.C. LP) |
| Electrical (convection fan) | 115 V / 60 Hz / 1-ph, 6′ cord & 3-prong plug, 5.9 A |
| Oven cavity (W × D × H) | 26" × 24" × 14" |
| Shipping weight | ≈ 660 lb (300 kg) |
Included in the Box
- Southbend Ultimate 36" range (configured as listed above)
- Three (3) chrome-plated oven racks
- Factory-installed pressure regulator
- 6" stainless adjustable legs (field-install)
- Owner’s manual & warranty documentation
Need it fast? This Quick Ship model is kept in stock and normally ships within two (2) business days. For larger orders or custom configurations, please contact us.
