Southbend (Middleby)  |  Ultimate  |  SKU: 4244E

Southbend (Middleby) 4244E Ultimate Gas Ranges

$4,871.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

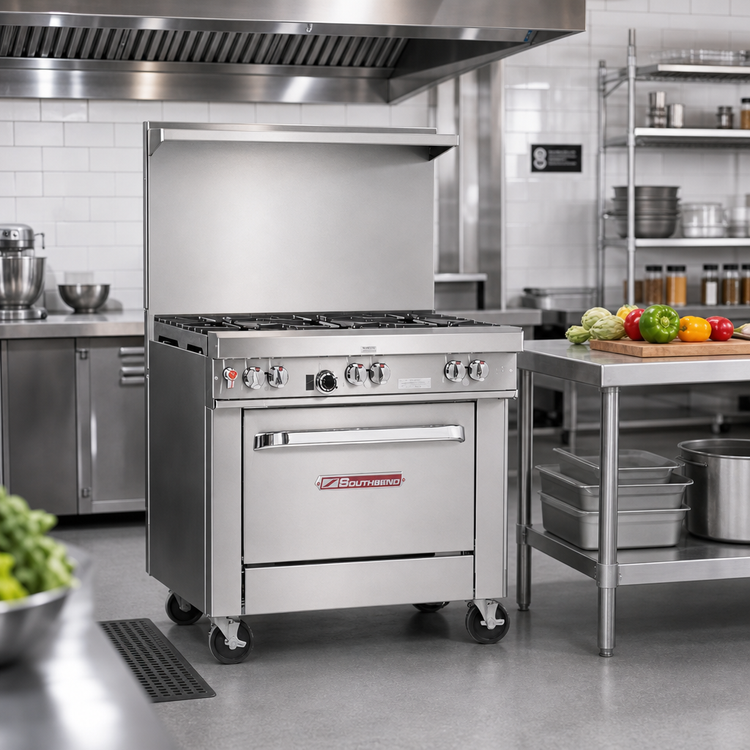

Southbend Ultimate 24″ Gas Restaurant Range – Split 4-Burner w/ Space Saver Oven

Model 424-E | 177,000 BTU | 2 Star/Sauté + 2 Non-Clog Burners

Big-league power in a slim 24-inch footprint. The Ultimate Series packs four heavy-duty burners and a high-performance oven into a unit that slides anywhere on the line—perfect for high-volume kitchens, satellite concepts, and food trucks that refuse to compromise.

Highlights
  • (2) 33,000 BTU Star/Sauté burners in front for fast, even heat—ideal for pans and sauté work.
  • (2) 33,000 BTU lifetime clog-free cast-iron burners in back for stockpots up to 14″.

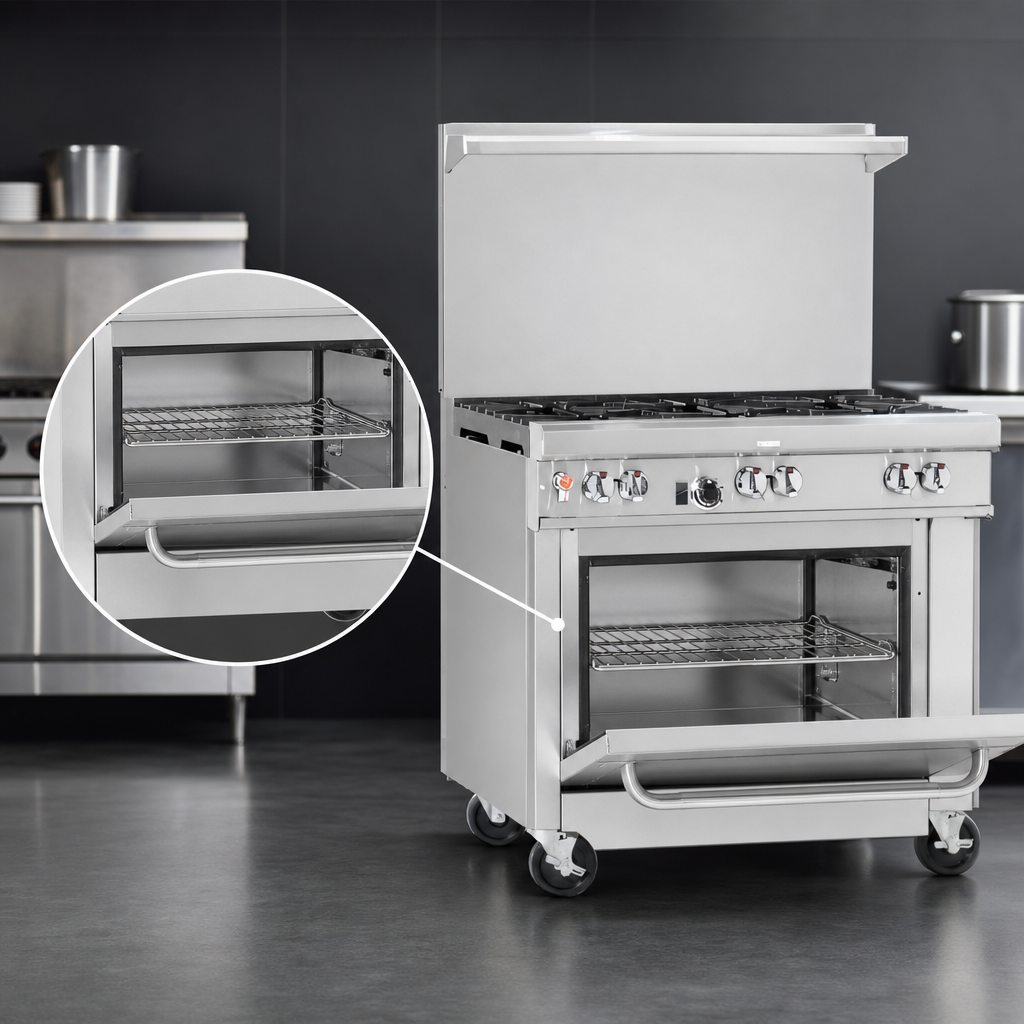

  • 45,000 BTU space saver oven with battery-spark ignition, 175 °F–550 °F thermostat, and porcelain interior.
  • 27″-deep cooking surface with four removable cast-iron grates and an easy-clean full-length drip tray.
  • 22½″ stainless flue riser with heavy-duty shelf keeps pans, spices, and plating tools within reach.
  • Front-mounted manual gas shut-off and factory-installed regulator for quick service access.
  • All-stainless front, sides, rail, and shelf plus 6″ adjustable stainless legs.
  • Standing pilots for open burners – no electrical hook-up required.
  • NSF & CSA certified; built in the USA and backed by Southbend’s 1-year parts & labor warranty.
Perfect For
  • Lineups where every inch matters—institutional kitchens, cafés, ghost kitchens, and concessions.
  • Sauté stations that demand instant response up front and heavy-stock capacity in back.
  • Operators seeking Southbend performance without the footprint of a 36″ range.
Specifications
Exterior width 24-3/8″  (619 mm)
Exterior depth 34″  (864 mm)
Cook-top height 37″  (940 mm)
Overall height w/ riser 59-1/2″  (1,511 mm)
Oven cavity (W×D×H) 19-1/2″ × 26-1/2″ × 14″  (495 × 673 × 356 mm)
Total BTU input 177,000 BTU/hr (Natural Gas)
Open burners (4) × 33,000 BTU cast-iron open burners
Oven burner 45,000 BTU space saver oven
Gas connection ¾″ FNPT (left-rear); regulator included
Min. inlet pressure 7″ W.C. Natural  |  11″ W.C. LP
Electrical None required (battery ignition only)
Shipping weight ≈ 475 lb (216 kg)
Certifications CSA, NSF
What’s in the Box
  • Southbend Ultimate 24″ split-burner range
  • (1) chrome-plated oven rack
  • 22.5″ flue riser with stainless shelf
  • ¾″ factory-installed gas pressure regulator
  • 1-year parts & labor warranty documentation
Installation & Use Notes:
  • Install under a vented hood. Minimum clearance to combustible surfaces: 10″ rear & sides; 0″ to non-combustible.
  • 6″ legs (supplied) or casters are required on combustible floors.
  • For cookware 12″ Ø or larger, place pots on the rear burners to avoid excessive front-rail heat.
  • If floor is not quarry tile, cement, or natural stone, consult Southbend for approved installation methods.

Need battery ignition on the open burners, doors on the base, or a matching cheesemelter? Contact us—Ultimate Ranges are built-to-order.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

24.25in

Depth

34.0in

Shipping Weight

475.0lbs

Base

(1) space saver oven

Exterior Finish

stainless steel front & sides

Top

(4) open burners

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 24", (2) star/sauté burners in front, (2) non-clog burners in back, standard grates, standing pilot, (1) space saver oven with battery spark ignition, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 177,000 BTU, CSA, NSF
