Southbend (Middleby) 4243E Ultimate Gas Ranges
Description

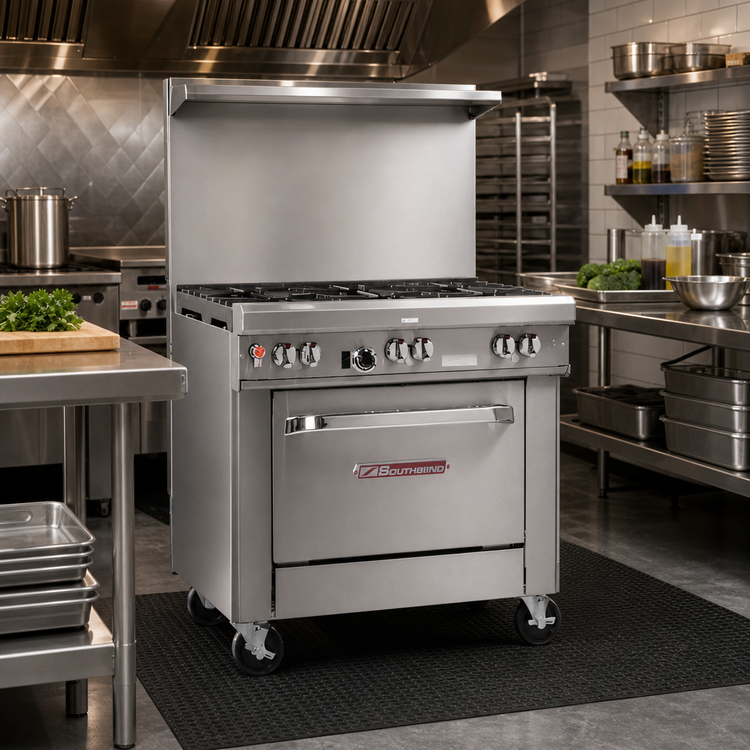

Southbend “Ultimate” 24" Restaurant Range
Model 424E • Natural Gas • 4 Star/Sauté Burners & Space-Saver OvenBuilt for demanding commercial kitchens, the Southbend Ultimate 24" Series packs full-size performance into a compact footprint. Four 33,000 BTU star/sauté burners offer instant, even heat across the entire grate, while the 45,000 BTU space-saver oven turns out perfectly baked, roasted or finished dishes all day long. Heavy-gauge stainless steel, a factory-installed regulator and front-mounted gas shut-off make this range the reliable, service-friendly choice chefs trust.
Standard Features
- 24-3/8" wide commercial gas range with a 37" high cooking surface

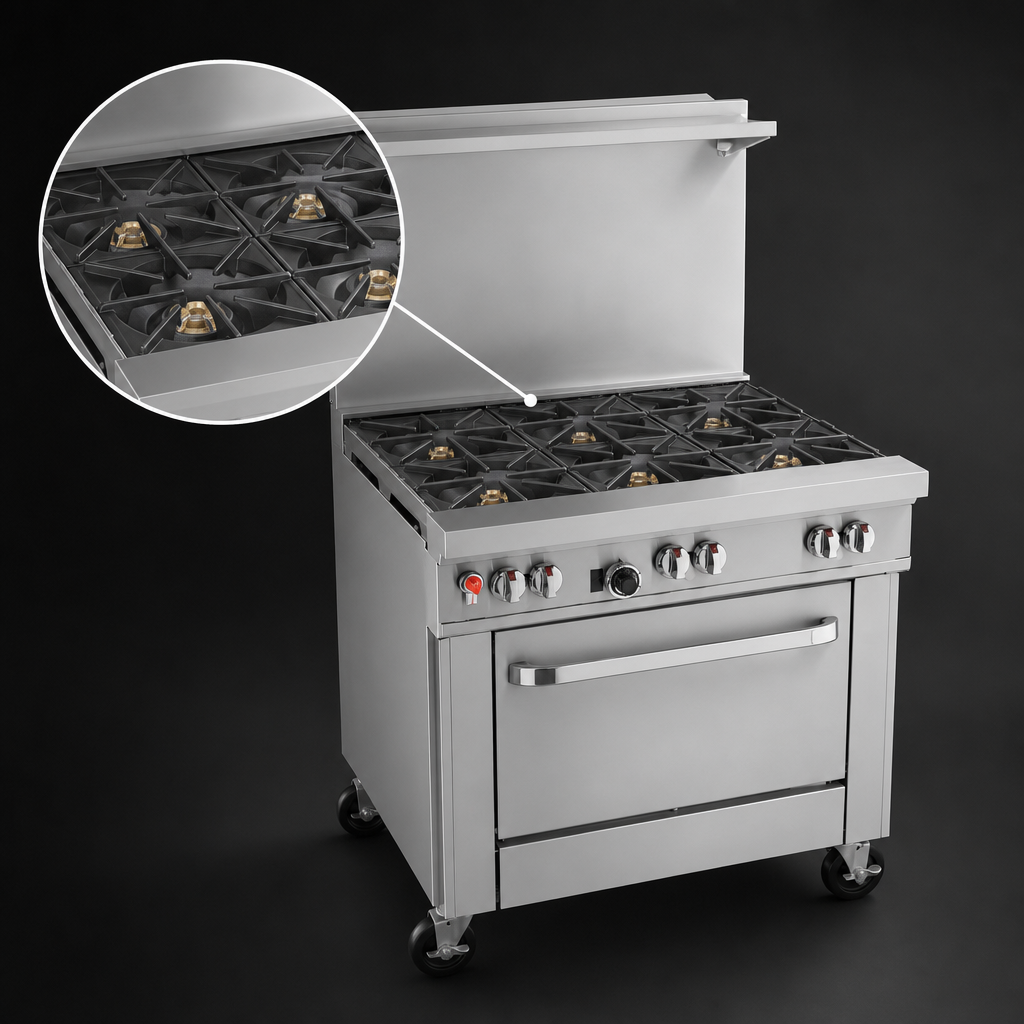

- (4) 33,000 BTU cast-iron Star/Sauté burners – lifetime clog-free design for even flame distribution

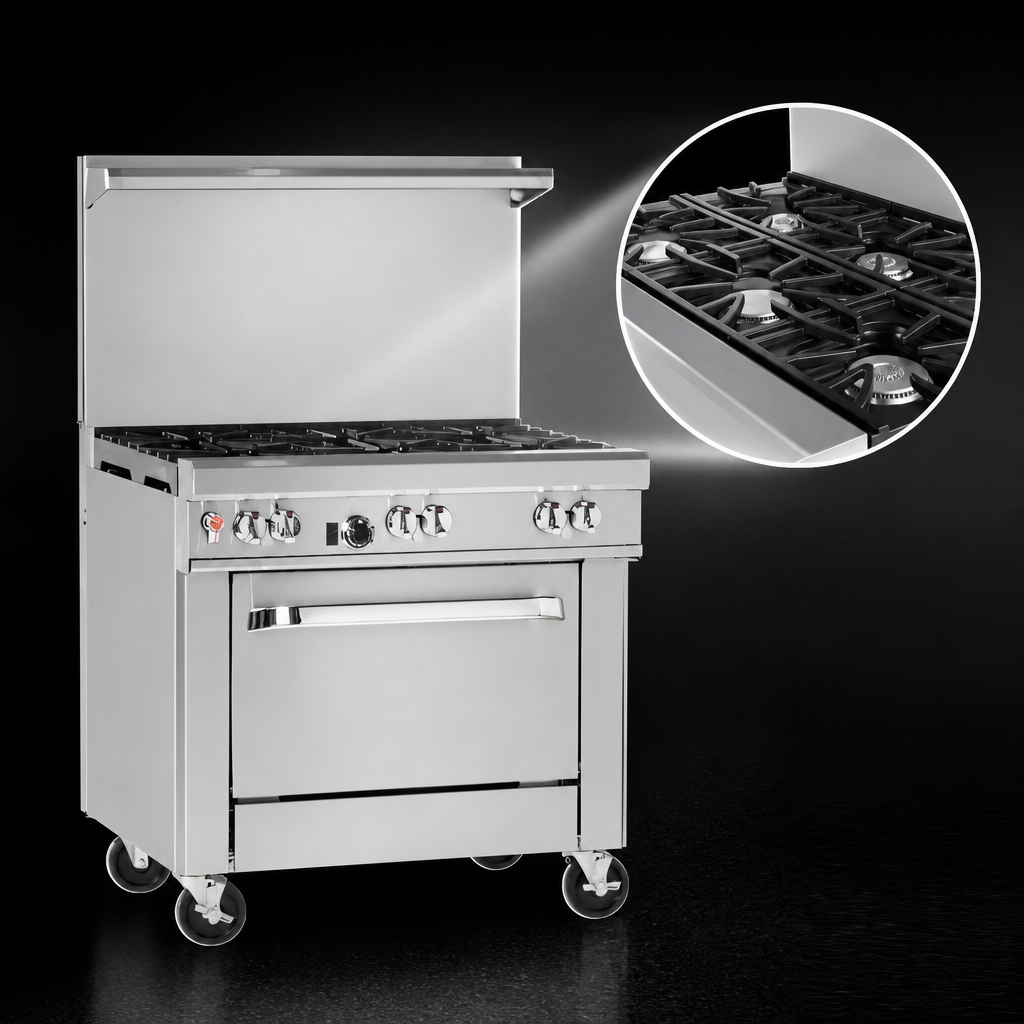

- Heavy-duty cast-iron grates (rear grate accommodates up to a 14" stock pot)
- 22-1/2" flue riser with integrated stainless steel shelf for pans & seasonings
- Space-Saver oven 45,000 BTU with battery spark ignition, 175-550 °F thermostat and one nickel-plated rack (2 positions)
- Front-mounted manual gas shut-off and factory pressure regulator
- Standing pilots for open-top burners – no electrical hook-up required
- 4" stainless steel front rail plus stainless front, sides & shelf for easy wipe-down
- 6" adjustable stainless steel legs (casters optional)
- 1-year limited parts & labor warranty
Performance Advantages
- All-purpose fire power – 177,000 total BTU handles high-heat sautéing, stock production and low-and-slow roasting.
- Star/Sauté burner geometry spreads flame evenly under small & large pans, reducing hot spots and scorching.
- Porcelain-enamel oven interior with coved corners speeds clean-up and promotes uniform airflow.
- Compact footprint keeps valuable line space open for other equipment.
Dimensions & Capacities
| Exterior width | 24.38" (619 mm) |
|---|---|
| Exterior depth | 34.00" (864 mm) |
| Cook surface height | 37.00" (940 mm) |
| Overall height (to flue top) | 59.50" (1,511 mm) |
| Oven cavity (W × D × H) | 19.5" × 26.5" × 14.0" |
| Racks supplied / positions | 1 rack / 2 positions |
| Total input (NAT) | 177,000 BTU/hr |
| Crated weight | 475 lb (216 kg) |
Utility Requirements
| Gas type | Natural (convertible to LP – please inquire) |
|---|---|
| Main connection | ¾" NPT female, rear |
| Minimum inlet pressure | 7" W.C. Natural | 11" W.C. LP |
| Electrical | None (battery spark ignition) |
| Ventilation | Install under a properly sized, vented hood |
Certifications & Warranty
- CSA Gas & CSA Sanitation certified
- NSF listed
- One-year limited parts & labor warranty (see Southbend warranty terms)
- Made in the USA
