Southbend (Middleby) 4243C Ultimate Gas Ranges
Southbend (Middleby) 4243C Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4243C Ultimate Gas Ranges
Description
Southbend Ultimate Series 24" Gas Restaurant Range
4 × 33,000 BTU Cast-Iron Star/Sauté Burners • Cabinet Base • 22-½" Flue Riser/ShelfEngineered for chefs who refuse to compromise, the 24" Ultimate Range packs heavy-duty performance into a space-saving footprint. Four patented, clog-free star burners deliver a blistering 132,000 BTU for lightning-fast sautéing, searing and stock-pot work, while the integrated stainless cabinet keeps essentials right where you need them.
Performance & Construction Highlights
- Compact 24-⅜" wide range fits tight cooklines without sacrificing power.

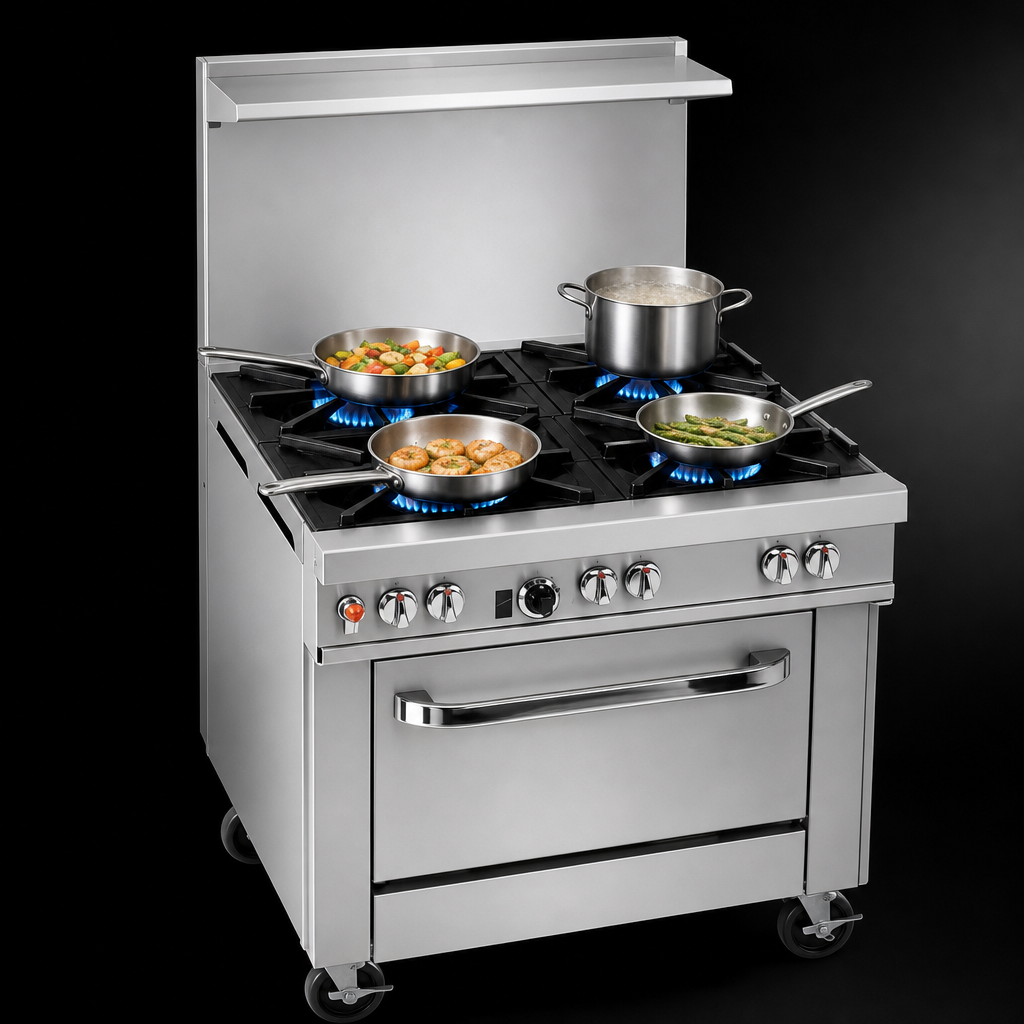

- Four 33,000 BTU NAT cast-iron star burners: even flame pattern, lifetime clog-free design.

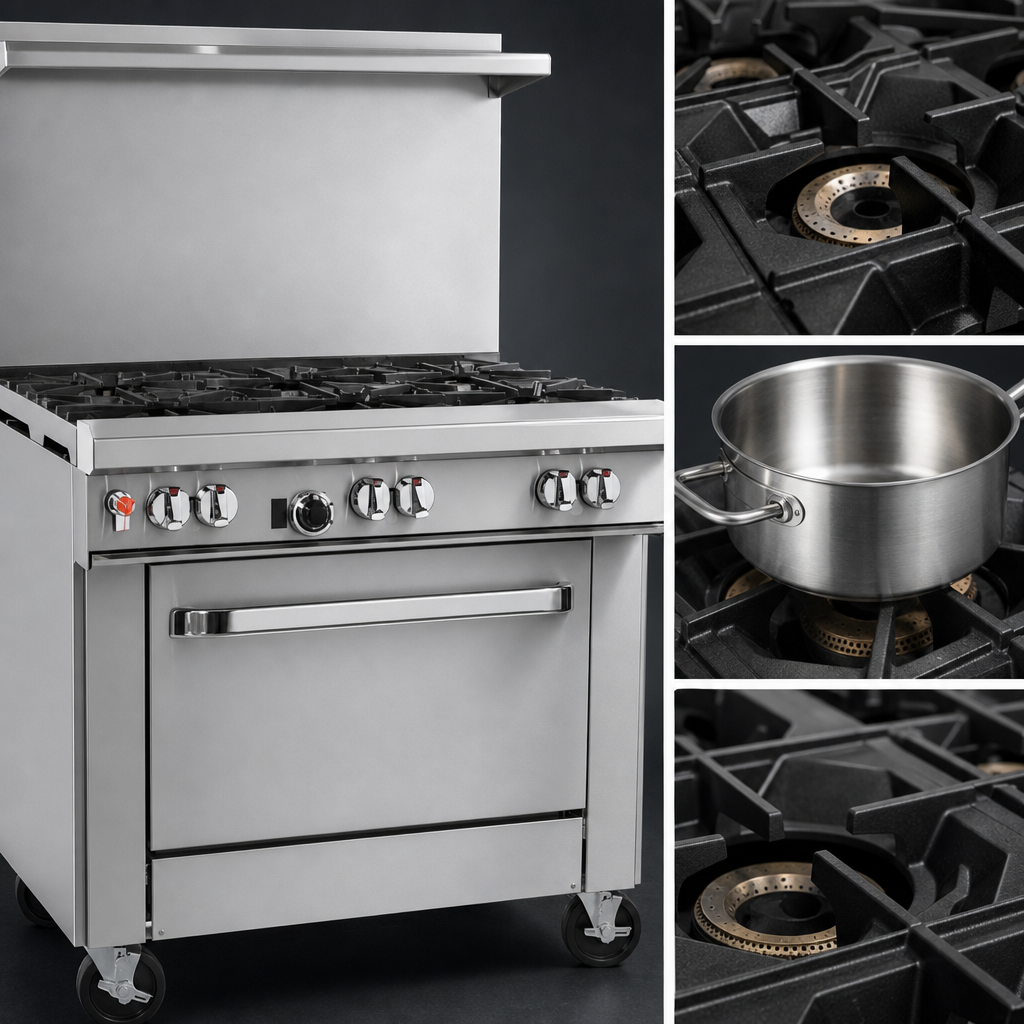

- Heavy cast-iron grates are removable for easy cleaning; rear grate accepts up to a 14" stock pot.
- Rugged stainless steel front, sides, 4" front rail and shelf stand up to daily commercial abuse.
- 22-½" stainless flue riser with extra-deep utensil shelf maximizes vertical storage.
- Front-mounted manual gas shut-off plus factory-installed regulator for quick, safe service.
- Standing pilots for instant burner ignition—no electricity required.
- 6" adjustable stainless legs level the unit on uneven floors (casters optional).
- Spacious stainless cabinet base for dry storage (optional no-charge doors available).
- CSA & NSF certified; proudly built in Fuquay-Varina, NC, USA.
Technical Specifications
| Exterior width | 24.38" / 619 mm |
|---|---|
| Exterior depth | 34.00" / 864 mm |
| Height to cooking surface | 37.00" / 940 mm |
| Overall height (with riser) | 59.50" / 1,511 mm |
| Cooking surface depth | 27" (front-to-back usable area) |
| Number / type of burners | 4 × Star/Sauté, cast iron |
| Total BTU (Natural Gas) | 132,000 BTU (33,000 BTU each) |
| Total BTU (Propane) | 96,000 BTU (24,000 BTU each) |
| Gas connection | ¾" NPT female (rear) |
| Min. inlet pressure | Natural 7" W.C. | LP 11" W.C. |
| Base configuration | Stainless cabinet (dry storage) |
| Legs | 6" stainless, height-adjustable |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Need extra capacity? Add matching Ultimate convection ovens, salamanders or casters—just ask your sales representative.
