Southbend (Middleby) 4242E Ultimate Gas Ranges
Description
Southbend Ultimate 24" Gas Restaurant Range – 4-Burner w/ Space-Saver Oven
Model 424E | 153,000 BTU | CSA & NSF CertifiedPack powerhouse performance into the smallest footprint on your cook line. Southbend’s Ultimate Series 24" range couples four lifetime-warranted non-clog burners and heat-amplifying wavy grates with a high-efficiency space-saver oven, all housed in durable stainless steel for years of trouble-free service.
Key Features

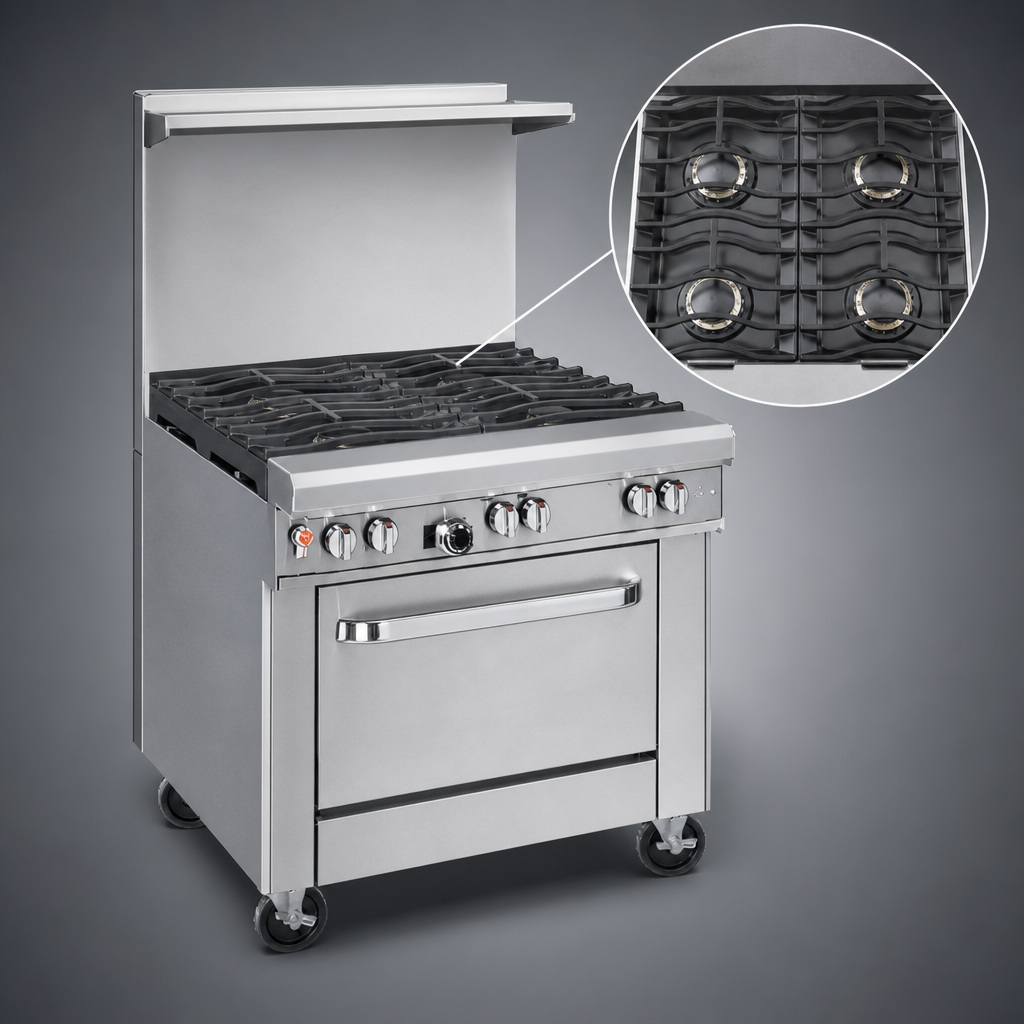

- Four 27,000 BTU non-clog cast-iron burners (108,000 BTU total) with always-ready standing pilots.
- Patented wavy cast-iron grates boost heat transfer and let pans glide across the full 27"-deep cooktop.

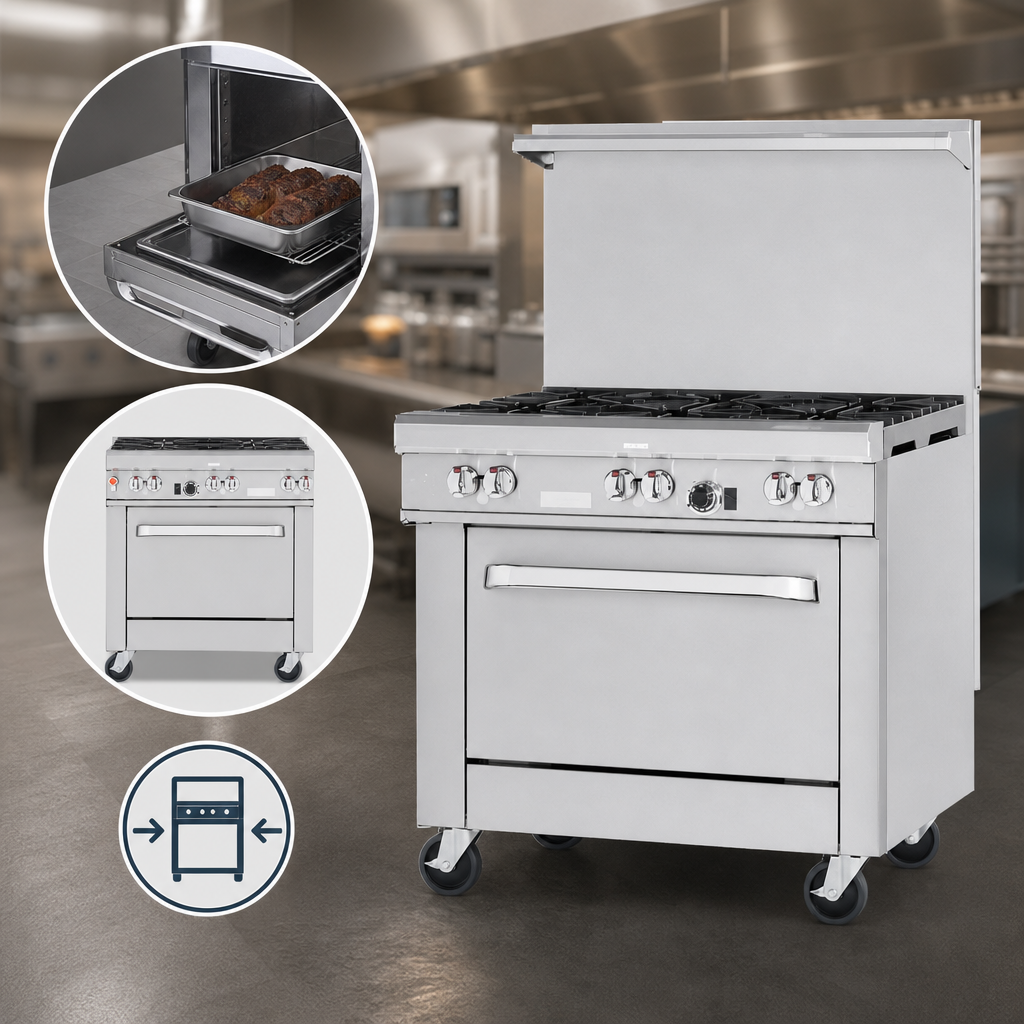

- 45,000 BTU space-saver oven with battery spark ignition—no external electricity required.
- Porcelain-enameled, coved-corner oven cavity (14" H × 19.5" W × 26.5" D) for even airflow and easy cleanup; one heavy-duty rack included.
- 22.5" flue riser with integrated utensil shelf keeps tools handy while venting heat safely.
- All-stainless front, sides and shelf plus 6" adjustable stainless legs for rock-solid, sanitary installation.
- Front-mounted ¾" manual gas shut-off and factory-installed regulator for quick, safe service.
At-a-Glance Specs
| Total BTU | 153,000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | 4 × 27,000 BTU cast-iron non-clog |
| Oven Output | 45,000 BTU; 175 – 550 °F thermostat; battery ignition |
| Cooking Surface | 27"-deep with removable wavy grates |
| Exterior Dimensions | 24.38" W × 34" D × 59.5" H (to top of flue) |
| Cooking Height | 37" |
| Oven Interior | 19.5" W × 26.5" D × 14" H; porcelain enamel |
| Gas Connection | ¾" NPT female; min. inlet 7" W.C. (Natural) |
| Electrical | None required |
| Shipping Weight | Approx. 475 lb |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Perfect For
- Independent restaurants & cafés with limited line space
- Food trucks, ghost kitchens and concessions needing a self-contained range
- Chain operations standardizing stations in a 24" footprint
What’s Included
- (1) Heavy-duty oven rack
- 22.5" stainless flue riser with shelf
- 6" adjustable stainless legs
- Factory-installed gas regulator & front gas shut-off valve
