Southbend (Middleby)

Southbend Ultimate 24-Inch Gas Restaurant Range with 4 Open Burners, Cabinet Base, and Hi Shelf

SKU: 4242C
$5,519.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Ultimate 24-Inch Gas Restaurant Range with 4 Open Burners, Cabinet Base, and Hi Shelf

Non-Clog Burners, Wavy Grates, Standing Pilot, Stainless Steel Front/Sides/Shelf

Built for demanding commercial kitchens, this compact gas restaurant range combines four open burners, a cabinet base, and durable stainless steel construction in a space-saving 24-inch footprint.

  • Four non-clog open burners with wavy grates support efficient everyday cooking.
  • Standing pilot ignition keeps the range ready for service.
  • Integrated cabinet base adds convenient under-range storage.
  • Stainless steel front, sides, and shelf help with durability and cleanup.
  • 22-1/2-inch flue riser with shelf provides a practical rear staging area.
  • 108,000 BTU total output delivers strong burner performance for busy kitchens.

Overall Dimensions:

24.25"W x 34.0"D x 59.5"H

Product Weight:

475.0 lb

Four Non-Clog Open Burners

Top section includes four open burners designed for commercial cooking versatility and reliable performance.

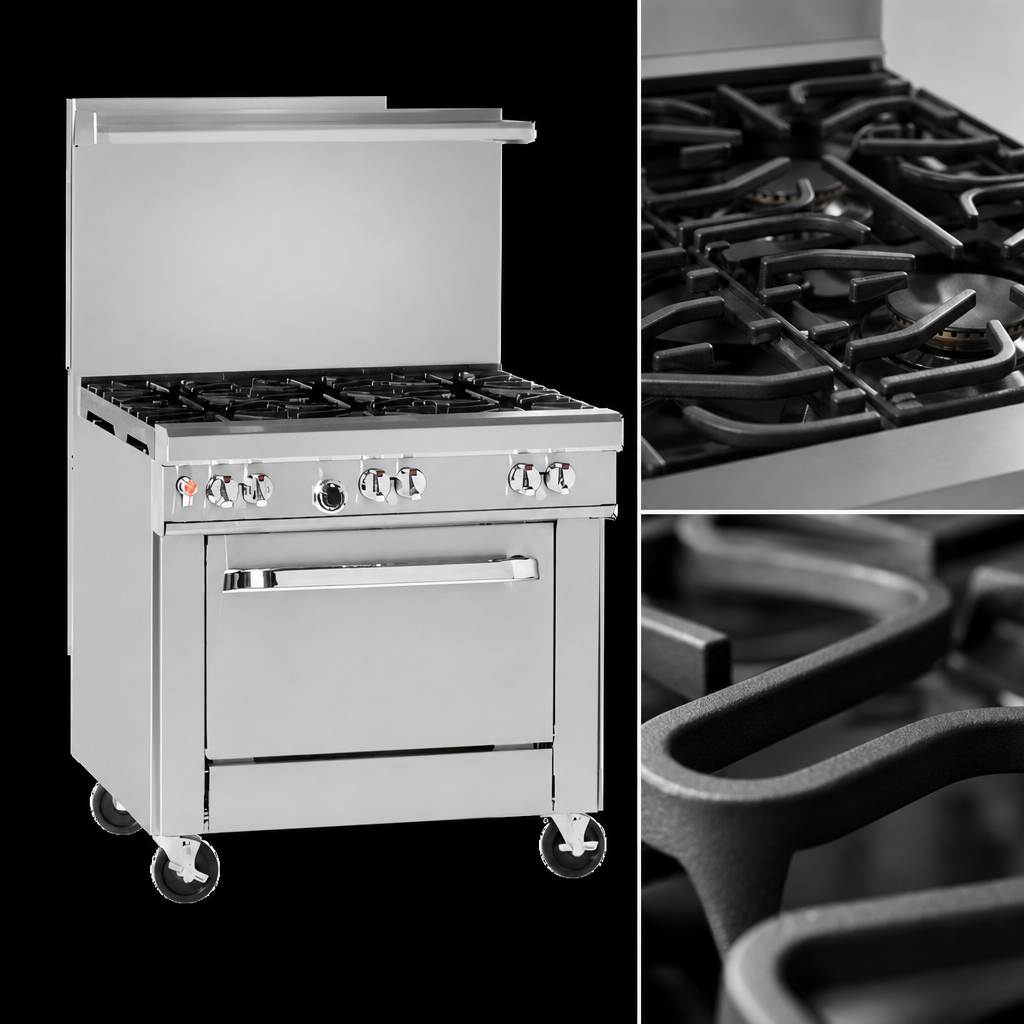

Wavy Grates

Wavy burner grates help support cookware securely during high-volume use.

Standing Pilot

Standing pilot ignition keeps the burners ready without the need for repeated relighting.

Cabinet Base

Built-in cabinet base adds enclosed under-range storage.

22-1/2-Inch Flue Riser with Shelf

Rear flue riser with shelf provides additional staging space and a more functional back section.

Stainless Steel Exterior

Stainless steel front, sides, and shelf offer durability and a clean professional appearance.

6-Inch Adjustable Legs

Adjustable legs help level the range during installation.

High Heat Output

108,000 BTU total output supports demanding restaurant service.

Type Gas Restaurant Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Standing Pilot
BTU 108,000 BTU
Open Burners 4
Base Cabinet Base
Backriser 22-1/2 Inches with Shelf
Legs 6-Inch Adjustable
Shipping Width 25 Inches
Shipping Depth 34 Inches
Shipping Height 60 Inches
Shipping Weight 475 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four non-clog open burners with wavy grates.
Yes. This model includes one cabinet base.
It uses a standing pilot system.
The range includes a 22-1/2-inch flue riser with shelf, also described as a backriser with hi-shelf.
The front, sides, and shelf are stainless steel.
The manufacturer warranty is one year parts and one year labor, with service performed through an authorized service agency.
