Southbend (Middleby)  |  Ultimate  |  SKU: 4241C

Southbend (Middleby) 4241C Ultimate Gas Ranges

$4,871.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend “Ultimate” 24" Gas Restaurant Range – 4-Burner w/ Cabinet Base

Model 424C | 132,000 BTU | CSA & NSF Listed

Put big-league firepower on the smallest footprint in your cookline. The Southbend Ultimate Series 24" range delivers four high-output, clog-free burners above a stainless storage cabinet, all wrapped in the durability operators have trusted since 1898.

Key Features
  • Compact 24-3/8" width—ideal for tight cooklines or add-on stations.
  • Four patented one-piece cast-iron non-clog burners at 33,000 BTU each (132,000 BTU total).
  • Heavy cast-iron grates; rear grate holds stock pots up to 14".

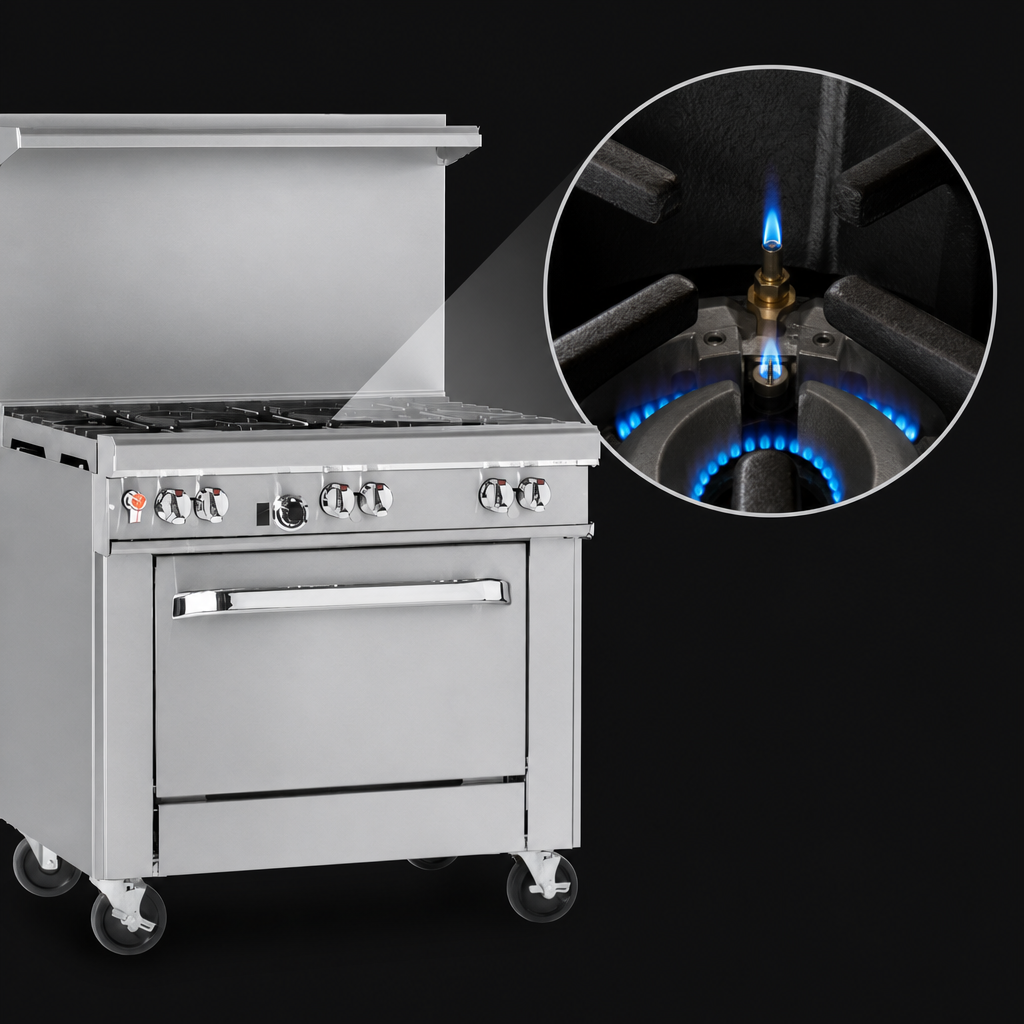

  • Standing pilots; no electricity required.
  • Open stainless cabinet base keeps pans, sheet trays and smallwares right at hand (doors available at no charge).
  • 22-1/2" flue riser with integrated shelf for plating and warming.
  • 4" deep stainless front rail protects controls and doubles as a landing ledge.
  • Front-mounted manual gas shut-off & factory-installed 3/4" regulator for fast, code-compliant hook-ups.
  • 6" adjustable stainless legs for perfect leveling; optional all-swivel casters with front locks.
  • Rugged stainless steel construction on front, sides and shelf; single-piece drip tray for easy clean-out.
  • Backed by a 1-year parts & labor warranty and nationwide Southbend service network.
Specifications
Exterior width 24 3/8" / 619 mm
Exterior depth 34" / 864 mm
Cook-top height 37" / 940 mm
Overall height (to riser) 59 1/2" / 1,511 mm
Cooking surface 27" deep cast-iron grate deck
Open burners 4 × 33,000 BTU non-clog (Natural Gas)
Total BTU 132,000 BTU/hr
Gas connection 3/4" NPT (female), rear
Inlet pressure Natural Gas 7" W.C.  |  LP 11" W.C. (conversion kit required)
Electrical None required
Crated weight 475 lb / 216 kg
Certifications CSA, NSF
Warranty 1-year parts & labor
Popular Accessories (sold separately)
  • Stainless steel cabinet doors (no-charge option)
  • All-swivel casters with front locks
  • 3 ft, 4 ft or 5 ft quick-disconnect gas hose kits
  • 10" or 5" flue risers (no shelf)
  • Salamander or cheesemelter mounting kits
Installation Notice: For commercial use only. Must be installed under a vented hood and connected by a qualified technician. Minimum clearance to combustible construction: 10" sides & rear. 6" legs or casters are required when installed on combustible floors.

Oversized cookware (12" +) should be used on the rear burners to prevent overheating the front rail and control components.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

24.25in

Depth

34.0in

Shipping Weight

475.0lbs

Top

(4) open burners

Exterior Finish

stainless steel front & sides

Base

(1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 24", (4) non-clog burners, standard grates, standing pilot, (1) cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 132,000 BTU, CSA, NSF
