Southbend (Middleby)  |  Platinum  |  SKU: 30120SB

Southbend (Middleby) 30120SB Platinum Undercounter & Worktop Refrigeration

$25,043.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 120" Self-Contained Freezer Base – Model 30120SB

Low-height, 8-drawer freezer base for Platinum modular cook tops

Keep high-volume ingredients ice-cold and within arm’s reach of the range. The 120" Southbend Platinum freezer base tucks 12 full-size pans under your cook top, combining rock-solid equipment support with rapid-recovery refrigeration in one seamless unit.

Key Features
  • Extra-long 120" cabinet supports any Southbend Platinum Series modular range tops.
  • Eight self-closing drawers (4 × 18" & 4 × 26") with centered pull handles.
  • Total capacity: 12 standard 12" × 20" × 4" hotel pans (pans not included).
  • Low-profile 26" height keeps the cooking surface at an ergonomic level.

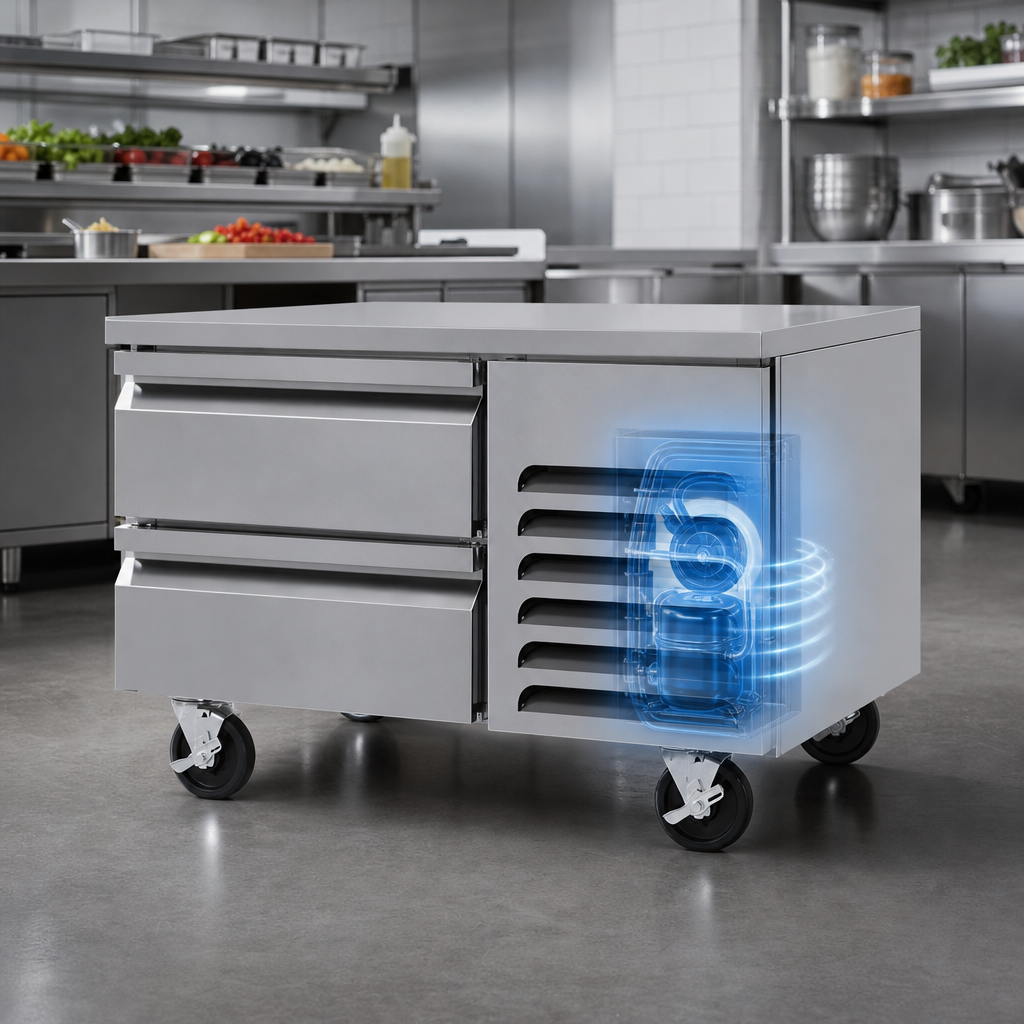

  • Self-contained R-404A refrigeration, 2,000 BTU/hr, digital thermostat, and automatic condensate evaporation.
  • Foamed-in-place CFC-free polyurethane insulation and magnetic gaskets for maximum cold retention.
  • All-stainless 304 construction inside and out, with coved interior corners for easy NSF-compliant cleaning.
  • Mullion coils are epoxy-coated to resist corrosion and ensure even drawer temperatures.
  • 6" adjustable stainless steel legs standard (locking casters optional).
  • UL & NSF listed; backed by a 1-year parts & labor warranty.
Specification Sheet
Model 30120SB
Overall Width 120" (3048 mm)
Depth 32.5" (826 mm)
Height 26" (660 mm) incl. 6" legs
Drawer Count 4 × 18"   |   4 × 26"
Pan Capacity 12 full-size (12" × 20" × 4")
Cooled Volume 25.5 cu ft  (0.72 m³)
Cooling Capacity 2,000 BTU/hr
Compressor ½ HP, self-contained
Refrigerant R-404A (CFC-free)
Electrical 120 V / 60 Hz / 1-Ph / 20 A  |  6' cord, NEMA 5-20P
Shipping Weight 1,075 lb (488 kg)
Certifications UL, NSF
Optional Upgrades
  • 4" or 6" locking caster kit
  • Electric condensate evaporator pan
  • Cable restraint kit (for units on casters)

Ask our team about Middleby Equipment Financing to convert this purchase into manageable monthly payments.

Important: Intended for commercial use only. Maintain a minimum 2" rear clearance and operate in ambient temperatures between 55 °F and 90 °F for optimal performance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

120.0in

Depth

32.5in

Shipping Weight

1075.0lbs

Width

115" - 120" wide

Drawer Qty

8 drawers

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Compressor HP

3/4 HP

Exterior Finish

all stainless steel exterior

Specifications

Freezer Base, self-contained, low height, 120", (4) 18" & (4) 26" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 20 amps, 3/4 HP, order with Platinum Series modular cook tops, UL, NSF
