Free shipping on your first order over $5000 – use code TeamUSA at checkout!
Southbend (Middleby)  |  Platinum  |  SKU: 30108RSB

Southbend (Middleby) 30108RSB Platinum Undercounter & Worktop Refrigeration

$20,881.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 108" Remote Freezer Base – Model 30108RSB

Low-profile 6-drawer base for Platinum modular cook tops

Built for high-volume, high-precision kitchens, the 108-inch Southbend Platinum remote freezer base delivers rapid pull-down temperatures and rock-solid cold storage directly beneath your line. Pair it with any Southbend Platinum sectional range top to create a seamless cook-and-store workstation that saves steps, boosts speed, and stands up to the toughest shifts.

Performance & Construction Highlights
  • Massive 108" (2743 mm) platform supports any Platinum Series modular tops or sectional batteries.
  • (6) self-closing, heavy-duty drawers glide on stainless steel rollers:
    • (2) 26" drawers – hold two 12" × 20" × 4" hotel pans each (front-to-back).
    • (4) 31" drawers – hold two 12" × 20" × 4" hotel pans each (side-by-side).
  • 26 cu ft (0.74 m³) of NSF-7 compliant frozen storage with coved interior corners for easy wipe-downs.
  • CFC-free, foamed-in-place polyurethane insulation delivers maximum thermal efficiency.

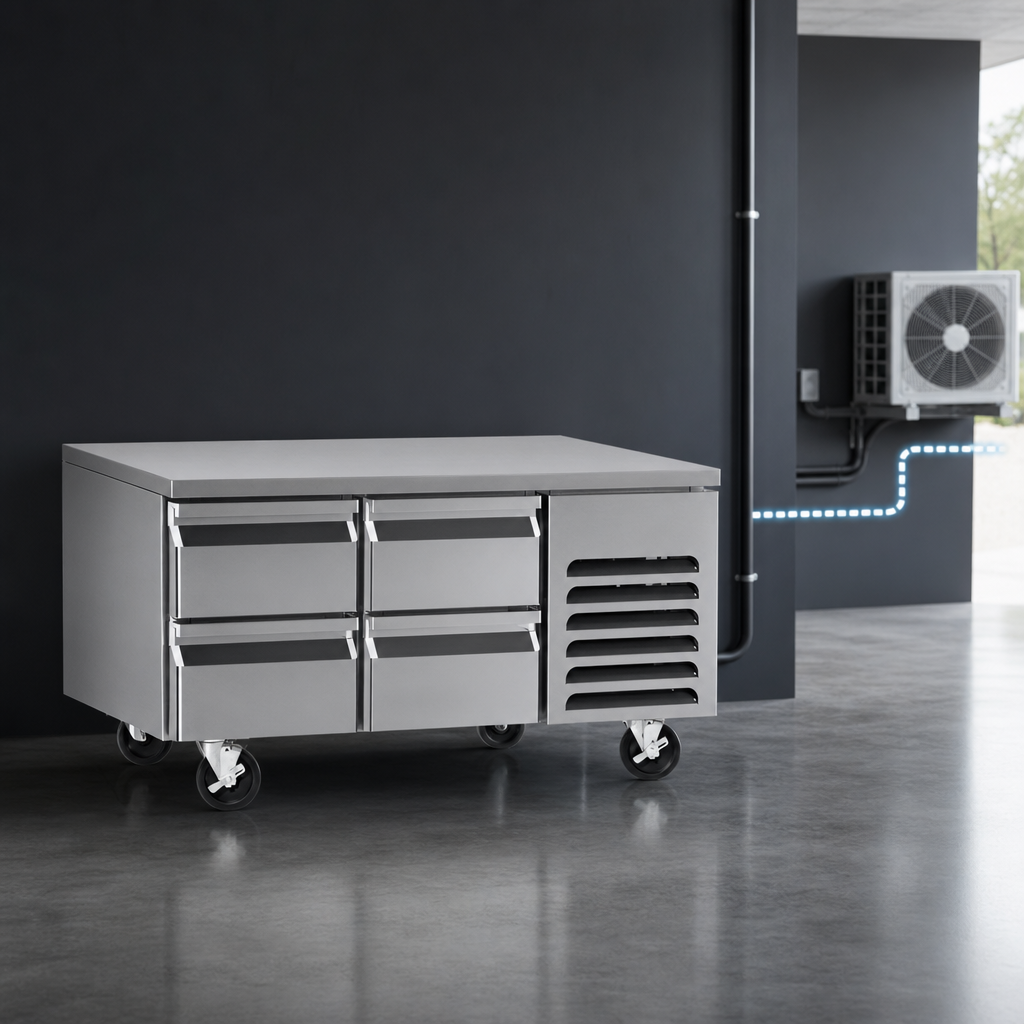

  • Remote ¾ HP refrigeration system (R-404A) with thermostatic expansion valve for lightning-fast recovery.
  • Adjustable digital thermostat with LED read-out for precise, user-friendly temperature control.
  • All-stainless steel exterior, drawer fronts, liner, and 6" adjustable legs – built for years of abuse on the line.
  • Magnetic snap-in gaskets and removable drawer assemblies slash cleaning and maintenance time.
  • Mullion coils are corrosion-resistant and positioned for even airflow across every drawer cavity.
  • Ships standard with electric condensate evaporator pan and 6 ft grounded power cord.
  • UL-Listed & NSF-Certified for commercial kitchens.
Technical Specifications
Model 30108RSB (Remote Condenser)
Overall Dimensions 108" W × 32.5" D × 26" H (incl. 6" legs)
Drawer Configuration (2) 26" drawers & (4) 31" drawers – 12 hotel-pan capacity
Cooled Volume 26 cu ft (0.74 m³)
Refrigerant / Compressor R-404A / ¾ HP remote (condenser not included)
Cooling Capacity 2,000 BTU hr
Electrical 120 V / 60 Hz / 1-phase, 20 A, 6 ft cord & NEMA 5-20P plug
Shipping Weight Approx. 940 lb (426 kg)
Warranty 1 year parts & labor
Popular Options & Accessories
  • Factory-installed heavy-duty swivel casters (front two locking).
  • Cable restraint kit for units on casters.
  • Caster frames in optional heights.
Important: This model requires a field-supplied remote condenser and a ½" I.D. vinyl condensate drain line. Provide a minimum 2" rear clearance and maintain an ambient temperature between 55 °F – 90 °F for optimal performance.

Upgrade your line today without tying up capital – ask about simple equipment financing with fixed monthly payments. Apply in minutes »

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

108.0in

Depth

32.5in

Shipping Weight

940.0lbs

Top Finish

stainless steel top

Compressor HP

3/4 HP

Exterior Finish

all stainless steel exterior

Width

103" - 108" wide

Drawer Qty

6 drawers

Refrigeration

remote (refrigeration not included)

Specifications

Freezer Base, remote, low height, 108", (2) 26" & (4) 31" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 20 amps, 3/4 HP, order with Platinum Series modular cook tops, UL, NSF
