Southbend (Middleby)  |  Platinum  |  SKU: 30096SB

Southbend (Middleby) 30096SB Platinum Undercounter & Worktop Refrigeration

$19,977.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Platinum Series 96" Low-Height Freezer Base – Self-Contained

Southbend Model 30096SB | 6-Drawer | 10-Pan Capacity

Give your Platinum modular cooktops a rock-solid, refrigerated foundation. The Southbend 30096SB keeps up to 10 full-size steam-table pans at food-safe temperatures right where your chefs need them—directly under the cooking line—while its low 26" profile maintains the perfect working height for the entire battery.

Key Features
  • Self-contained, 96 in. (2438 mm) base supports any Southbend Platinum cooktop module
  • Six self-closing drawers on stainless steel roller slides:
    • (2) 18" drawers – each fits one 12"x20"x4" pan
    • (4) 26" drawers – each fits two 12"x20"x4" pans front-to-back
  • Center pull handles & heavy-duty magnetic gaskets for a positive, energy-saving seal

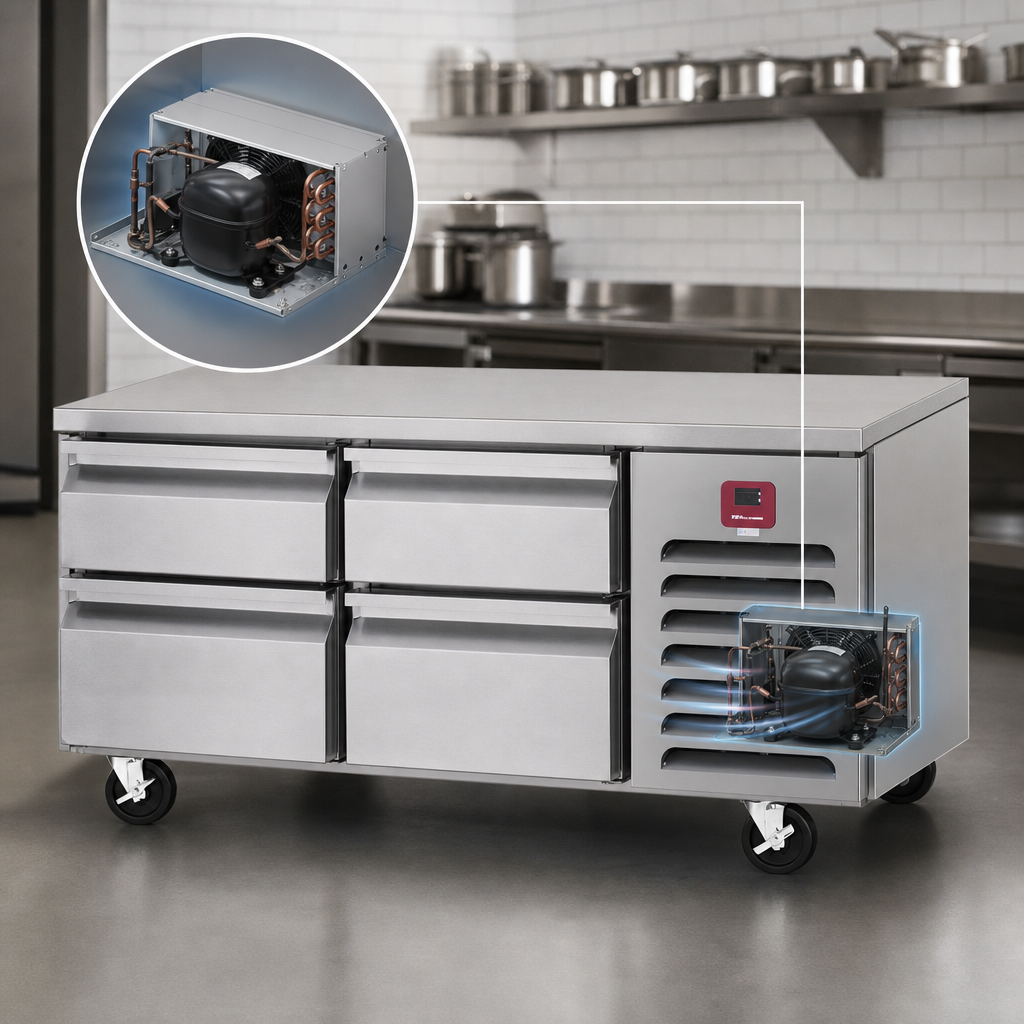

  • CFC-free R-404A refrigeration system with expansion valve for rapid temperature recovery
  • Foamed-in-place polyurethane insulation delivers maximum cold retention
  • Adjustable digital thermostat with easy-read LED display
  • All-stainless-steel exterior, interior, and drawer assemblies for unmatched durability and easy sanitation
  • Corrosion-resistant mullion coils ensure uniform air flow to every drawer
  • 6" height-adjustable stainless steel legs (locking casters available)
  • UL and NSF listed for commercial kitchens
Drawer Configuration
Drawer Size Quantity Pans per Drawer Total Pan Capacity
18" W 2 1 × 12"x20"x4" 10 pans
(pans not included)
26" W 4 2 × 12"x20"x4"
Specifications
Width 96" (2438 mm)
Depth 32.5" (826 mm)
Height (incl. legs) 26" (660 mm)
Interior Volume 18 cu. ft (0.51 m³)
Compressor 3/4 HP, hermetically sealed
Cooling Capacity 1,955 BTU/hr
Electrical 120 V / 60 Hz / 1-ph, 20 A, 6 ft cord & grounded plug
Refrigerant R-404A (CFC-free)
Shipping Weight 855 lb (388 kg)
Certifications UL, NSF
Warranty 1-year parts & labor
Popular Options & Accessories
  • Locking swivel casters (factory-installed)
  • Cable restraint kit for mobile installations
  • Electric condensate evaporator pan

Minimum 2" rear clearance required for ventilation. Intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

96.0in

Depth

32.5in

Shipping Weight

855.0lbs

Top Finish

stainless steel top

Compressor HP

3/4 HP

Width

91" - 96" wide

Drawer Qty

6 drawers

Exterior Finish

all stainless steel exterior

Refrigeration

self-contained, side mounted

Specifications

Freezer Base, self-contained, low height, 96", (2) 18" & (4) 26" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 20 amps, 3/4 HP, order with Platinum Series modular cook tops, UL, NSF
