Southbend (Middleby) 30084SB Platinum Undercounter & Worktop Refrigeration
Southbend (Middleby) 30084SB Platinum Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 30084SB Platinum Undercounter & Worktop Re...
Description
Southbend Platinum Series 84" Freezer Base
Model 30084SB | Self-Contained • Low-Height • 4-DrawerGive your Southbend Platinum modular cook line a frozen ingredient station built to the same heavy-duty standard. The 30084SB slides seamlessly beneath any 84" Platinum range top, delivering rock-solid -10°F to 10°F storage, rapid temperature recovery and the durability only all-stainless-steel construction can provide.
Performance & Construction Highlights

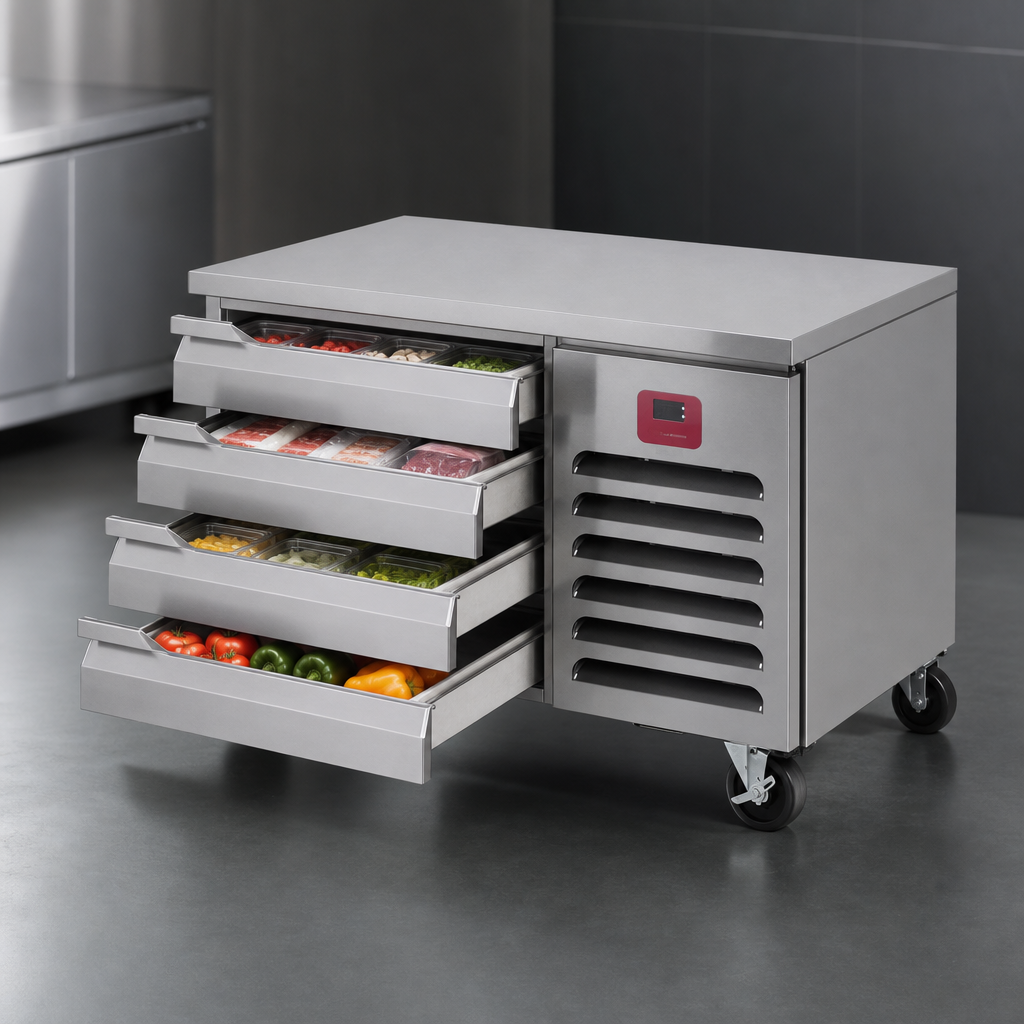

- Four 31" self-closing drawers glide on stainless steel rollers and accept eight 12" × 20" × 4" pans (not included).
- CFC-free R-404A refrigeration with expansion valve for rapid pull-down and recovery.
- Foamed-in-place polyurethane insulation delivers maximum cold retention.
- Digital thermostat and corrosion-resistant coated mullion coils maintain even, dependable cooling.
- 304 stainless steel top, front, sides, back, drawer fronts and interior cavity for a sanitary, easy-to-clean surface.
- 6" adjustable stainless steel legs standard; heavy-duty locking casters available.
- Built-in condensate evaporator pan (standard on 84" models) eliminates the need for a floor drain.
- UL & NSF certified for commercial kitchens; one-year parts & labor warranty backed by Southbend’s nationwide service network.
Specification Table
| Overall width | 84 in (2134 mm) |
|---|---|
| Overall depth / height | 32½ in D × 26 in H (including legs) |
| Usable drawer count | 4 self-closing, 31 in wide |
| Pan capacity | 8 × 12" × 20" × 4" pans |
| Interior volume | 16 cu ft (0.45 m³) |
| Cooling capacity | 1,920 BTU/hr |
| Refrigerant | R-404A (CFC-free) |
| Electrical | 120 V / 60 Hz / 1-ph, 10.1 A, ½ HP compressor, 6 ft cord & NEMA 5-15P plug |
| Shipping weight | 745 lb (338 kg) |
| Compatible cook tops | Southbend Platinum Series modular range sections (mount directly with insulated base adapter) |
Why Choose Southbend Platinum?
- Engineered to integrate into a sectional battery—build the exact cook suite your menu demands.
- Low-height profile keeps a full heavy-duty range line at a single ergonomic cooking level.
- Field-proven reliability backed by more than a century of Southbend commercial innovation.
Minimum rear clearance: 2". Designed for ambient temperatures between 55°F and 90°F. Intended for commercial use only.
