Southbend (Middleby) 30064SB Platinum Undercounter & Worktop Refrigeration
Southbend (Middleby) 30064SB Platinum Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 30064SB Platinum Undercounter & Worktop Re...
Description

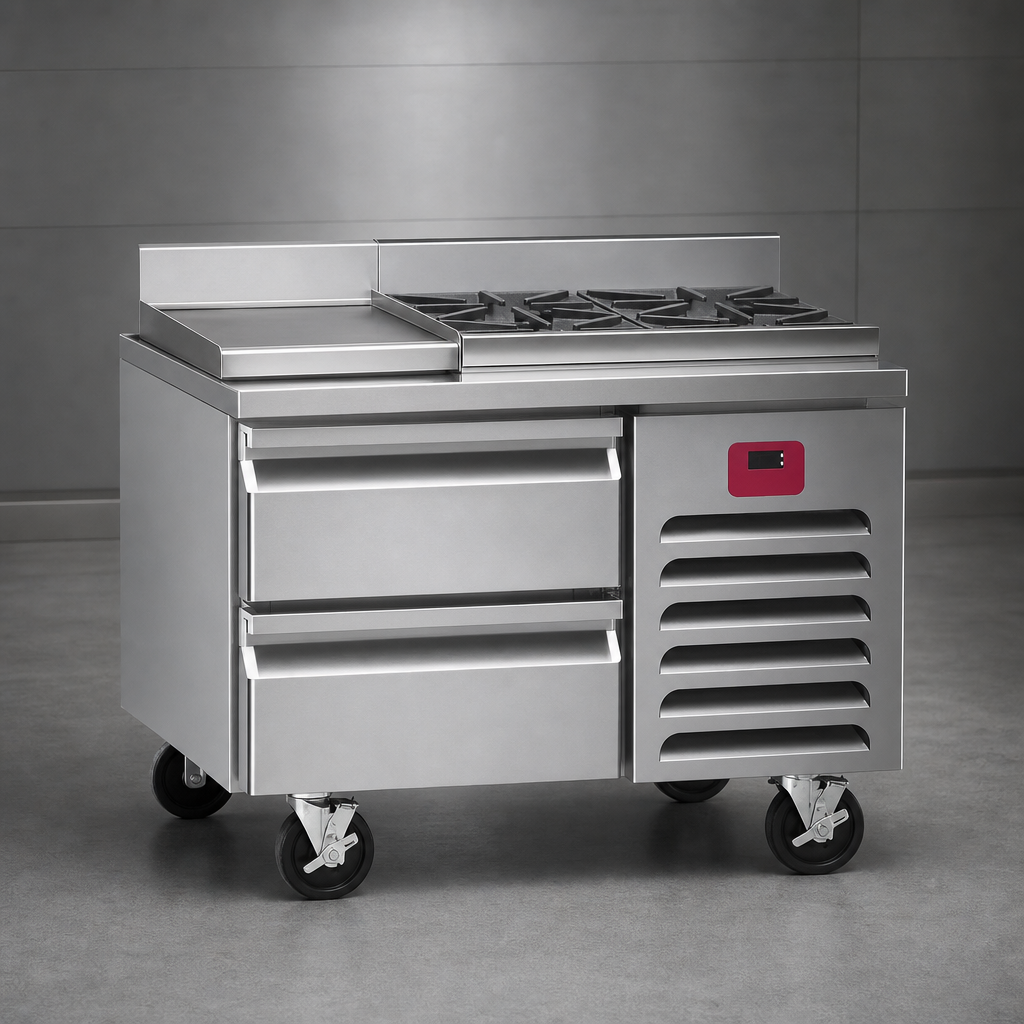

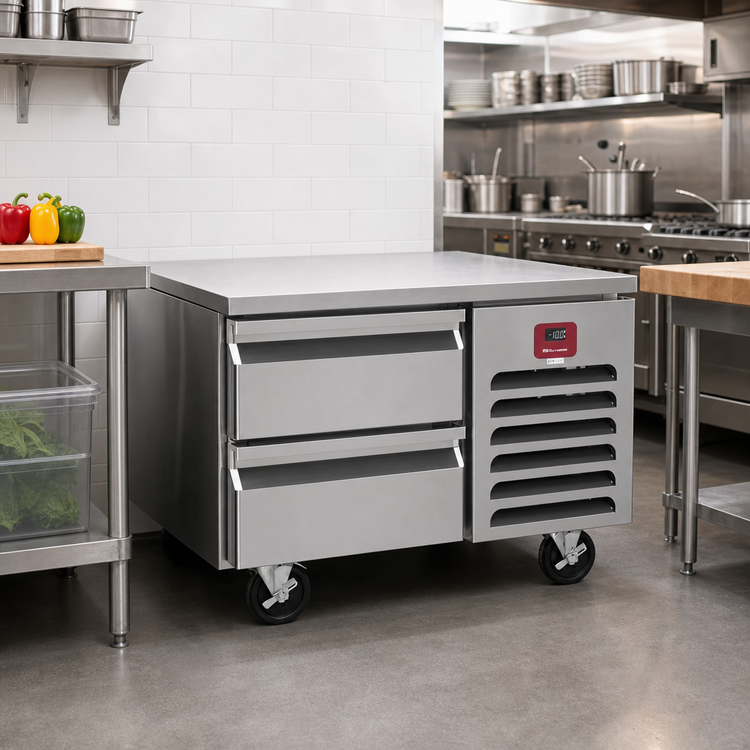

Southbend Platinum 64" Self-Contained Freezer Base – Model 30064SB
Low-profile two-drawer freezer designed for Platinum Series cook topsKeep your most-used frozen ingredients exactly where you need them—right under the cooking line. The Southbend Platinum 30064SB Freezer Base delivers rock-solid cold storage in a rugged, fully stainless-steel cabinet that perfectly supports any 64" Platinum Series modular range top.
Key Features
- Two 31" self-closing drawers on stainless steel rollers
- Each drawer holds 2 × 12" × 20" × 4" pans (pans sold separately)
- All-304 stainless steel exterior & interior with coved corners for easy NSF-approved cleaning
- Foamed-in-place CFC-free polyurethane insulation for maximum cold retention
- R-404A expansion-valve refrigeration for rapid temperature recovery
- Adjustable digital thermostat with LED readout
- Mullion-mounted, corrosion-resistant coils for even air flow
- 6" adjustable stainless steel legs (locking casters optional)
- Plug-and-play 120 V operation—no remote system required
- UL & NSF listed for commercial kitchens
Technical Specifications
| Model | 30064SB |
|---|---|
| Overall width | 64" (1626 mm) |
| Overall depth | 32.5" (826 mm) |
| Overall height | 26" (660 mm) including 6" legs |
| Drawers / Pan capacity | 2 drawers / 4 hotel pans |
| Cooled volume | 10 cu ft (0.28 m³) |
| Refrigerant | R-404A (CFC-free) |
| Cooling capacity | 1,802 BTU/hr |
| Compressor | 1/3 HP, self-contained |
| Electrical | 120 V / 60 Hz / 1-Ph, 8 A, NEMA 5-15P cord & plug |
| Shipping weight | 550 lb (249 kg) |
| Warranty | 1 year parts & labor |
Perfect For
- Mounting beneath Southbend Platinum ranges, griddles & charbroilers
- Line-side storage of frozen proteins, fries or dessert items
- High-volume restaurants, ghost kitchens and food halls where every inch counts
Factory Options & Accessories
- Locking swivel casters (front two lock)
- Cable restraint kit for mobile installations
- Electric condensate evaporator pan
Need a different width? Platinum freezer bases are available from 32" up to 120"—ask our team for details.
