Southbend (Middleby) 30064RSB Platinum Undercounter & Worktop Refrigeration

Platinum Series 64" Low-Profile Remote Freezer Base

Keep your mise en place ice-cold and right where the action is. Designed to sit directly beneath Southbend Platinum modular range tops, this 64 inch freezer base delivers rock-solid −10 °F storage without raising your cookline height. Two 18" and two 26" self-closing drawers glide effortlessly on all-stainless rollers, each accepting standard 12 x 20 x 4" pans (6 pans total, pans not included).

Key Advantages

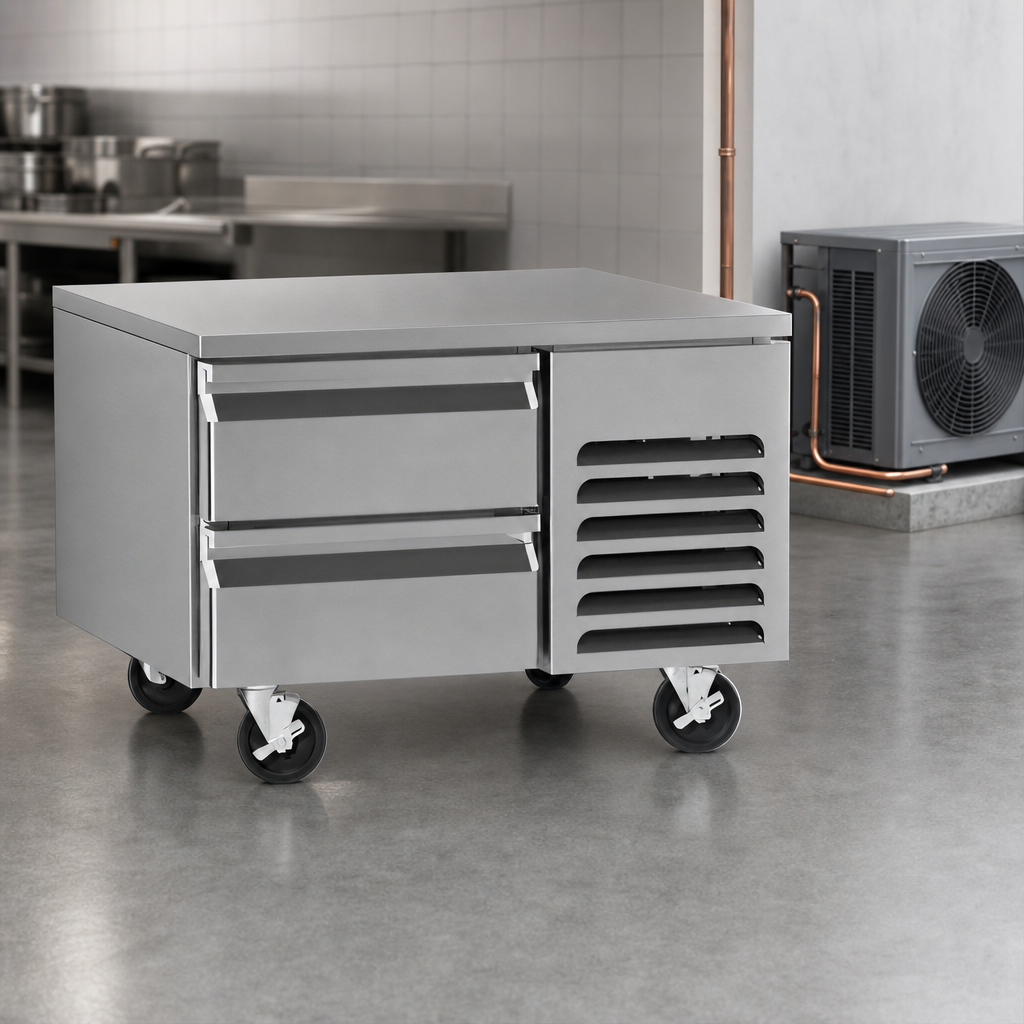

• Remote refrigeration system with expansion valve for rapid temperature recovery (condenser not included).
• Low-height cabinet (26") aligns perfectly with Platinum Series cooktops for an ergonomic line setup.
• All-stainless construction—top, front, sides, back, drawers & coved interior—for unmatched durability and easy sanitation.
• Foamed-in-place CFC-free polyurethane insulation and coated mullion coils ensure even, energy-efficient cooling.
• Adjustable digital thermostat and magnetic gaskets for a dependable -10 °F to 10 °F holding range.
• 6" adjustable stainless steel legs included; locking caster kits available.
• UL & NSF listed for commercial kitchens; ships on a standard 120 V plug.

Drawer Configuration

• (2) 18" drawers – each holds (1) full-size 12 x 20 x 4" pan.
• (2) 26" drawers – each holds (2) full-size 12 x 20 x 4" pans front-to-back.
• Total pan capacity: 6 pans / 13 cu ft of frozen storage.

Technical Specifications

Popular Options & Accessories

• Locking caster kit (replaces 6" legs)
• Caster frame with alternative heights
• Cable restraint kit for units on casters

Intended for commercial use only. For complete terms, please see Southbend’s limited warranty.
