Southbend (Middleby) 30060SB Platinum Undercounter & Worktop Refrigeration
Southbend (Middleby) 30060SB Platinum Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 30060SB Platinum Undercounter & Worktop Re...
Description

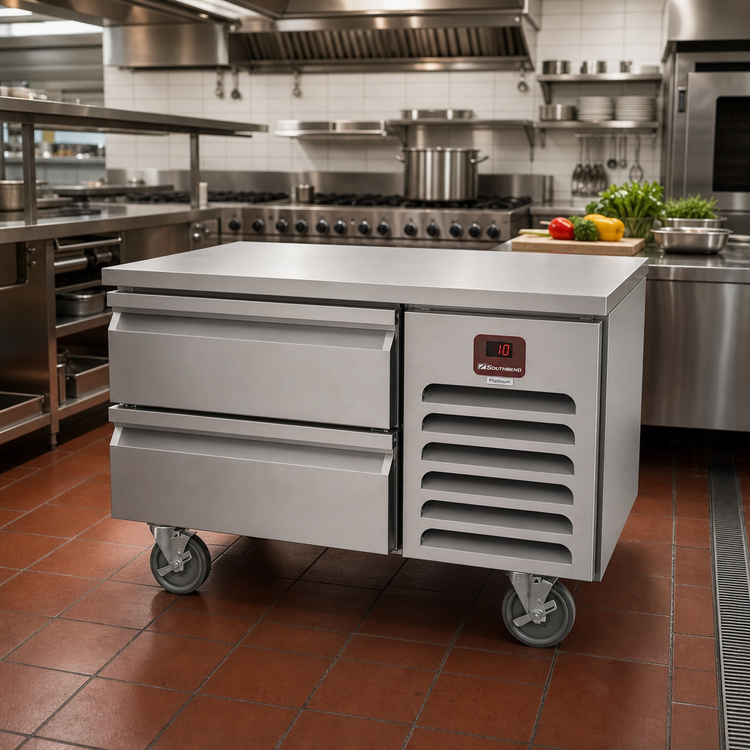

Platinum Series 60" Low-Height Freezer Base
Model 30060SB | 2 Self-Closing DrawersGive your Southbend Platinum modular cook top a rock-solid, ice-cold foundation. The 60" Platinum Freezer Base keeps frequently used proteins and mise en place right where the chef needs them—directly under the line—while standing up to the most demanding commercial kitchens.
Key Features

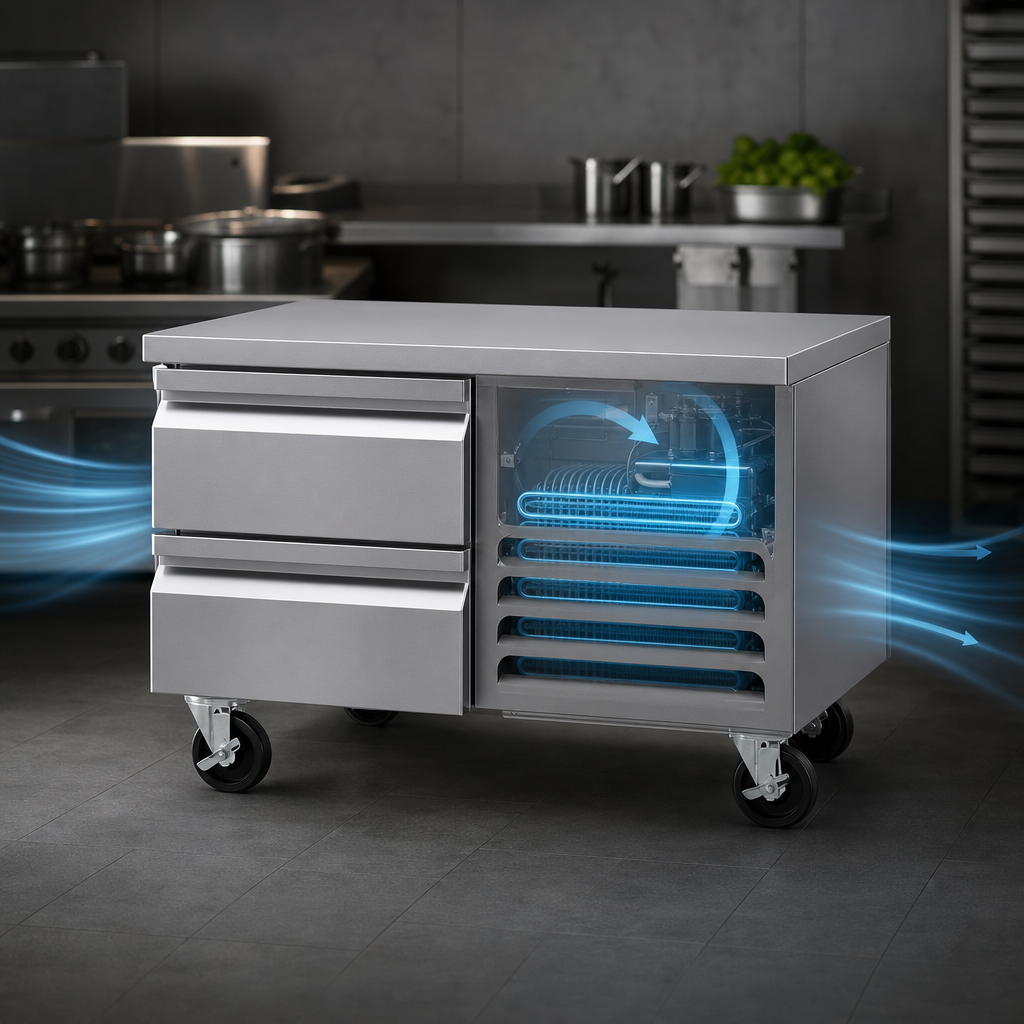

- Self-contained, low-profile design (26" high) fits beneath Platinum Series range tops
- (2) 31" heavy-duty drawers on stainless steel rollers—each drawer holds 2 full-size 12" × 20" × 4" pans (4 pans total, pans sold separately)
- CFC-free R-404A refrigeration with expansion valve for rapid temperature recovery
- Foamed-in-place polyurethane insulation delivers maximum cold retention
- Adjustable digital thermostat for precise temperature control
- All-stainless-steel exterior, interior, and drawer assemblies for unmatched durability
- Magnetic drawer gaskets ensure a positive seal and quick, tool-free cleaning
- 6" adjustable stainless legs included; field-installable casters available
- Corrosion-resistant mullion coils promote even air flow throughout the cabinet
- UL & NSF listed for safe, sanitary commercial use
At-a-Glance Specs
| Exterior width | 60" (1524 mm) |
|---|---|
| Depth × Height | 32 1/2" × 26" (826 mm × 660 mm) – including legs |
| Usable storage | 10 cu ft / 0.28 m3 |
| Cooling capacity | 1,802 BTU/hr |
| Compressor | 1/3 HP, self-contained |
| Electrical | 120 V / 60 Hz / 1-phase, 8 A, 6 ft grounded cord |
| Pan capacity | 4 × 12" × 20" × 4" full-size hotel pans (not included) |
| Shipping weight | ≈ 550 lb (249 kg) |
| Refrigerant | R-404A (CFC-free) |
| Certifications | UL, NSF |
| Warranty | 1 year parts & labor |
Optional Accessories
- Set of casters (front two locking)
- Cable restraint kit for units on casters
- Electric condensate evaporator pan
Perfect Companion For
Designed to bolt directly beneath Southbend Platinum Series modular range tops—create a seamless cook-and-cold line that saves steps, boosts efficiency, and maximizes valuable kitchen space.
Minimum 2" rear clearance required. Operate in ambient temperatures between 55 °F and 90 °F for optimal performance.
