Southbend (Middleby)  |  Platinum  |  SKU: 30060RSB

Southbend (Middleby) 30060RSB Platinum Undercounter & Worktop Refrigeration

$14,983.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Platinum Series 60" Remote Freezer Base – Low-Profile, 4-Drawer

Southbend Model 30060RSB | UL & NSF Listed

Keep ingredients ice-cold and right where the action is. Designed to sit directly beneath Southbend Platinum sectional cook tops, this 60 inch low-height freezer base puts frozen product within arm’s reach while maximizing line space.

Key Advantages

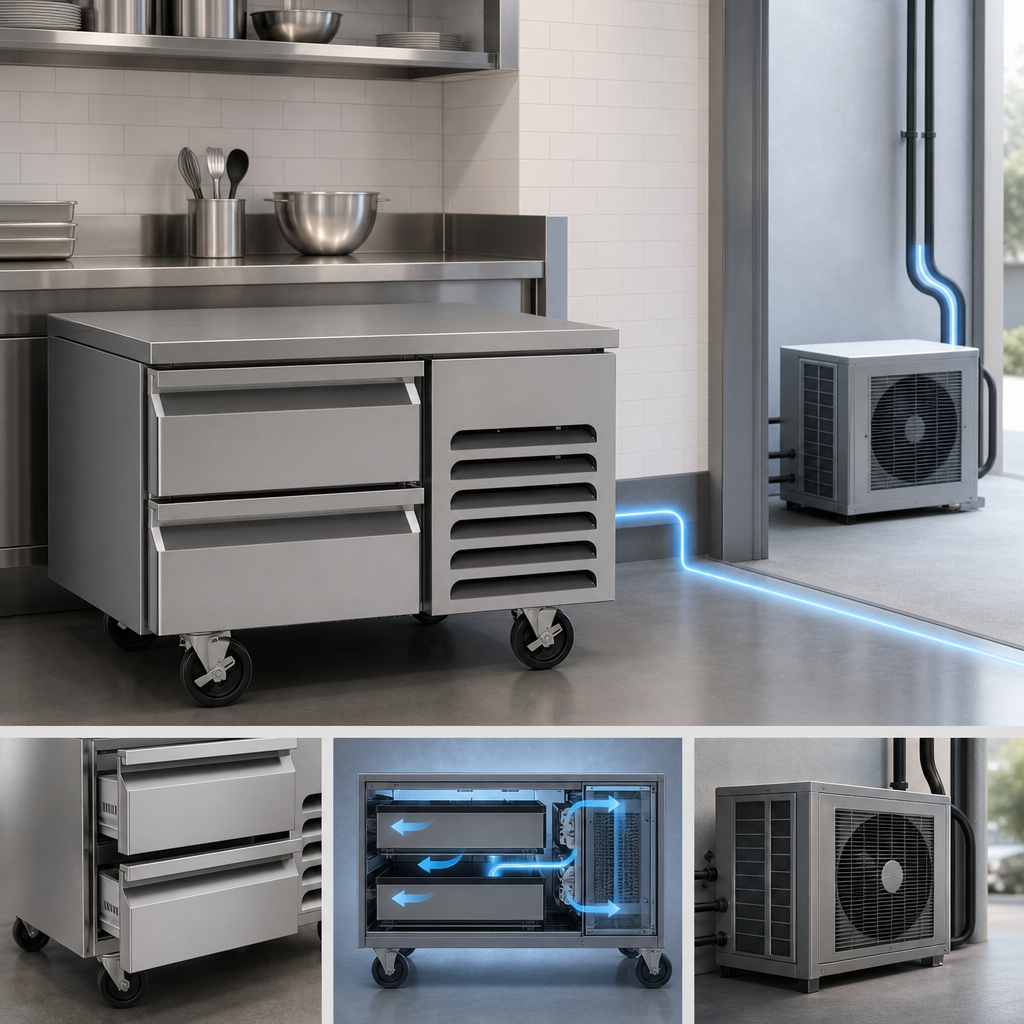

  • Remote refrigeration design (condenser not included) delivers rapid temperature recovery with 1/3 HP compressor power.
  • Four self-closing, heavy-duty drawers on stainless steel rollers:
    • (2) 18" drawers – each holds one 12" × 20" × 4" hotel pan
    • (2) 26" drawers – each holds two pans front-to-back
  • 304 stainless steel top, front, sides, back, drawers & interior with coved corners for simple, NSF-approved cleaning.
  • Digitally controlled thermostat and foamed-in-place, CFC-free polyurethane insulation for consistent -10 °F to 0 °F cabinet temperatures.*
  • Magnetic drawer gaskets deliver a tight seal and are easily removable for sanitation.
  • 6" adjustable stainless steel legs standard (casters optional).
  • Ships with a 6 ft grounded power cord – just plug into a 120 V/60/1 outlet.

At-a-Glance Specs

Exterior width 60" (1524 mm)
Exterior depth 32.5" (826 mm)
Exterior height (inc. legs) 26" (660 mm)
Drawer configuration (2) 18" & (2) 26" self-closing drawers
Pan capacity 6 × 12" × 20" × 4" pans (pans not included)
Interior volume 13 cu ft (0.37 m³)
Cooling capacity 1,875 BTU/hr
Refrigerant R-404A (CFC-free)
Electrical 120 V / 60 Hz / 1-phase, 8 A, 1/3 HP
Power cord 6 ft (1.8 m) with grounded NEMA 5-15P plug
Shipping weight 530 lb (240 kg)
Certifications UL, NSF
Warranty 1 year parts & labor

Options & Accessories

  • Swivel casters (front two locking)
  • Caster frame with alternate heights
  • Cable-restraint kit for units on casters
Important: This model requires connection to a remote condenser (sold separately). Maintain a minimum 2" rear clearance and avoid ambient temperatures below 55 °F or above 90 °F for optimal performance. Intended for commercial use only.

*Typical operational temperature range. Actual performance depends on installation conditions and remote condenser selection.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

60.0in

Depth

32.5in

Shipping Weight

530.0lbs

Drawer Qty

4 drawers

Width

55" - 60" wide

Top Finish

stainless steel top

Compressor HP

1/3 HP

Exterior Finish

all stainless steel exterior

Refrigeration

remote (refrigeration not included)

Specifications

Freezer Base, remote, low height, 60", (2) 18" & (2) 26" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 8 amps, 1/3 HP, order with Platinum Series modular cook tops, UL, NSF
