Southbend (Middleby)  |  Platinum  |  SKU: 30048SB

Southbend (Middleby) 30048SB Platinum Undercounter & Worktop Refrigeration

$14,745.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

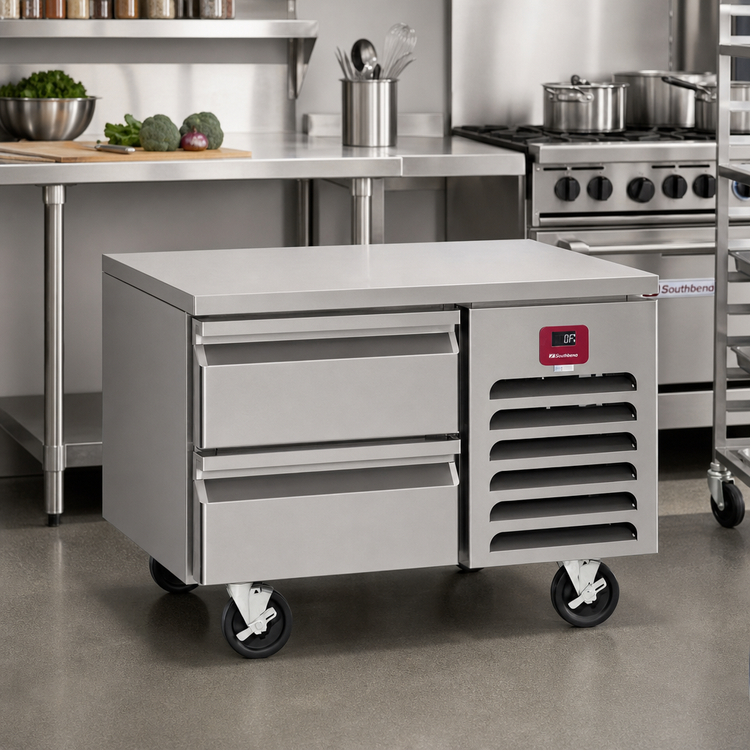

Platinum Series 48" Low-Height Freezer Base

Southbend Model 30048SB  |  Self-Contained • 2 Drawer • 120 V

Keep frozen ingredients within arm’s reach of the cooking line. Designed to sit directly beneath Southbend Platinum modular cook tops, the 30048SB delivers rock-solid, lowside cold storage in a rugged, all-stainless chassis that’s built for the rush of high-volume kitchens.

Key Advantages

  • 48" wide base supports any Platinum Series range, griddle or broiler top (ordered separately).
  • (2) 26" self-closing heavy-duty drawers glide on stainless steel rollers.
  • Holds 4 full-size 12" × 20" × 4" hotel pans (pans not included) – 2 per drawer, front-to-back.

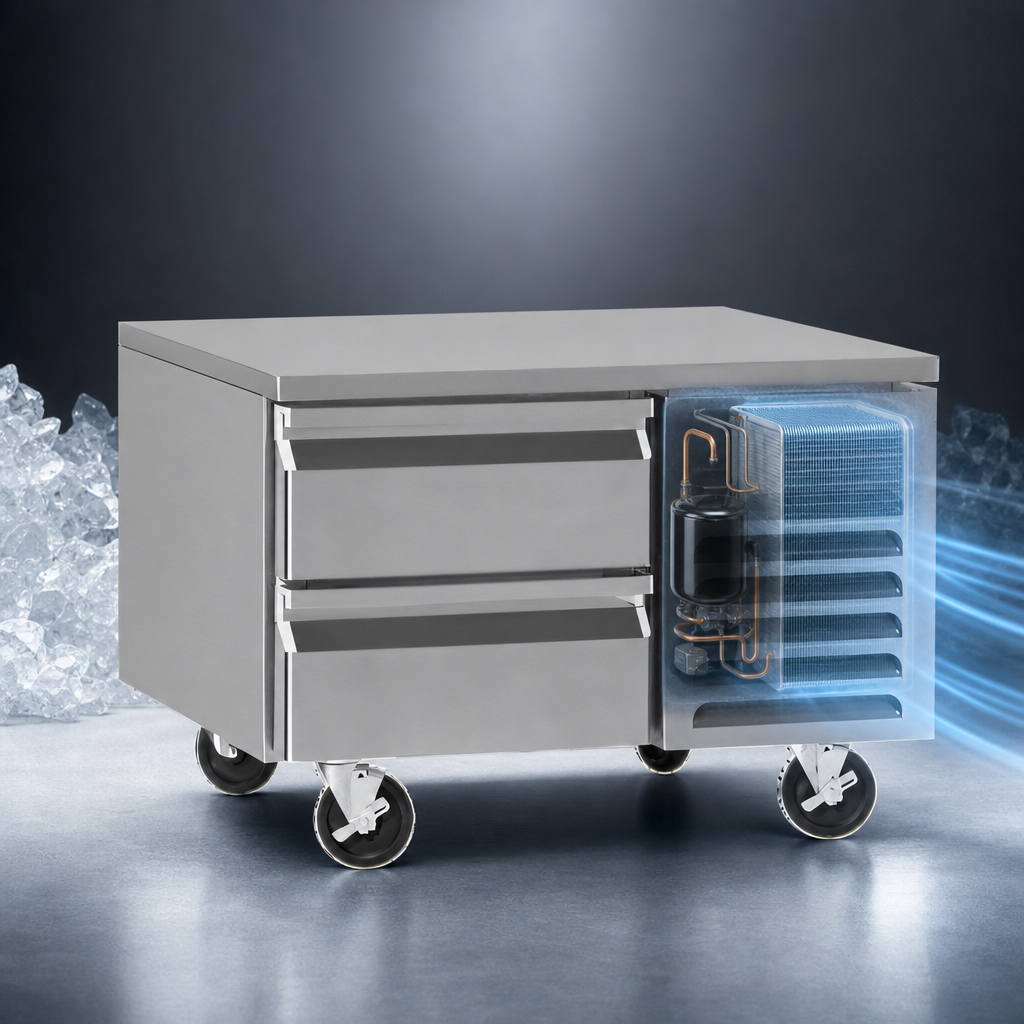

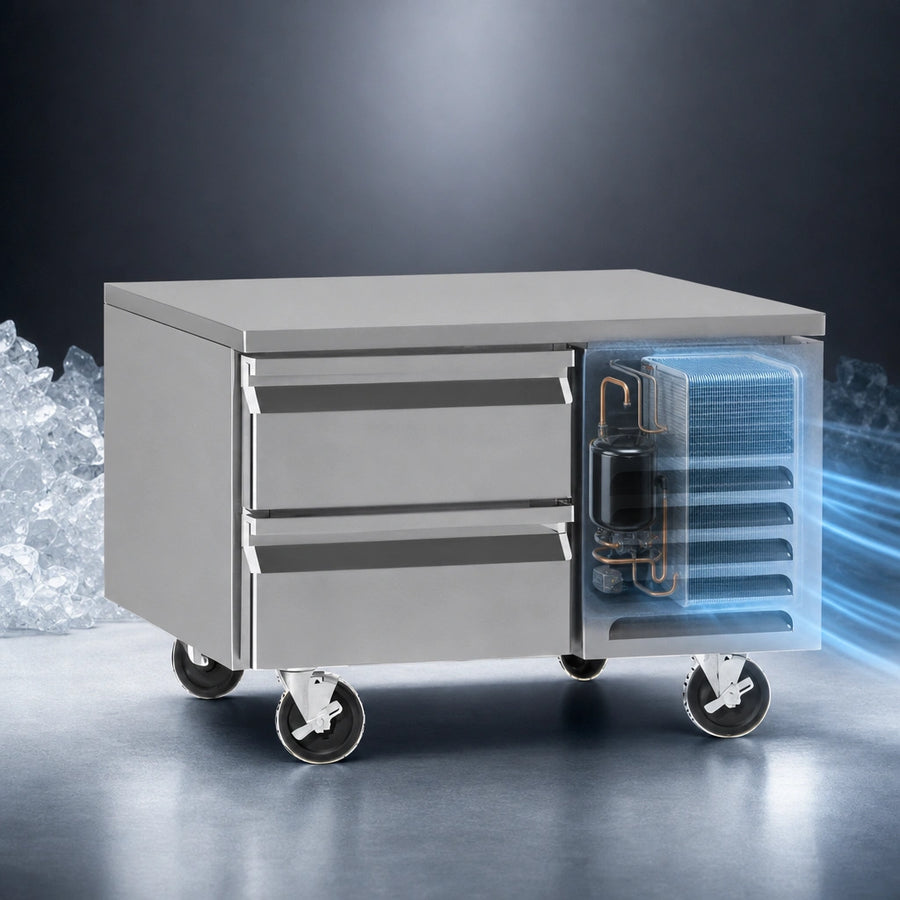

  • Self-contained, CFC-free R-404A refrigeration with expansion valve for rapid pull-down.
  • Foamed-in-place polyurethane insulation delivers maximum cold retention.
  • Magnetic drawer gaskets provide a tight seal and remove easily for cleaning.
  • Coved interior corners meet NSF 7 sanitation standards.
  • Corrosion-resistant, coated mullion coils maintain even temperatures.
  • Front digital thermostat/temperature display simplifies adjustment and monitoring.
  • 6" adjustable stainless steel legs standard; optional locking casters available.
  • UL & NSF listed; one-year parts & labor warranty backed by Southbend’s nationwide service network.

Technical Specifications

Exterior width 48 in  (1219 mm)
Exterior depth 32.5 in  (826 mm)
Exterior height 26 in  (660 mm)  including 6" legs
Interior volume 6.7 cu ft  (0.19 m³)
Drawer count / size 2 × 26" drawers  |  4 full-size pans total
Refrigerant R-404A, CFC-free
Cooling capacity 1 670 BTU/hr
Compressor 1/3 HP, air-cooled
Electrical 120 V / 60 Hz / 1-phase, 8 A, 6 ft grounded cord
Construction 304 stainless steel top, front, sides, back, drawers & interior
Shipping weight 410 lb  (186 kg)
Listings UL, NSF
Warranty 1 year parts & labor

Popular Options (sold separately)

  • Swivel caster set (front two lock) for easy cleaning access.
  • Cable restraint kit for units on casters.
Note: This freezer base is intended for commercial kitchens and should be paired with Southbend Platinum Series modular cook tops or other insulated range sections. Pans, cook-top sections, and casters are not included.

Need flexible financing? Ask about Middleby Equipment Financing to turn your purchase into low, fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

48.0in

Depth

32.5in

Shipping Weight

410.0lbs

Top Finish

stainless steel top

Width

42" - 48" wide

Drawer Qty

2 drawers

Exterior Finish

all stainless steel exterior

Compressor HP

1/3 HP

Refrigeration

self-contained, side mounted

Specifications

Freezer Base, self-contained, low height, 48", (2) 26" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 8 amps, 1/3 HP, order with Platinum Series modular cook tops, UL, NSF
