Southbend (Middleby)  |  Platinum  |  SKU: 30036SB

Southbend (Middleby) 30036SB Platinum Undercounter & Worktop Refrigeration

$12,724.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

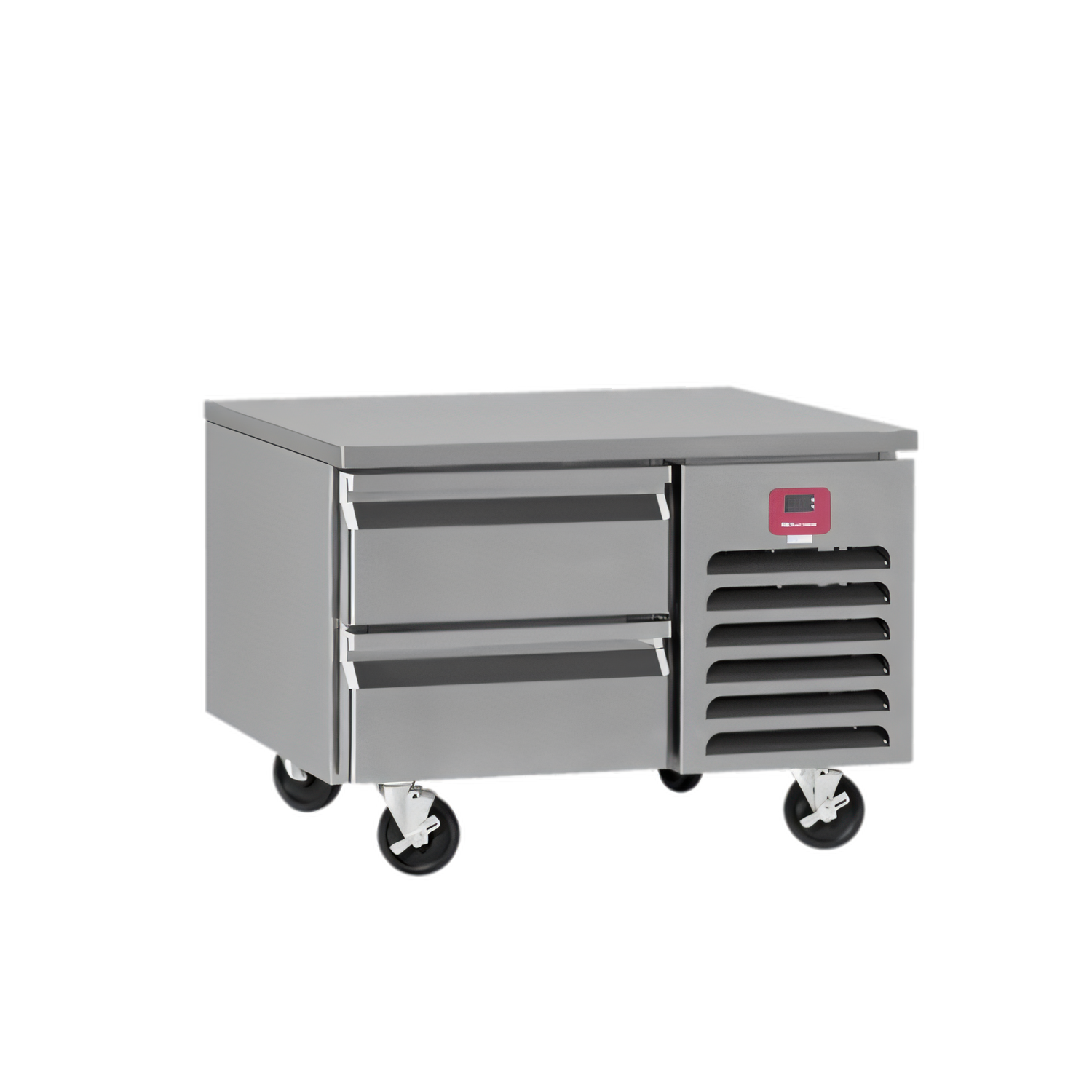

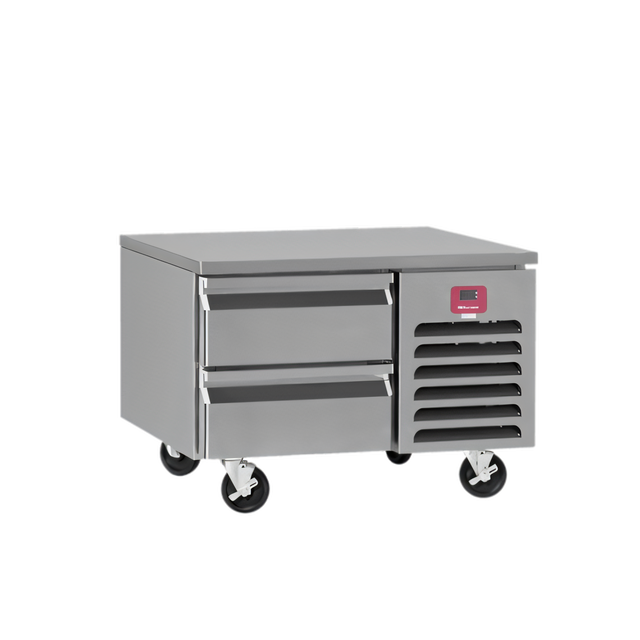

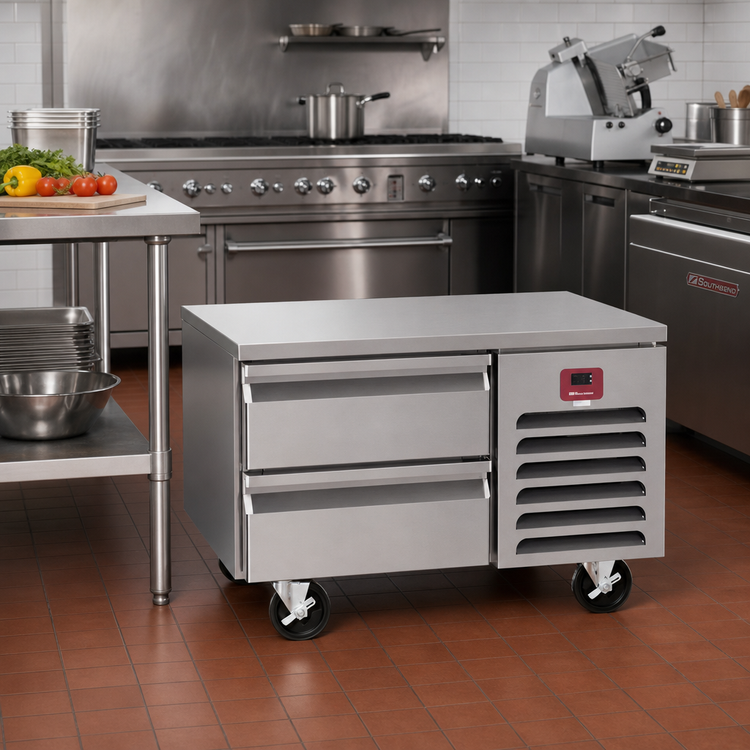

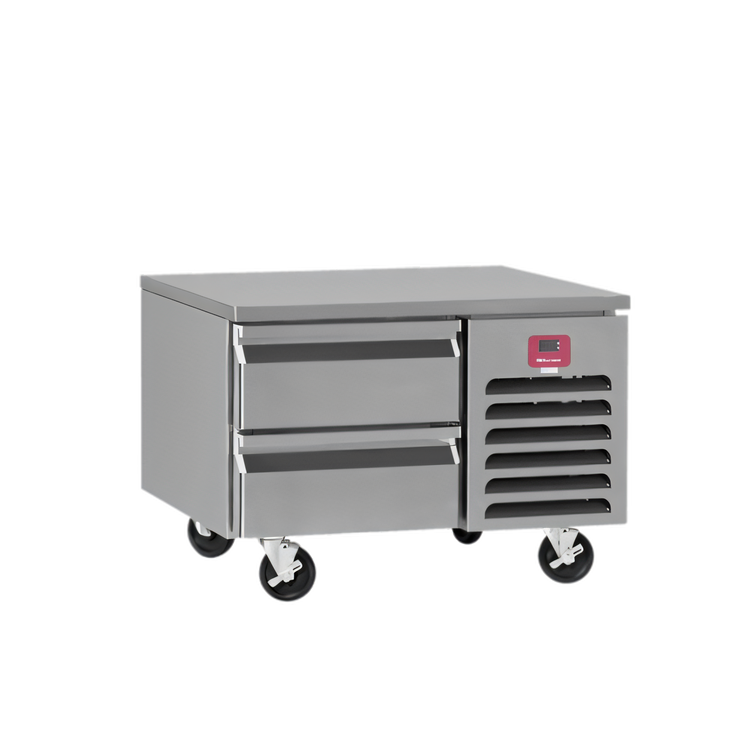

Southbend Platinum 36" Freezer Base – Model 30036SB

Low-height, self-contained 2-drawer freezer for Platinum Series modular cooktops

Built to slide beneath Southbend’s Platinum Series range tops, the 30036SB keeps ingredients icy-cold and instantly accessible without sacrificing valuable line space. All-stainless construction, rapid temperature recovery, and industry-leading insulation deliver rock-solid performance shift after shift.

Performance & convenience

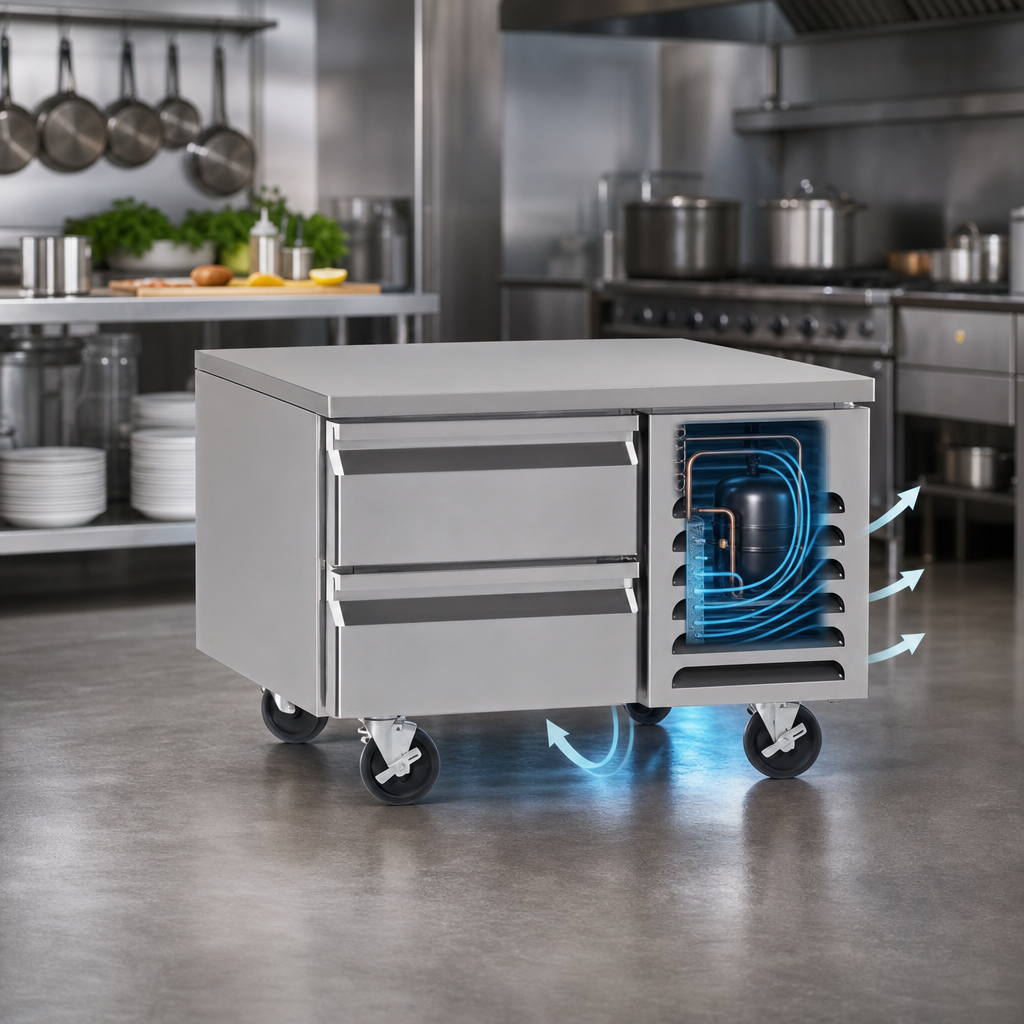

  • Self-contained, R-404A CFC-free refrigeration with expansion valve for rapid pull-down
  • Two 18" self-closing drawers on stainless steel roller slides – each fits one 12" x 20" x 4" pan (pans not included)
  • Foamed-in-place polyurethane insulation provides the industry’s highest R-value
  • Adjustable digital thermostat for precise temperature control
  • Magnetic drawer gaskets snap tight for an energy-saving seal and lift out for quick cleaning
  • Coved interior corners meet NSF #7 for fast, sanitary wipe-downs
  • Low 26" working height pairs perfectly with Platinum Series modular range tops
  • 6" adjustable stainless steel legs standard; field-install casters available

Built to last

  • 304 stainless steel top, front, sides, back, drawers, and interior cavity
  • Mullion-mounted coils are corrosion-resistant and promote even cabinet cooling
  • Heavy-duty center-pull drawer handles stand up to high-volume kitchens
  • UL & NSF listed; intended for commercial use only

Technical specifications

Model 30036SB
Unit width 36" (914 mm)
Overall depth / height 32.5" D × 26" H (826 mm × 660 mm) – including legs
Drawer configuration (2) 18" drawers, self-closing
Pan capacity (2) 12" x 20" x 4" hotel pans
Cooled volume 4 cu ft (0.11 m³)
Refrigeration capacity 1,450 BTU/hr
Compressor 1/3 HP, hermetically sealed
Electrical 120 V / 60 Hz / 1-phase, 8 A, 6' cord & NEMA 5-15P plug
Shipping weight 340 lb (154 kg)
Certifications UL, NSF

Popular options (sold separately)

  • Heavy-duty locking casters (front two lock)
  • Cable restraint kit for units on casters
  • Electric condensate evaporator pan (for high-humidity installs)

Warranty

One-year parts & labor warranty when installed and serviced by a Southbend Authorized Service Agency.

Commercial use only: This equipment is engineered for professional kitchens and is not intended for household use.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

36.0in

Depth

32.5in

Shipping Weight

340.0lbs

Exterior Finish

all stainless steel exterior

Width

31" - 36" wide

Compressor HP

1/3 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

2 drawers

Specifications

Freezer Base, self-contained, low height, 36", (2) 18" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 8 amps, 1/3 HP, order with Platinum Series modular cook tops, UL, NSF
