Description
Southbend Platinum Series 36" Remote Freezer Base
Model 30036RSB • Low-Profile, 2-Drawer, Stainless SteelKeep your line cooks supplied with ice-cold ingredients right where they need them. Designed to sit beneath Southbend Platinum modular cooktops, this low-height freezer base delivers rapid, even cooling in a rugged, all-stainless package.
Top Reasons You’ll Love It
- Low 26" working height fits perfectly under Platinum Series range tops & griddles.

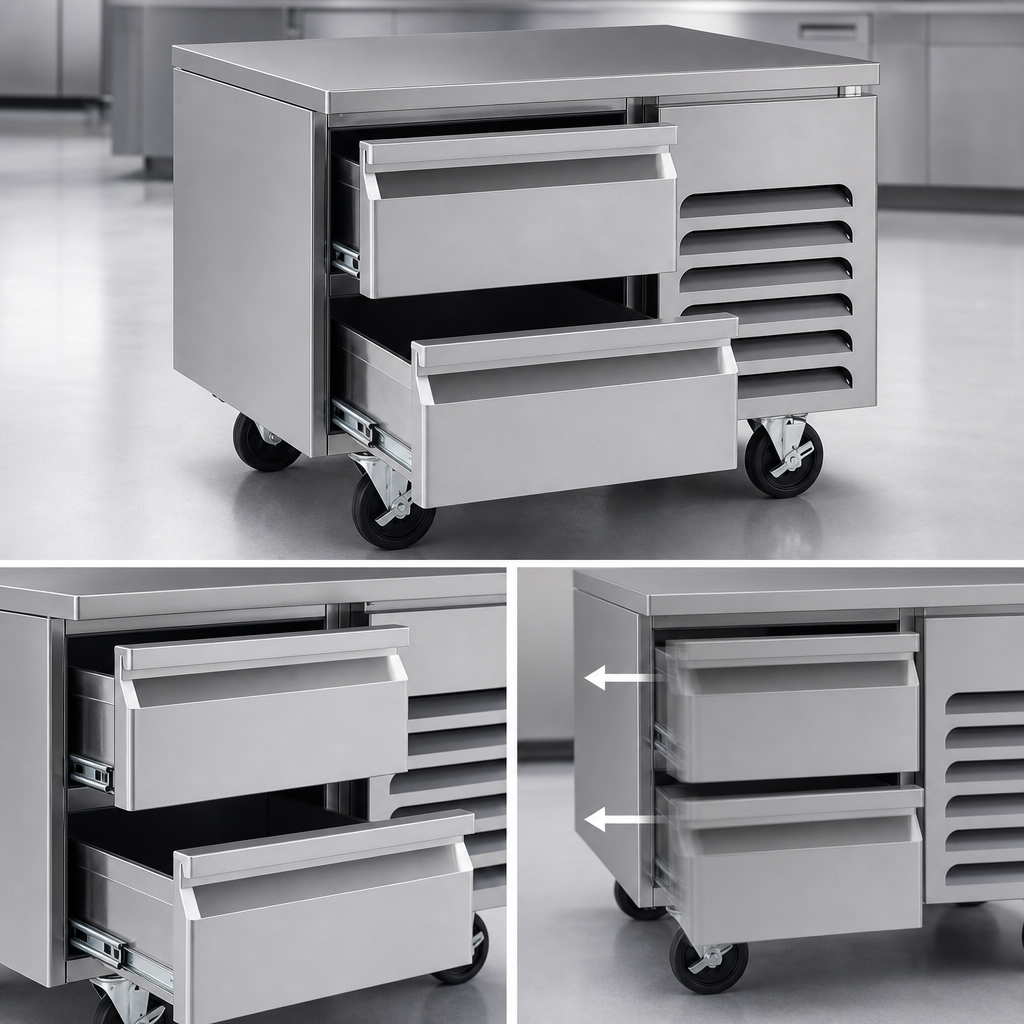

- Two 26" self-closing drawers glide on stainless rollers and hold four 12" x 20" x 4" pans (not included).
- Remote refrigeration keeps heat and noise out of the kitchen; CFC-free R-404A system with expansion valve recovers temp fast.
- Fully foamed-in-place polyurethane insulation—highest R-value in its class.
- Digital thermostat & mullion-coil airflow for precise, even cooling.
- 304 stainless steel top, front, sides, back, drawers & interior for unmatched durability and easy sanitation.
- 6" adjustable stainless legs for simple leveling and floor cleaning.
- UL & NSF listed; built for demanding commercial kitchens.
At-a-Glance Specs
| Exterior width | 36" (914 mm) |
|---|---|
| Exterior depth | 32.5" (826 mm) |
| Exterior height | 26" (660 mm) incl. legs |
| Drawer count / size | 2 × 26" self-closing |
| Pan capacity | 4 full-size 12" × 20" × 4" pans |
| Cooled volume | 7.3 cu ft (0.21 m³) |
| Cooling duty | 1,550 BTU/hr |
| Refrigeration type | Remote, R-404A, 1/3 HP |
| Electrical | 120 V / 60 Hz / 1-ph, 8 A, 6' cord & plug |
| Shipping weight | ≈ 325 lbs (147 kg) |
| Certifications | UL, NSF, DOE 2024 compliant |
Built for the Platinum Battery Line-Up
Stack any Southbend Platinum modular cooktop, griddle, charbroiler, or hot top directly on this freezer base using the factory-supplied insulated adapter. The result is a seamless, high-production cooking battery that keeps proteins, seafood, and mise en place within arm’s reach—no chef steps away from the sauté station.
Peace-of-Mind Warranty
Includes 1 year parts & labor coverage when serviced by an authorized Southbend agency.
Important: Remote condenser unit, connection tubing, and pans are not included and must be ordered separately. This equipment is intended for commercial use only.
