Description

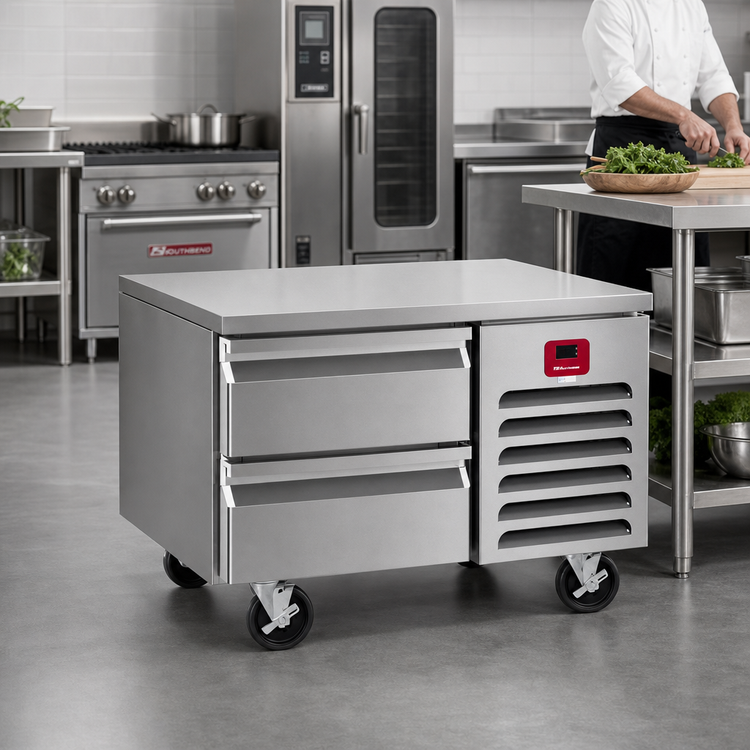

Southbend Platinum Series 32" Low-Profile Freezer Base – Model 30032SB

Self-Contained • 2 Drawer • UL & NSF Certified

Give your Platinum modular cook line dependable, point-of-use frozen storage. The 30032SB tucks a hardworking 1/3 HP freezer system under the range while keeping pans of product at temperature and instantly accessible.

Key Features at a Glance

  • Low 26" height positions cook tops at optimal working level.
  • Two 18" self-closing drawers glide on stainless steel rollers and hold (2) standard 12" × 20" × 4" pans (pans not included).
  • All-stainless 304 exterior & interior with coved corners for easy, NSF-approved clean-up.

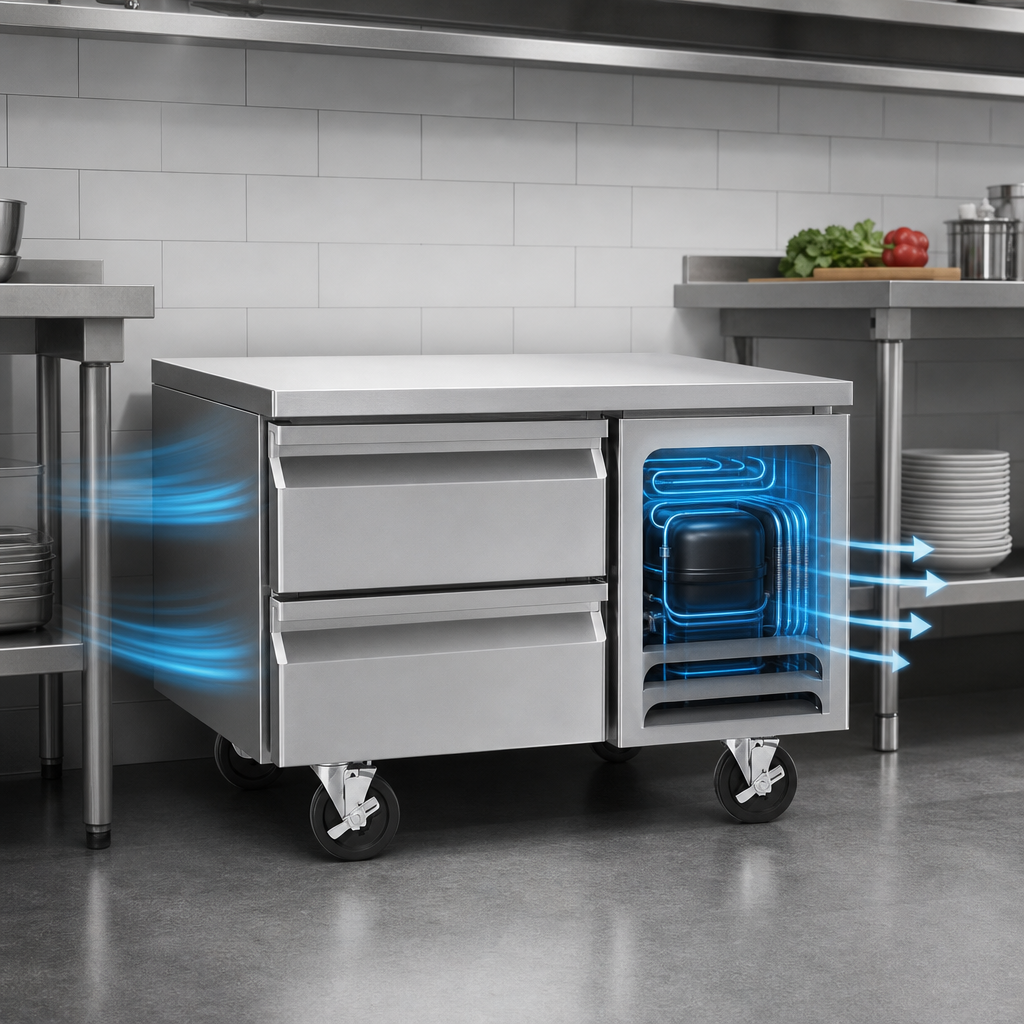

  • CFC-free R-404A refrigeration with expansion valve for rapid temperature recovery.
  • Foamed-in-place polyurethane insulation delivers maximum cold retention.
  • Digital thermostat with LED read-out for precise control.
  • Magnetic drawer gaskets ensure a tight seal and pop out for tool-free cleaning.
  • 6" adjustable stainless steel legs included; optional locking casters available.
  • Ready to integrate under any Southbend Platinum Series modular cook top—no adapter needed.

Technical Specifications

Model 30032SB
Unit width 32" (813 mm)
Overall depth × height 32.5" D × 26" H (826 × 660 mm)
Drawers (2) 18" self-closing, center-pull handles
Pan capacity (2) 12" × 20" × 4" hotel pans
Interior volume 4 ft³ (0.11 m³)
Refrigeration Self-contained, 1/3 HP, 1,450 BTU/hr
Electrical 120 V / 60 Hz / 1-phase, 8 A, NEMA 5-15P cord & plug
Refrigerant CFC-free R-404A
Certifications UL, NSF
Shipping weight 340 lb (154 kg)
Warranty 1-year parts & labor

Popular Options (Sold Separately)

  • Heavy-duty locking casters
  • Cable restraint kit (for units on casters)
  • Electric condensate evaporator pan
Commercial use only: This equipment is engineered for commercial kitchens. Hotel pans, cook tops, and optional accessories are shown for illustration and are not included unless added to your order.

Need multiple bases or a complete Platinum cook suite? Contact us for custom battery configurations and factory-approved financing options.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

32.0in

Depth

32.5in

Shipping Weight

340.0lbs

Exterior Finish

all stainless steel exterior

Width

31" - 36" wide

Compressor HP

1/3 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

2 drawers

Specifications

Freezer Base, self-contained, low height, 32", (2) 18" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 8 amps, 1/3 HP, order with Platinum Series modular cook tops, UL, NSF
