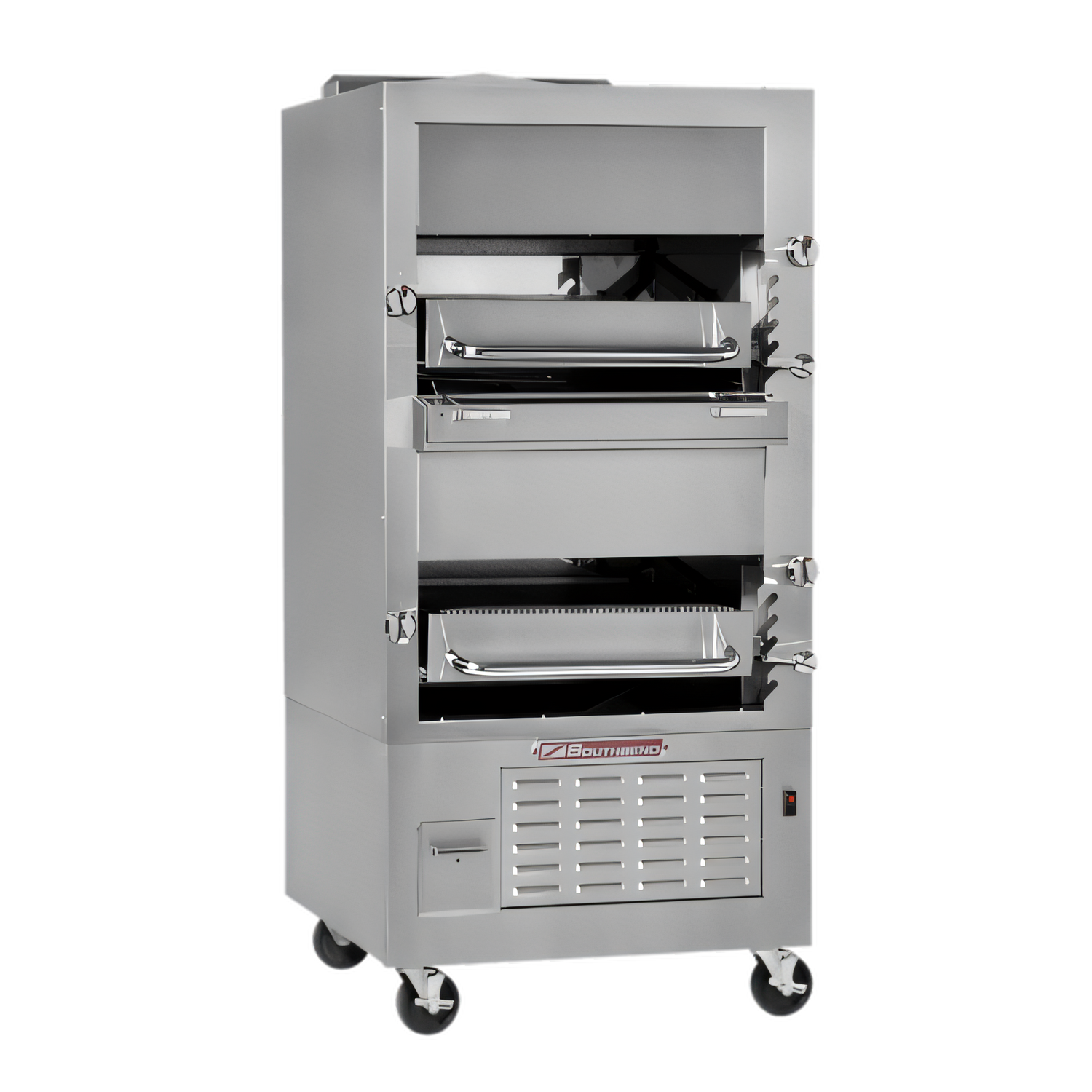

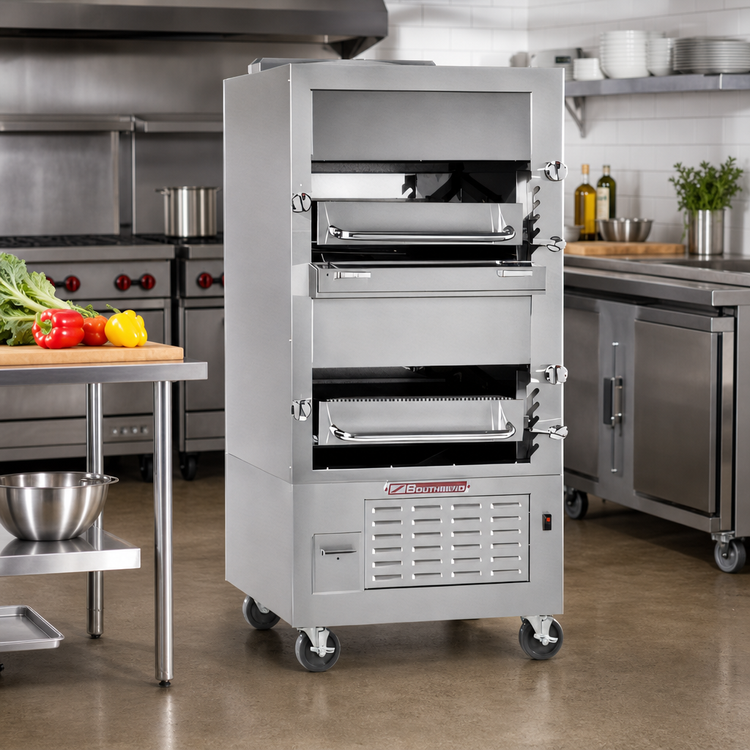

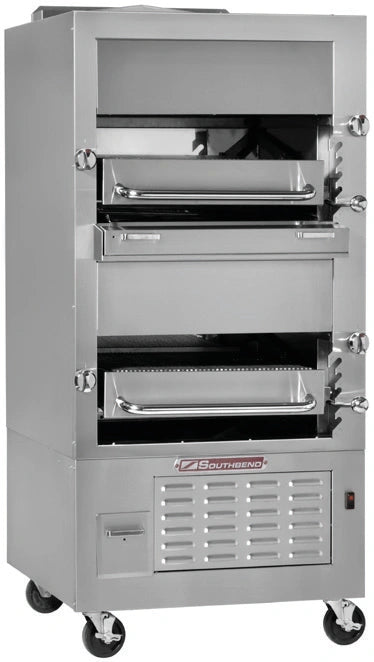

Southbend 270 Double-Deck Free-Standing Infrared Gas Broiler with Enclosed Base

208,000 BTU Total, Stainless Steel, 6-Inch Adjustable Legs

Built for high-volume kitchens, this double-deck infrared broiler delivers intense broiling power, fast preheat, and durable stainless steel construction in a floor-standing design.

  • Double-deck, free-standing infrared broiler for high-volume service
  • 208,000 BTU total output with 104,000 BTU per deck
  • Fresh-air blower system with washable metal mesh air filter helps reduce smoke and vapors
  • Fast 90-second preheat with no waiting between loads
  • Five-position grid height adjustment for better broiling control
  • Stainless steel exterior with enclosed base and 6-inch adjustable legs
  • Roll-out broiling area with a cooler front holding zone and removable grids

Overall Dimensions:

34.0"W x 37.0"D x 75.5"H

Product Weight:

932.0 lb

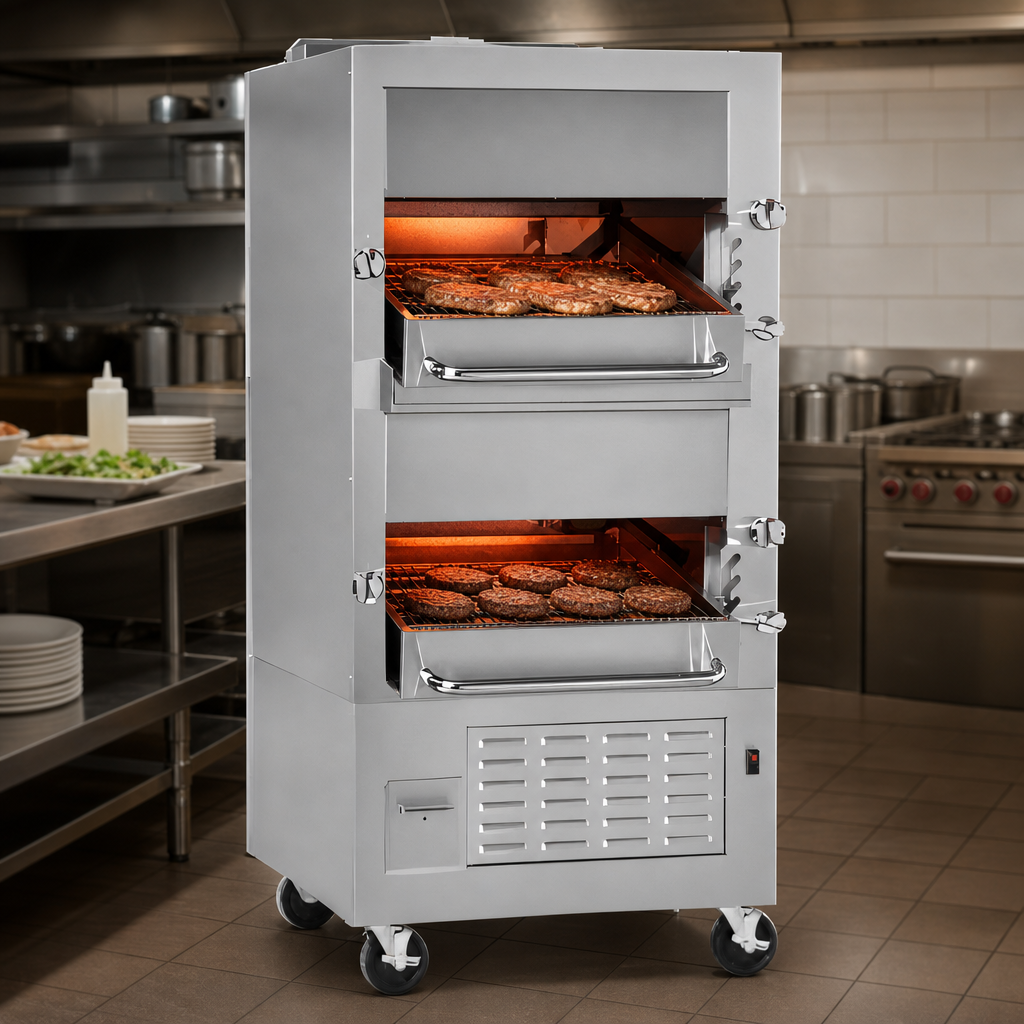

Double-Deck Capacity

Two broiler decks increase output and make the unit better suited for busy service periods.

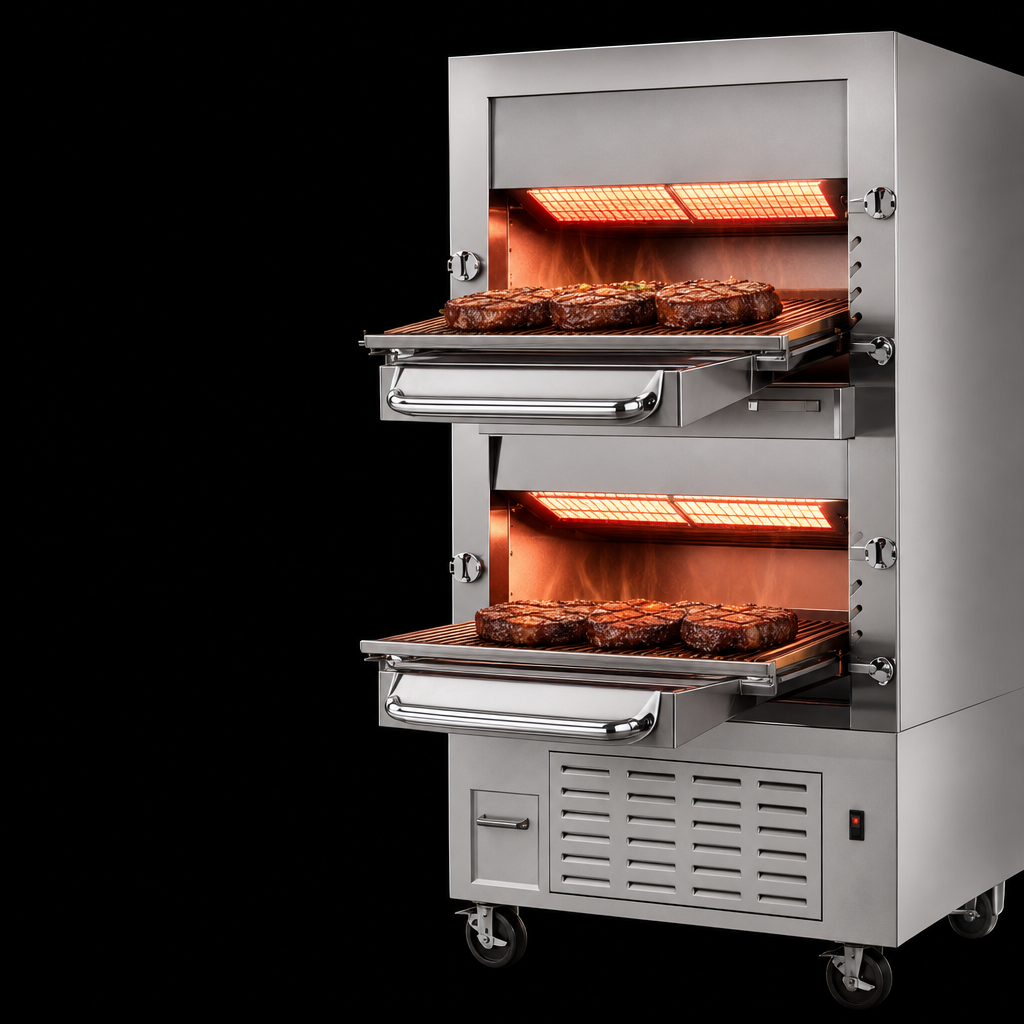

Infrared Broiling Heat

Infrared burners provide fast, intense heat for efficient broiling performance.

208,000 BTU Total Output

Delivers 104,000 BTU per deck for strong, even broiling performance.

Fresh-Air Blower System

A blower supplies filtered air to help prevent smoke and vapors from affecting broiling efficiency.

Stainless Steel Construction

Built with stainless steel top, front, sides, and back panel for durability and easier cleaning.

Five-Position Grid Adjustment

Rugged grid height adjustment mechanism lets operators fine-tune the cooking position.

Roll-Out Broiling Area

Broiling grid rolls out for loading and cleanup, with a front holding area that receives less heat.

Washable Metal Mesh Air Filter

The reusable air filter helps keep incoming air clean and supports easier maintenance.

6-Inch Adjustable Legs

Stainless steel adjustable legs provide stable floor installation and leveling flexibility.

Type Upright Broiler
Style Infrared
Installation Type Floor Model
Material Stainless Steel
Finish 430 Stainless Steel #3 Polish
Interior Finish 430 Stainless Steel
BTU 208,000 BTU
Voltage 120 Volts
Amps 2.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Grounded Plug
Cord Length 7 Feet
Gas Connection Size 3/4 Inch Rear Male NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Model 270 is the double-deck broiler without a warming oven.
It uses a 3/4-inch rear gas connection with a male NPT connector.
The unit uses 120VAC, 60Hz, single-phase power with a grounded plug and 7-foot cord.
Yes. The broiler must be installed under a vented hood.
Yes. The documentation lists NAT or LP burners, with minimum supply pressure of 7 inches W.C. for natural gas and 11 inches W.C. for propane.
The unit includes a limited warranty of 1 year parts and 1 year labor from the date of original purchase.
