Southbend (Middleby)

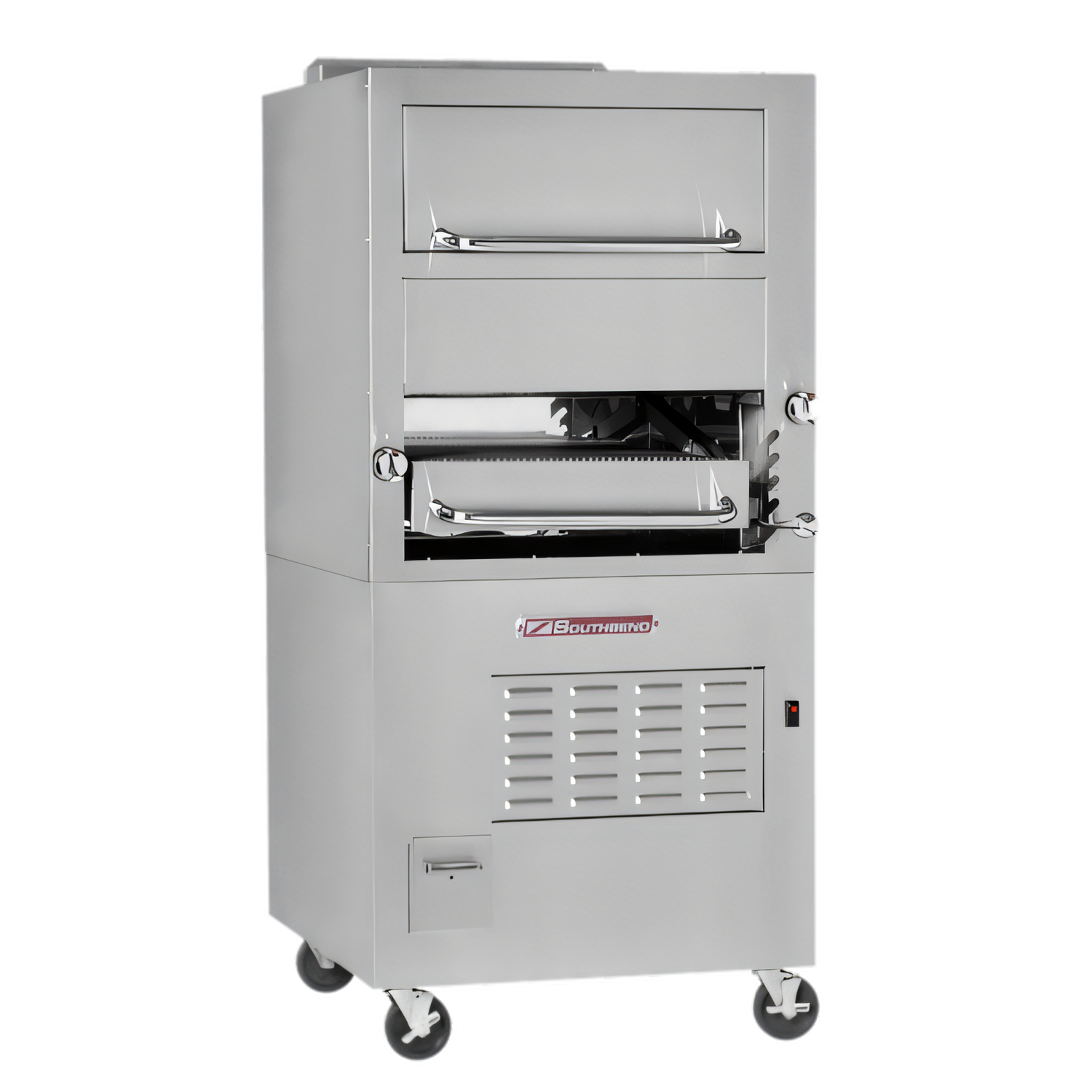

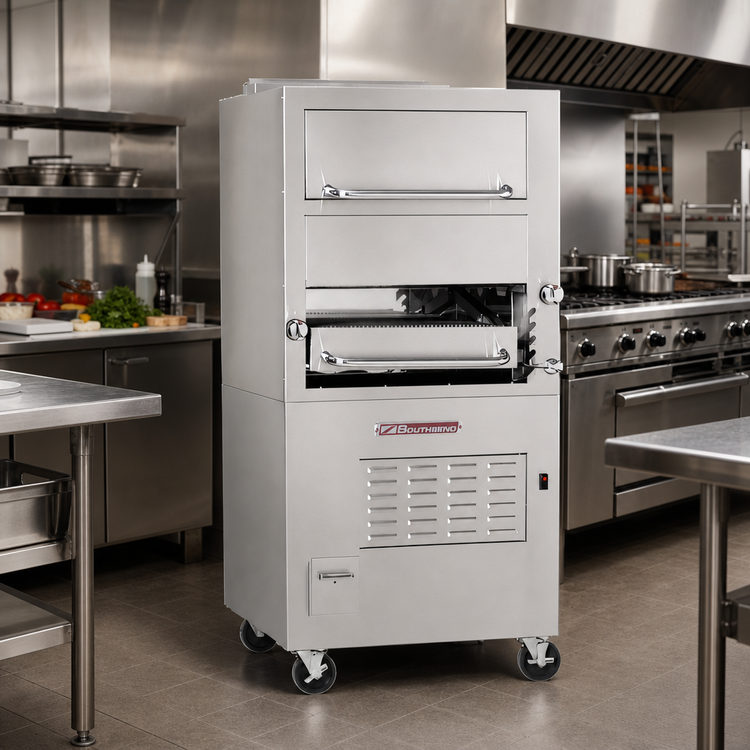

Southbend 234R 34-Inch Free-Standing Double Deck Radiant Gas Broiler

SKU: 234R
$20,907.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens New Arrivals Ovens Restaurant Equipment Southbend (Middleby) Upright Broilers

Southbend 234R 34-Inch Free-Standing Double Deck Radiant Gas Broiler

24-1/2" x 28" roll-out grids, 220,000 BTU, stainless steel construction

Built for high-volume broiling, this double-deck radiant broiler delivers 220,000 BTU output with durable stainless steel construction and adjustable grids.

  • 34-inch wide, free-standing double-deck radiant broiler built for high-volume kitchens.
  • 24-1/2" x 28" roll-out broiling grids with four height positions and a cooler front holding area.
  • Twin burner controls, constant-burning pilots, and an easy-grip spring balance adjusting lever help fine-tune heat.
  • Ceramic tile catalyst radiants are designed for durable, high-temperature performance.
  • Stainless steel front, sides, top, and 6" adjustable legs with an aluminized steel back and interior shelving.
  • 220,000 BTU natural gas output with propane rating listed at 180,000 BTU; rear 3/4" gas connection and vented hood installation required.

Overall Dimensions:

34.0"W x 37.0"D x 74.5"H

Product Weight:

932.0 lb

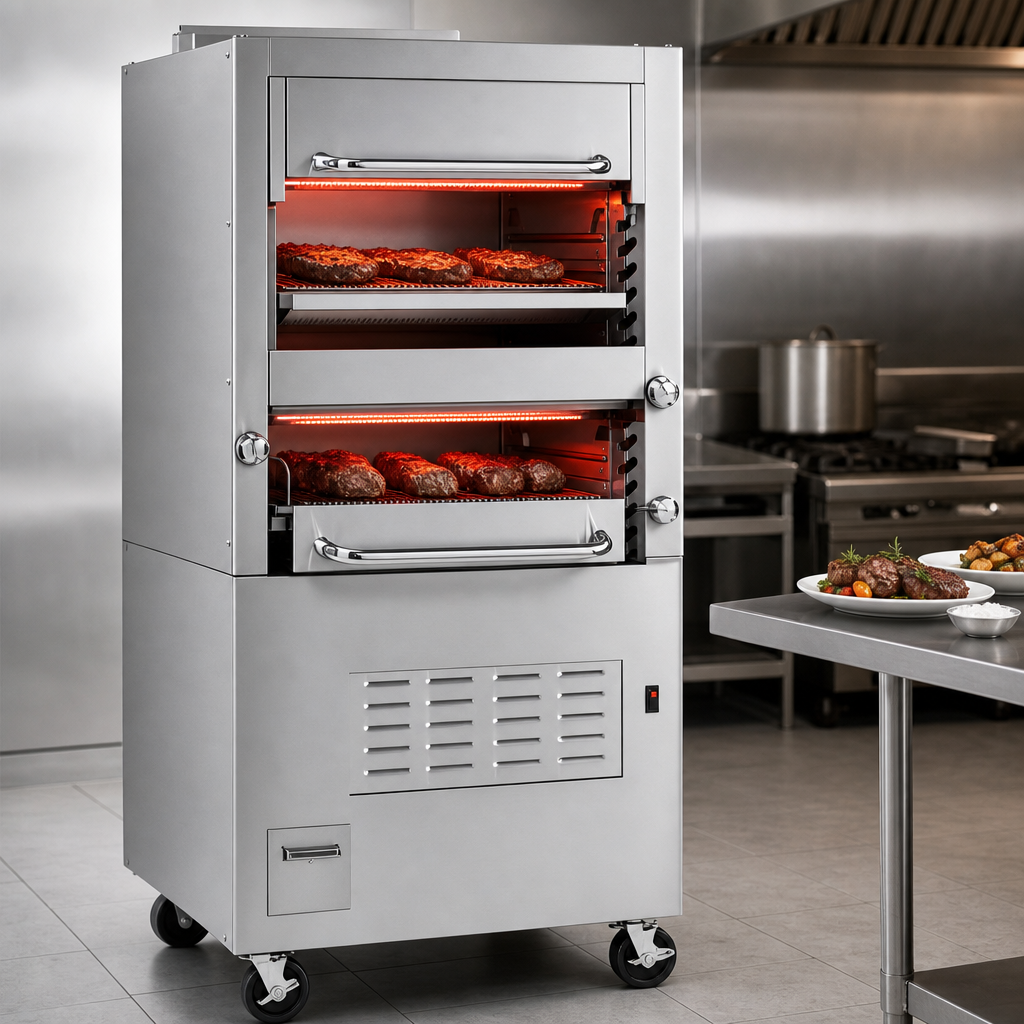

Double Deck Radiant Design

Double-deck construction provides a high-output broiling setup for busy commercial kitchens.

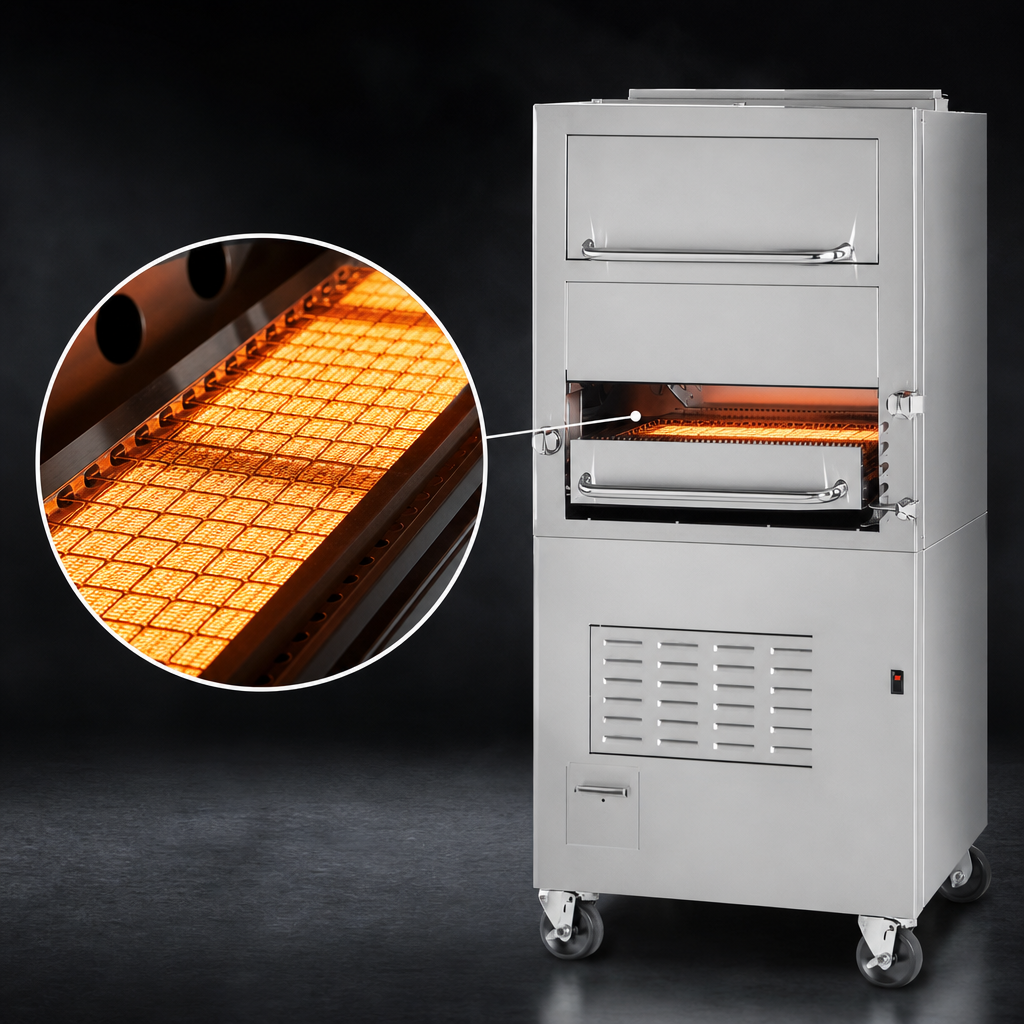

Ceramic Tile Catalyst Radiants

Radiant burners are built to withstand extreme heat without deteriorating or disintegrating.

Adjustable Roll-Out Grids

Each broiling grid measures 24-1/2" wide by 28" deep, rolls out to 17-1/4", and offers four height positions.

Twin Burner Controls

Separate burner controls help operators manage heat across the broiler more precisely.

Stainless Steel Construction

Front, sides, top, and legs are stainless steel; the back is aluminized steel for added durability.

High-Heat Interior Components

Interior shelving and insulated broiler construction are designed to handle demanding service conditions.

Rear Gas Connection

Each unit uses a 3/4" rear gas connection with a male NPT connector.

Vented Hood Installation

The unit is intended to be installed under a vented hood.

Type Radiant Broiler
Style Double Deck
Installation Type Floor Model
Material Stainless Steel
Interior Finish Aluminized Steel
Finish 430 Stainless Steel #3 Polish
BTU 220,000 BTU Natural Gas; 180,000 BTU Propane
Gas Connection Size 3/4 Inch Rear Male NPT
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Cooking Surface Width 24-1/2 Inches
Cooking Surface Depth 28 Inches
Controls Twin Burner Controls
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 45.5 Inches
Shipping Depth 55 Inches
Shipping Height 83 Inches
Shipping Weight 932 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor from date of original purchase.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each roll-out broiling grid measures 24-1/2 inches wide by 28 inches deep and rolls out to 17-1/4 inches.
The broiling grid has four height positions.
It uses a 3/4-inch rear gas connection with a male NPT connector.
The documentation lists 7 inches W.C. for natural gas and 11 inches W.C. for propane.
Yes. The documentation says to install the broiler under a vented hood.
A stainless steel flue diverter and casters in lieu of legs are available at additional cost.
