Southbend (Middleby) 20120SB Platinum Undercounter & Worktop Refrigeration
Southbend (Middleby) 20120SB Platinum Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 20120SB Platinum Undercounter & Worktop Re...
Description

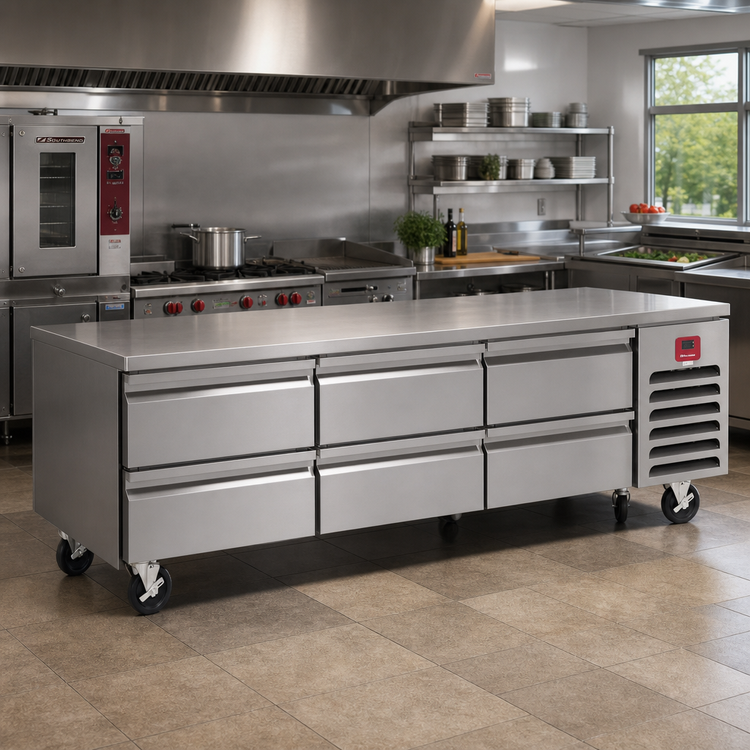

Platinum Series 120" Low-Profile Refrigerated Base
Designed for Southbend Platinum Modular CooktopsBring refrigerated ingredient storage right to the cooking line. This 120" self-contained base sits just 26" high, allowing any Southbend Platinum range, griddle, charbroiler, or other modular top to drop in seamlessly while eight heavy-duty drawers keep proteins, sauces and mise en place ice-cold and within arm’s reach.
Why You’ll Love It
- Low-height profile (26") keeps your cooking surface at the ideal working height.
- (4) 18" and (4) 26" self-closing drawers glide on stainless steel rollers for years of smooth service.
- Each drawer accepts standard 12" × 20" × 4" pans (not included) for easy ingredient swaps.
- Self-contained, 1/2 HP R-404A refrigeration system with expansion valve delivers fast temperature recovery.
- Foamed-in-place, CFC-free polyurethane insulation maximizes efficiency.
- Digital thermostat and corrosion-resistant mullion coils ensure even, reliable cooling.
- Center-pull recessed handles protect against snag points on a busy line.
- All-stainless-steel construction (top, front, sides, back, interior & drawers) stands up to the toughest kitchen.
- 6" adjustable stainless legs make level-up and cleaning underneath a breeze.
- UL-Listed and NSF-Certified for commercial peace of mind.
Technical Specifications
| Overall width | 120" (3048 mm) |
|---|---|
| Overall depth | 32 1/2" (826 mm) |
| Overall height | 26" (660 mm) including 6" legs |
| Drawer configuration | (4) 18" wide & (4) 26" wide drawers, self-closing |
| Pan capacity | Each drawer holds (2) 12" × 20" × 4" hotel pans (pans not included) |
| Refrigeration | Self-contained, 1/2 HP compressor, R-404A, expansion-valve controlled |
| Electrical | 120 V / 60 Hz / 1-phase, 20 A, 6 ft cord & grounded plug |
| Interior temperature range | 33 °F – 41 °F (0.5 °C – 5 °C) adjustable |
| Certifications | UL, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Perfect For
- High-volume cooklines needing rapid ingredient access
- Chef’s counters and exhibition kitchens where aesthetics matter
- Custom Platinum battery builds requiring a refrigerated base
- Remodels seeking to maximize space without sacrificing cold storage
Need financing? Ask your sales representative about Middleby Equipment Financing options to turn this must-have upgrade into manageable monthly payments.
