Southbend (Middleby)  |  Platinum  |  SKU: 20108RSB

Southbend (Middleby) 20108RSB Platinum Undercounter & Worktop Refrigeration

$19,930.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

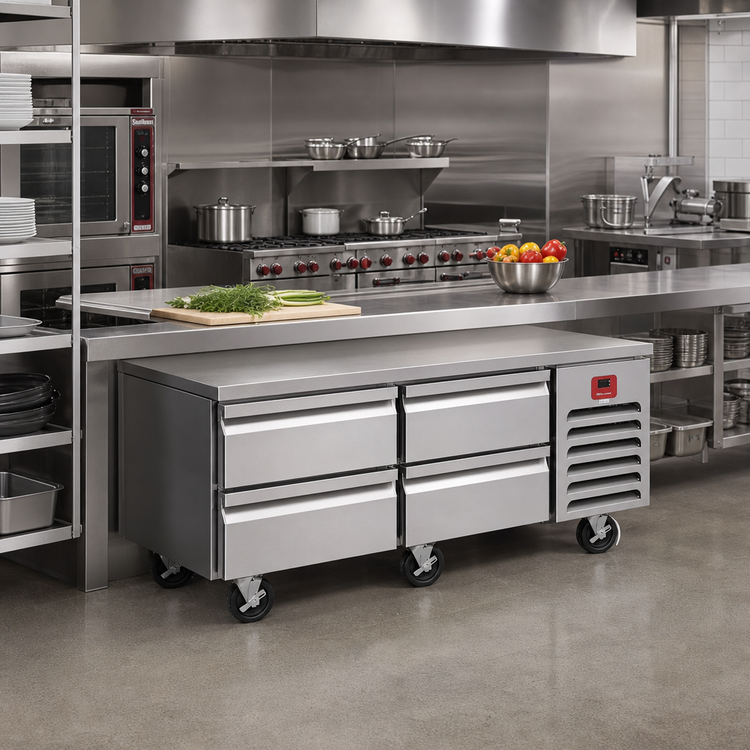

Southbend Platinum Series 108" Remote Refrigerated Chef Base

Model 20108RSB  |  4 × 31" & 2 × 26" Drawers  |  UL & NSF Listed

Keep high-volume production lines organized and ingredients ice-cold with the largest refrigerated base in Southbend’s Platinum family. Designed to sit directly beneath Platinum Series modular cooktops, this low-profile, 108-inch base delivers rugged durability, rapid temperature recovery and instant access to up to 12 hotel pans right on the chef’s line.

Premium Features
  • Low 26" working height perfectly matches Southbend Platinum cooktops & sectional ranges.
  • Remote R-404A refrigeration system with expansion valve for fast pull-down (condenser sold separately).
  • Six heavy-duty, self-closing drawers on stainless-steel roller bearings:
    • 4 full-size 31" drawers
    • 2 mid-size 26" drawers
  • Each drawer fits standard 12" × 20" × 4" pans (pans not included).
  • All-304 stainless steel top, front, sides, back, drawers & interior for unmatched longevity.
  • Foamed-in-place CFC-free polyurethane insulation maximizes cold retention.
  • Adjustable digital thermostat with easy-read LED display.
  • Corrosion-resistant mullion coils distribute chilled air evenly to every drawer.
  • Magnetic gaskets provide a tight seal and pop out for quick sanitation.
  • Standard electric condensate evaporator pan—no floor drain required.
  • 6" adjustable stainless steel legs included; optional locking casters available.
  • One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
Width 108 in | 274 cm
Depth 32.5 in | 83 cm
Height (incl. legs) 26 in | 66 cm
Refrigerated volume 26 cu ft (0.74 m3)
Cooling capacity 2,000 BTU / hr
Compressor motor ½ HP (remote)
Electrical 120 V / 60 Hz / 1-ph, 4 A, 6 ft cord, NEMA 5-15P
Drawer configuration 4 × 31" & 2 × 26" self-closing drawers
Pan capacity Up to 12 × 12" × 20" × 4" hotel pans
Ship weight 940 lb | 426 kg
Certifications UL, NSF
Ideal For
  • High-volume restaurant & hotel kitchens
  • Chef’s lines needing chilled proteins, sauces & garnishes within arm’s reach
  • Operators building a custom Southbend Platinum battery
Optional Accessories
  • Locking or non-locking heavy-duty caster kit
  • Cable restraint kit (required when unit is on casters)
  • Alternate-size condensate evaporator pans
Remote condenser required: This base ships ready for connection to a remote condensing unit (not included). Order a Southbend-approved condenser for proper operation.

Looking for a different size? Southbend Platinum refrigerated bases are available in widths from 32" to 108".

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

108.0in

Depth

32.5in

Shipping Weight

940.0lbs

Top Finish

stainless steel top

Width

97" - 108" wide

Compressor HP

1/2 HP

Exterior Finish

all stainless steel exterior

Refrigeration

remote (refrigeration not included)

Drawer Qty

6 drawers

Specifications

Refrigerator Base, remote, low height, 108", (4) 31" & (2) 26" self-closing drawers, center pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 4 amps, 1/2 HP, order with Platinum Series modular cook tops, UL, NSF
