Southbend (Middleby)  |  Platinum  |  SKU: 20096SB

Southbend (Middleby) 20096SB Platinum Undercounter & Worktop Refrigeration

$19,586.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

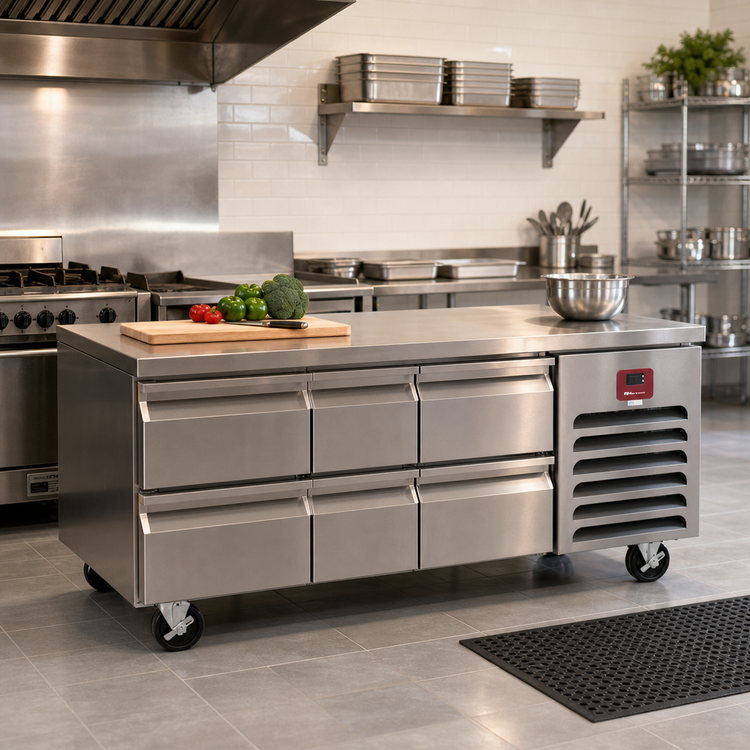

Southbend Platinum 96" Refrigerated Base – Model 20096SB

Low-Profile • Self-Contained • 6 Drawers • 120 V • UL & NSF Certified

Turn unused under-range space into high-capacity, food-safe refrigeration. Designed to fit beneath Southbend Platinum Series modular cooktops, the 96" Model 20096SB keeps up to 10 full-size hotel pans chilled and within arm’s reach, all inside a rugged 304 stainless-steel cabinet that stands just 26" tall.

Key Advantages

  • Six heavy-duty, self-closing drawers (2 × 18" & 4 × 26") on stainless-steel rollers.
  • Holds 10 × 12" × 20" × 4" pans (pans not included) for maximum cold storage right at the line.
  • CFC-free expansion-valve refrigeration delivers fast temperature recovery during peak service.
  • Foamed-in-place polyurethane insulation for best-in-class energy efficiency.
  • Digitally adjustable thermostat; corrosion-resistant mullion coils provide even cooling.
  • 304 stainless-steel top, front, sides, back, drawers & interior with NSF coved corners for easy cleaning.
  • 6" adjustable stainless-steel legs included; locking casters, electric condensate pan & cable restraint kit optional.

At-a-Glance Specs

Model 20096SB (Platinum Series)
Overall width 96" / 2438 mm
Overall depth 32 ½" / 826 mm
Overall height 26" / 660 mm (including legs)
Drawer configuration 2 × 18"  |  4 × 26"
Pan capacity 10 × 12" × 20" × 4"
Cooled volume 18 cu ft (0.51 m³)
Refrigerant R-404A (CFC-free)
Compressor ½ HP, side-mounted
Cooling capacity 1 955 BTU/hr
Electrical 120 V / 60 Hz / 1-ph, 20 A, 6 ft cord w/ NEMA 5-20P
Certifications UL, NSF 7 (open food)
Shipping weight 855 lb (388 kg)
Warranty 1-year parts & labor

Perfect For

  • Southbend Platinum ranges, griddles, hot tops & charbroilers.
  • High-volume restaurants, hotels, resorts & institutional kitchens.
  • Operators who need low-profile refrigeration without sacrificing line space.
Commercial use only. Maintain at least 2" rear clearance and avoid ambient temperatures below 55 °F or above 90 °F for optimal performance.

Need mobility? Select factory-installed locking casters and a cable restraint kit at checkout.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

96.0in

Depth

32.5in

Shipping Weight

855.0lbs

Width

85" - 96" wide

Drawer Qty

6 drawers

Compressor HP

1/2 HP

Exterior Finish

all stainless steel exterior

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Specifications

Refrigerator Base, self-contained, low height, 96", (2) 18" & (4) 26" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 20 amps, 1/2 HP, order with Platinum Series modular cook tops, UL, NSF
