Southbend (Middleby) 20096RSB Platinum Undercounter & Worktop Refrigeration

Platinum Series 96" Remote Refrigerated Base – 6 Drawer

Keep ingredients ice-cold and right where the action is. Designed to sit beneath Southbend Platinum modular cook tops, this low-profile 96" refrigerated base delivers high-capacity, high-performance cold storage without adding height to your cook line.

Stand-out Features

• Six 26" self-closing drawers with full-width pull handles.
• Each drawer fits (2) full-size 12" × 20" × 4" pans — 12 pans total, pans sold separately.

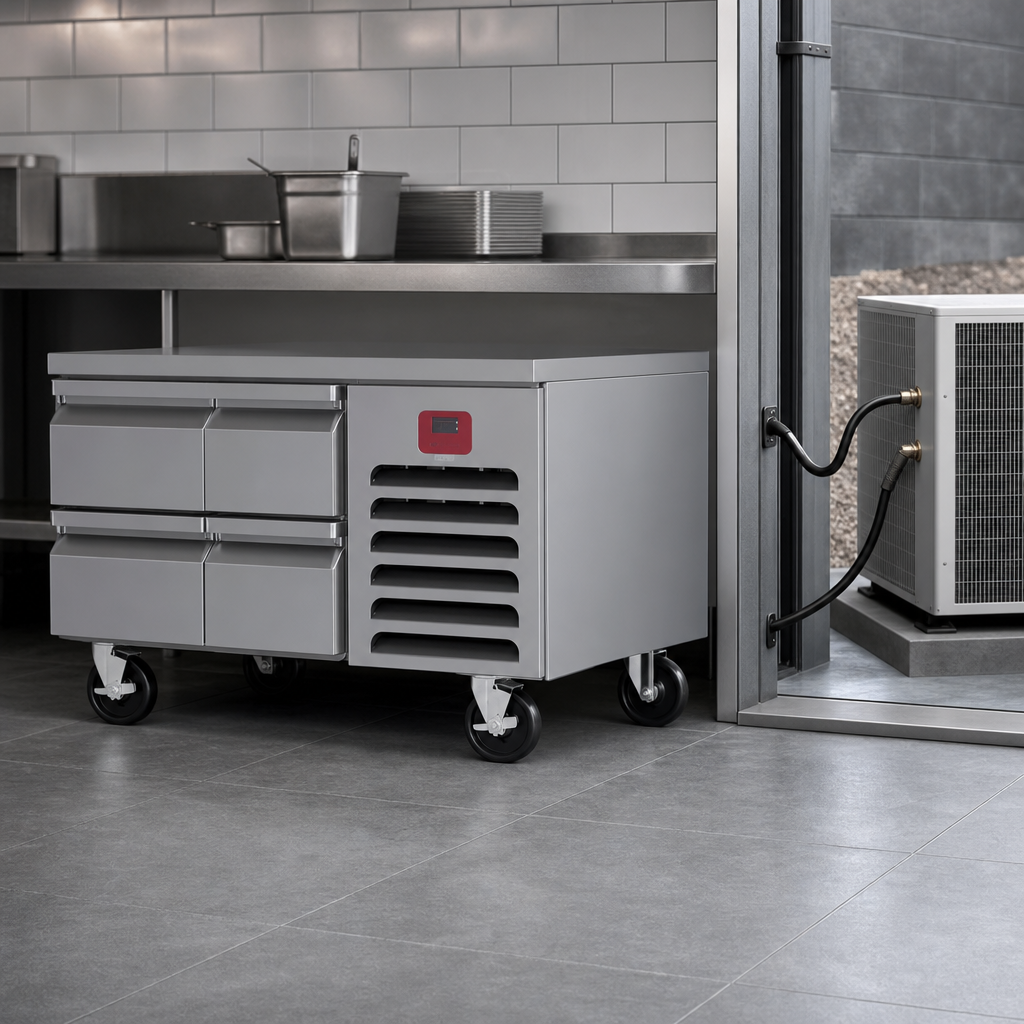

• Remote R-404A refrigeration with thermostatic expansion valve for rapid temperature recovery (condenser not included).
• 23 ft³ (0.51 m³) cooled cavity insulated with CFC-free, foamed-in-place polyurethane.
• 304 stainless-steel top, front, sides, back, drawers, and interior for maximum durability and easy sanitation.
• Digital micro-processor thermostat; adjustable 33-40 °F (0.5-4 °C).
• Corrosion-resistant mullion coils ensure even airflow across every drawer.
• Magnetic drawer gaskets and NSF coved interior corners simplify daily cleaning.
• 6" adjustable stainless-steel legs provide proper floor clearance and leveling.
• Shipped wired with 6 ft cord & plug; 120 V/60 Hz/1-ph, 4 A, ½ HP evaporator motor.

Key Specifications

Perfect Fit for Platinum Cook Tops

The 26" height aligns perfectly with Southbend Platinum charbroilers, griddles, planchas, and hot tops, creating a seamless, integrated cook suite while keeping chilled mise en place within arm’s reach.

Hotel pans, casters, and cable-restraint kits are optional accessories and are not included with purchase.
