Southbend (Middleby) 20084SB Platinum Undercounter & Worktop Refrigeration
Southbend (Middleby) 20084SB Platinum Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 20084SB Platinum Undercounter & Worktop Re...
Description
Southbend Platinum Series 84" Refrigerated Base – 4 Drawer, Self-Contained
Model 20084SB | 120 V • 1/3 HP • NSF & UL ListedGive your Platinum Series modular cook line a rock-solid, low-profile foundation that keeps up to eight hotel pans cold and within arm’s reach. The 20084SB delivers dependable refrigeration, rugged stainless-steel construction, and the industry’s quickest temperature recovery—all in only 26" of height.
Why You’ll Love It
- Four 31" self-closing drawers glide on stainless rollers and hold 2 full-size 12" × 20" × 4" pans each (pans not included).

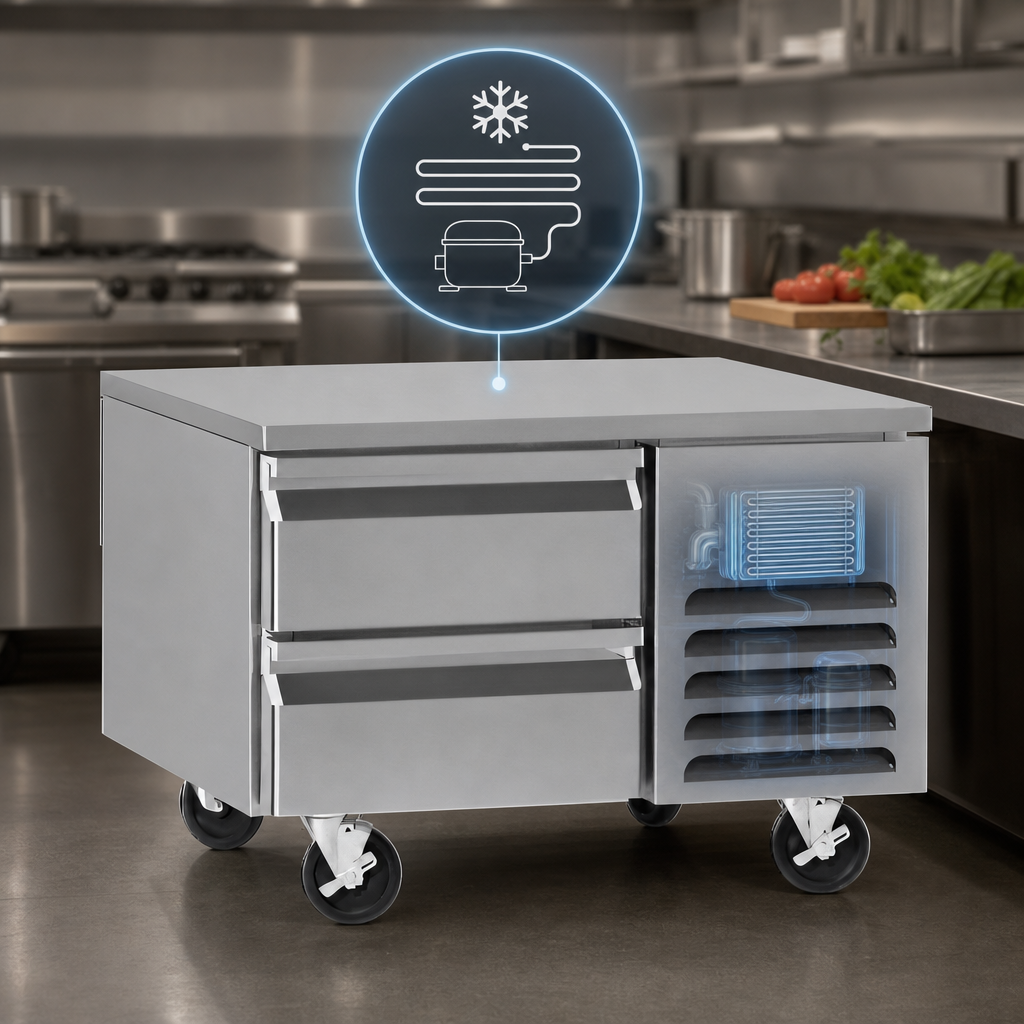

- CFC-free, 1/3 HP refrigeration system with expansion valve for rapid pull-down and recovery.
- Foamed-in-place polyurethane insulation delivers maximum cold retention and energy savings.
- All-304 stainless steel exterior, interior, and drawer assemblies resist corrosion and daily wear.
- Digital thermostat and corrosion-resistant mullion coils ensure even, reliable cooling.
- 6" adjustable stainless legs for easy leveling and thorough floor cleaning.
- Ships ready to plug into any 120 V/60 Hz single-phase outlet—no remote refrigeration required.
At-a-Glance Specs
| Overall width | 84" (2134 mm) |
|---|---|
| Overall depth | 32.5" (826 mm) |
| Overall height | 26" (660 mm) including 6" legs |
| Drawer configuration | 4 × 31" self-closing drawers |
| Pan capacity | 8 full-size (12" × 20" × 4") hotel pans |
| Interior volume | 16 cu ft | 0.45 m³ |
| Refrigerant | R-404A (CFC-free) |
| BTU/hour | 1 920 |
| Electrical | 120 V / 60 Hz / 1-ph, 10.1 A, 6-ft cord & grounded plug |
| Compressor | 1/3 HP, self-contained |
| Shipping weight | 745 lb (338 kg) |
| Certifications | UL, NSF #7 |
| Warranty | 1 year parts & labor |
Built for the Platinum Line
The low-height 20084SB is engineered to support any Southbend Platinum Series modular range top, creating a seamless, high-production cooking suite without sacrificing refrigerated storage.
Popular Options (sold separately)
- Locking or non-locking caster kits for effortless mobility
- Electric condensate evaporator pan
- Cable restraint kit for mobile installations
Easy Equipment Financing
Upgrade now and pay over time—fixed monthly payments and potential Section 179 tax savings are available. Contact our financing team to get a fast credit decision.
Pans shown are for illustration only and are not included. Minimum 2" rear clearance required. Intended for commercial use; not for household installation.
