Description

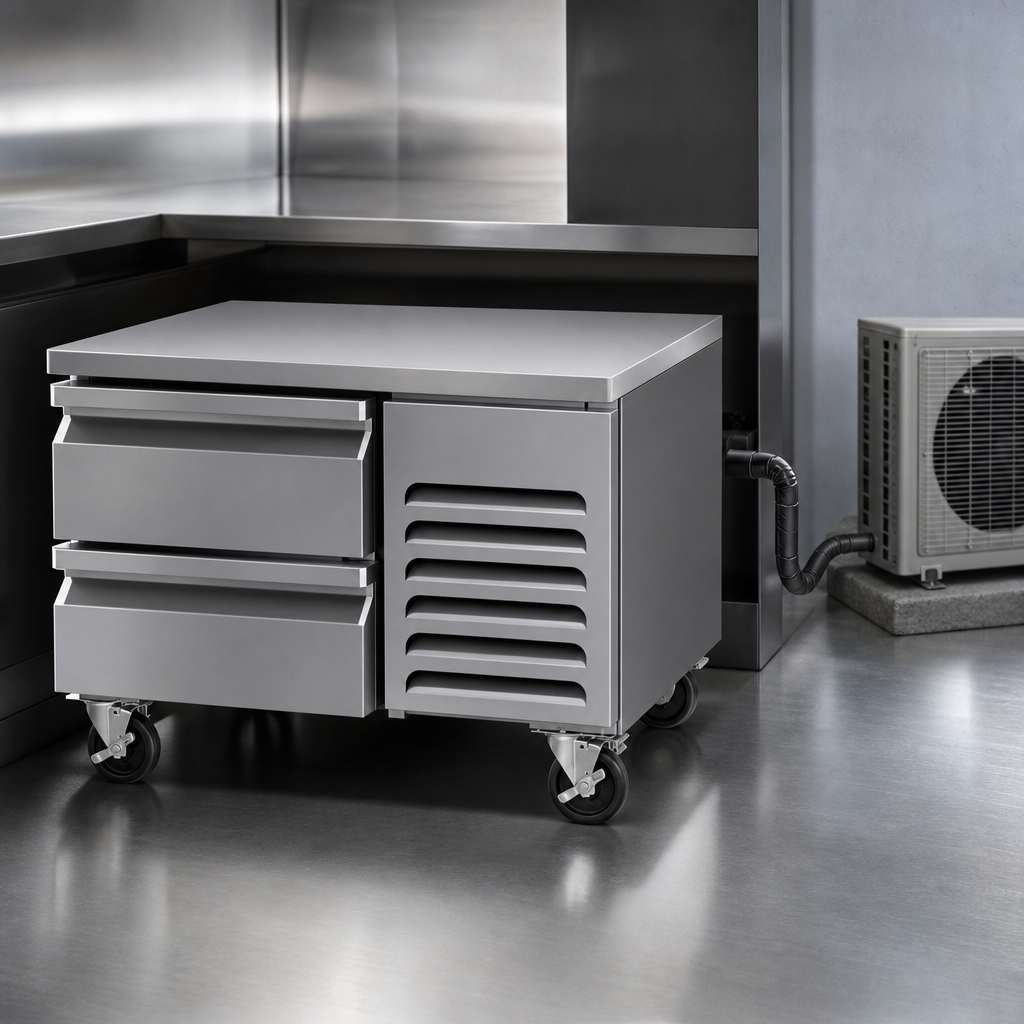

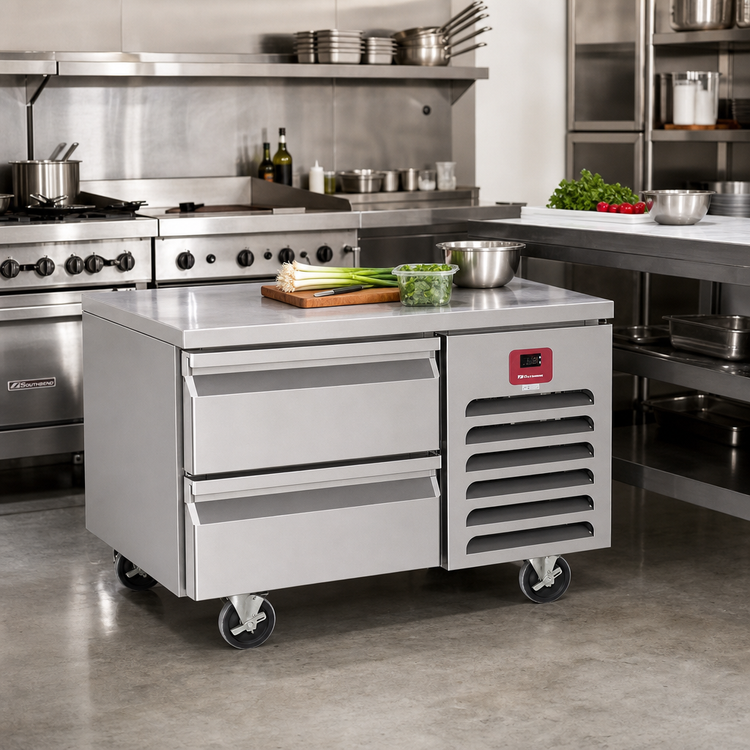

Southbend Platinum Series 72" Remote Refrigerated Base

Model 20072RSB  |  4-Drawer Low-Profile Stand

Keep ingredients ice-cold right where the action happens. Engineered to fit directly beneath Southbend Platinum modular cooktops, this 72" refrigerated base delivers chef-side refrigeration without sacrificing valuable cookline space.

Highlights

  • Remote refrigeration – removes heat & noise from the kitchen (remote condenser required, sold separately).
  • (2) 26" + (2) 31" self-closing drawers on stainless steel rollers.
  • Each drawer holds two standard 12" × 20" × 4" pans (8 pans total, pans not included).
  • Low 26" height tucks under Platinum range tops for a seamless battery.
  • 304 stainless steel top, front, sides, back, drawers & interior for maximum durability.
  • Foamed-in-place CFC-free polyurethane insulation for rapid temperature recovery.
  • Digital thermostat with corrosion-resistant mullion coils for even cooling.
  • 6" adjustable stainless steel legs; optional locking casters available.
  • UL & NSF listed for commercial kitchens.

Specifications

Width 72" (1829 mm)
Overall Height 26" (660 mm) with 6" legs
Drawer Configuration 4 drawers – (2) 26" & (2) 31"
Pan Capacity 8 × 12" × 20" × 4" hotel pans
Cooled Volume 16 cu ft  (0.45 m³)
Refrigerant R-404A (CFC-free) – remote condenser
Cooling Capacity 1,920 BTU/hr
Compressor Motor 1/3 HP (remote)
Electrical 120 V / 60 Hz / 1-Ph, 3 A, 6 ft cord & NEMA 5-15P plug
Certifications UL, NSF
Warranty 1-year parts & labor (USA & Canada)

Optional Accessories

  • Locking caster frame
  • Cable restraint kit (required with casters)
  • Electric condensate evaporator pan – various sizes
Important: Remote condenser unit is not included and must be ordered separately. Minimum 2" rear clearance is required. Intended for commercial use only.

Financing available through Middleby. Ask your rep or visit Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

72.0in

Depth

32.5in

Shipping Weight

637.0lbs

Compressor HP

1/3 HP

Refrigeration

remote (refrigeration not included)

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Width

61" - 72" wide

Drawer Qty

4 drawers

Specifications

Refrigerator Base, remote, low height, 72", (2) 26" & (2) 31" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 3 amps, 1/3 HP, order with Platinum Series modular cook tops, UL, NSF
