Description

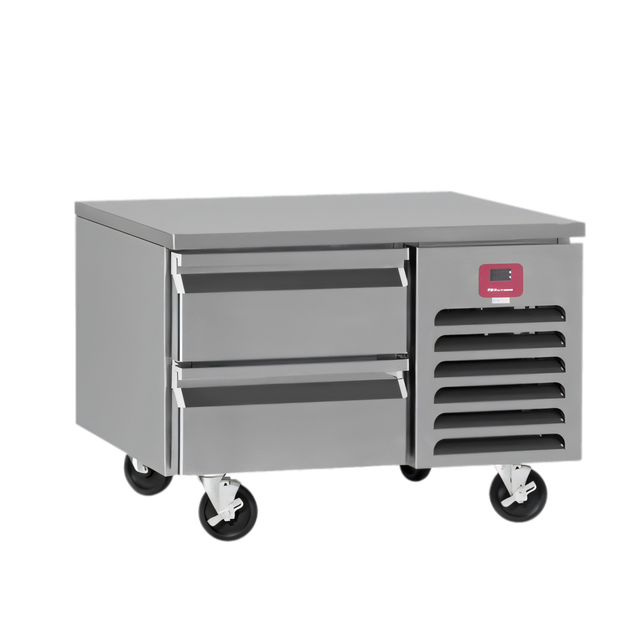

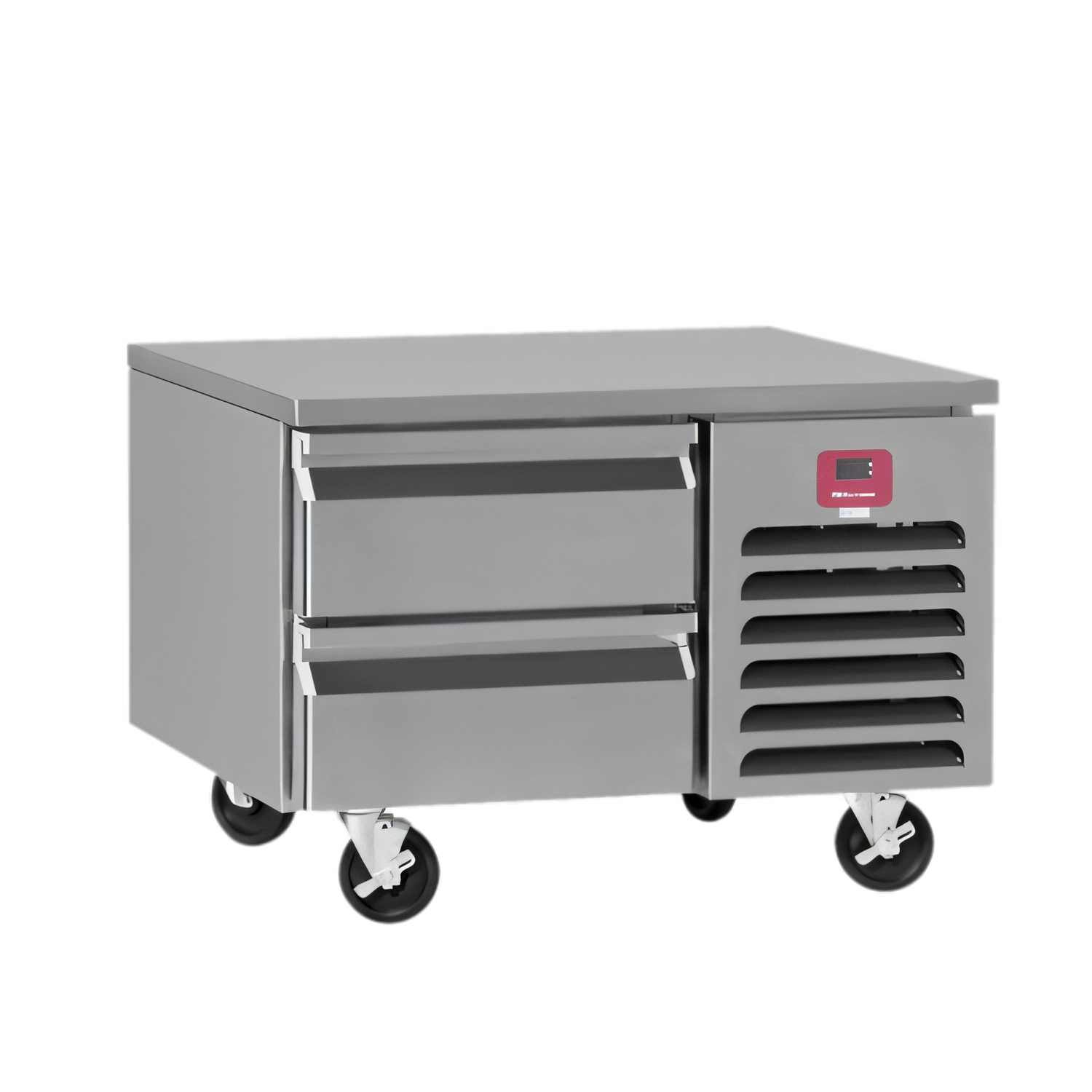

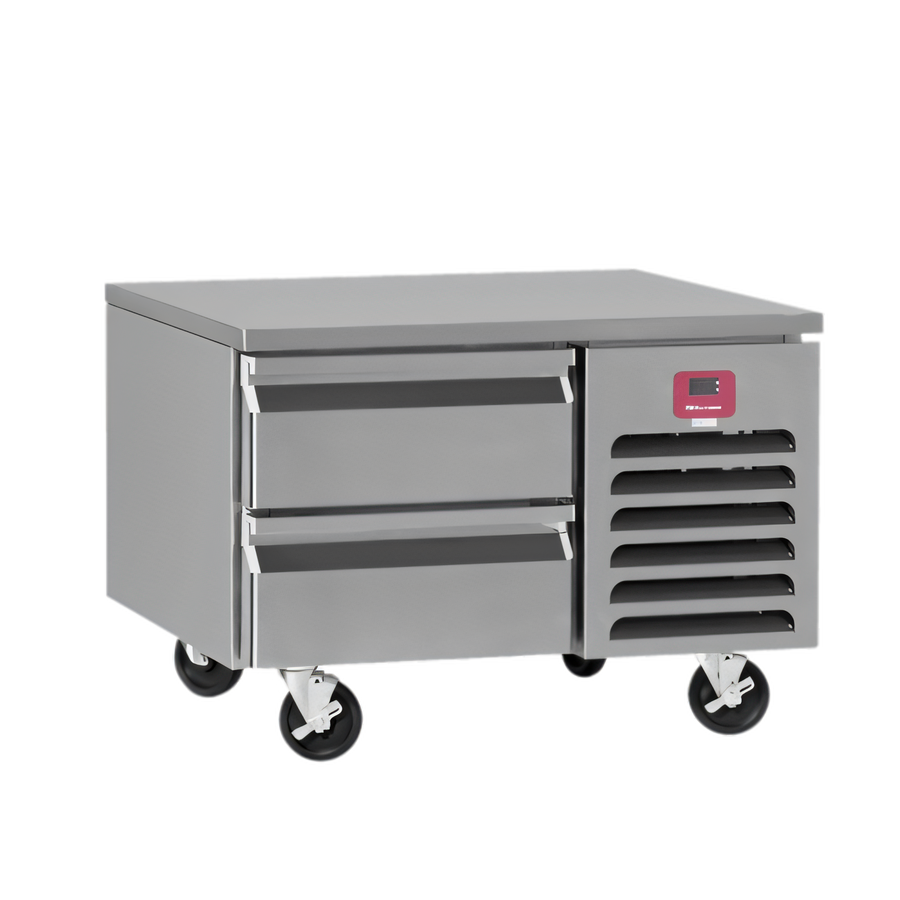

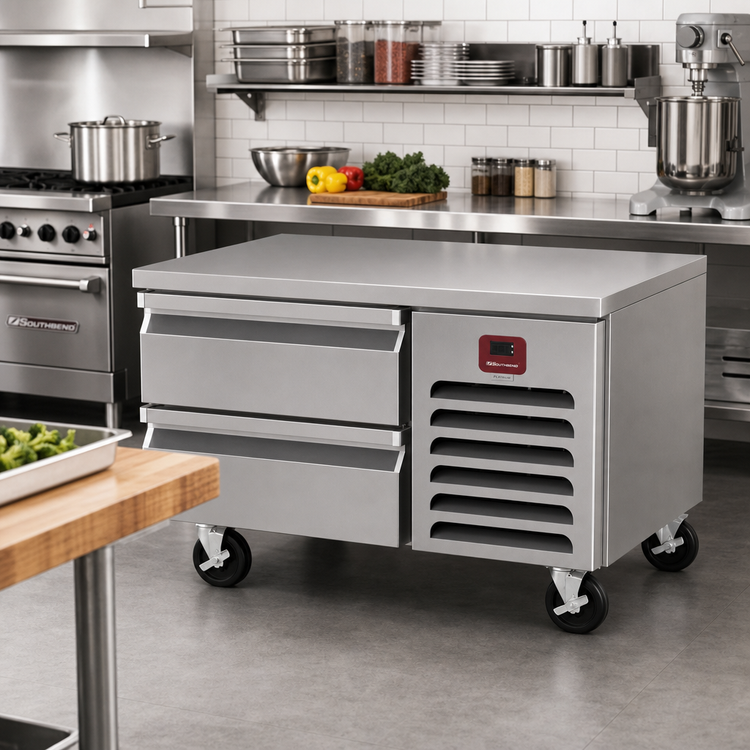

Southbend Platinum Series 64" Low-Height Refrigerated Base – Model 20064SB
2 × 31" Self-Closing Drawers | 1/4 HP Self-Contained | UL & NSF ListedMaximize every inch of your cook line by adding refrigerated storage exactly where you need it. The Southbend 20064SB slides beneath Platinum Series range tops to keep mise en place at safe holding temperatures while supporting the weight of heavy-duty cooking equipment above.
Key Features
- 64" self-contained base engineered for Southbend Platinum modular cooktops and griddles
- Two heavy-duty 31" drawers with stainless steel rollers and automatic self-closing action
- Each drawer fits 2 full-size 12" × 20" × 4" hotel pans (4 pans total – pans sold separately)
- CFC-free R-404a refrigeration system with expansion valve for rapid temperature recovery
- Foamed-in-place, CFC-free polyurethane insulation delivers superior cold retention
- Corrosion-resistant coated mullion coil provides even, efficient cooling across the cabinet
- Adjustable digital thermostat and tight-sealing magnetic gaskets for precise temperature control
- All-stainless steel exterior, interior cavity, and removable drawer assemblies for effortless cleaning
- 6" adjustable stainless steel legs standard; optional locking casters and restraint kit available
- UL & NSF certified and backed by a 1-year parts & labor warranty
Specifications
| Model | 20064SB |
|---|---|
| Configuration | 2 × 31" self-closing refrigerated drawers |
| Pan Capacity | 4 full-size (12" × 20" × 4") pans |
| Overall Width | 64" (≈ 1626 mm) |
| Overall Depth | 32.5" (≈ 826 mm) |
| Overall Height | 26" (660 mm) including legs |
| Refrigerated Volume | 10 cu ft (0.28 m³) |

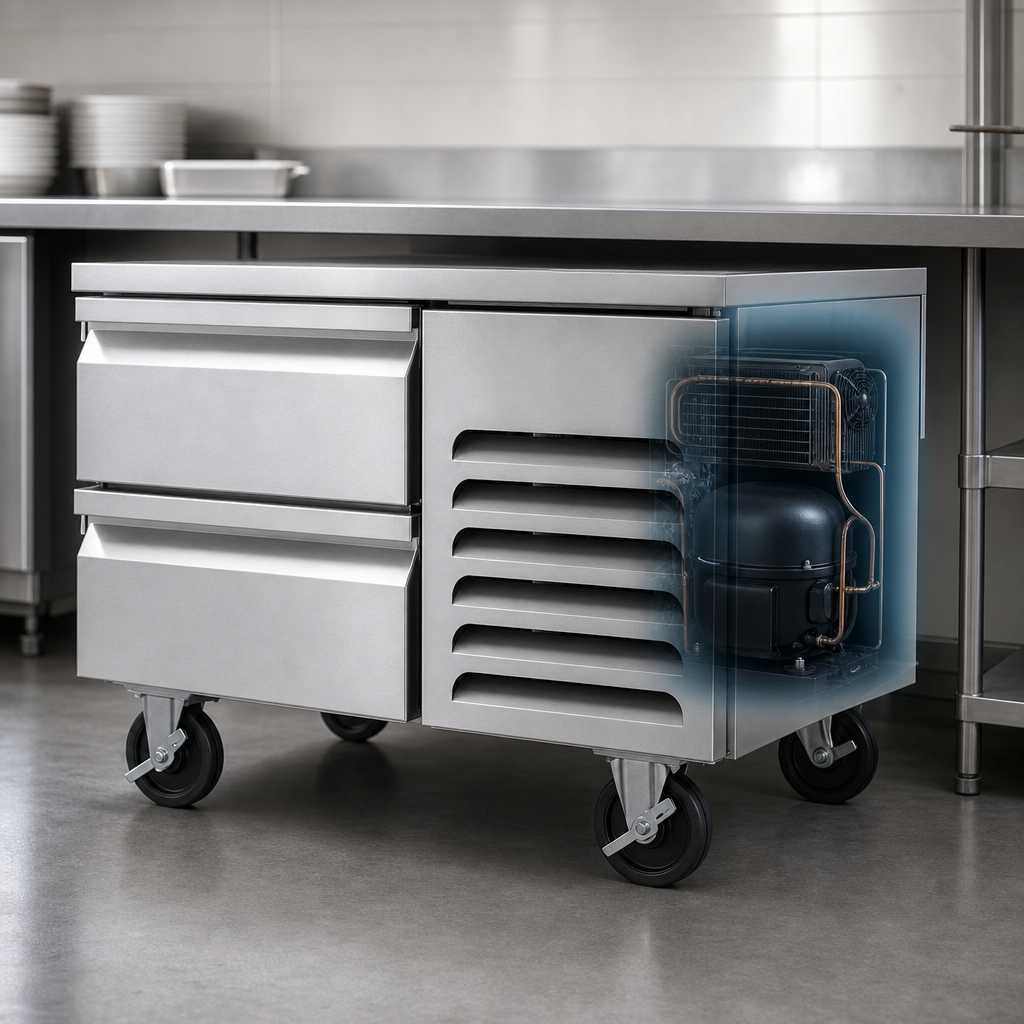

| Compressor | 1/4 HP, rear-mounted, self-contained |
| Refrigerant | R-404a (CFC-free) |
| Electrical | 120 V / 60 Hz / 1-phase, 8 A, 6-ft cord with NEMA 5-15P plug |
| Listings | UL, NSF |
| Warranty | 1-year parts & labor |
Built for the Platinum Line
Mount any Southbend Platinum Series modular range top directly onto the 20064SB with an insulated base adapter to create a seamless refrigerated workstation. Ideal for grill, sauté, or griddle stations where speed, safety, and space efficiency are critical.
Minimum 2" rear clearance required for ventilation. Intended for commercial use only.
