Southbend (Middleby)  |  Platinum  |  SKU: 20060SB

Southbend (Middleby) 20060SB Platinum Undercounter & Worktop Refrigeration

$14,836.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

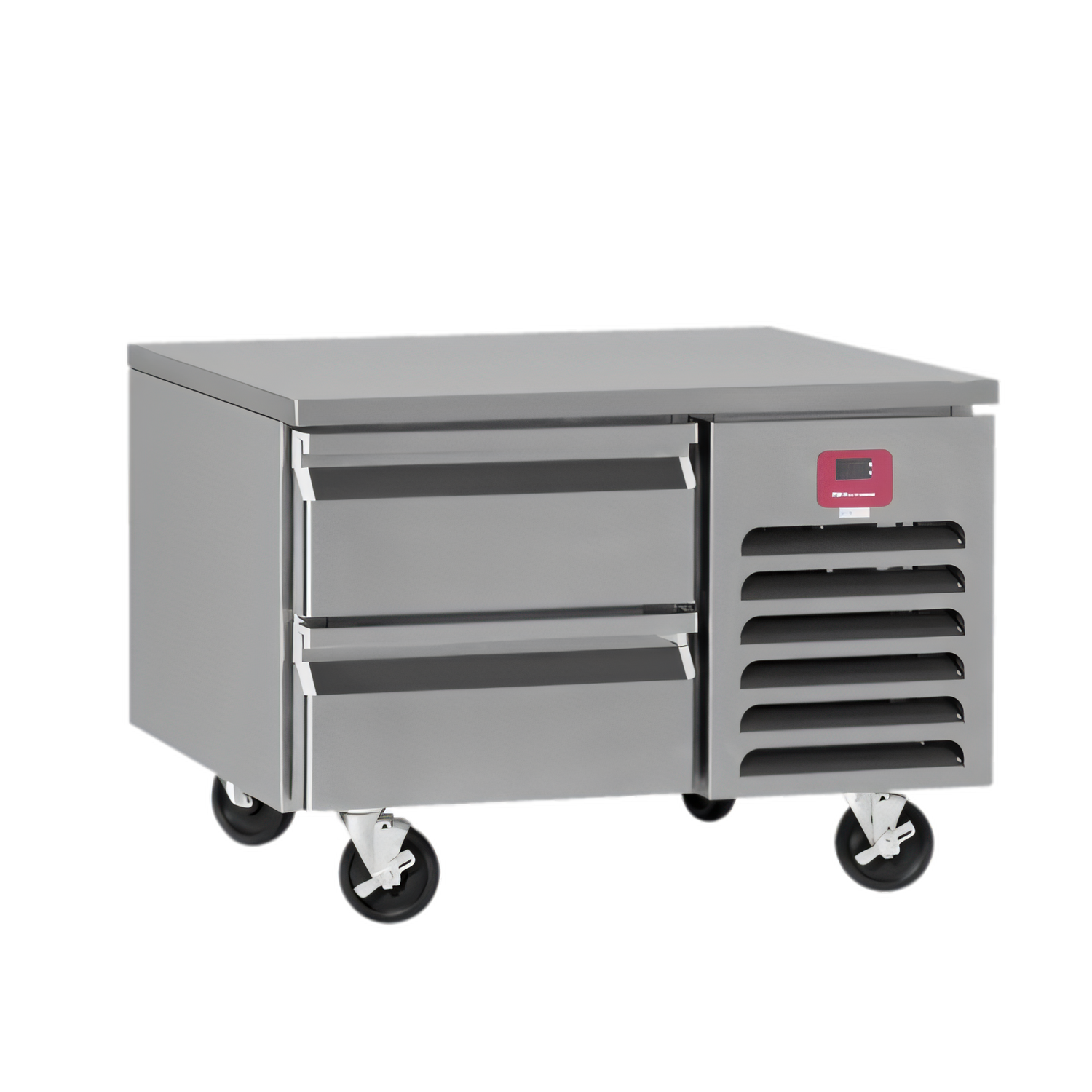

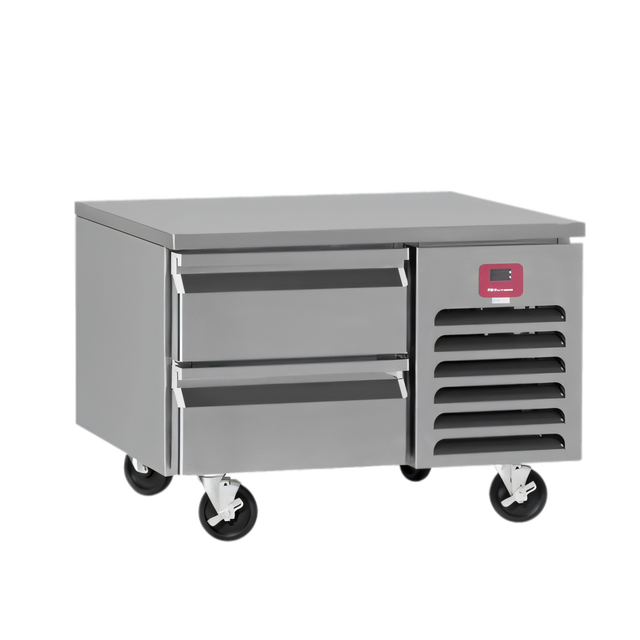

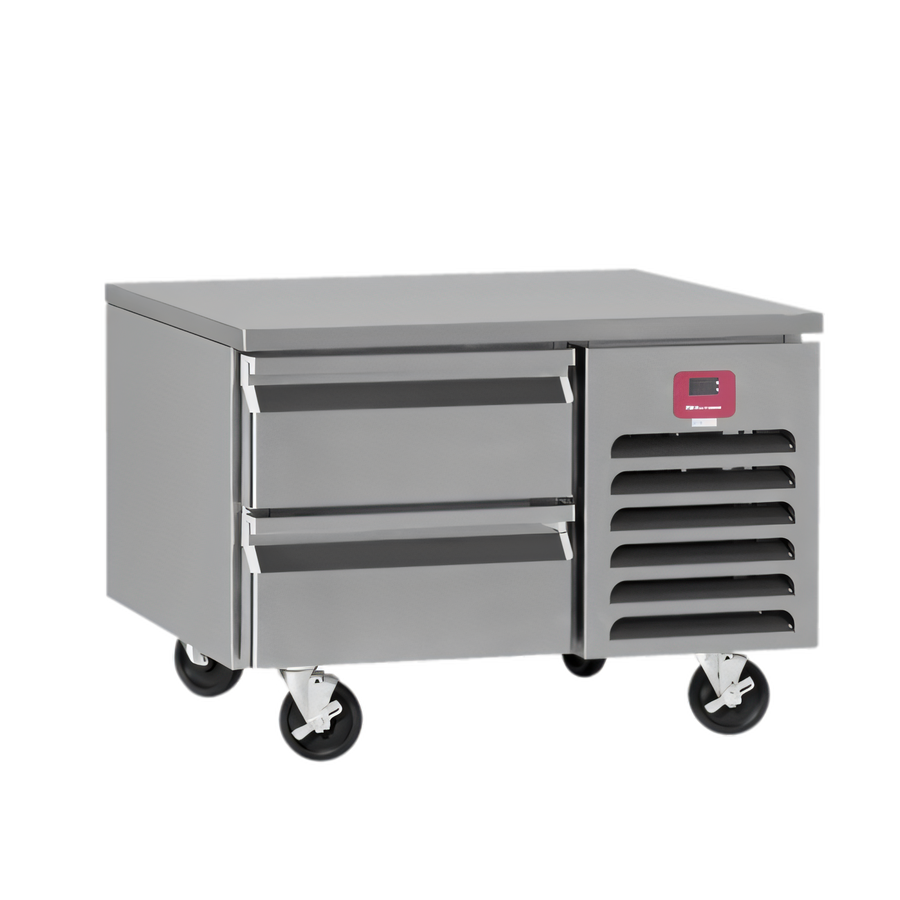

Southbend Platinum 60" Low-Height Refrigerated Base – Model 20060SB

Self-contained, two-drawer work base for Platinum Series modular cook tops

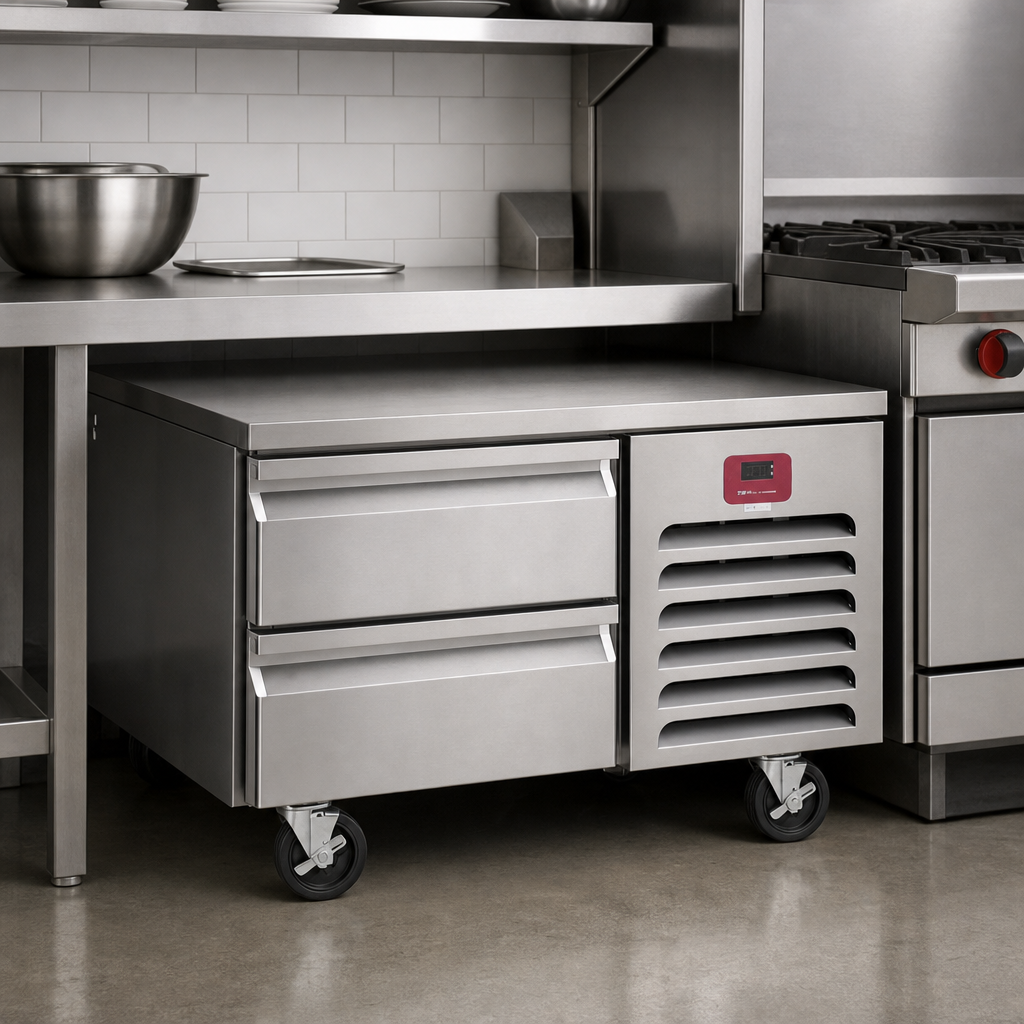

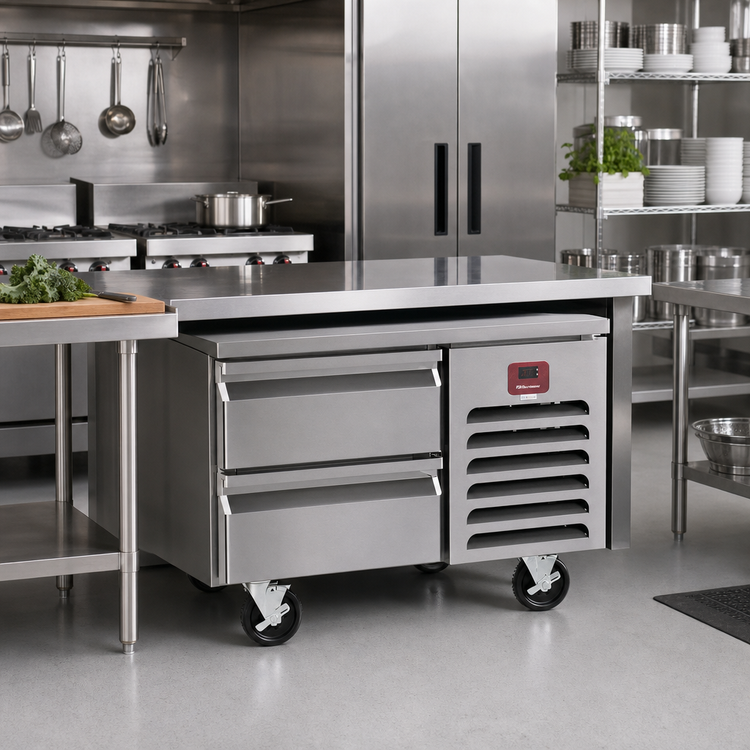

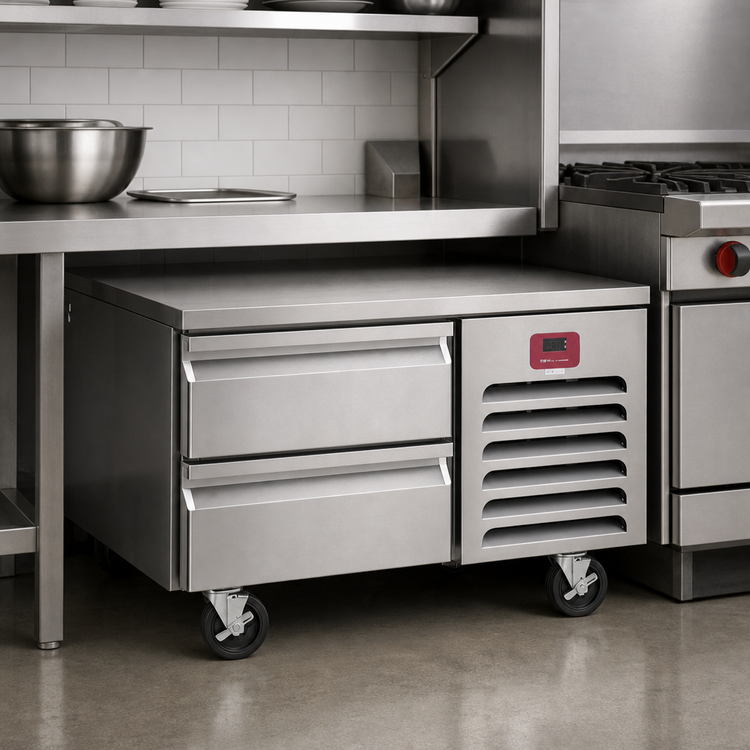

Keep proteins, mise en place and garnishes safely chilled right where the cooking happens. The 60 inch Southbend Platinum refrigerated base tucks under your Platinum Series range or griddle, delivering fast temperature recovery, rugged stainless construction and space for four full hotel pans—all in a low-profile design that matches your cook line.

Key features

  • 60" wide, low-height cabinet fits beneath any Southbend Platinum modular top
  • (2) 31" heavy-duty, self-closing drawers on stainless steel roller slides
  • Each drawer holds (2) 12" × 20" × 4" pans (not included)
  • CFC-free R-404A refrigeration with expansion valve for rapid temperature recovery
  • Adjustable digital thermostat and corrosion-resistant mullion coils for even cooling
  • Foamed-in-place polyurethane insulation for maximum efficiency
  • Full 304 stainless steel exterior, interior, drawer assemblies & 6" adjustable legs
  • Magnetic gaskets and coved interior corners meet NSF 7 sanitation standards
  • UL & NSF listed; One-year parts & labor warranty

Refrigeration performance

  • Cooled volume: 10 ft³ (0.28 m³)
  • Cooling capacity: 1,802 BTU/hr
  • 1/4 HP self-contained compressor, front-breathing design
  • Built-in, non-electric condensate pan—no plumbing required

Specifications

Model 20060SB
Overall width 60" (1524 mm)
Overall depth 32.5" (826 mm) max
Overall height 26" (660 mm) including 6" legs
Drawers 2 × 31" self-closing, each holding two hotel pans
Electrical 120 V / 60 Hz / 1-phase, 8 A, NEMA 5-15P cord & plug
Refrigerant R-404A (CFC-free)
Shipping weight 550 lb (249 kg)
Warranty 1 year parts & labor

Perfect match for your Platinum line-up

The 20060SB is factory-engineered to support any Southbend Platinum Series modular cook top—open burners, griddles, charbroilers and more—without the need for extra spacers or stands. Simply set the range section on the base, connect power, and start cooking with refrigerated ingredients inches away.

Popular options (sold separately)

  • Locking or oversized caster kits
  • Cable restraint kit for mobile installations
  • Electric condensate evaporator pan

Intended for commercial kitchens only. Always verify local codes for electrical and sanitation compliance.

Warranty reminder: Warranty service must be performed by an authorized Southbend service agency and covers commercial installations within the U.S. & Canada for one year on parts and labor.

Need an easy monthly payment? Ask about Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

60.0in

Depth

32.5in

Shipping Weight

550.0lbs

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Width

49" - 60" wide

Compressor HP

1/4 HP

Drawer Qty

2 drawers

Exterior Finish

all stainless steel exterior

Specifications

Refrigerator Base, self-contained, low height, 60", (2) 31" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 8 amps, 1/4 HP, order with Platinum Series modular cook tops, UL, NSF
