Southbend (Middleby)  |  Platinum  |  SKU: 20060RSB

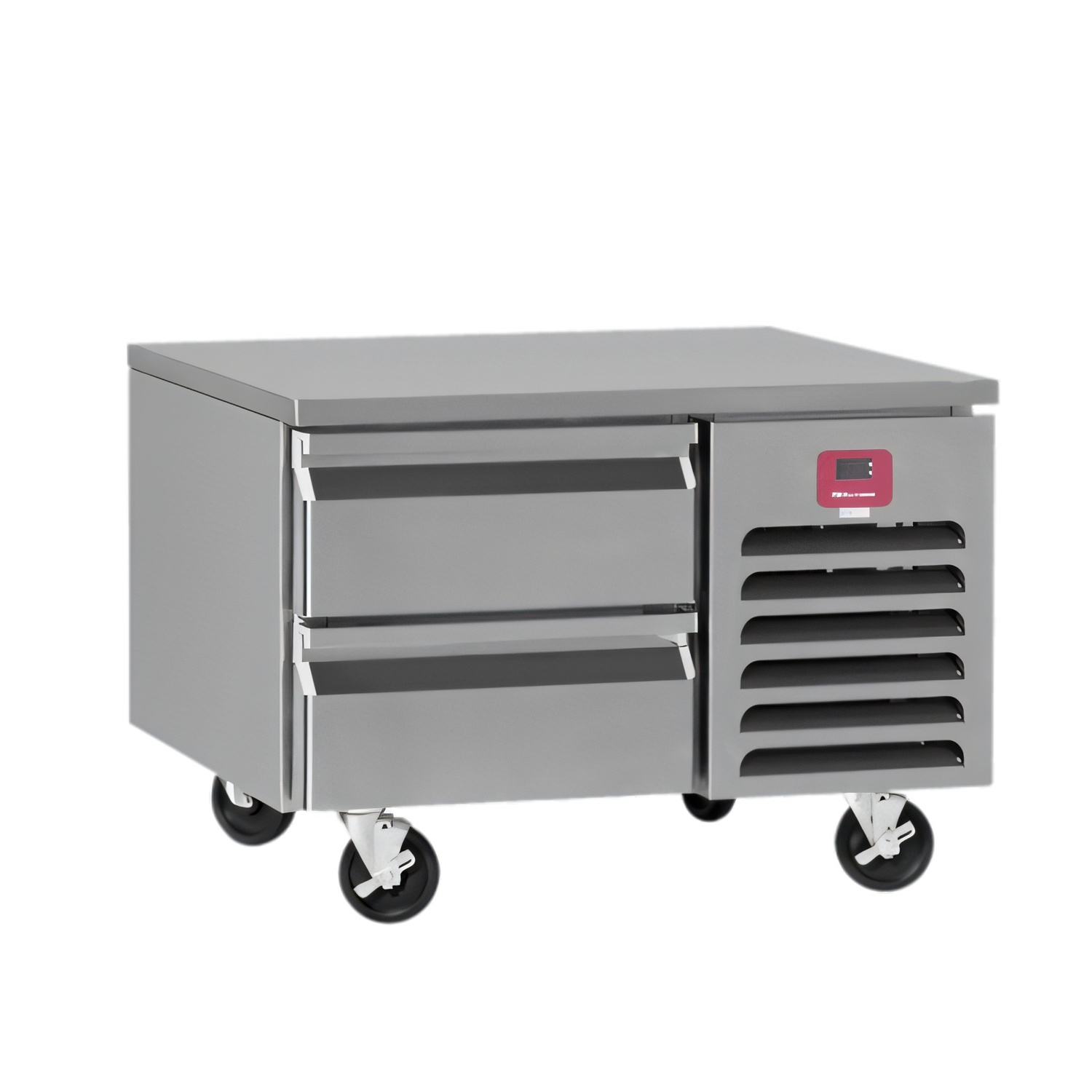

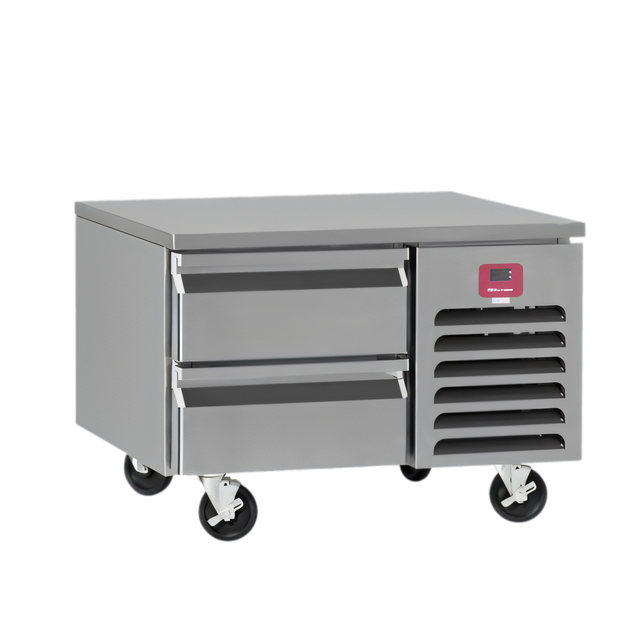

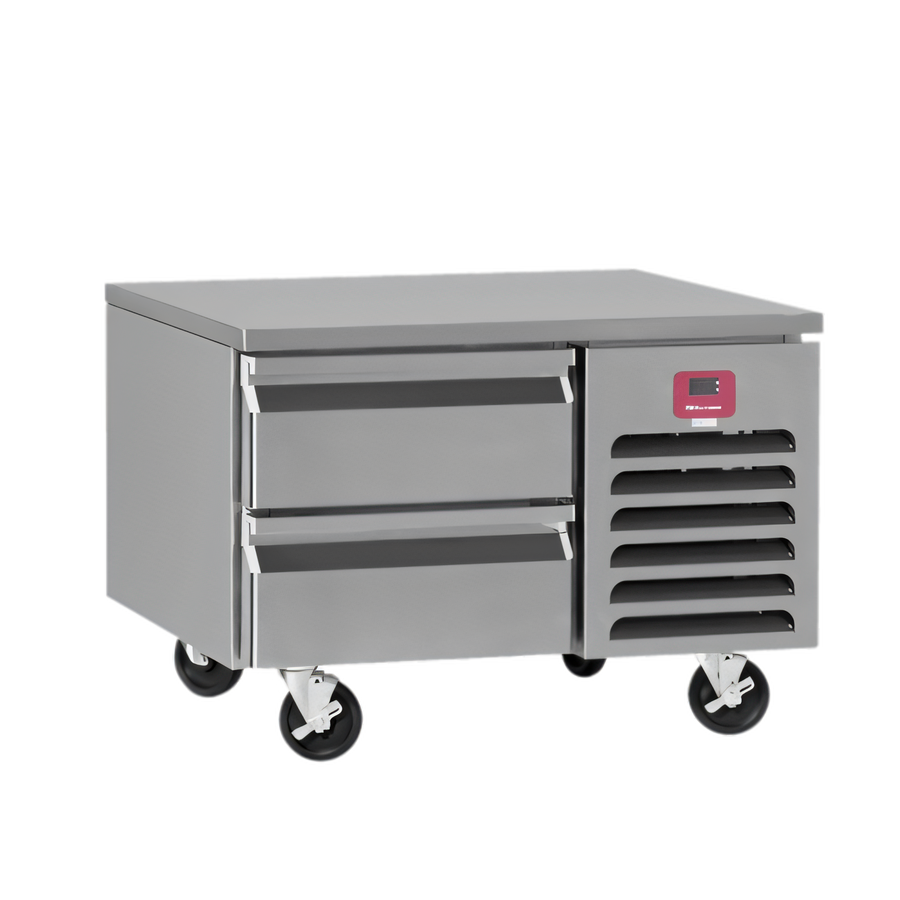

Southbend (Middleby) 20060RSB Platinum Undercounter & Worktop Refrigeration

$14,032.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Platinum Series 60" Remote Refrigerated Base

Southbend Model 20060RSB • UL & NSF Listed

Give your Platinum modular cook tops a perfectly matched, low-profile refrigerated foundation. The Southbend 20060RSB keeps ingredients ice-cold directly under the line, speeds up service, and delivers the rugged durability you expect from a heavy-duty, all-stainless Southbend base.

Key Features
  • 60" wide, low-height design pairs seamlessly with Platinum Series range tops
  • (2) 18" and (2) 26" self-closing drawers on stainless steel rollers
  • Each drawer holds standard 12" × 20" × 4" hotel pans (pans not included)

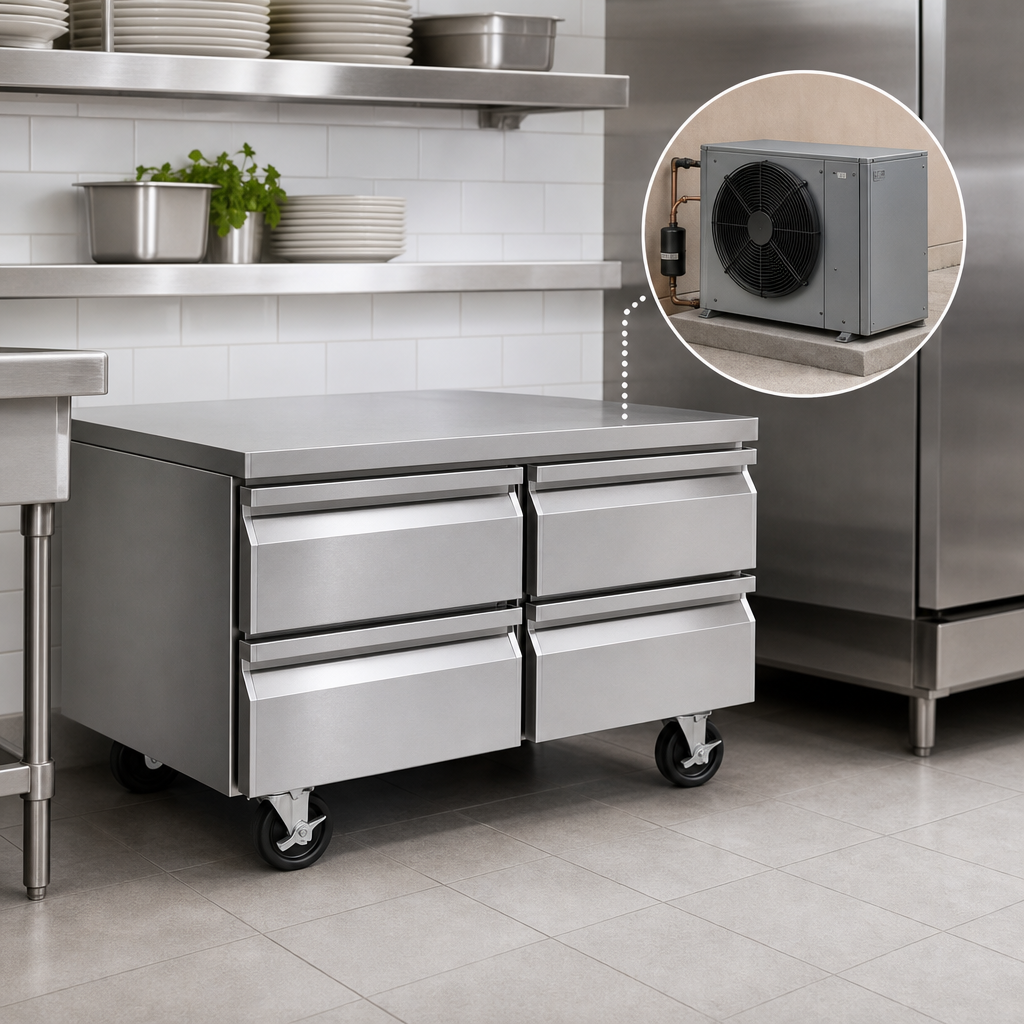

  • Remote refrigeration system with expansion valve for rapid temperature recovery (condenser not included)
  • Foamed-in-place, CFC-free polyurethane insulation for maximum cold retention
  • Adjustable digital thermostat and corrosion-resistant mullion coils for even cooling
  • Full-width recessed drawer handles and removable drawer assemblies for easy cleaning
  • 304 stainless steel top, front, sides, back, drawers, and interior cavity
  • 6" adjustable stainless steel legs; 2" rear clearance required
  • One-year parts & labor warranty
Quick Specs
Dimensions (W × D × H) 60" × 32 1/2" × 26" (including 6" legs)
Drawer Configuration Two 18" drawers + two 26" drawers (6 hotel pans total)
Cooled Volume 13 ft³ (0.28 m³)
Cooling Capacity 1,875 BTU/hr
Electrical 120 V / 60 Hz / 1-phase, 3 A, 6-ft cord & plug
Compressor 1/4 HP (remote mount)
Refrigerant R-404A (CFC-free)
Shipping Weight 530 lb (240 kg)
Certifications UL, NSF
Popular Add-Ons
  • Casters with front locks (replace 6" legs)
  • Cable restraint kit for units on casters
  • Electric condensate evaporator pan
Important: This unit ships without the remote condenser. A qualified refrigeration technician must supply and install a compatible condenser and complete the final hook-up.

Intended for commercial use only. Hotel pans shown in lifestyle images are sold separately.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

60.0in

Depth

32.5in

Shipping Weight

530.0lbs

Refrigeration

remote (refrigeration not included)

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Width

49" - 60" wide

Compressor HP

1/4 HP

Drawer Qty

4 drawers

Specifications

Refrigerator Base, remote, low height, 60", (2) 18" & (2) 26" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 3 amps, 1/4 HP, order with Platinum Series modular cook tops, UL, NSF
