Description

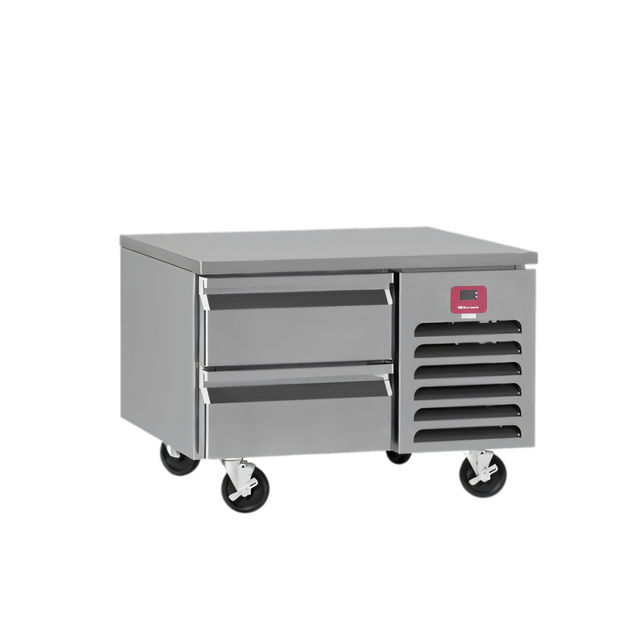

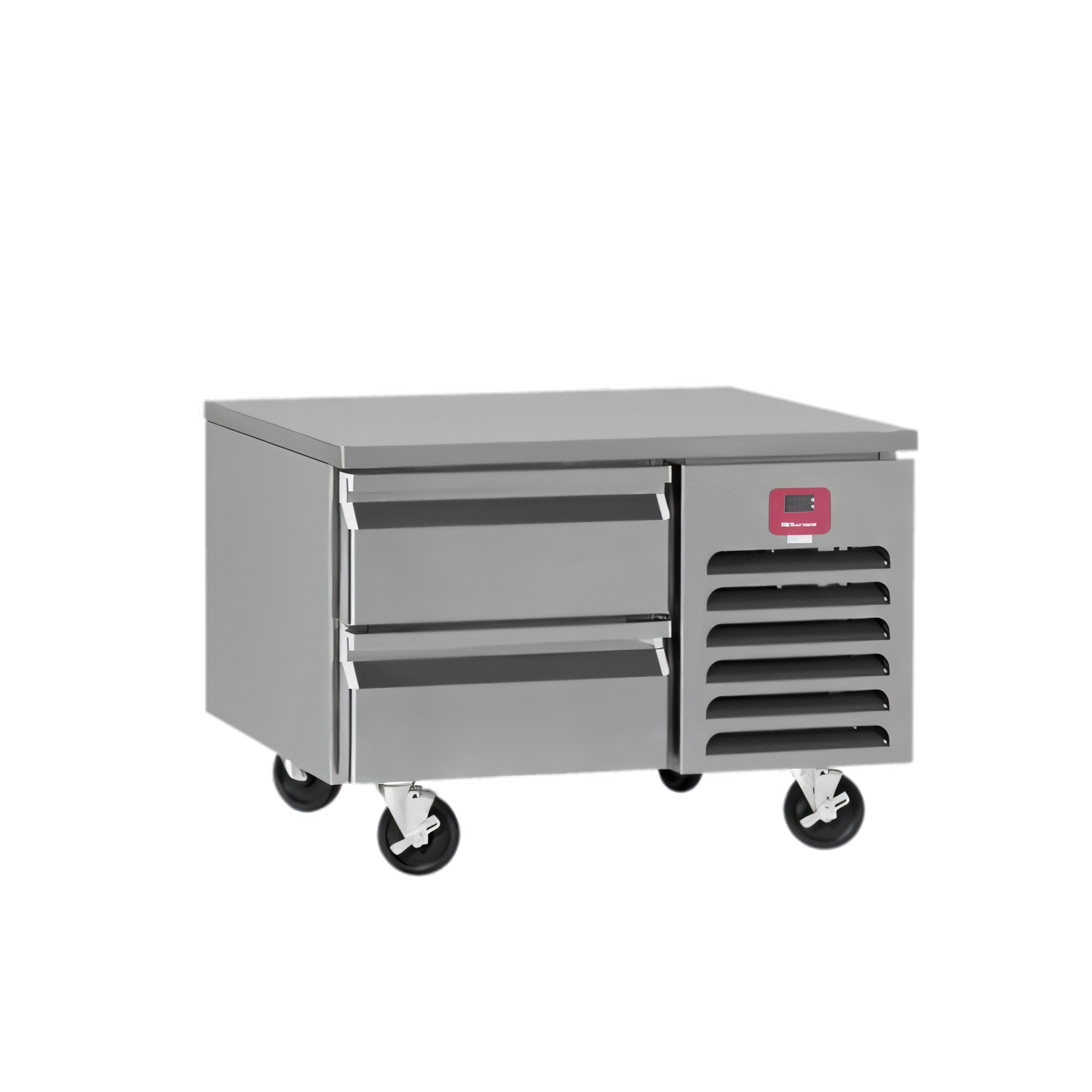

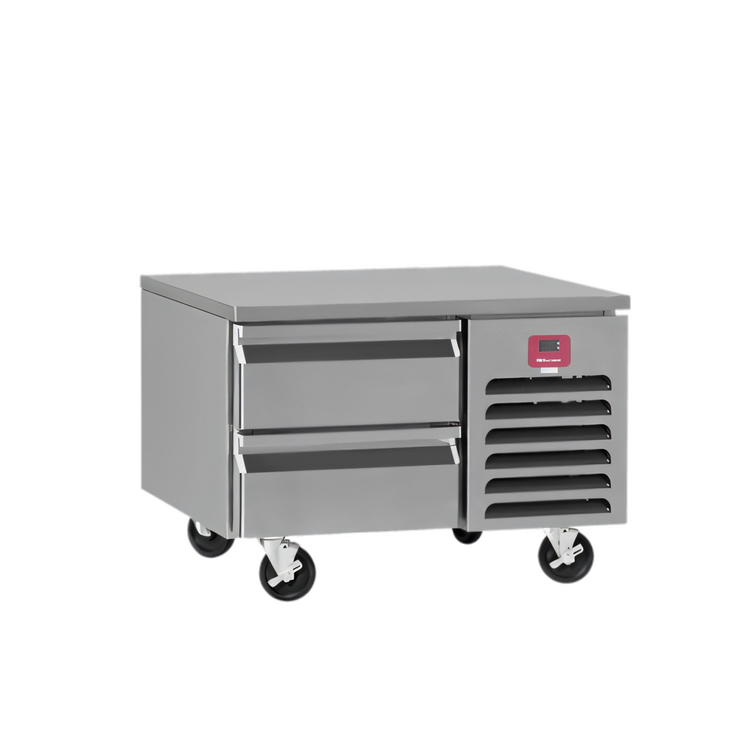

Southbend Platinum Refrigerated Base – 36" Remote (Model 20036RSB)

Low-height, 2-drawer cold storage for Platinum Series modular cooktops

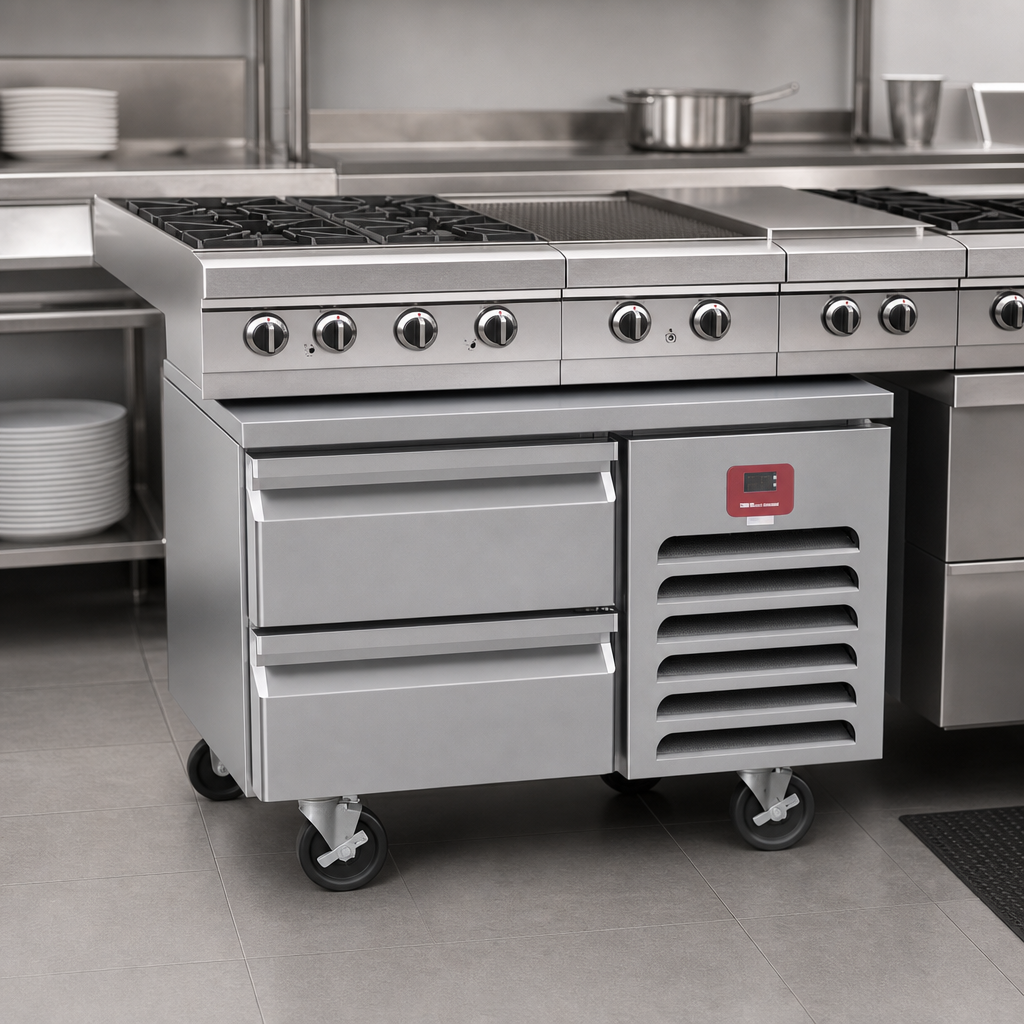

Keep ingredients safely chilled and right where your cooks need them. At just 26" tall, this 36" wide remote refrigerated base slides beneath Southbend Platinum Series range tops, combining refrigerated storage and a heavy-duty equipment stand in one space-saving unit.

Stand-out benefits

  • Low-profile 26" height positions cooktops at an ergonomic working level.
  • Two 26" self-closing drawers on stainless steel rollers; each drawer holds two 12" × 20" × 4" pans (4 pans total, pans sold separately).
  • All-stainless-steel construction inside and out for maximum durability and easy sanitation.
  • CFC-free R-404A refrigeration with expansion valve for rapid temperature recovery.
  • Foamed-in-place polyurethane insulation and magnetic drawer gaskets ensure cold retention and lower energy use.
  • Digital thermostat with LED read-out for precise control and quick monitoring.
  • Corrosion-resistant mullion coils deliver even airflow across the entire cavity.
  • UL & NSF listed; coved interior corners meet NSF 7 for open-food storage.
  • 6" adjustable stainless steel legs included (casters optional).

Technical specifications

Model 20036RSB
Overall width 36" (914 mm)
Overall depth 32 1/2" (826 mm)
Overall height 26" (660 mm) including 6" legs
Drawer count / size 2 × 26" drawers  |  4 total 12" × 20" × 4" pans
Cooled volume 7.3 cu ft (0.21 m³)
Refrigeration type Remote condenser (not included)  |  1/4 HP compressor
Cooling capacity 1,550 BTU/hr
Electrical 120 V, 50/60 Hz, 1-phase, 2.5 A  |  6 ft cord with NEMA 5-15P
Drain 1/2" I.D. vinyl tube to floor drain; standard electric condensate evaporator pan
Shipping weight Approx. 325 lb (147 kg)
Listings UL, NSF
Warranty 1-year parts & labor (commercial use)

Popular options (sold separately)

  • Locking or non-locking heavy-duty casters.
  • Cable restraint kit for units on casters.
  • Alternate size condensate evaporator pans.
IMPORTANT: Remote condensing unit is not included and must be ordered/installed separately. Maintain at least 2" clearance at the rear and avoid operating where ambient temperature exceeds 90 °F.

Intended for commercial use only — not for household installation. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

36.0in

Depth

32.5in

Shipping Weight

325.0lbs

Refrigeration

remote (refrigeration not included)

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Drawer Qty

2 drawers

Compressor HP

1/4 HP

Width

25" - 36" wide

Specifications

Refrigerator Base, remote, low height, 36", (2) 26" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, order with Platinum Series modular cook tops, UL, NSF
