Description

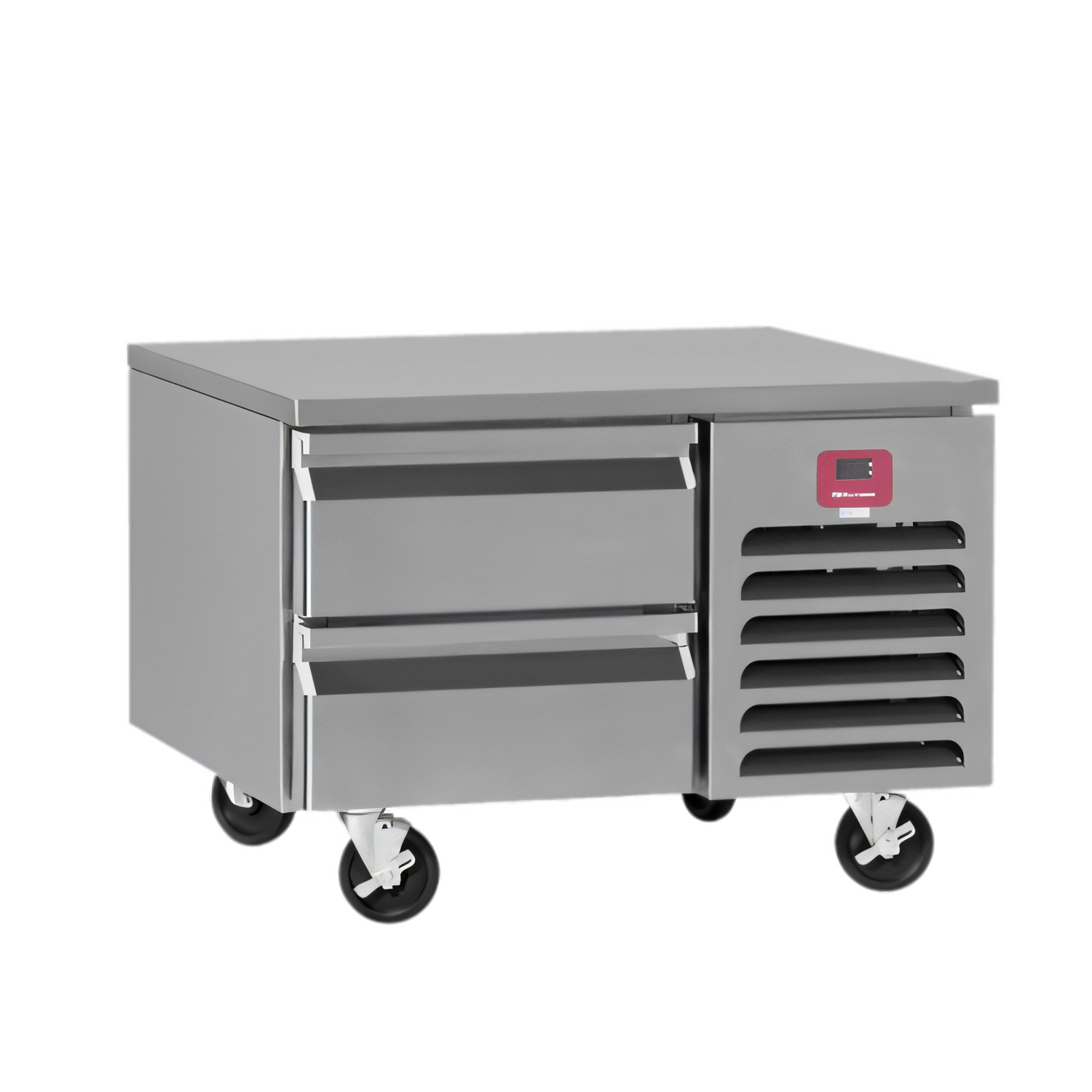

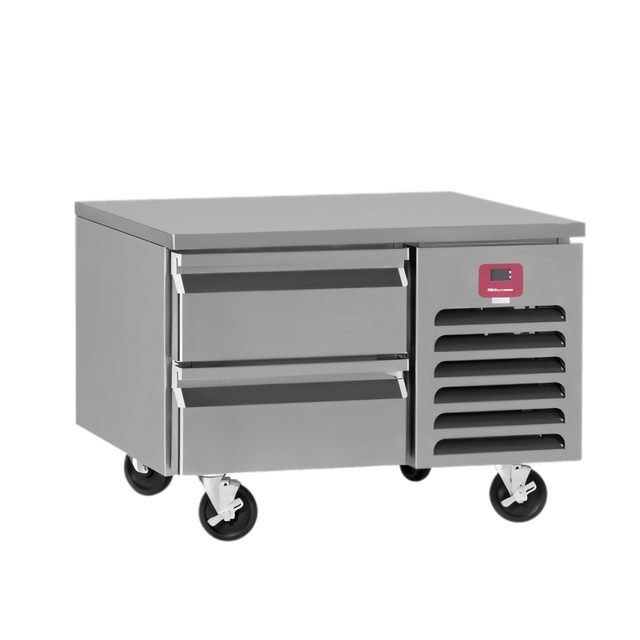

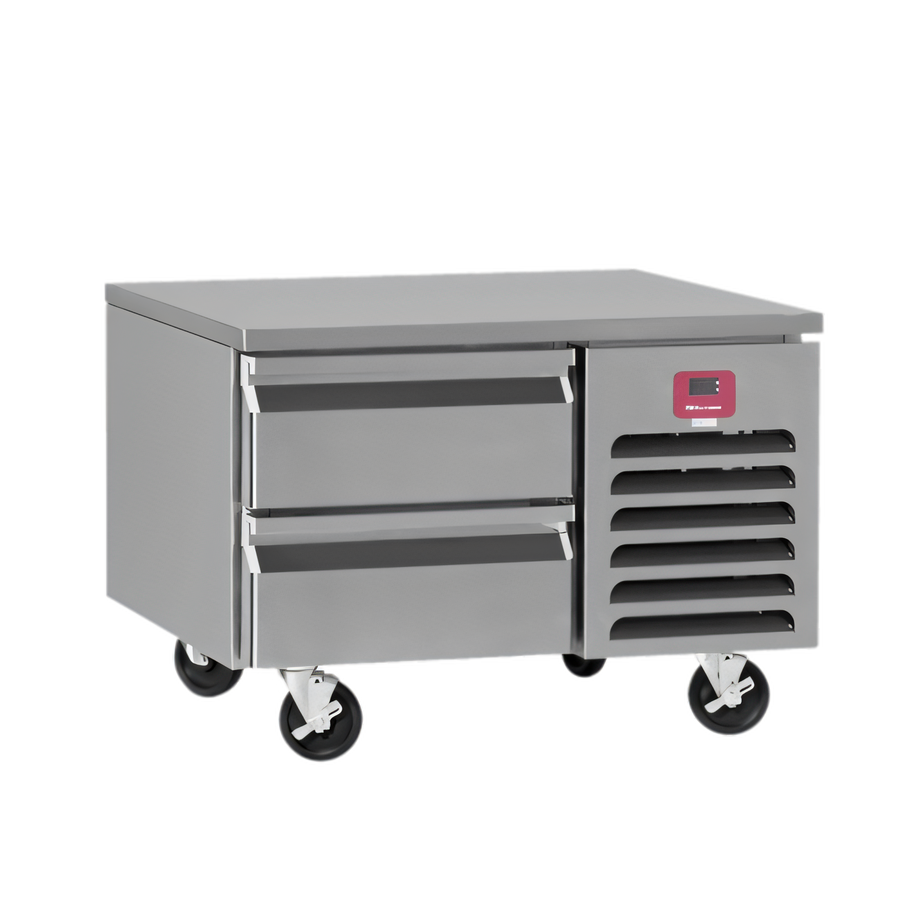

Southbend Platinum Series 32" Refrigerated Base – 2 Drawer, Self-Contained
Model 20032SB | SKU 7705Keep ingredients ice-cold and right where the action is. Built to pair perfectly with Southbend Platinum modular cooktops, this low-profile refrigerated base puts four full-size pans of product directly under the line while delivering the rugged durability busy commercial kitchens demand.
Key Features
- 32" wide, low-height profile—fits seamlessly beneath Platinum series range tops.
- (2) 18" self-closing drawers on stainless-steel rollers; full-width pull handles for fast, ergonomic access.
- Holds up to (4) 12" × 20" × 4" hotel pans (pans sold separately).

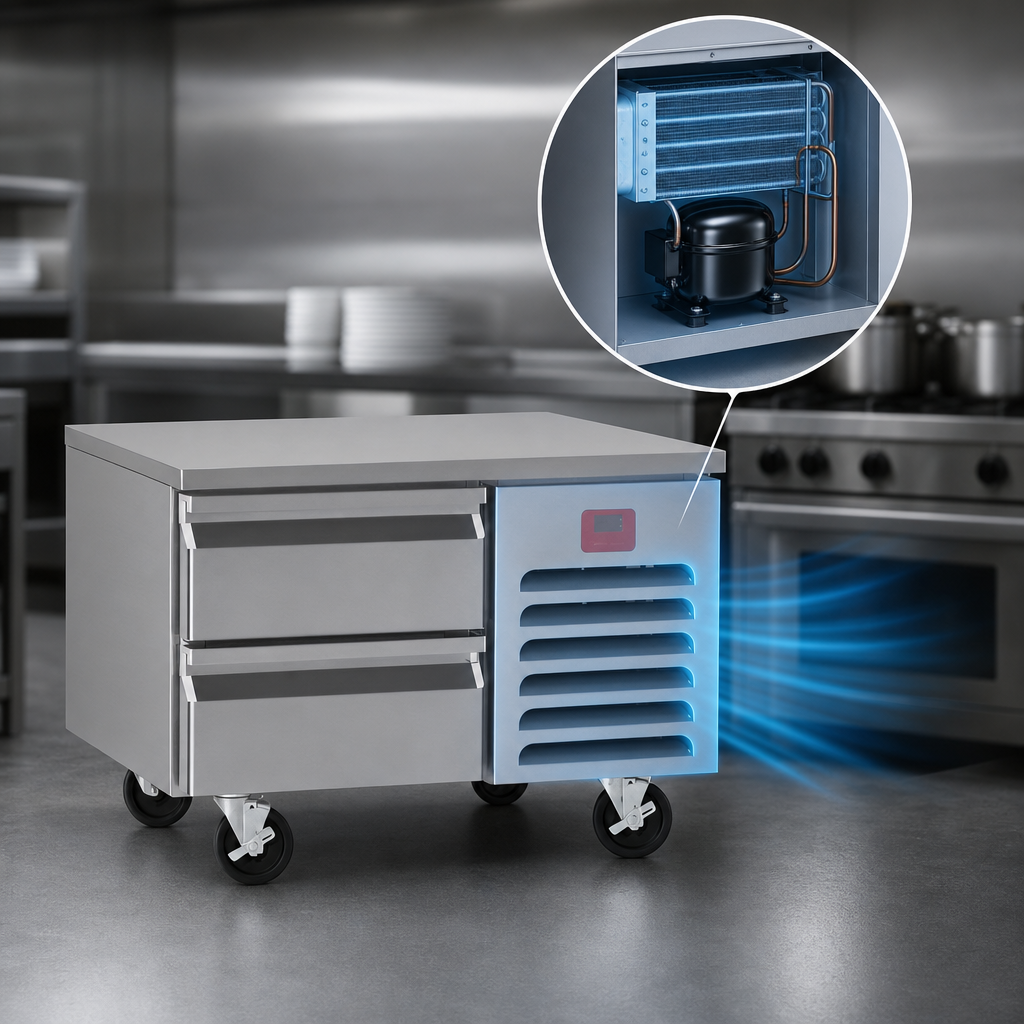

- Self-contained, expansion-valve refrigeration for rapid temperature recovery.
- Foamed-in-place, CFC-free polyurethane insulation for maximum cold retention.
- 304 stainless-steel top, front, sides, back, drawers, and interior for unmatched durability and easy sanitation.
- Magnetic drawer gaskets ensure a tight seal and pop out for quick cleaning.
- Digital thermostat with LED readout—dial in precise holding temps.
- Coated mullion coils promote even air flow and resist corrosion.
- 6" adjustable stainless-steel legs for level placement on uneven floors.
- UL & NSF certified; built for demanding commercial environments.
Specifications
| Overall Width | 32" (813 mm) |
|---|---|
| Overall Depth | 32.5" (826 mm) |
| Overall Height (with 6" legs) | 26" (660 mm) |
| Drawers | 2 self-closing, 18" wide |
| Pan Capacity | 4 full-size 12" × 20" × 4" pans |
| Cooled Volume | 4 ft³ (0.11 m³) |
| Refrigerant | R-404a (CFC-free) |
| Compressor | 1/4 HP, self-contained |
| Cooling Capacity | 1,450 BTU/hr |
| Electrical | 120 V / 60 Hz / 1-ph • 8 A • NEMA 5-15P cord & plug |
| Shipping Weight | ≈ 340 lb (154 kg) |
| Certifications | UL, NSF |
| Warranty | 1-year parts & labor |
Ideal Applications

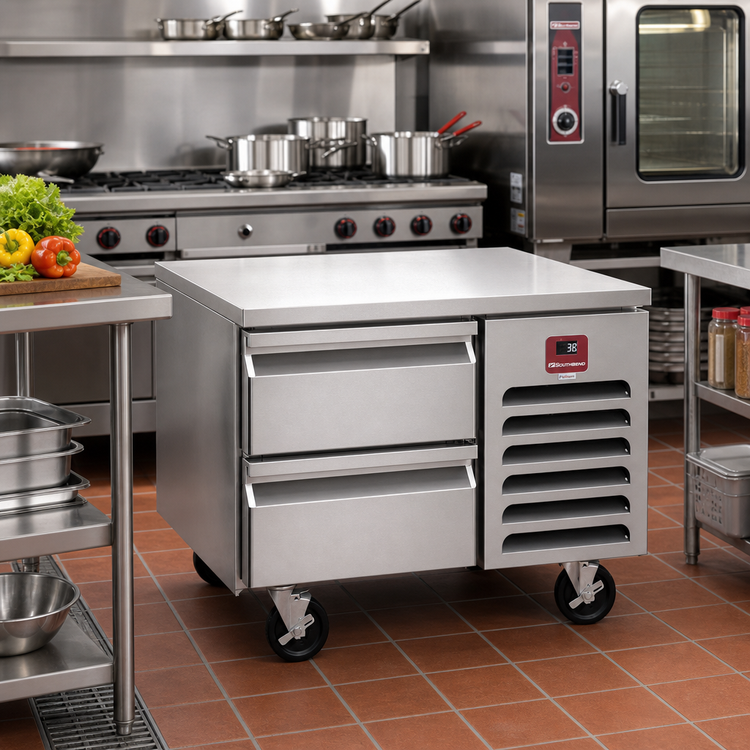

Perfect for restaurants, hotels, institutions, and any high-volume kitchen seeking lightning-fast access to chilled proteins, produce, and mise en place directly under the cooking suite.
Compatible Cooktops
Engineered to support any Southbend Platinum Series sectional top—open burners, griddles, charbroilers, hot tops, and more. Order together for a seamless, code-compliant cookline.
Need a wider unit? Platinum refrigerated bases are available in widths up to 120". Contact us for custom sizing and accessorizing options such as locking casters and cable restraint kits.
