Southbend (Middleby)  |  Platinum  |  SKU: 20032RSB

Southbend (Middleby) 20032RSB Platinum Undercounter & Worktop Refrigeration

$10,821.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

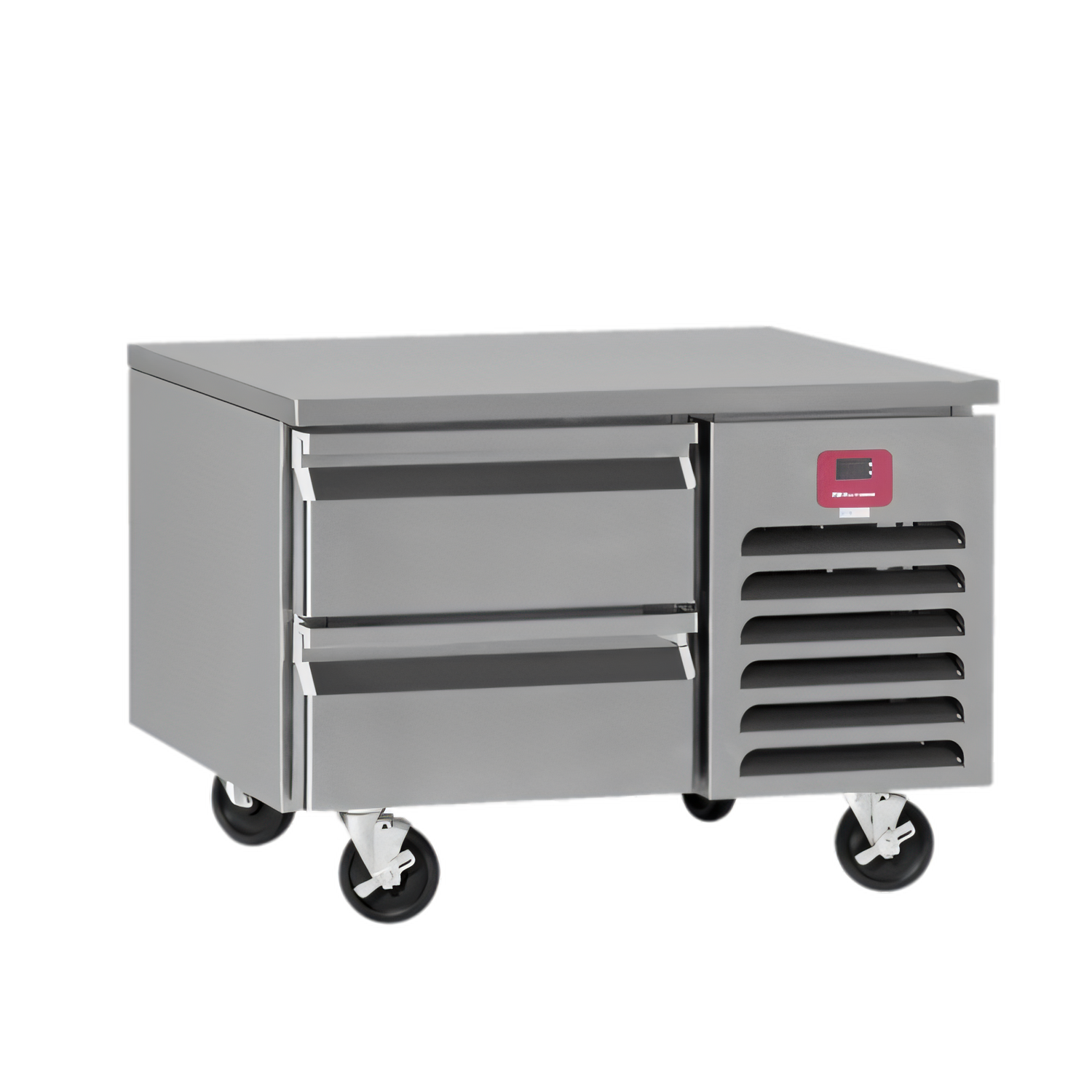

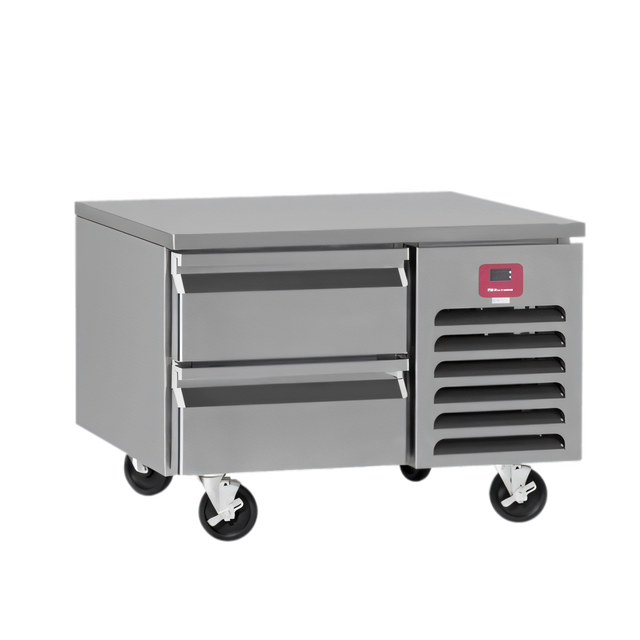

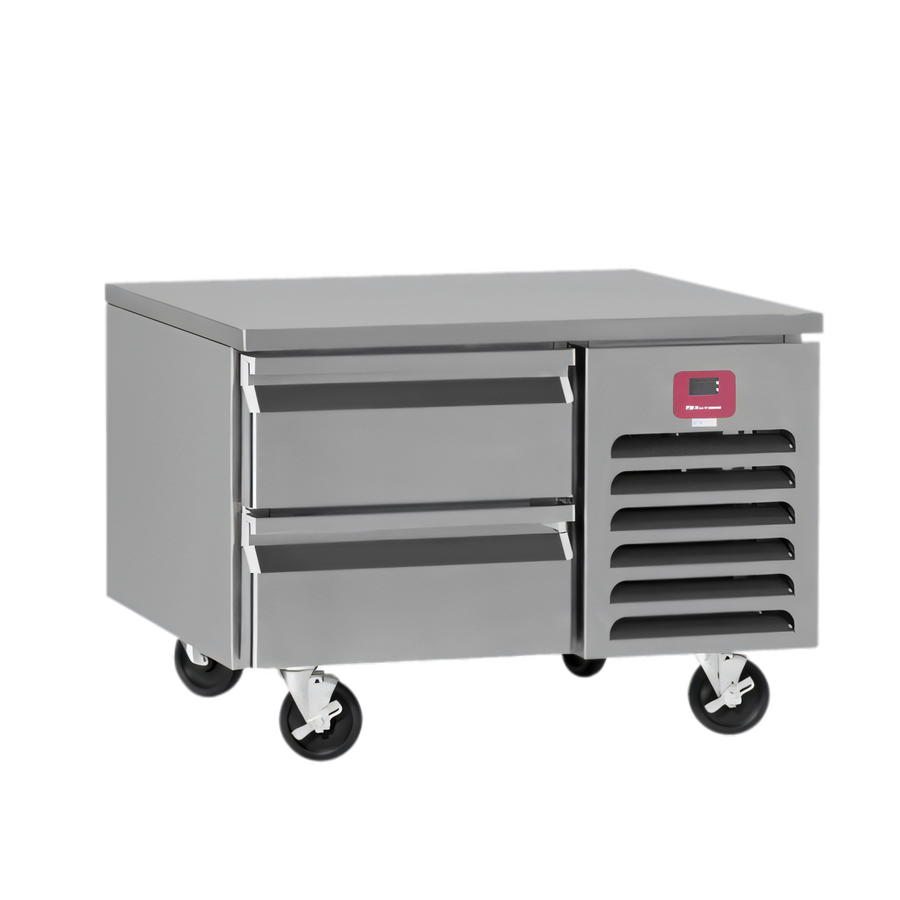

Platinum Series Low-Profile Remote Refrigerated Base – 32" W

Model 20032RSB | Fits Southbend Platinum modular cooktops

Keep product safely chilled right where the action happens. Designed to sit directly beneath Platinum Series range tops, this 32 inch remote refrigerated base puts four full-size hotel pans (12" × 20" × 4", pans not included) within arm’s reach while taking up only 26 inches of vertical space.

Key features

  • Low-height, 32" wide chassis supports any Platinum modular cooktop (insulated base adapter included with cooktop)
  • (2) 26" self-closing drawers on stainless steel roller slides – full-width pull handles, removable drawer assemblies for fast cleaning
  • 304 stainless steel top, front, sides, back & interior for unmatched durability
  • CFC-free, foamed-in-place polyurethane insulation for maximum cold retention

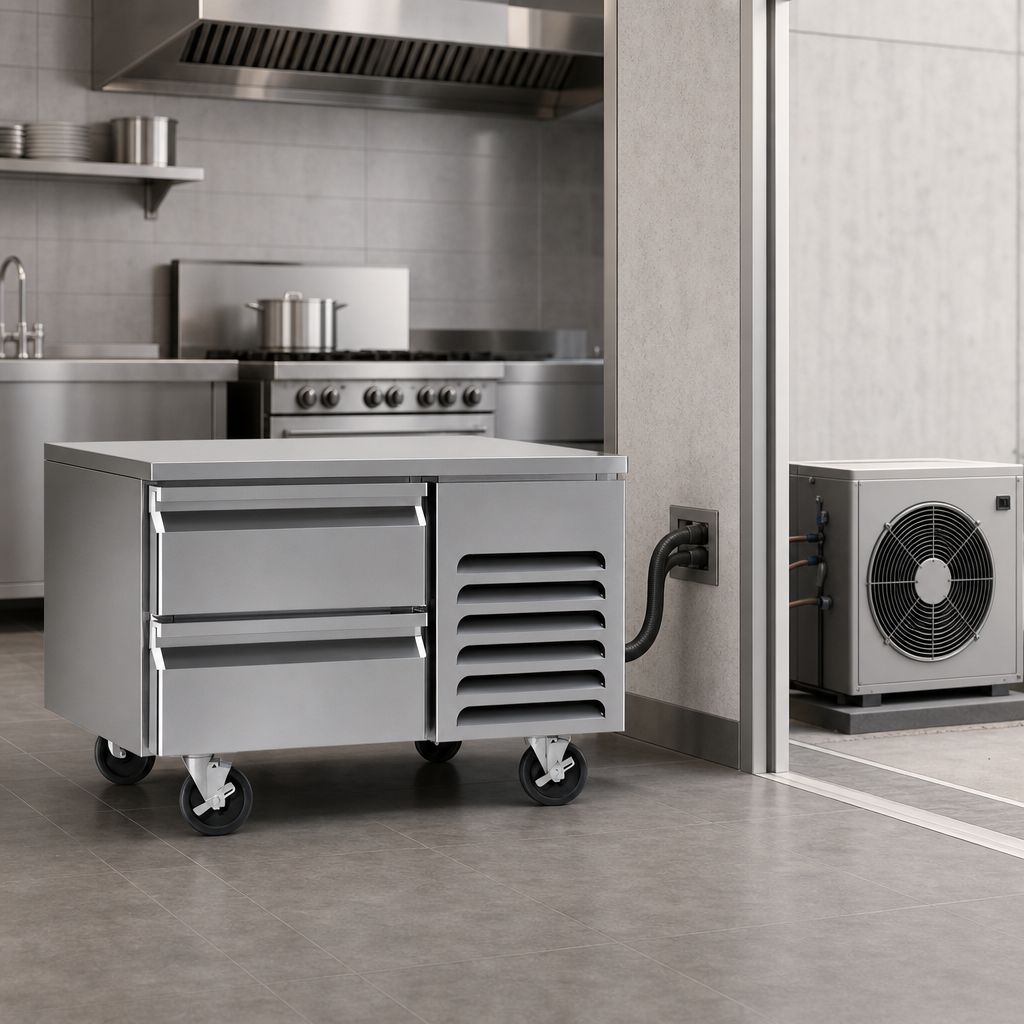

  • Remote refrigeration system with expansion valve for rapid temperature recovery (condenser unit sold separately)
  • Corrosion-resistant mullion coils deliver even air flow throughout the cavity
  • Adjustable digital thermostat & magnetic drawer gaskets maintain NSF #7 food-safe temperatures
  • 6" adjustable stainless steel legs included; optional caster frame available
  • UL & NSF certified for commercial kitchens
  • Backed by Southbend’s 1-year parts & labor warranty

Specifications

Exterior width 32 in  (813 mm)
Exterior depth 36 in  (914 mm)
Overall height 26 in  (660 mm) incl. 6" legs
Drawer count / pan capacity 2 drawers  /  4 full-size 12" × 20" × 4" pans
Cooled storage volume 7.3 ft³  (0.21 m³)
Cooling capacity 1,550 BTU /hr
Compressor 1/4 HP (remote)
Electrical 120 V / 60 Hz / 1-ph, 2.5 A, 6 ft cord with grounded plug
Refrigerant R-404A (CFC-free)
Shipping weight 325 lb  (147 kg)
Certifications UL, NSF

Optional accessories

  • Locking caster frame
  • Cable restraint kit (required when unit is on casters)
  • Condensate evaporator pan (sizes vary)
Important: Remote condenser, flex hose, and hotel pans are not included. Maintain a minimum 2" rear clearance and locate the condenser where ambient temperature remains between 55 °F – 90 °F.

Intended for commercial use only. Warranty: 1 year parts & labor. See Southbend Limited Warranty for full terms.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

26.0in

Width

32.0in

Depth

32.5in

Shipping Weight

325.0lbs

Exterior Finish

all stainless steel exterior

Top Finish

stainless steel top

Refrigeration

remote (refrigeration not included)

Drawer Qty

2 drawers

Compressor HP

1/4 HP

Width

25" - 36" wide

Specifications

Refrigerator Base, remote, low height, 32", (2) 26" self-closing drawers, full width pull handles, stainless steel exterior & 6" legs, 120v/60/1-ph, 2.5 amps, 1/4 HP, order with Platinum Series modular cook tops, UL, NSF
