Southbend (Middleby) 171 Deck Ovens
Description

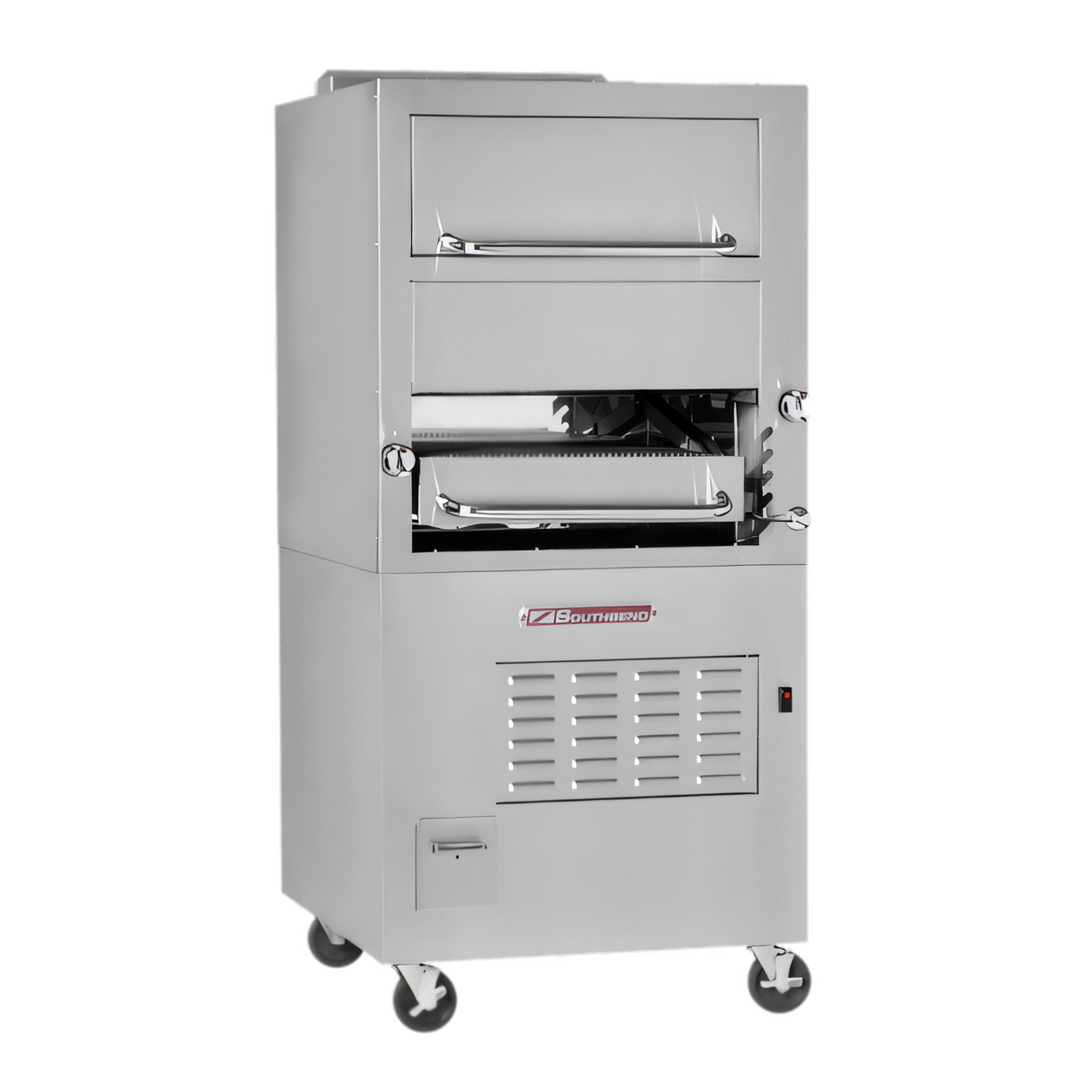

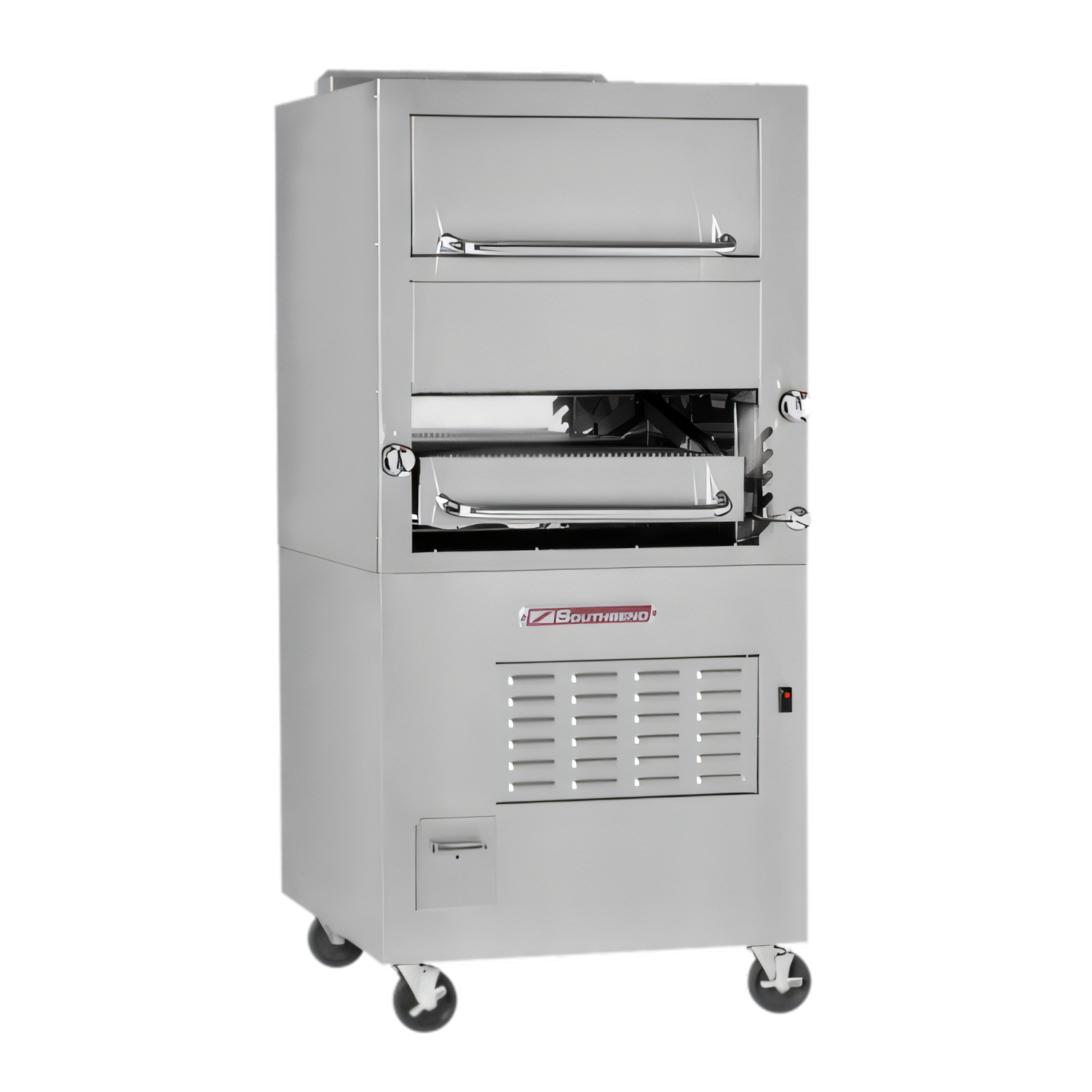

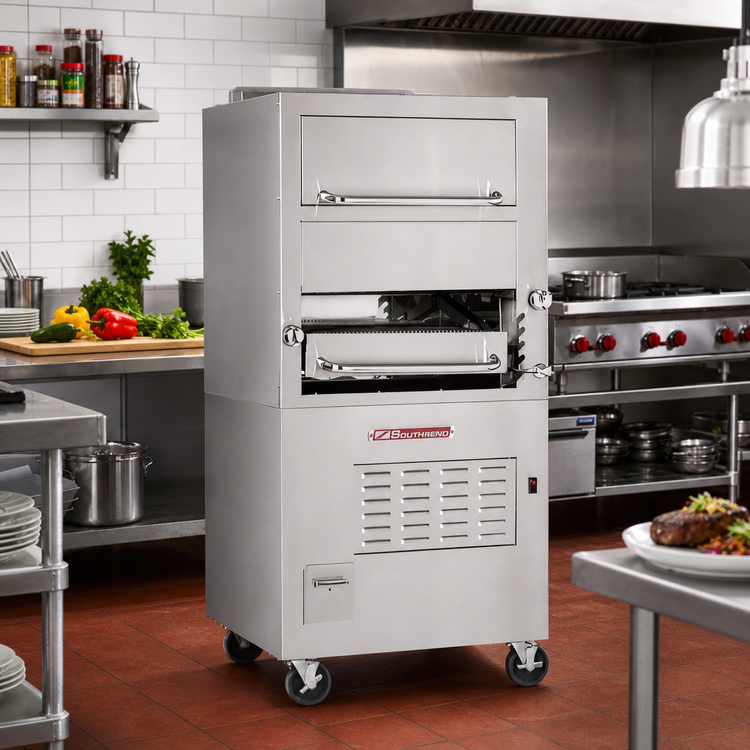

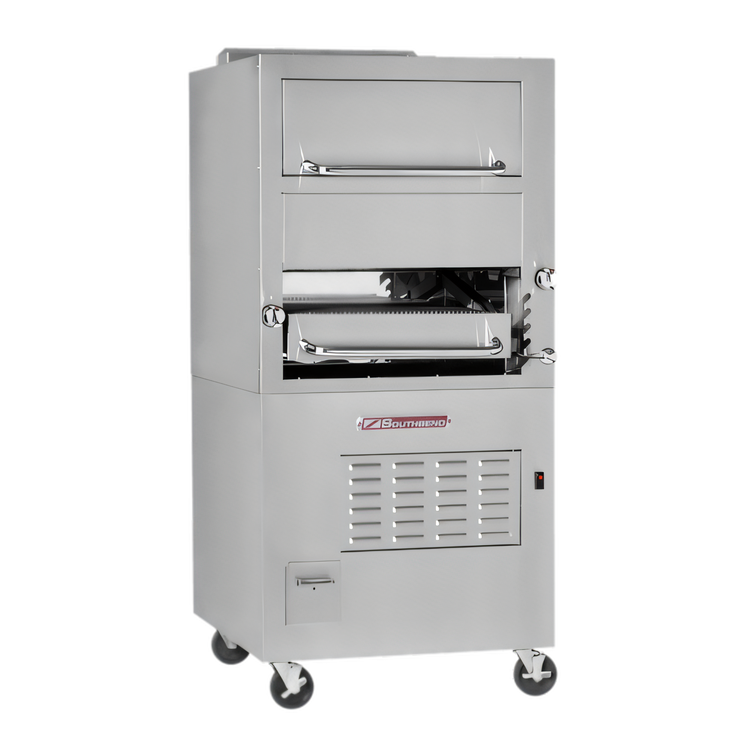

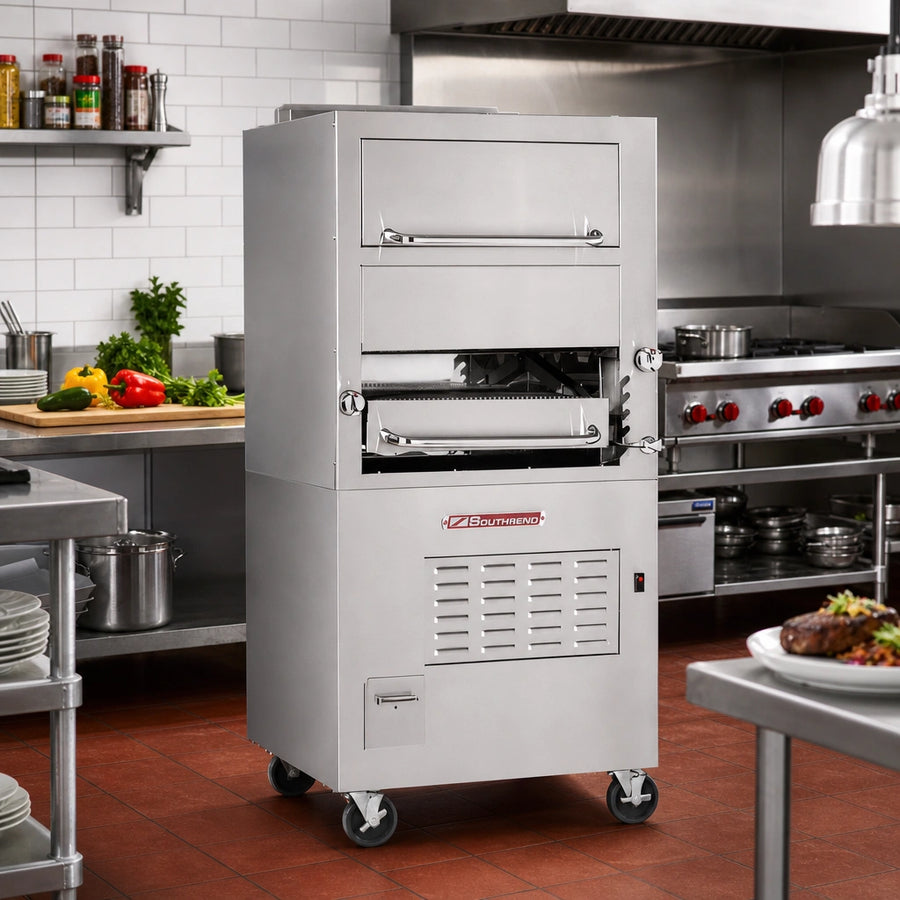

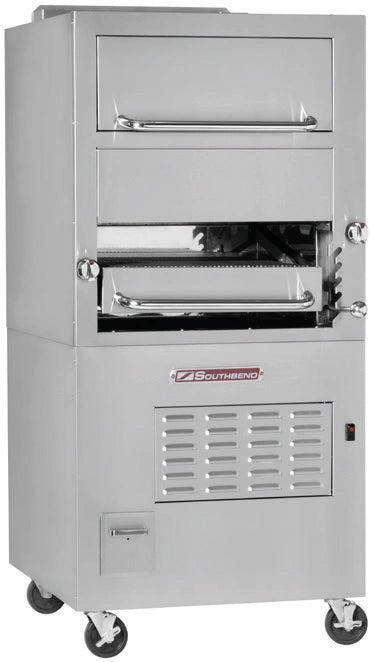

Southbend 171 Single-Deck Infrared Gas Broiler with Warming Oven
Free-Standing | 104,000 BTU | CSA & NSF CertifiedShrink broiling times, not flavor. The Southbend Model 171 delivers blazing-fast infrared heat, an integrated warming oven, and rock-solid stainless-steel construction—everything a busy steakhouse, hotel or high-volume kitchen needs to keep proteins moving and guests delighted.
Why You’ll Love It

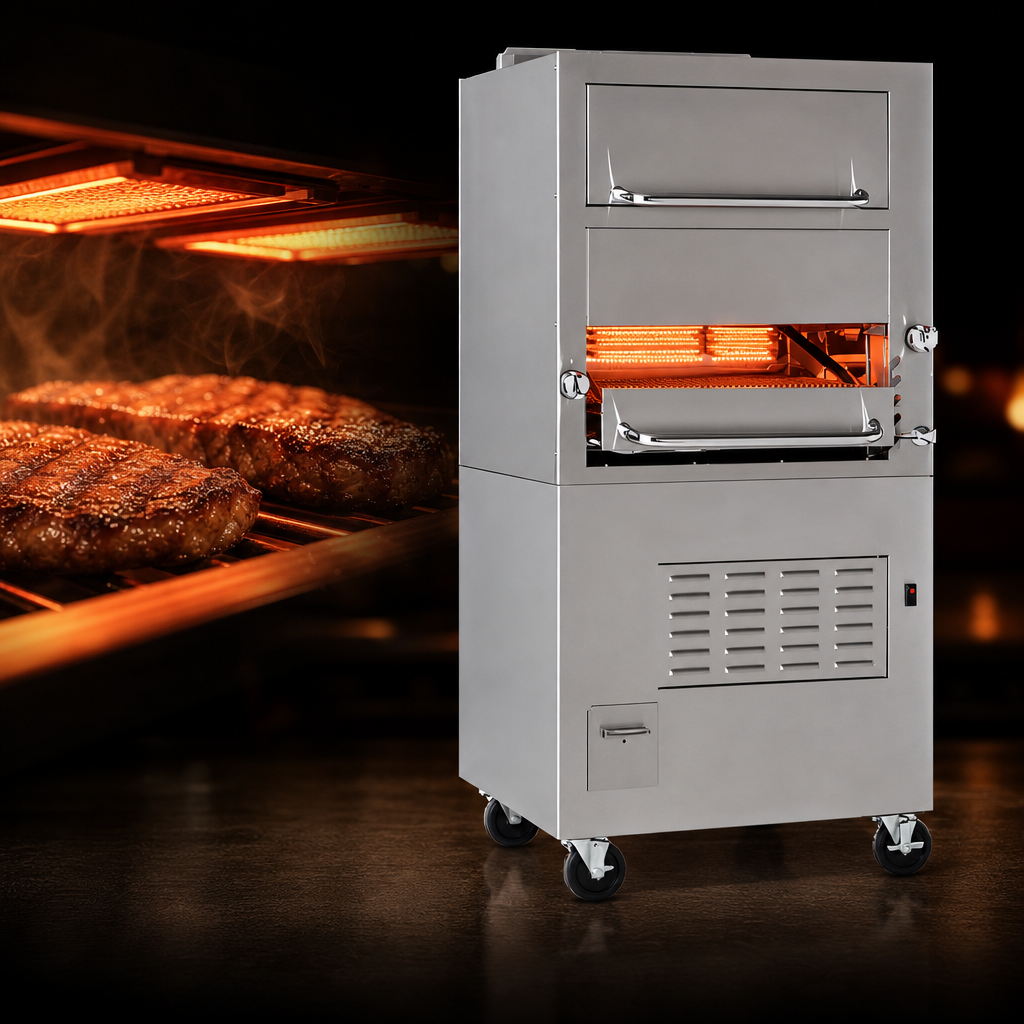

- Infrared power, 90-second preheat – reach searing temperature in under two minutes and stay there with 104,000 BTU NAT/LP burners.
- Up to 33 % faster broiling – intense radiant heat slashes ticket times compared with conventional gas broilers.
- Five grid positions – rugged height-adjustment mechanism gives you complete control over caramelization.
- Roll-out branding grid – 24 ½" W × 27 ½" D removable round-pattern grate rolls out 17 ¼" for safe, easy loading.

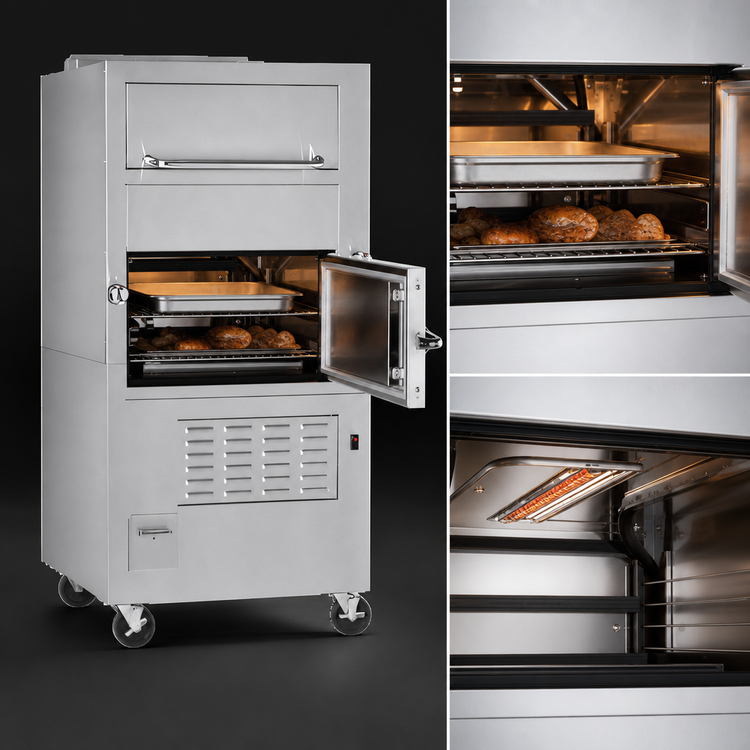

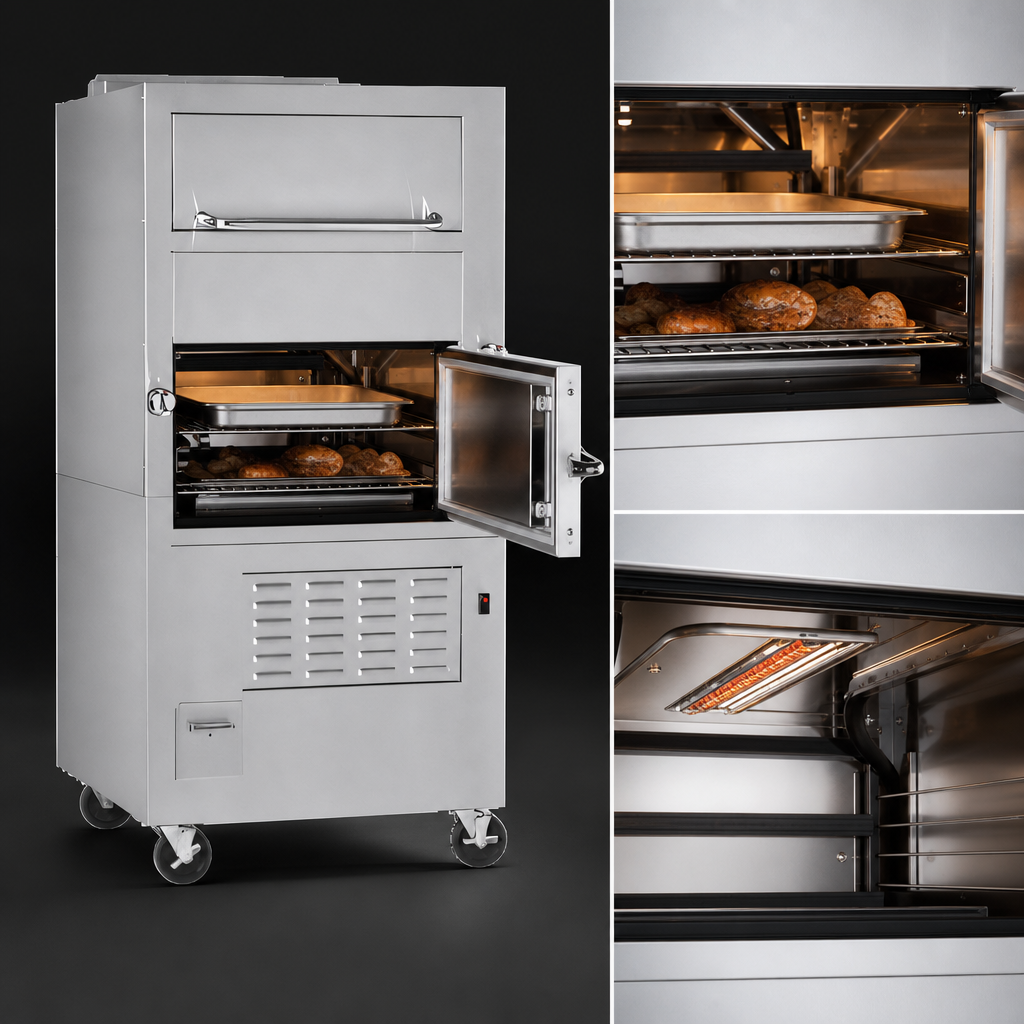

- Integrated 25" × 25" warming oven – heated by flue gases to hold steaks, chops or plates at the perfect service temperature. (3 kW electric element available.)
- Smoke-reducing blower – a 115 V blower pulls in fresh, filtered air to keep vapors away from the cooking zone and maintain burner efficiency.
- Built for the long haul – fully insulated burner boxes, 430 stainless front, sides, top & back and 6" adjustable stainless legs.
- Tool-free cleaning – roll-out grid, washable metal-mesh air filter and smooth stainless interior speed up end-of-shift clean-down.
At-a-Glance Specs
| Model | 171 (Single Deck) |
|---|---|
| Heat Source | Gas, infrared burners (NAT or LP) |
| Total Input | 104,000 BTU/hr |
| Preheat Time | ≈ 90 seconds |
| Broiling Grid Area | 24 ½" W × 27 ½" D (front 3" lower heat holding zone) |
| Grid Height Positions | 5 |
| Warming Oven | 25" W × 25" D, flue-gas heated (optional 3,000 W, 208/236 V element) |
| Gas Connection | ¾" male NPT (rear) |
| Electrical | 115 V, 1 A (blower) | 208/236 V, 20 A (optional oven element) |
| Exterior Dimensions* | 34" W × 37" D × ≈ 75" H (with legs) |
| Shipping Weight | ≈ 693 lb / 314 kg |
| Certifications | CSA, NSF |
*Refer to spec sheet for detailed dimensional drawings and installation clearances (0" non-combustible, 10" sides & 6" rear combustible).
Included With Your Broiler
- 24 ½" roll-out branding grid
- Washable metal-mesh air filter
- 6" adjustable stainless-steel legs
- 1-year limited parts & labor warranty (details)
Popular Add-Ons
- Locking caster kit with cable restraint
- 3,000 W electric heating element for the warming oven
