Southbend (Middleby) 170 Deck Ovens
Description

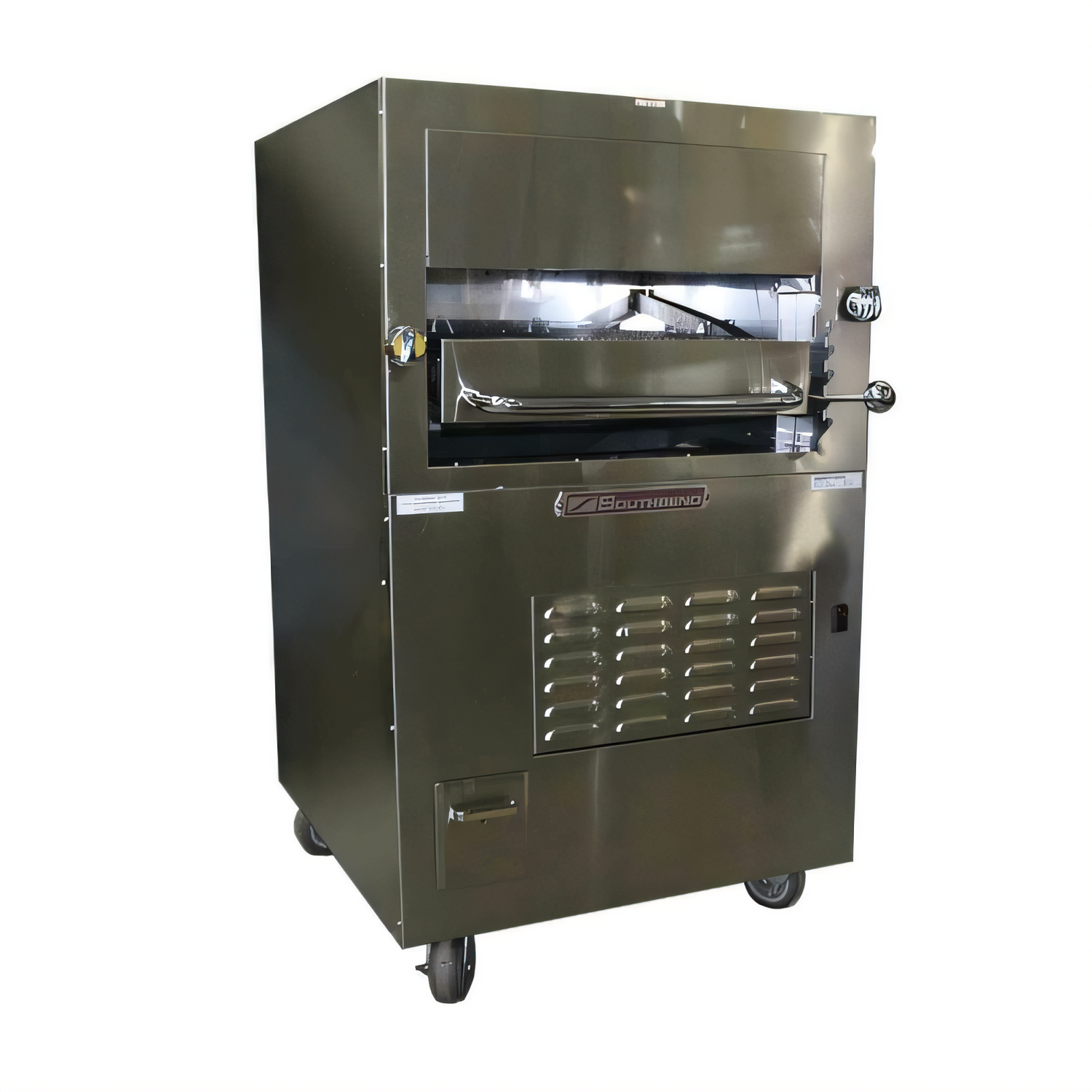

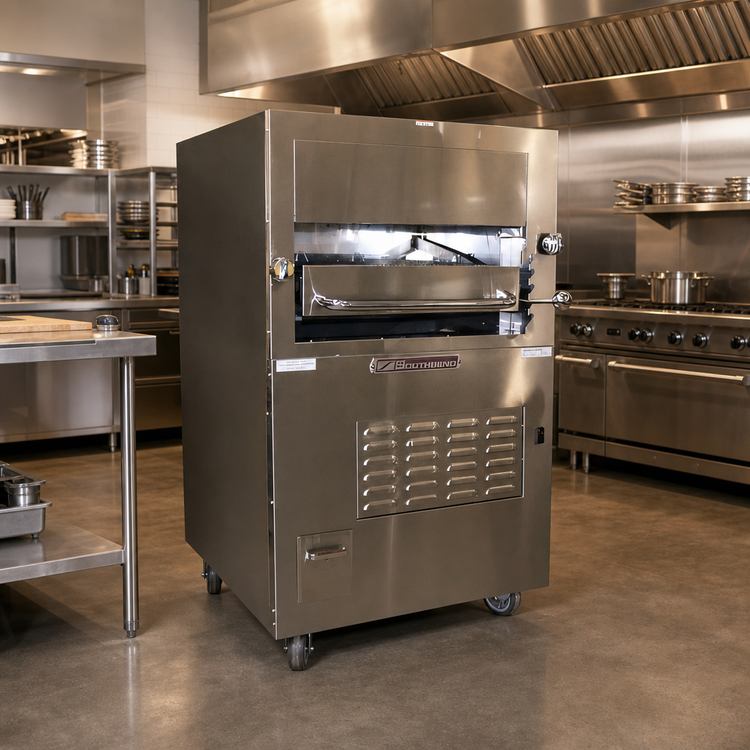

Southbend 170 Single-Deck Infrared Gas Broiler — 104,000 BTU
Free-standing | Stainless Steel | CSA & NSF CertifiedDeliver steak-house quality results in record time. The Southbend Model 170 combines powerful 104,000 BTU infrared burners with a 90-second preheat, giving chefs the speed, consistency and durability they need for high-volume broiling.
Performance & Construction Highlights

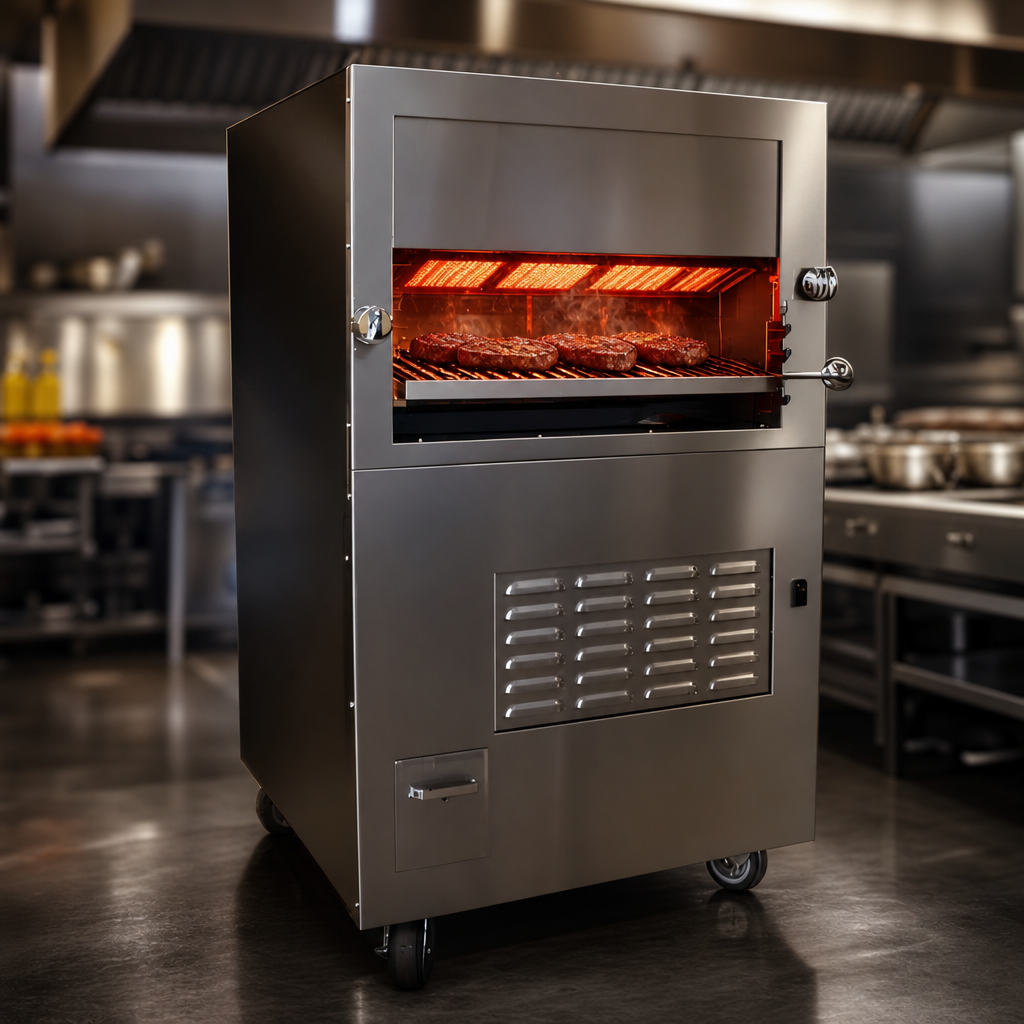

- Infrared burner technology broils foods up to ⅓ faster than conventional systems.
- 104,000 BTU (Natural or LP) burner pack with constant-burning pilot lights.
- Generous roll-out grid — 24 ½" W × 27 ½" D with a 3" reduced-heat holding zone up front.

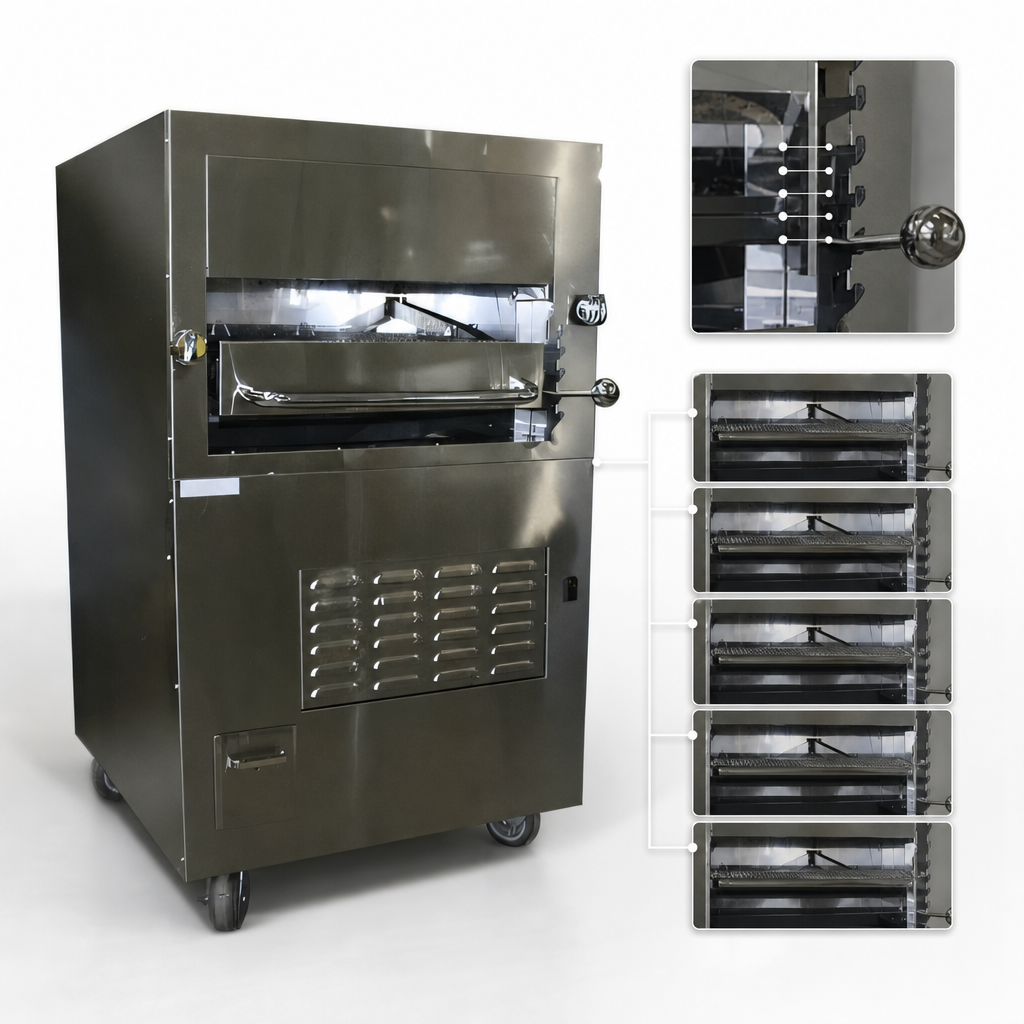

- Five grid-height positions operated by a rugged adjustment mechanism.
- Fresh, filtered, pressurized air from the integrated blower reduces smoke and vapor build-up.
- Fully insulated lining and burner box retain heat and boost efficiency.
- Removable round-pattern branding grids for easy cleaning and signature grill marks.
- All stainless-steel exterior (top, front, sides, back) and interior for unmatched durability.
- 6" adjustable stainless-steel legs included (casters optional).
- Washable metal-mesh air filter keeps the blower running at peak performance.
Technical Specifications
| Model | 170 (Single Deck, Free-Standing) |
|---|---|
| Burner Type / Output | Infrared, 104,000 BTU /hr (Natural or LP) |
| Preheat Time | Approximately 90 seconds |
| Broiling Area | 24 ½" W × 27 ½" D roll-out grid (rolls out 17 ¼") |
| Grid Height Positions | 5 |
| Gas Connection | ¾" rear NPT | 7" W.C. Natural / 11" W.C. LP |
| Electrical | 120 V, 60 Hz, 1 ph, 1 A (7-ft cord & plug for blower motor) |
| Shipping Weight* | 618 lb (280 kg) |
| Shipping Crate (W × H × D)* | 45 ½" × 83" × 55" (120.2 cu ft) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
*Shipping dimensions & weight are provided for freight calculations.
Included & Optional Items
- Standard: 6" adjustable legs, washable air filter, blower motor, roll-out broiler grid.
- Optional (add-on): Locking swivel casters, cable restraint kit.
Gas & Electrical Requirements: Unit must be connected to a ¾" gas line and a 120 V outlet. Install under a properly sized vent hood. Maintain minimum clearances of 10" on sides and 6" at the rear from combustible construction. Follow all local codes.
