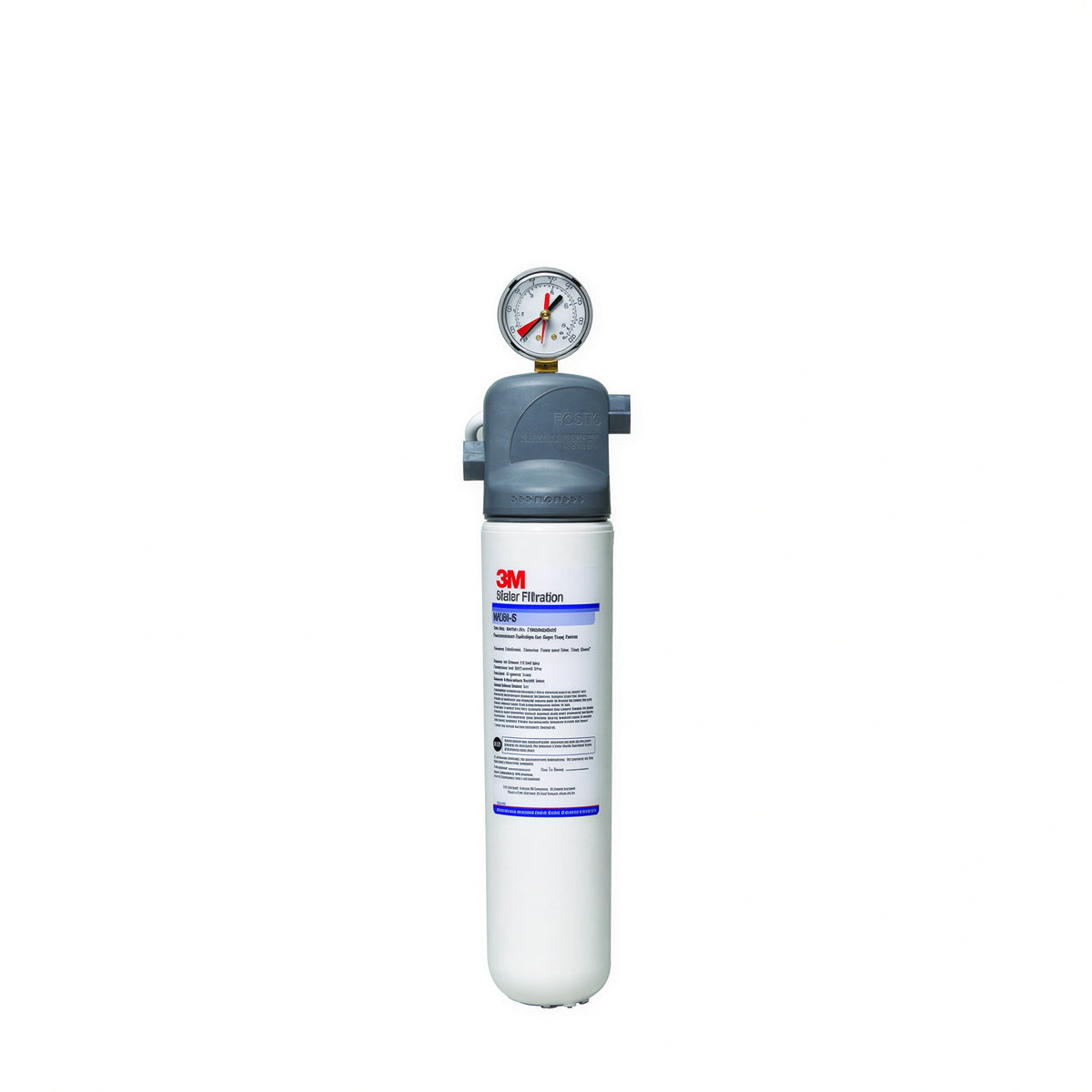

Serv-Ware 3M™ ICE120-S Ice Maker Water Filter System with Gauge, 0.5 Micron, 1.5 GPM, 9,000-Gallon Capacity Case of 6
- Type
- Water filter unit
- Application
- Commercial ice machines; cubers up to 750 lb (340 kg) and flakers up to 1,200 lb (544 kg)
- Micron rating
- 0.5 micron
- Service flow rate
- 1.5 GPM (5.7 LPM)
- Capacity
- 9,000 gallons (34,069 liters)
- Reduction claims
- Sediment, chlorine taste and odor, cyst, and scale
Specifications
Description
The Serv-Ware ICE120-S is a 3M™ water filtration system for commercial ice machines. It combines a 0.5 micron rating, 1.5 GPM service flow rate, and 9,000-gallon capacity with reduction claims for sediment, chlorine taste and odor, cyst, and scale.
- Includes a pressure gauge, integral mounting bracket, and one o-ring seal cartridge filter.
- Features a valve-in-head design, internal 1/4-turn shut-off valve, and 3/8-inch FNPT inlet and outlet connections.
- Application sizing covers cubers up to 750 lb and flakers up to 1,200 lb.
Overall Dimensions:
4.0"W x 4.5"D x 17.0"HProduct Weight:
3.75 lb0.5 micron filtration
The ICE120-S has a 0.5 micron rating and reduction claims for sediment, chlorine taste and odor, cyst, and scale.
Built-in scale inhibition
The filter cartridge incorporates a scale inhibitor to reduce the ability of calcium and magnesium to precipitate as hard scale.
Pressure gauge
The system includes a pressure gauge in the head assembly.
Valve-in-head design
The valve-in-head design shuts off and vents water during cartridge change-out without requiring the upstream feed water to be shut off.
Sanitary Quick Change cartridge
The encapsulated cartridge design supports cartridge change-outs with a 1/4-turn connection.
Ice machine application
The system is sized for commercial cubers up to 750 lb and flakers up to 1,200 lb.
Plumbing connections
The system has 3/8-inch FNPT horizontal inlet and outlet ports for direct or adaptable plumbing connections.
Included system components
The system includes an integral mounting bracket and a single o-ring seal cartridge filter.
