Serv-Ware BAR3B38-CWP-V 38.5-Inch Three-Compartment Stainless Steel Bar Sink with 3-Inch Backsplash, No Drainboards
$910.00
/each
Ships in 6–9 business days
- Dimensions
- 38.0"W × 18.75"D × 33.0"H
- Sink compartments
- 3
- Compartment size
- 10 in W x 14 in front-to-back x 10 in deep
- Overall depth
- 18.75 in
- Overall height
- 33 in
- Backsplash height
- 3 in
Specifications
Sink compartments
3
Compartment size
10 in W x 14 in front-to-back x 10 in deep
Overall depth
18.75 in
Overall height
33 in
Backsplash height
3 in
Faucet hole spacing
4 in on center
Drain size
1-1/2 in
Top, bowl, and back construction
18-gauge stainless steel
Apron construction
20-gauge stainless steel, front and sides
Legs and crossbracing
Galvanized steel
Feet
Adjustable bullet feet
Drainboards
None
Certification
NSF
Description
The Serv-Ware BAR3B38-CWP-V is a three-compartment bar sink with stainless steel construction, a 3-inch backsplash, and no drainboards.
- Three compartments measuring 10 inches wide by 14 inches front-to-back by 10 inches deep.
- 18-gauge stainless steel top, bowls, and back with a 20-gauge stainless steel apron on the front and sides.
- Includes 4-inch on-center splash-mount faucet holes, 1-1/2-inch drains, galvanized steel legs, side crossbracing, and adjustable bullet feet.
Overall Dimensions:
38.0"W x 18.75"D x 33.0"HProduct Weight:
240.0 lbThree-compartment layout

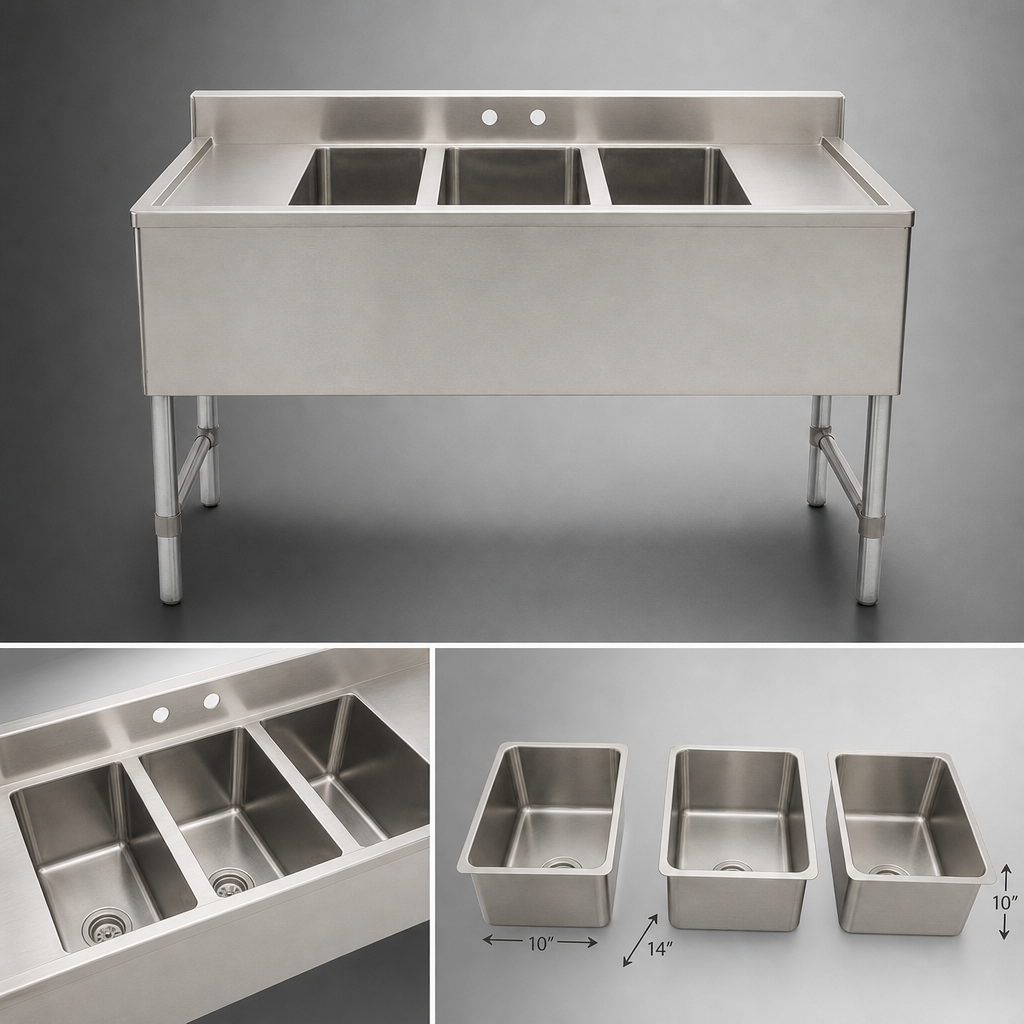

Provides three sink compartments, each measuring 10 inches wide by 14 inches front-to-back by 10 inches deep.
Stainless steel construction

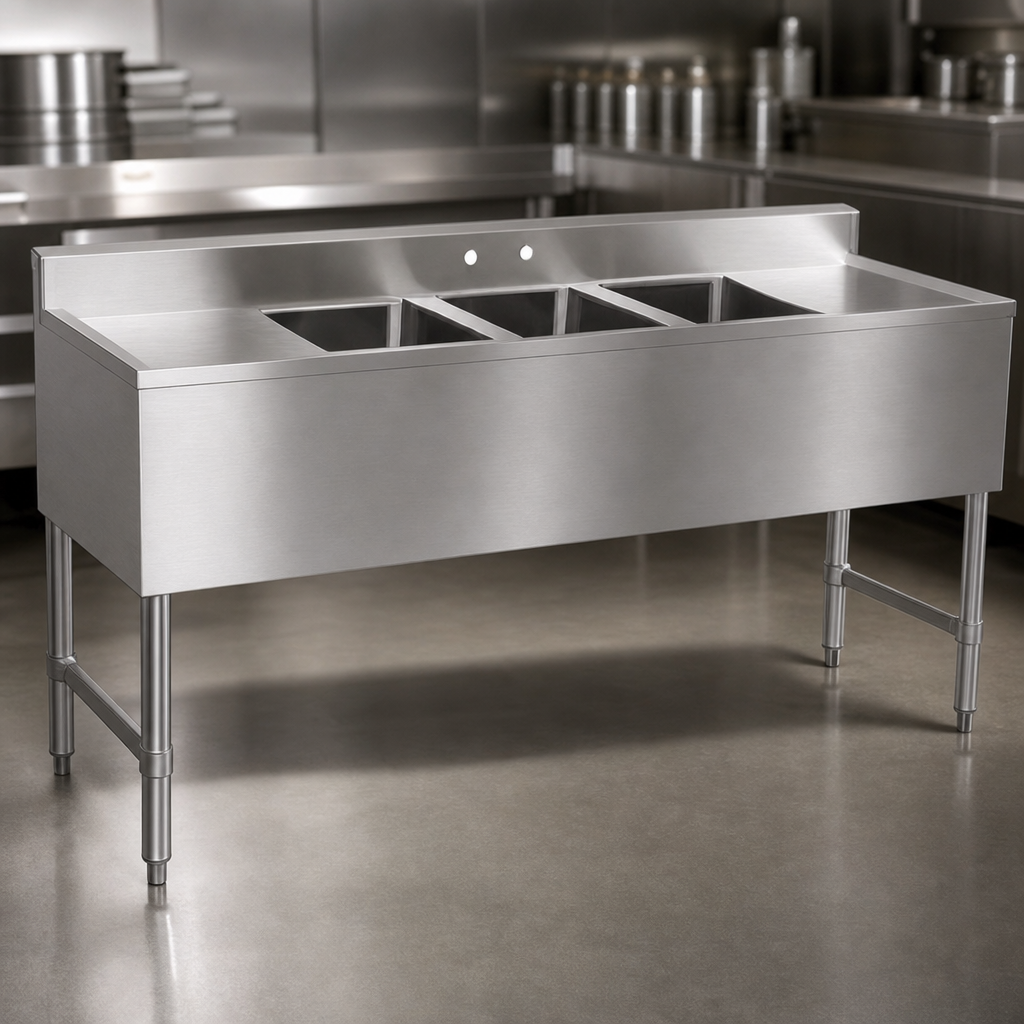

The top, bowls, and back are 18-gauge stainless steel; the apron on the front and sides is 20-gauge stainless steel.
Backsplash and faucet holes
Features a 3-inch backsplash with 4-inch on-center splash-mount faucet holes.
No drainboards
This model is specified without drainboards.
Drain and support components
Includes 1-1/2-inch drains, galvanized steel legs, side crossbracing, and adjustable bullet feet.
Documentation
Certifications & Compliance
Frequently Asked Questions
It has three sink compartments.
Each compartment measures 10 inches wide by 14 inches front-to-back by 10 inches deep.
No. The BAR3B38-CWP-V is specified without drainboards.
It has 4-inch on-center splash-mount faucet holes.
Yes. NSF is listed for this product.
Serv-Ware provides a warranty against defects in material or workmanship for one year from the original installation date, or a maximum of 18 months after shipment, under normal use and maintenance.
