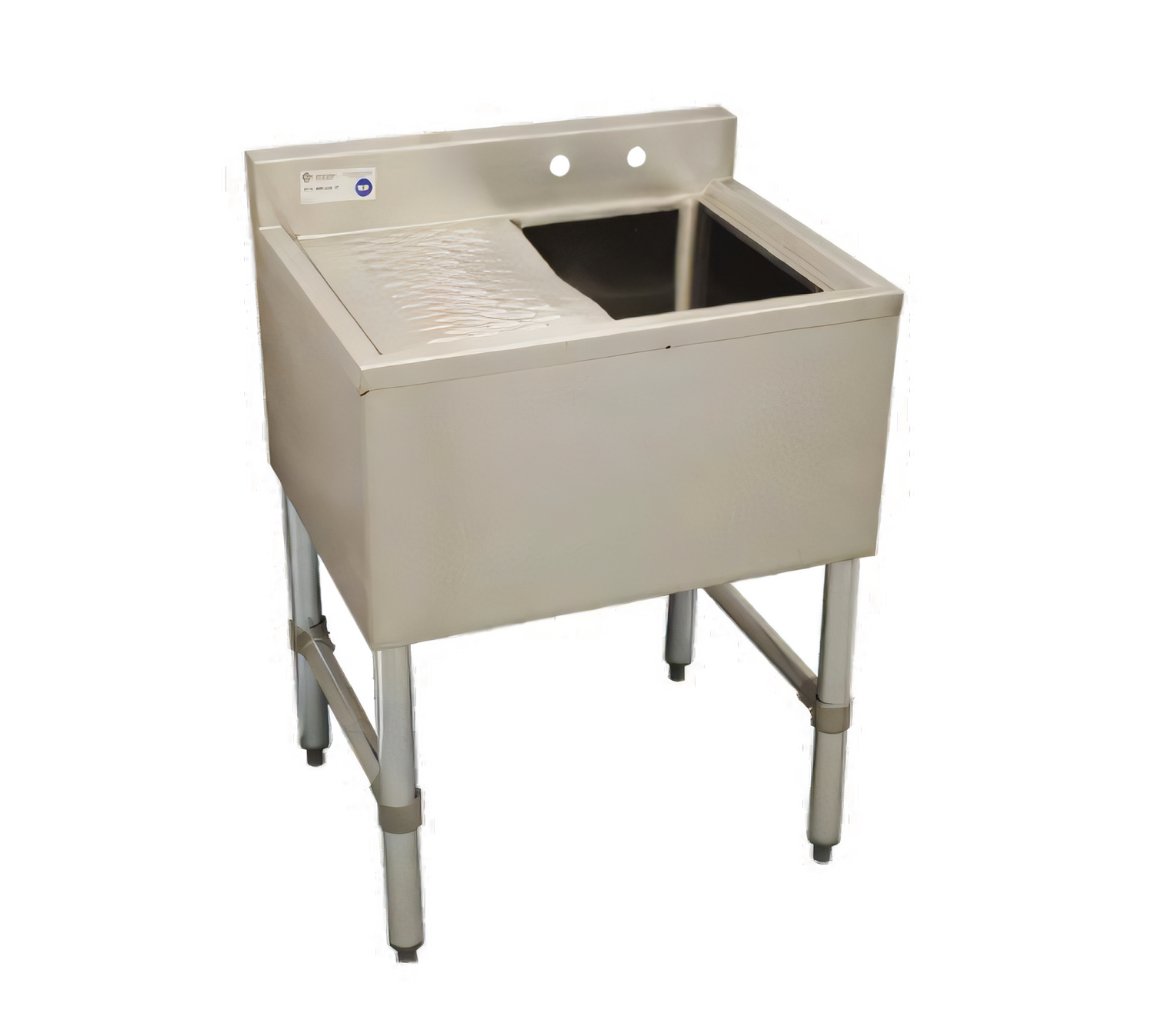

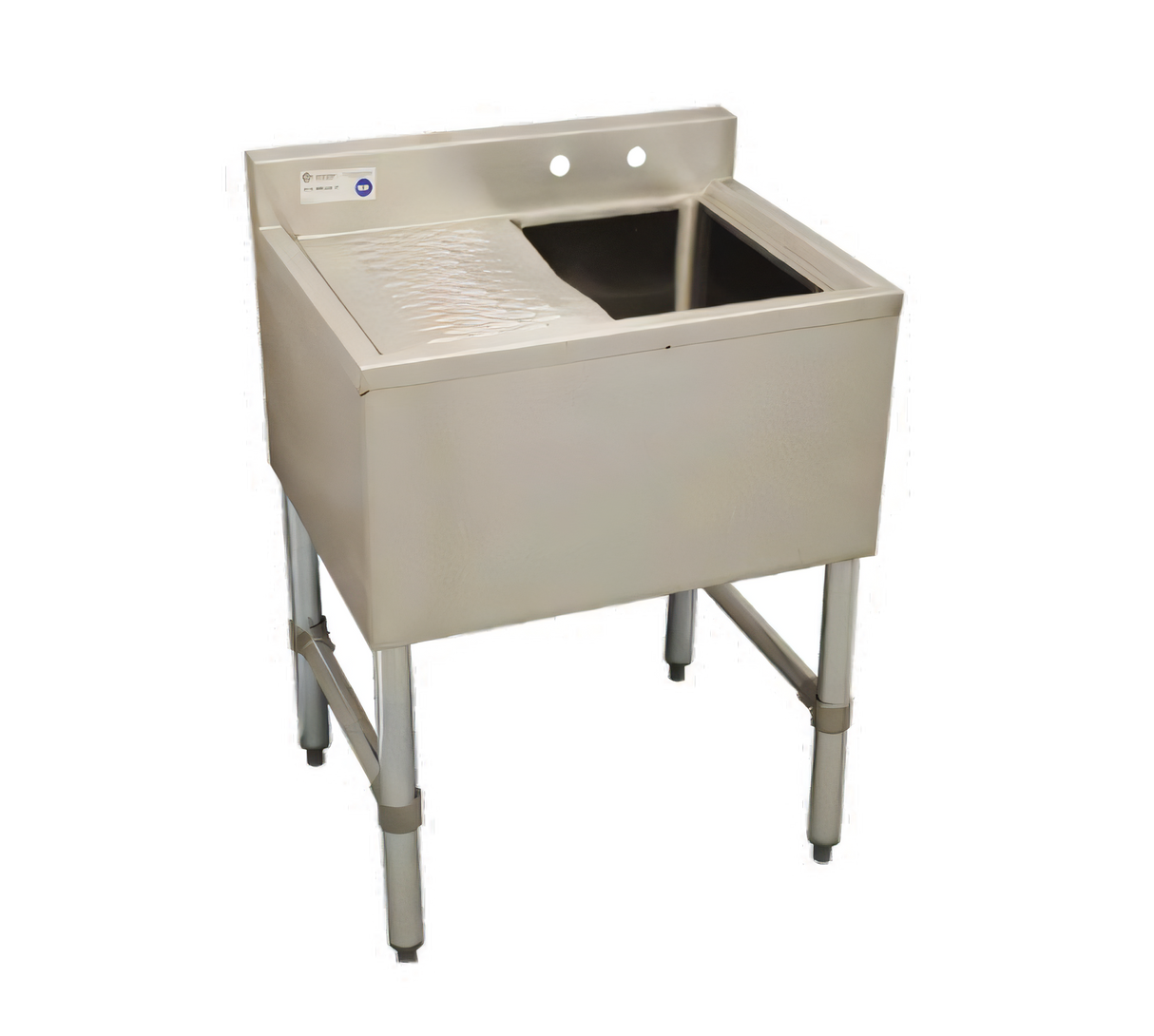

Serv-Ware 24-Inch 1-Bowl Left-Drainboard Stainless Steel Bar Sink with Backsplash

SKU: BAR1B24-L-CWP-V
$591.77
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Serv-Ware Underbar Equipment

Serv-Ware 24-Inch 1-Bowl Left-Drainboard Stainless Steel Bar Sink with Backsplash

18-Gauge 304 Stainless Steel, 3-Inch Backsplash, Adjustable Bullet Feet

A rugged NSF-listed underbar sink with a deep 1-bowl layout, left drainboard, and stainless steel construction built for busy beverage stations.

  • 24-inch bar sink with a single bowl and left-side drainboard
  • 18-gauge 304 stainless steel top, bowl, and back for durable service
  • 20-gauge 304 stainless steel apron on the front and sides
  • 3-inch backsplash with 4-inch on-center splash-mount faucet holes
  • Galvanized steel legs and side crossbracing with adjustable bullet feet
  • 1-1/2-inch drain and NSF-listed construction

Overall Dimensions:

24.13"W x 18.75"D x 33.0"H

Product Weight:

205.0 lb

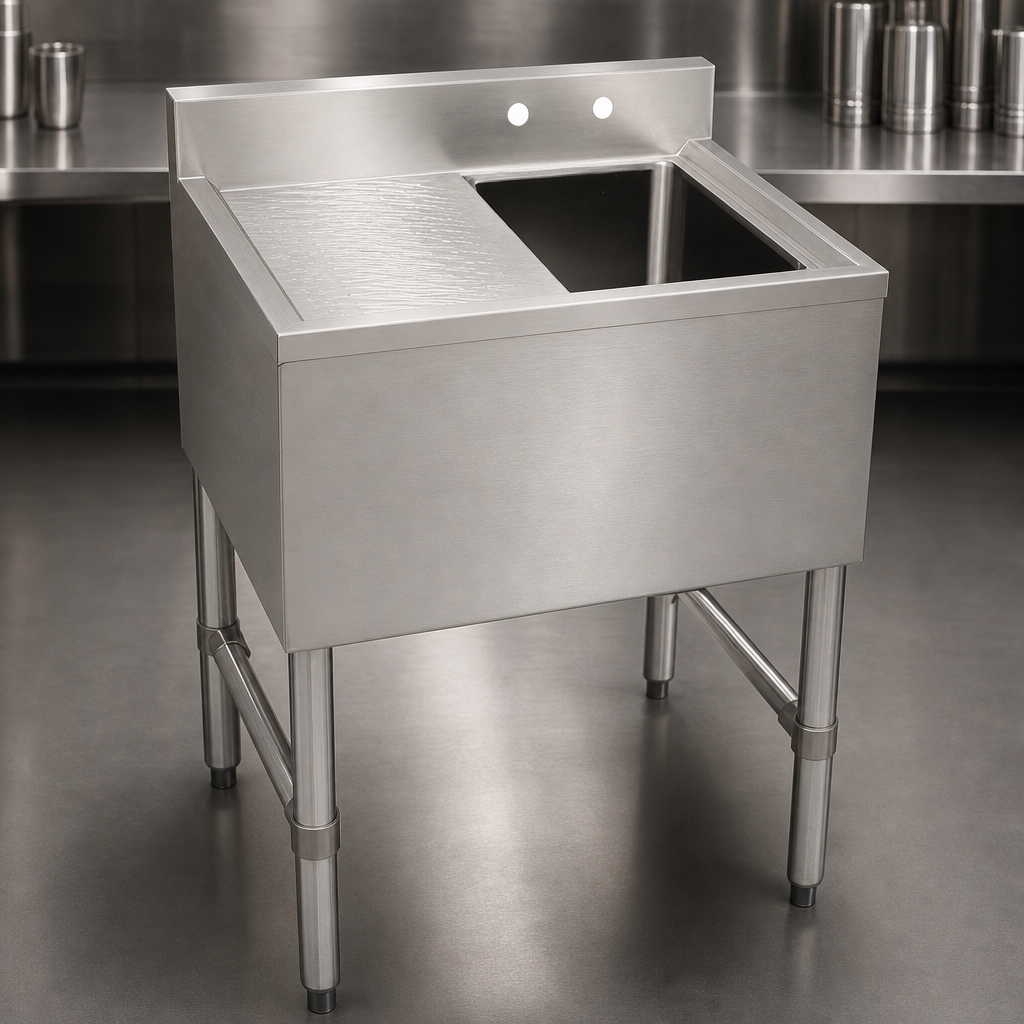

304 Stainless Steel Construction

Built with stainless steel top, bowl, back, and apron surfaces for corrosion resistance and long-lasting commercial use.

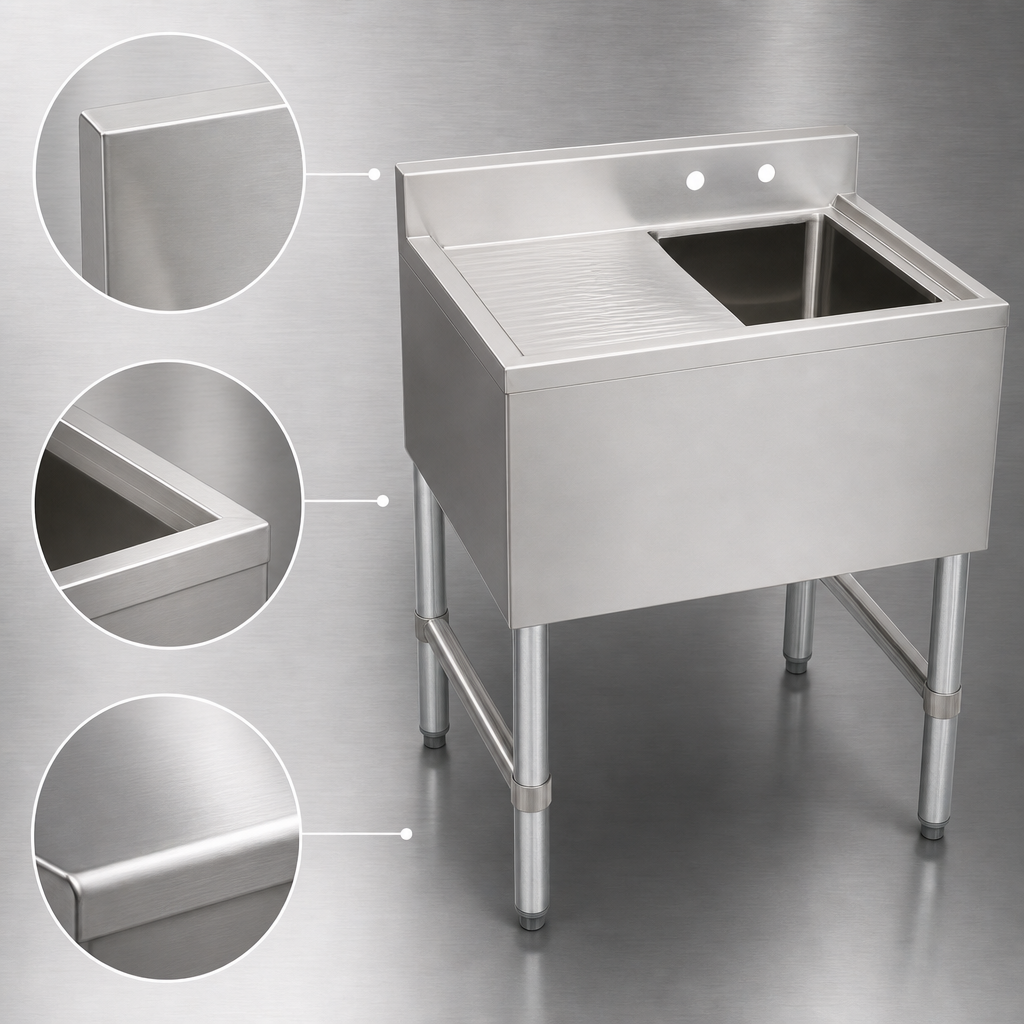

18-Gauge Top, Bowl, and Back

Heavy-duty 18-gauge construction helps the sink stand up to daily bar and beverage service.

20-Gauge Apron

The front and side apron is formed from 20-gauge stainless steel for added durability.

Left Drainboard

A 12-inch drainboard on the left provides a convenient landing area for glassware and prep tasks.

Deep Single Bowl

The bowl measures 10 inches wide by 14 inches front-to-back by 10 inches deep for practical sink capacity.

Backsplash with Faucet Openings

A 3-inch backsplash includes 4-inch on-center splash-mount faucet holes for compatible faucet installation.

Stable Base

Galvanized steel legs and side crossbracing with adjustable bullet feet help provide strength and leveling support.

1-1/2-Inch Drain

Features a 1-1/2-inch drain connection for standard sink drainage setup.

Type Bar Sink
Style Left Drainboard
Installation Type Floor Model
Material 304 Stainless Steel
Compartments 1
Drain Connection Size 1-1/2 Inches
Backsplash Height 3 Inches
Bowl Size 10 Inches W x 14 Inches D x 10 Inches H
Shipping Width 25 Inches
Shipping Depth 19 Inches
Shipping Height 33 Inches
Shipping Weight 31 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts warranty from original installation date, or up to 18 months from shipment date.

Documents

PDF Cutsheet PDF Download PDF Warranty-sink PDF Download

Frequently Asked Questions

The bowl measures 10 inches wide by 14 inches front-to-back by 10 inches deep.
Yes. This model has a 12-inch drainboard on the left side.
It is made with 18-gauge 304 stainless steel for the top, bowl, and back, plus a 20-gauge stainless steel apron.
No. The document lists the OFP-8-CWP overflow pipe and DTF4-12-CWP 4-inch wall-mount faucet with 12-inch spout as available accessories.
Yes, the sink is NSF listed.
