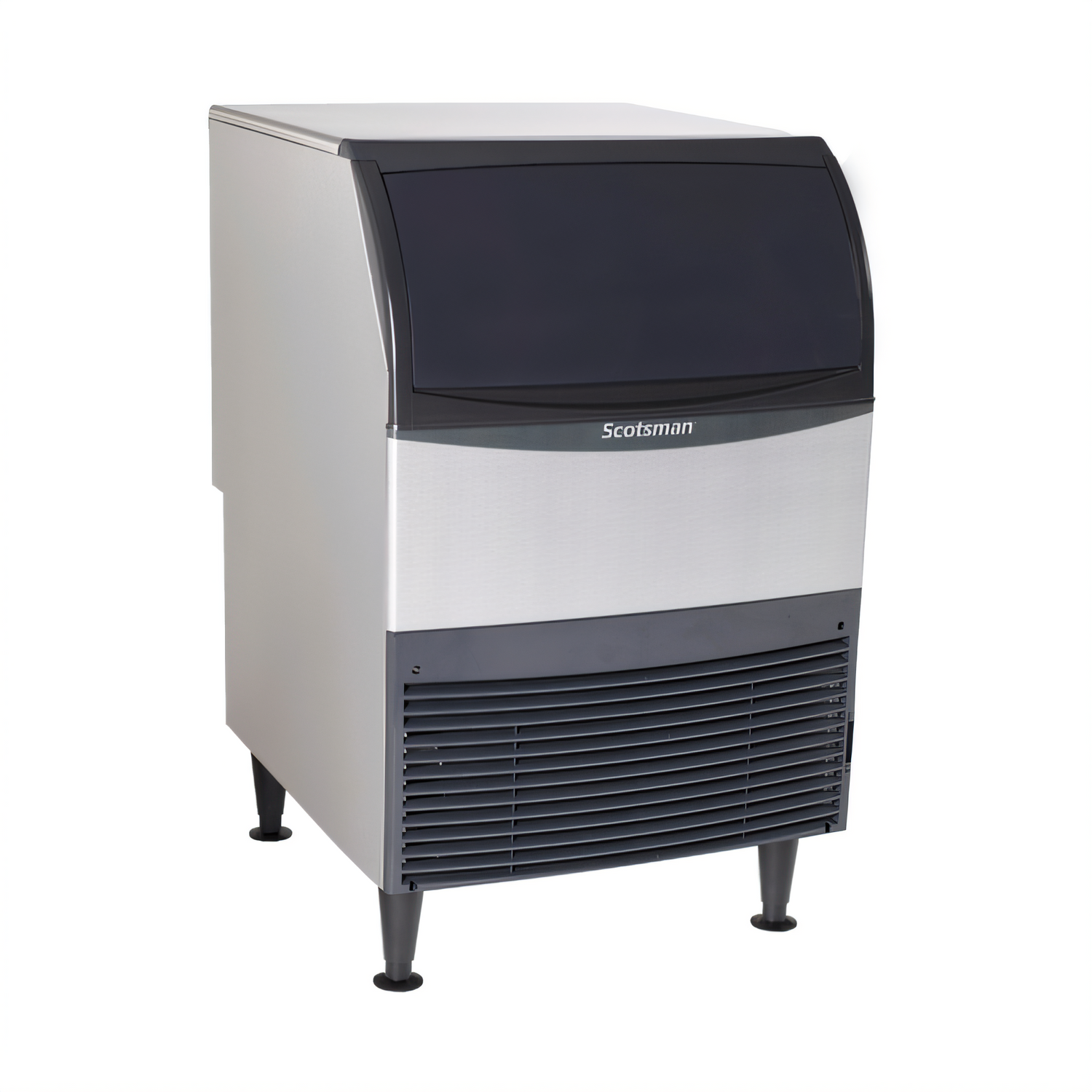

Scotsman UF424WX-1 24-Inch Water-Cooled Undercounter Flake Ice Maker with 80 lb Bin, 479 lb/Day Production
- Ice form
- Flake
- Condenser type
- Water-cooled, self-contained
- Production capacity
- Up to 479 lb per 24 hours at 70°F air / 50°F water; 360 lb per 24 hours AHRI certified at 90°F air / 70°F water
- Bin storage capacity
- 80 lb
- Electrical
- 115 V / 60 Hz / 1 phase
- Power cord
- 5.5 ft with NEMA 5-15P plug
Specifications
Description
The Scotsman UF424WX-1 is a self-contained, water-cooled undercounter flake ice maker with an 80 lb storage bin. It produces up to 479 lb of flake ice per 24 hours at 70°F air and 50°F water, with 360 lb per 24 hours AHRI-certified production at 90°F air and 70°F water.
The unit measures 24 inches wide and includes a stainless steel auger and evaporator, sealed maintenance-free bearings, a recessed utility chase, 6-inch adjustable legs, an ice scoop, and a 5.5-foot power cord with a NEMA 5-15P plug.
Overall Dimensions:
24.0"W x 28.5"D x 39.0"HProduct Weight:

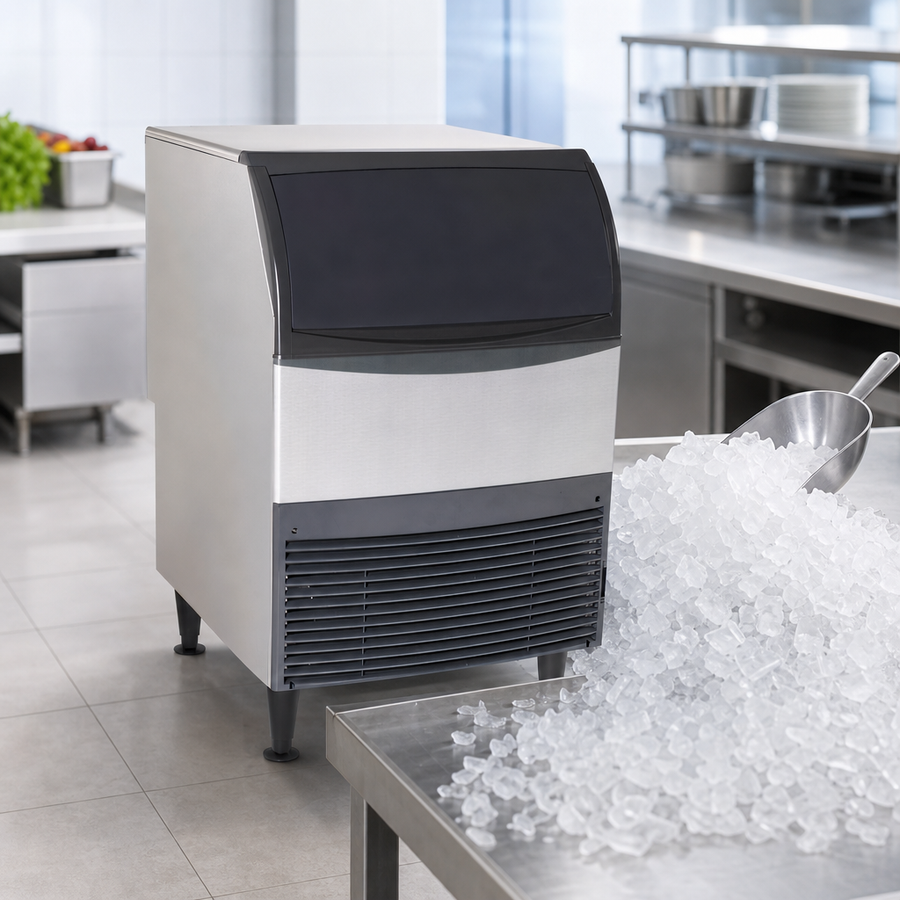

200.0 lbFlake ice production
Produces up to 479 lb of flake ice per 24 hours at 70°F air and 50°F water.
Water-cooled condenser
Uses a water-cooled, self-contained condenser configuration.
Integrated ice storage
Stores up to 80 lb of ice in the built-in bin.
Stainless steel ice-making components
Includes a stainless steel auger and evaporator.
Sealed maintenance-free bearings
Sealed bearings are included in the ice-making system.
Installation features
Includes a recessed utility chase, 6-inch adjustable legs, an ice scoop, and a 5.5-foot power cord with NEMA 5-15P plug.
Service information access
A unit-specific QR code provides access to service manuals and warranty history.
R290 refrigerant
Uses R290 refrigerant.
