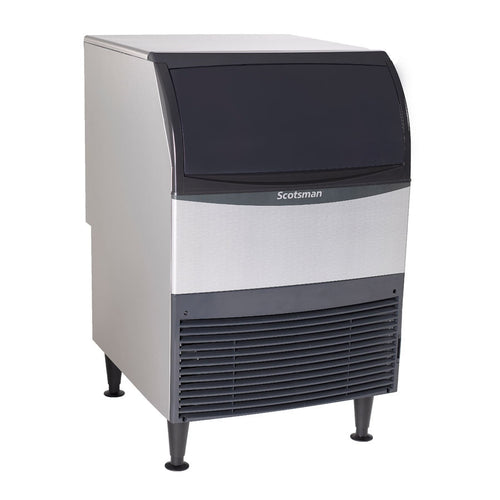

Scotsman UC2024SWX-1 24-Inch Undercounter Water-Cooled Small Cube Ice Machine with 80-lb Bin
- Condenser Type
- Water-cooled
- Cube Type
- Small cube; half size/half dice
- Production Capacity
- Up to 230 lb/24 hours at 70°F air and 50°F water; 176 lb/24 hours AHRI certified at 90°F air and 70°F water
- Bin Storage Capacity
- 80 lb
- Electrical Rating
- 115 V/60 Hz/1 ph
- Plug Type
- NEMA 5-15P
Specifications
Description
The Scotsman UC2024SWX-1 is a 24-inch undercounter ice machine with a water-cooled condenser, small-cube ice production, and an 80 lb storage bin.
It produces up to 230 lb of ice per 24 hours at 70°F air and 50°F water, with an AHRI-certified production rate of 176 lb per 24 hours at 90°F air and 70°F water.
- Front-breathing design requires no side clearance.
- Recessed utility chase supports tight installations.
- Includes an ice scoop, adjustable legs, and a 5.5 ft power cord with NEMA 5-15P plug.
- Uses R290 refrigerant and has an ENERGY STAR certification.
Overall Dimensions:
24.0"W x 28.5"D x 39.0"HProduct Weight:
150.0 lbWater-cooled condenser
Uses a water-cooled condenser for the UC2024SWX-1 configuration.
Small-cube ice
Produces small-cube ice; the cube type is identified as half size/half dice.
High production and storage
Produces up to 230 lb of ice per 24 hours at 70°F air and 50°F water and stores 80 lb.
Front-breathing design
Front-breathing vents allow placement without side clearance.
Recessed utility chase
The recessed utility chase provides clearance for tight installations.
Slide-back door
An ergonomic slide-back door provides access to ice in the bin.
Service access
A unit-specific QR code provides access to service manuals, cleaning guides, and warranty history.
Included installation items
Includes an ice scoop, 6-inch adjustable legs, and a 5.5 ft power cord with NEMA 5-15P plug.
R290 refrigerant
Uses non-ozone-depleting R290 refrigerant.
