Scotsman PRC241-32 Remote Outdoor Ice Machine Condenser, Galvanized Finish, -20°F to 120°F, 208-230V
- Product type
- Condenser unit
- Refrigeration type
- Remote refrigeration
- Condenser type
- Air-cooled remote condenser
- Installation
- Outdoor
- Operating temperature range
- -20°F to 120°F
- Finish
- Galvanized
Specifications
Description

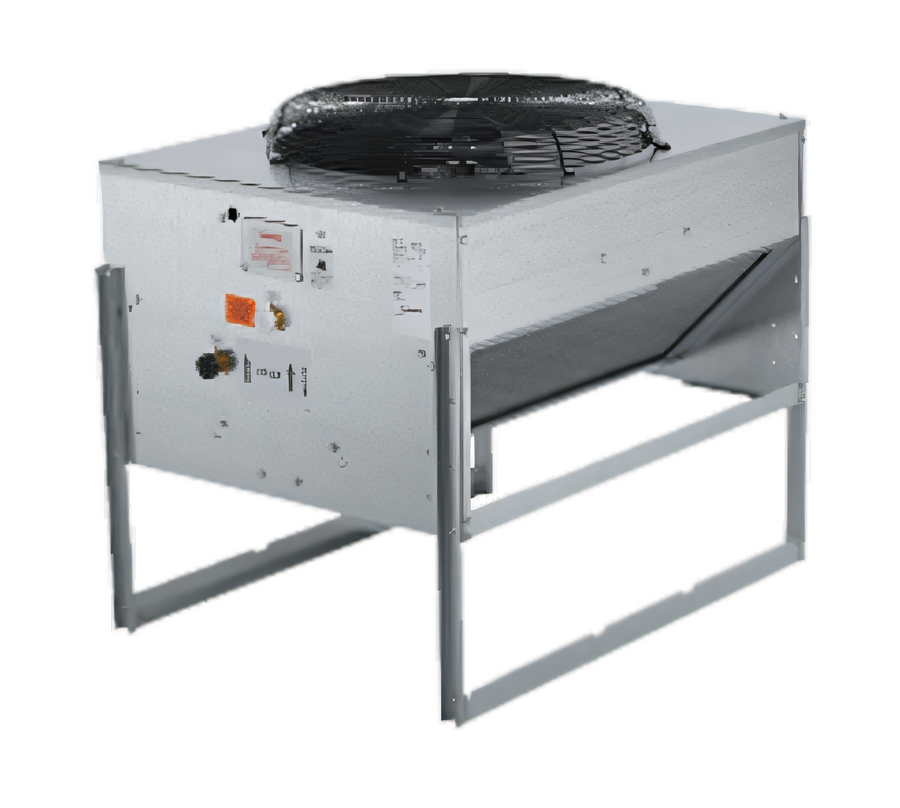

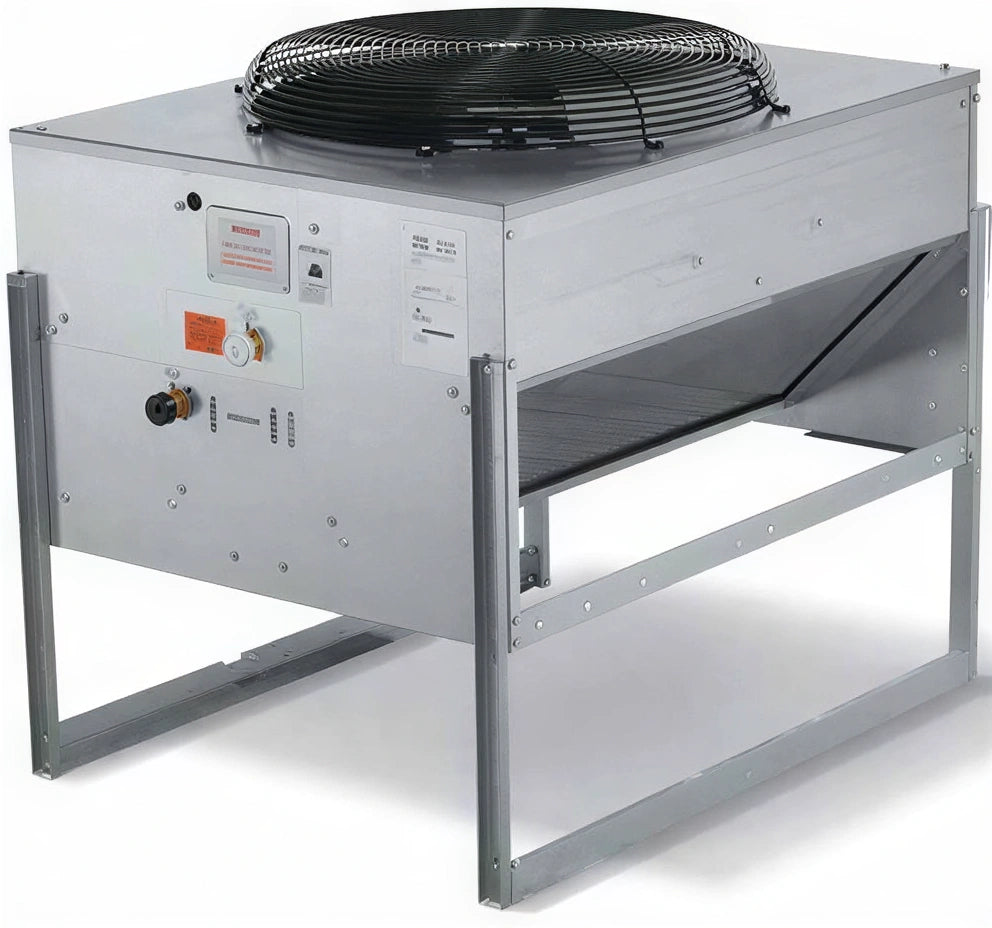

The Scotsman PRC241-32 is an air-cooled remote refrigeration condenser unit designed for outdoor installation and use with the C2648xR ice machine.
- Operates across an outdoor temperature range of -20°F to 120°F.
- Features a galvanized finish.
- Uses a 208-230 V, 60 Hz, single-phase electrical configuration.
- Has adjustable-height legs and a listed 1.9 A minimum circuit ampacity.
Overall Dimensions:
24.0"W x 39.0"D x 30.0"HProduct Weight:
135.0 lbRemote refrigeration
Air-cooled remote condenser unit designed to dissipate heat away from the connected ice machine.
Outdoor installation
Designed for outdoor installation.
Wide operating temperature range
Operates from -20°F to 120°F.
Galvanized finish
Galvanized finish for the condenser unit.
Electrical configuration
208-230 V, 60 Hz, single-phase configuration with a listed 1.9 A minimum circuit ampacity.
Adjustable-height legs
Includes adjustable-height legs with listed height settings of 12, 18, and 24 inches.
Headmaster
The PRC241-32 specification lists a headmaster as included.
Fan protection
The remote condenser series features thermally protected fan motors and PVC-coated steel fan guards.
