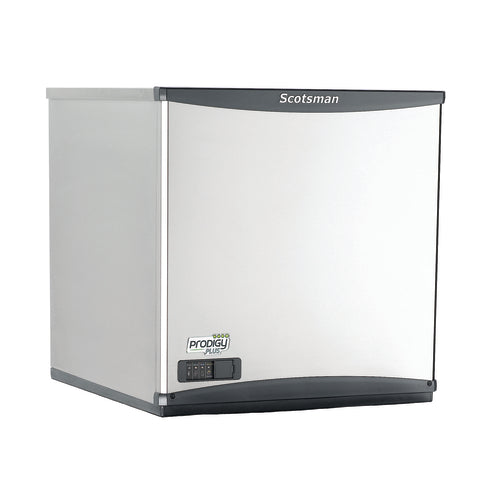

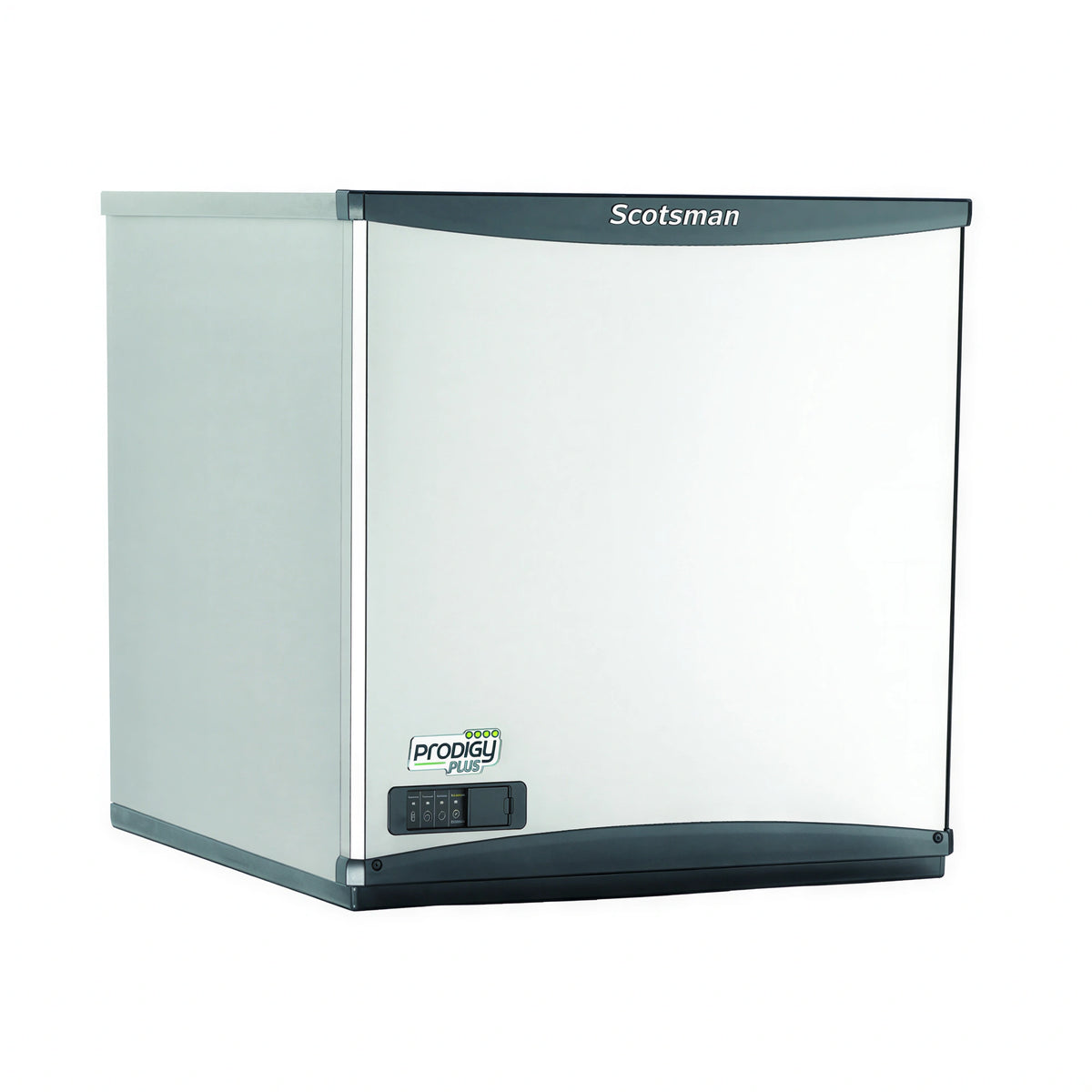

Scotsman Prodigy Plus FS0522WX-1 Self-Contained Water-Cooled Flake Ice Machine Head, 521 lb/24 Hour, 115V

Stainless Steel Finish, R290, 1-Phase

A compact modular flake ice machine head that produces up to 521 lb per day with water-cooled performance, sealed bearings, and easy cleaning features.

  • Produces up to 521 lb of flake ice per 24 hours, with a 386 lb AHRI certified rating at 90°F/70°F.
  • Water-cooled, self-contained refrigeration helps deliver dependable ice production.
  • Sealed, maintenance-free bearings reduce routine upkeep and eliminate greasing.
  • AutoAlert indicator lights and a unit-specific QR code simplify diagnostics and service access.
  • One-touch cleaning and AgION antimicrobial protection support easier sanitation.
  • Stainless steel evaporator, auger, and finish improve durability.
  • Uses R290 refrigerant and 115V single-phase power.

Overall Dimensions:

22.0"W x 24.0"D x 23.0"H

Product Weight:

173.0 lb

Water-Cooled, Self-Contained Refrigeration

Built-in refrigeration system with water-cooled condenser for dependable ice production.

Sealed, Maintenance-Free Bearings

Greaseless bearings help reduce preventative maintenance and support long machine life.

Stainless Steel Evaporator and Auger

Durable stainless steel ice-forming components are designed for long-term reliability.

AutoAlert Indicator Lights

Visible status lights help operators quickly identify service and cleaning needs.

Unit-Specific QR Code

Scan for access to service manuals, cleaning guides, and warranty history.

One-Touch Cleaning

Simplifies cleaning to help reduce labor and save time.

AgION Antimicrobial Protection

Built-in antimicrobial protection helps guard internal surfaces between cleanings.

R290 Refrigerant

Uses R290 refrigerant for modern refrigeration performance.

Type Flake Ice Machine
Style Modular
Refrigeration Type Self-Contained Refrigeration
Voltage 115 Volts
Amps 10.3 Amps
Breaker Size 15 Amps
Hertz 60 Hz
Phase 1-Phase
Controls Electronic
Capacity 521 lb per 24 Hours
BTU 5,000 BTU per Hour
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch Flare
Drain Connection Size 3/4 Inch FPT
Country of Origin USA
Shipping Width 25.5 Inches
Shipping Depth 27.5 Inches
Shipping Height 28.5 Inches
Shipping Weight 173 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on all components; 5 years parts on the compressor.

Documents

PDF Cutsheet PDF Download PDF Product presentation PDF Download PDF Sell sheet PDF Download PDF Warranty PDF Download PDF Parts list PDF Download PDF Flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It makes flake ice, which is soft and moldable and well suited for seafood and produce displays, salad bars, blended cocktails, labs, and therapeutic use.
It produces up to 521 lb per 24 hours at 70°F air and 50°F water, with a 386 lb AHRI certified rating at 90°F air and 70°F water.
The unit requires 115V/60Hz/1-phase power, with a 15 amp max fuse or HACR breaker and 10.3 minimum circuit ampacity.
The unit uses a 3/8 inch flare machine water inlet, a 3/8 inch FPT condenser water inlet, a 3/4 inch FPT drain, and a 1/2 inch FPT condenser drain.
It includes sealed maintenance-free bearings, AutoAlert indicator lights, one-touch cleaning, a unit-specific QR code, and AgION antimicrobial protection.
The commercial warranty is 3 years parts and labor on all components, with 5 years parts coverage on the compressor.
