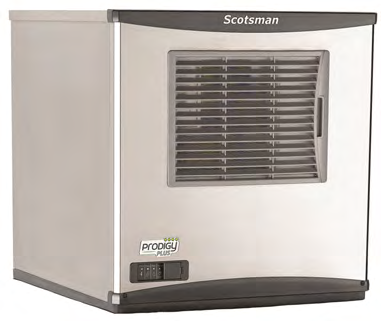

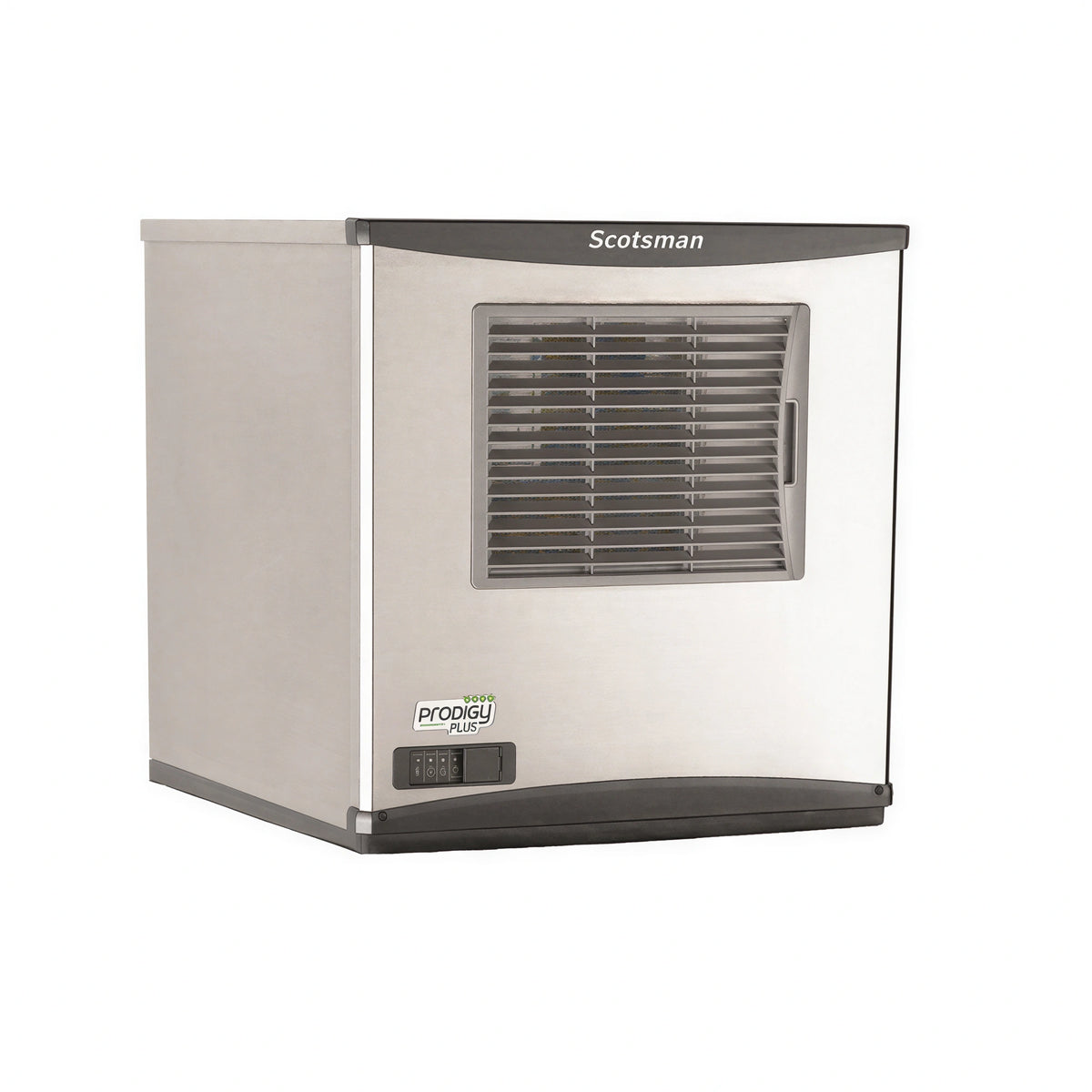

Scotsman Prodigy Plus FS0522AX-1 Modular Air-Cooled Flake Ice Machine, 450 lb/24 Hr, 115V

Self-Contained Condenser, Stainless Steel Finish, R290 Refrigerant

Compact, front-breathing flake ice production with easy service access, reliable components, and quick-clean sanitation features.

  • Produces up to 450 lb of flake ice per 24 hours; AHRI certified at 344 lb per 24 hours.
  • Air-cooled, self-contained design with a front-breathing layout for flexible placement.
  • Sealed, maintenance-free bearings help reduce preventative maintenance and extend service life.
  • AutoAlert indicator lights and a unit-specific QR code simplify diagnostics and service.
  • Front-mounted removable air filter and one-touch cleaning help speed up routine maintenance.
  • AgION antimicrobial protection helps guard internal surfaces between cleanings.

Overall Dimensions:

22.0"W x 24.0"D x 23.0"H

Product Weight:

173.0 lb

Sealed Maintenance-Free Bearings

Greaseless, sealed bearings reduce routine maintenance and support long machine life.

Stainless Steel Evaporator And Auger

Durable stainless steel components are built for reliable ice production and long-term wear resistance.

AutoAlert Indicator Lights

Visible status lights help operators quickly identify maintenance and operational issues.

Unit-Specific QR Code

Provides quick access to service manuals, cleaning guides, parts information, and warranty history.

Front-Facing Removable Air Filter

The front-located filter is easy to remove, rinse, and reuse for simpler maintenance.

One-Touch Cleaning

Designed to streamline cleaning and sanitation tasks while reducing labor time.

AgION Antimicrobial Protection

Antimicrobial protection is molded into key internal surfaces to help inhibit microbial growth between cleanings.

Front-Breathing Air-Cooled Design

Front-breathing airflow requires no side clearance, helping with flexible installation placement.

R290 Refrigerant

Uses R290 refrigerant in the refrigeration system.

Type Modular Flake Ice Machine
Style Air-Cooled
Refrigeration Type Self-Contained
Capacity 450 lb per 24 Hours
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 11.1 Amps
Breaker Size 15 Amps
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290
BTU 5,000 BTU per Hour
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch Flare
Drain Connection Size 3/4 Inch FPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Energy Consumption 3.60 kWh per 100 lb
Water Usage 12.0 Gallons per 100 lb
Refrigerant Charge 6.0 oz
Circuit Wires 2
Shipping Width 25.5 Inches
Shipping Depth 27.5 Inches
Shipping Height 28.5 Inches
Shipping Weight 173 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on all components; 5 years parts on the compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Flyer PDF Download PDF Parts list PDF Download PDF Sell sheet PDF Download PDF Installation manual PDF Download PDF Product presentation PDF Download

Frequently Asked Questions

This model produces up to 450 lb of flake ice per 24 hours at 70°F air and 50°F water, and it is AHRI certified at 344 lb per 24 hours at 90°F air and 70°F water.
Yes. The FS0522AX-1 is an air-cooled model with a self-contained condenser.
The unit requires 115/60/1 power, with a maximum fuse or HACR breaker size of 15 amps and a minimum circuit ampacity of 11.1 amps.
The documentation shows a 3/8 inch flare machine water inlet and a 3/4 inch FPT drain connection.
Key maintenance features include sealed maintenance-free bearings, AutoAlert indicator lights, a front-facing removable air filter, one-touch cleaning, and a unit-specific QR code.
The warranty summary is 3 years parts and labor on all components and 5 years parts on the compressor for commercial installations; residential applications receive 1 year parts and labor.
