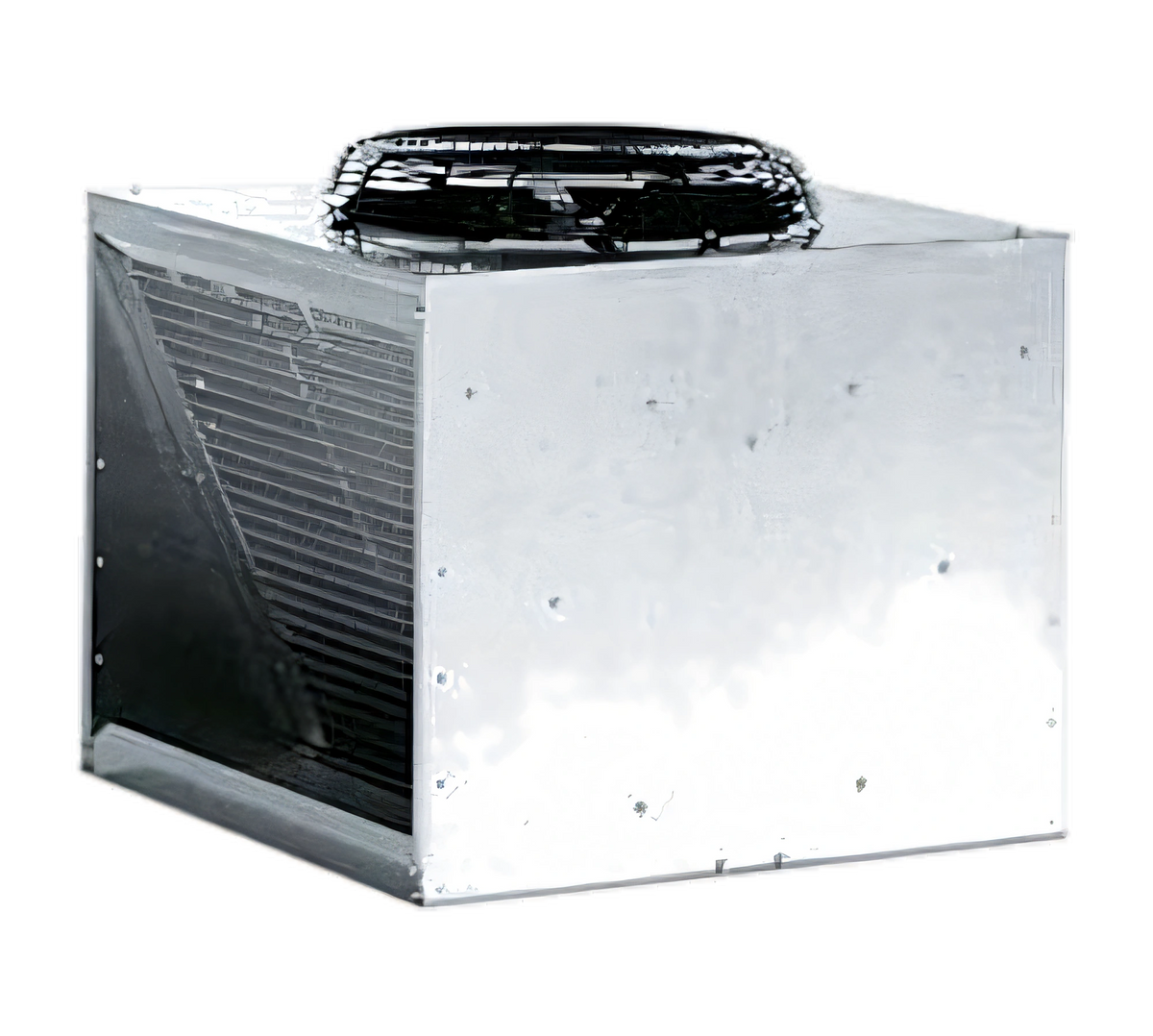

Scotsman ERC311-32 Outdoor Remote Refrigeration Condenser Unit, Galvanized, 208-230V, 1-Phase
$1,414.00
/each
Ships in 4–7 business days
- Phase
- 1 phase
- Dimensions
- 30.0"W × 29.0"D × 39.0"H
- Product Type
- Remote refrigeration condenser
- Condenser Type
- Air-cooled remote
- Installation
- Outdoor
- Operating Temperature Range
- -20°F to 120°F
Specifications
Product Type
Remote refrigeration condenser
Condenser Type
Air-cooled remote
Installation
Outdoor
Operating Temperature Range
-20°F to 120°F
Finish
Galvanized
Voltage
208-230 V
Frequency
50/60 Hz
Phase
1 phase
Current
1.25 A
Circuit Wires
2
Headmaster
Yes
Compatible Ice Machine Models
MC0630xR-32, MC0830xR, MC1030xR, MC1448xR, C0630xR, C0830xR, C1030xR, C1448xR
Certification
cULus
Description
The Scotsman ERC311-32 is a remote refrigeration condenser designed for outdoor installation.
- Operates in temperatures from -20°F to 120°F.
- Has a galvanized finish.
- Uses 208-230 V, 50/60 Hz, single-phase power at 1.25 A.
- Specified for use with select Scotsman remote ice machines.
Overall Dimensions:
30.0"W x 29.0"D x 39.0"HProduct Weight:
130.0 lbOutdoor installation
Designed for outdoor installation.
Operating temperature range
Operates from -20°F to 120°F.
Galvanized finish
The condenser has a galvanized finish.
Electrical configuration
Uses 208-230 V, 50/60 Hz, single-phase power and is rated at 1.25 A.
Headmaster
The product specifications list a headmaster as included.
Compatible ice machines
Specified for use with MC0630xR-32, MC0830xR, MC1030xR, MC1448xR, C0630xR, C0830xR, C1030xR, and C1448xR.
Documentation
Frequently Asked Questions
Yes. It is designed for outdoor installation.
The specified operating range is -20°F to 120°F.
It uses 208-230 V, 50/60 Hz, single-phase power and is rated at 1.25 A.
It is specified for use with MC0630xR-32, MC0830xR, MC1030xR, MC1448xR, C0630xR, C0830xR, C1030xR, and C1448xR.
The condenser has a galvanized finish.
Yes. The product specifications list a headmaster as included.
