Scotsman Eclipse® ECC1800-3 Air-Cooled Remote Condensing Unit for Prodigy Plus Eclipse Ice Makers, 1775 lb/24 Hr, 208-230V 3-Phase
- Product Type
- Air-cooled remote condensing unit
- Compatible Ice Maker
- Prodigy Plus® Eclipse® ice maker
- Listed Ice Production
- 1,775 lb/24 hours at 70°F air/50°F water with EH430SL-1; 1,600 lb/24 hours at 90°F air/70°F water
- Electrical
- 208-230/60/3-phase
- Minimum Circuit Ampacity
- 19 A
- Maximum Fuse or HACR Circuit Breaker
- 30 A
Specifications
Description

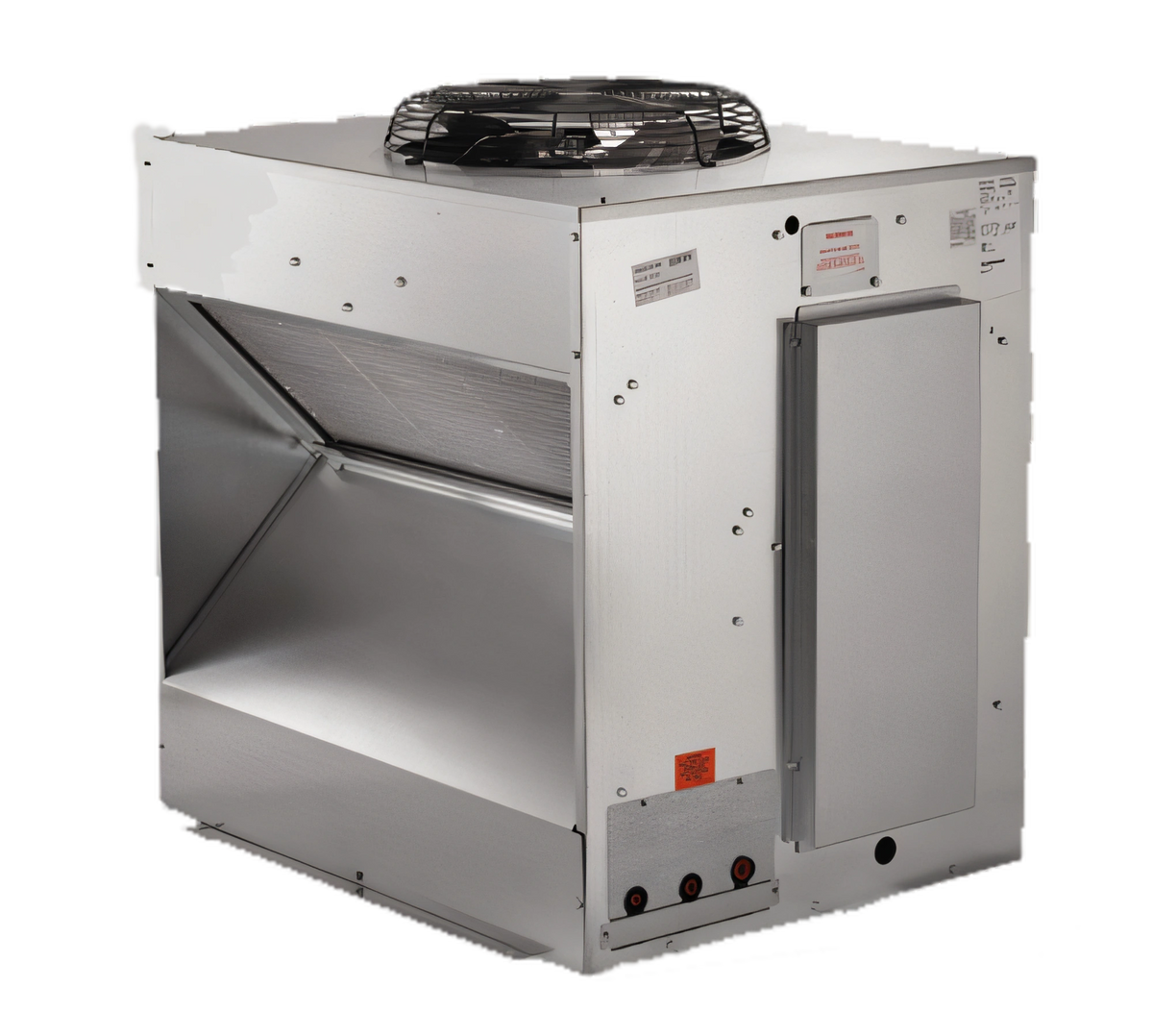

The Scotsman ECC1800-3 is an air-cooled remote condensing unit dedicated to Prodigy Plus® Eclipse® ice makers.
When paired with the EH430SL-1 modular ice head, it is listed for 1,775 lb of ice production per 24 hours at 70°F air and 50°F water.
The unit uses a one-piece design, supports 208-230/60/3-phase electrical service, and is rated for outdoor temperatures from -20°F to 120°F.
Overall Dimensions:
39.09"W x 32.06"D x 39.75"HProduct Weight:
310.0 lbRemote heat dissipation
Dissipates heat away from the ice machine to maximize ice production and minimize air-conditioning load.
One-piece design
The one-piece design makes installation and service easier.
Energy-efficient components
Components are designed to save on utility costs.
Corrosion resistance
The unit is designed with improved corrosion resistance.
Outdoor operating range
Able to operate in outdoor temperatures from -20°F to 120°F.
Quiet operation
Designed to allow quiet operation in dining and working environments.
Ice-machine control
The unit is designed to be controlled by the connected ice machine.
